Dell Isilon/PowerScale Activity Auditing Configuration

Dell Isilon/PowerScale can be configured to audit Server Message Block (SMB) and NFS protocol access events on the Dell Isilon/PowerScale cluster. All audit data can be forwarded to the Dell Common Event Enabler (CEE). The Activity Monitor listens for all events coming through the Dell CEE and translates all relevant information into entries in the log files or syslog messages.

Protocol auditing must be enabled and then configured on a per-access zone basis. For example, all SMB protocol events on a particular access zone can be audited, while only attempts to delete files on a different access zone can be audited.

The audit events are logged and stored on the individual OneFS nodes where the SMB/NFS client initiated the activity. The stored events are then forwarded by the node to the Dell CEE instance or concurrently to several instances. At this point, Dell CEE forwards the audit event to a defined endpoint, such as Activity Monitor agent.

Complete the following checklist prior to configuring Activity Monitor to monitor the host. Instructions for each item of the checklist are detailed within the following sections.

Checklist Item 1: Plan Deployment

• Prior to beginning the deployment, gather the following:

  • DNS name of Isilon/PowerScale CIFS share(s) to be monitored

  • Access Zone(s) containing the CIFS shares to be monitored

  • Account with access to the OneFS UI or CLI

  • Download the Dell CEE from:

    • https://www.dell.com/support/home/en-us/

RECOMMENDED: You can achieve higher throughput and fault tolerance by monitoring the Isilon/PowerScale cluster with more than one pair of Dell CEE and Activity Monitor Agent. The activity will be evenly distributed between the pairs.

Checklist Item 2: Install Dell CEE

• Dell CEE should be installed on a Windows or a Linux server.

  RECOMMENDED: Dell CEE can be installed on the same server as the Activity Agent, or on a different Windows or Linux server. If CEE is installed on the same server, the Activity Agent can configure it automatically.

• Important:

  • Dell CEE 8.8 is the minimum supported version. It is recommended to use the latest available version.
  • Dell CEE requires .NET Framework 3.5 to be installed on the Windows server

Checklist Item 3: Configure Auditing on the Dell Isilon/PowerScale Cluster

• Select method:

  • RECOMMENDED: Allow the Activity Monitor to configure auditing automatically.

    • Automation completed while the Activity Monitor is configured to monitor the Isilon/PowerScale device
    • Automatically sets CEE Server with the IP Address of the server where CEE is installed
    • Automatically sets Storage Cluster Name to exactly match the name known to the Activity Monitor
    • Choose between monitoring all Access Zones or scoping to specific Access Zones

  • Manually Configure Auditing in OneFS

    • After configuration, add the Isilon/PowerScale device to be monitored by the Activity Monitor

• Important:

  • Value of the Storage Cluster Name field must exactly match the name entered for the monitored host in the Activity Monitor Console. If the Storage Cluster Name cannot be modified (for example, another 3rd party depends on it), you need to set the Host Aliases parameter in the Activity Monitor Console. Otherwise, if for some reason the Storage Cluster Name must be left empty, one can list OneFS cluster node names in the Host Aliases.

    • If the Storage Cluster Name is not empty, set the Host Aliases parameter to its value
    • If the Storage Cluster Name is empty, set the Host Aliases to a semicolon-separated list of OneFS node names

  • Include all Access Zones to be monitored in the auditing configuration

  • As soon as the first CEE is installed, Isilon/PowerScale will start to send all activity, including all previous audit events, to the agent. The start time can be modified to exclude previously recorded audit events to prevent the agent from becoming overloaded with data. It can be done using OneFS CLI only with isi audit modify command to edit the start time.

    • Start time command:

      isi audit settings global modify --cee-log-time [Protocol@2021-04-23 14:00:00]

    • View progress:

      isi_for_array isi audit progress view

    • See the Audit log time adjustment section of the Dell File System Auditing with Dell PowerScale and Dell Common Event Enabler documentation for additional information.

Checklist Item 4: Configure Dell CEE to Forward Events to the Activity Agent. See the Validate Setup topic for additional information.

Install Dell CEE

Dell CEE should be installed on a Windows or a Linux server. The Dell CEE software is not a Netwrix product. Dell customers have a support account with Dell to access the download.

Remember, the latest version is the recommended version of Dell CEE.

RECOMMENDED: The Dell CEE package can be installed on the Windows server where the Activity Monitor agent will be deployed (recommended) or on any other Windows or Linux server.

Follow the steps to install the Dell CEE.

Step 1 – Obtain the latest CEE install package from Dell and any additional license required for this component. It is recommended to use the most current version.

Step 2 – Follow the instructions in the Dell Using the Common Event Enabler on Windows Platforms guide to install and configure the CEE. The installation will add two services to the machine:

• EMC Checker Service (Display Name: EMC CAVA)
• EMC CEE Monitor (Display Name: EMC CEE Monitor)

RECOMMENDED: The latest version of .NET Framework and Dell CEE is recommended to use with the asynchronous bulk delivery (VCAPS) feature.

After installation, open MS-RPC ports between the Dell device and the Dell CEE server. See the Dell CEE Debug Logs section for information on troubleshooting issues related to Dell CEE.

Configure Dell Registry Key Settings

There may be situations when Dell CEE needs to be installed on a different Windows server than the one where the Activity Monitor activity agent is deployed. In those cases it is necessary to manually set the Dell CEE registry key to forward events.

Step 1 – Open the Registry Editor (run regedit).

Step 2 – Navigate to following location:

HKEY_LOCAL_MACHINE\SOFTWARE\EMC\CEE\CEPP\AUDIT\Configuration

Step 3 – Right-click on Enabled and select Modify. The Edit DWORD Value window opens.

Step 4 – In the Value data field, enter the value of 1. Click OK, and the Edit DWORD Value window closes.

Step 5 – Right-click on EndPoint and select Modify. The Edit String window opens.

Step 6 – In the Value data field, enter the StealthAUDIT value with the IP Address for the Windows proxy server hosting the Activity Monitor activity agent. Use the following format:

StealthAUDIT@[IP ADDRESS]

Examples:

StealthAUDIT@192.168.30.15

Step 7 – Click OK. The Edit String window closes. Registry Editor can be closed.

Step 8 – Open Services (run services.msc). Start or Restart the EMC CEE Monitor service.

The Dell CEE registry key is now properly configured to forward event to the Activity Monitor activity agent.

Manually Configure Auditing in OneFS

Manual configuration for auditing is optional for newer versions as the Activity Agent can configure the auditing automatically using the OneFS API. Follow the steps through the OneFS Storage Administration Console.

Step 1 – Navigate to the Cluster Management tab, and select Auditing.

Step 2 – In the Settings section, check the Enable Protocol Access Auditing box.

Step 3 – In the Audited Zones section, add at least one zone to be audited. The System zone is typically used. If the CIFS or NFS shares are accessible through different zones on the OneFS cluster, include all relevant zones.

Ensure that OneFS collects only events you are interested in. By default, OneFS may monitor things like directory reads, which can take up a large amount of space. Configuring the OneFS events that need monitoring is not done through the Activity Monitor console. Configure OneFS event monitoring using OneFS CLI with the isi audit modify command for each access zone. Enabling monitoring for only what is needed for the environment will reduce the data load to the agent.

Activity Monitor monitors the following events: close_file_modified, close_file_unmodified, create_file, create_directory, delete_file, delete_directory, rename_file, rename_directory, set_security_file, set_security_directory, and open_directory (if you want to monitor Directory List/Read events).

For each monitored access zone:

• Use isi audit settings view isi --zone ZONENAME to check current settings.

• Disable reporting of failure and syslog audit events with:

  isi audit settings modify --zone ZONENAME --clear-audit-failure --clear-syslog-audit-events

• Set the success audit events with:

  isi audit settings modify --zone ZONENAME --audit-success=close_file_modified,close_file_unmodified,create_file,create_directory,delete_file,delete_directory,rename_file,rename_directory,set_security_file,set_security_directory

Step 4 – In the Event Forwarding section, add the CEE Server URI value for the Windows or Linux server hosting CEE. Use either of the following format:

http://[IP ADDRESS]:[PORT]/cee

http://[SERVER Name]:[PORT]/cee

RECOMMENDED: When deploying multiple Dell CEE instances at scale, it is recommended that an accommodating agent must be configured with each CEE instance. If multiple CEE instances send events to just one agent, it may create an overflow of data and overload the agent. Distributing the activity stream into pairs will be the most efficient way of monitoring large data sets at scale.

Step 5 – Also in the Event Forwarding section, set the Storage Cluster Name value. It must be an exact match to the name which is entered in the Activity Monitor for the Monitored Host list.

This name is used as a ‘tag’ on all events coming through the CEE. This name must exactly match what is in the Activity Monitor or it does not recognize the events.

RECOMMENDED: Use the CIFS DNS name for Dell OneFS.

NOTE: To use the Activity Monitor with Enterprise Auditor for Activity Auditing (FSAC) scans, the name entered here must exactly match what is used for Enterprise Auditor as a target host.

If the Storage Cluster Name cannot be modified (for example, another third-party depends on it), you need to set the Host Aliases parameter in the Activity Monitor Console:

• If the Storage Cluster Name is not empty, set the Host Aliases parameter to its value
• If the Storage Cluster Name is empty, set the Host Aliases to a semicolon-separated list of OneFS node names

Next, it is time to configure the monitoring agent on the Windows server to monitor the Isilon/PowerScale device.

Dell Isilon/PowerScale Target Requirements

Netwrix Enterprise Auditor can execute Access Auditing (FSAA) and/or Sensitive Data Discovery Auditing scans on Dell Isilon/PowerScale devices. The Netwrix Activity Monitor can be configured to monitor activity on Dell Isilon/PowerScale devices and make the event data available for Enterprise Auditor Activity Auditing (FSAC) scans.

Access & Sensitive Data Auditing Permissions

The credentials used by the Enterprise Auditor scans must have the following permissions on the target host:

• Group membership in the local Administrators group – LOCAL:System Provider

• Rights on the actual file tree or to the IFS root share

  • Share Permissions:

    • Read access

These permissions grant the credential the ability to enumerate shares, access the remote registry, and bypass NTFS security on folders. The credential used within the assigned Connection Profile for these target hosts requires these permissions. See the topic for instructions.

NOTE: These permissions are in addition to those needed to either deploy applet scans for running scans in proxy mode with applet or installing the File System Proxy Service Permissions for running scans in proxy mode as a service. See the File System Scan Options topic for additional information.

Additional Sensitive Data Discovery Auditing Permission

In order to execute scoped Sensitive Data Discovery Auditing scans, the credential must also have the LOCAL:System provider selected in each access zone in which the shares to be scanned reside.

The credential must have an Authentication Provider configured for the Isilon/PowerScale device. For example, if the credential is an Active Directory account, then the domain where the account resides must be an Active Directory Authentication Provider. This is configured in the OneFS® Storage Administration Console. Navigate to the Access tab, and select Authentication Providers.

Local Administrator Group Membership for Isilon

Follow the steps assign membership in the local Administrators group through the OneFS Storage Administration Console.

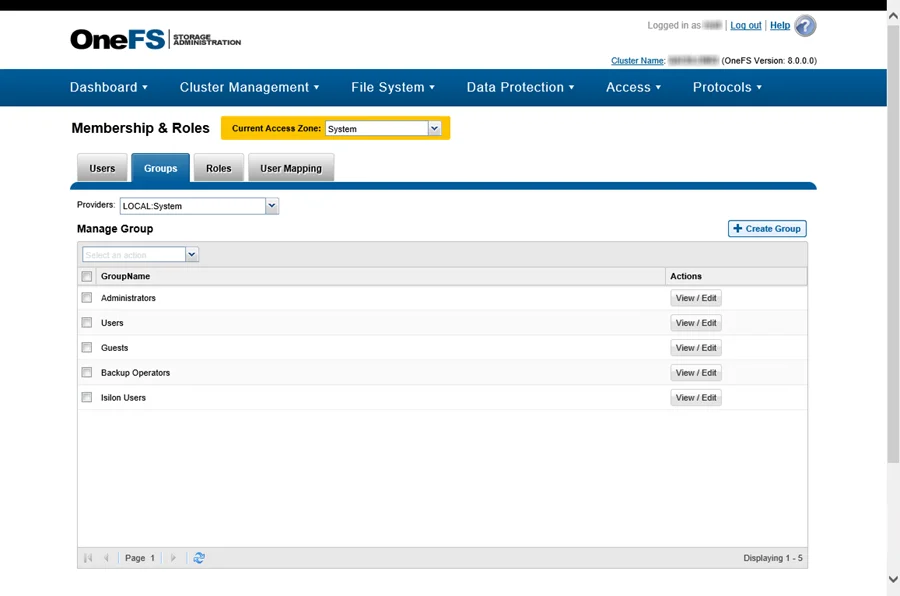

Step 1 – Navigate to the Access tab, and select Membership & Roles for the System Access Zone.

Step 2 – On the Groups tab, set the Providers to LOCAL: System. Then select View / Edit for the Administrators group. The View Group Details window opens.

Step 3 – Click Edit Group and the Edit Group window opens. Click Add Members, and enter the User Name and Provider in the Select a User window. Click Select, and then click Save Changes. The Edit Group window closes.

Step 4 – Click Close. The View Group Details window closes.

Share permissions can now be granted to this credential.

BackupAdmin Role Assignment for OneFS

Follow the steps to assign the credential to the BackupAdmin role through OneFS Storage Administration Console.

Step 1 – Navigate to the Access tab > Membership & Roles for the System Access Zone.

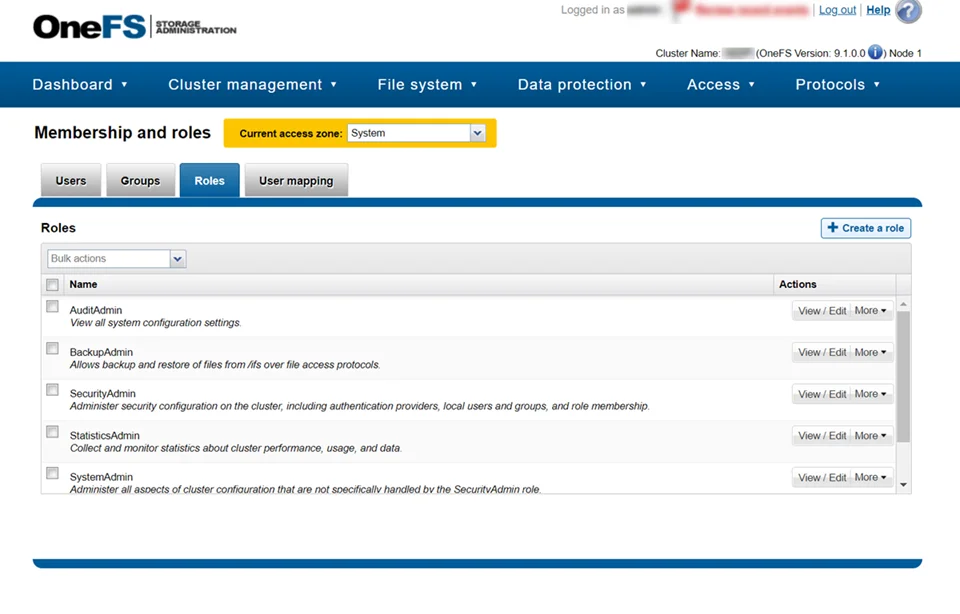

Step 2 – On the Roles tab, select View / Edit for the BackupAdmin role. The View Role Details window opens.

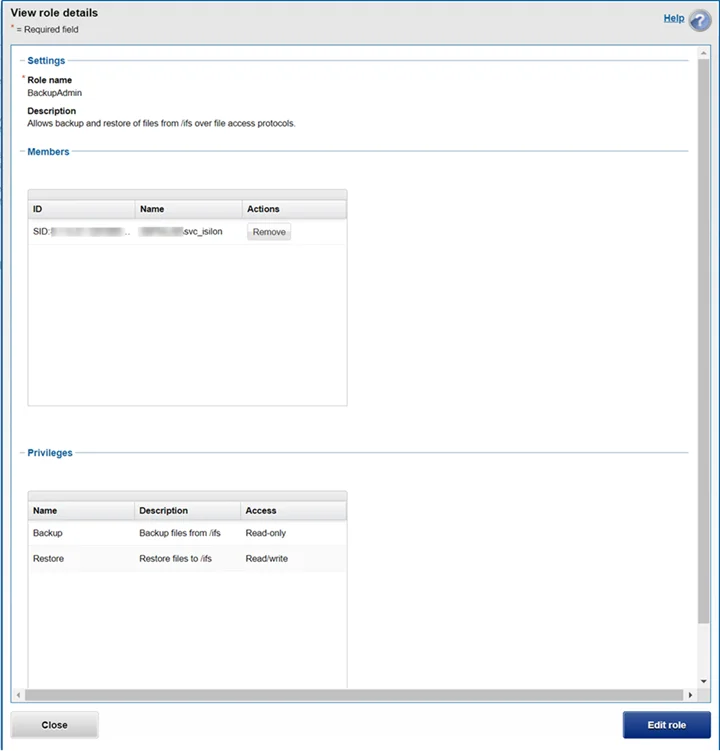

Step 3 – Click Edit role and the Edit role details window opens.

Step 4 – Click Add a member to this role.

Step 5 – Enter the User Name and Provider in the Select a User window then click Search. The user appears in the Search Results table.

Step 6 – Click Select and the Edit role window closes.

Step 7 – Click Save Changes and the successful save notification appears.

Step 8 – Click Close.

The View role details window closes.

NFS Export Scan Requirements for Isilon/PowerScale

Enterprise Auditor supports scanning Isilon/PowerScale NFSv3 exports. The following settings need to be configured in OneFS for the Enterprise Auditor server's IP address for each Isilon/PowerScale NFS export to be scanned.

The Enterprise Auditor server IP needs to be added to the following fields in each NFS export's settings, in the OneFS UI under Protocols > UNIX sharing (NFS) > View/Edit > Edit export (per NFS export):

• Always read-only clients
• Root Clients

The NFS export to be scanned also needs to be configured so root squash is disabled, which is performed in the same Edit export menu as the above settings.

Step 1 – Navigate to the export's Root user mapping settings.

Step 2 – Select Map root users to a specified user.

Step 3 – Set both User and Group to 0 (effectively mapping root client UID/GID to 0).

Both of these steps need to be performed in each NFS export's settings that a user would like to scan.

Troubleshooting NFSv3 Export Access

If Enterprise Auditor is not discovering the expected NFS export, it is possible that the export policy is not properly configured to allow the Enterprise Auditor server or proxy server IP Address to mount the NFS export. One step in troubleshooting this issue is to confirm a Unix client (or WSL for Windows) in the same IP range as the Enterprise Auditor server or proxy server can mount the NFS export.

Run the following command from a Unix host to verify the NFS mount is available:

showmount ‑e[NFS_HOSTNAME_OR_IP]

If the NFS export is returned as a result of the previous command, then Enterprise Auditor should also be able to mount it.

Access & Sensitive Data Auditing Port Requirements

The firewall ports required by Enterprise Auditor for Access Auditing (FSAA) and/or Sensitive Data Discovery Auditing scans are based on the File System scan mode to be used. See the File System Scan Options topic for additional information.

Activity Auditing Permissions

Windows Proxy Server for Activity Agent Monitoring of Dell Isilon/PowerScale

The Netwrix Activity Monitor must have an Activity Agent deployed on a Windows proxy server. While actively monitoring, the Activity Agent generates activity log files stored on the proxy server. The credential used to deploy the Activity Agent must have the following permissions on the proxy server:

• Membership in the local Administrators group
• READ and WRITE access to the archive location for Archiving feature only

It is also necessary to enable the Remote Registry Service on the Activity Agent server.

For integration between the Activity Monitor and Enterprise Auditor, the credential used by Enterprise Auditor to read the activity log files must have also have this permission.

Dell Isilon/PowerScale Requirements

Additionally, the EMC Common Event Enabler (CEE) should be installed on the Windows proxy server, where the activity agent is deployed.

RECOMMENDED: Use the latest available CEE version from the Dell Support website.

EMC CEE requires .NET Framework 3.5 to be installed on the Windows proxy server in order for the EMC CEE service to start.

See the Dell Isilon/PowerScale Activity Auditing Configuration topic for instructions.

Activity Monitor Archive Location

If the activity log files are being archived, configurable within the Netwrix Activity Monitor Console, then the credential used by Enterprise Auditor to read the activity log files must also have READ and WRITE permissions on the archive location.

Activity Auditing Port Requirements

Firewall settings depend on the type of environment being targeted. The following firewall settings are required for communication between the Agent server and the Netwrix Activity Monitor Console:

Communication Direction	Protocol	Ports	Description
Activity Monitor to Agent Server	TCP	4498	Agent Communication

The Windows firewall rules need to be configured on the Windows server, which require certain inbound rules be created if the scans are running in applet mode. These scans operate over a default port range, which cannot be specified via an inbound rule. For more information, see the Microsoft Connecting to WMI on a Remote Computer article.

Additional Firewall Rules for Dell Isilon/PowerScale Devices

The following firewall settings are required for communication between the CEE server/ Activity Monitor Activity Agent server and the target Dell Isilon/PowerScale device:

Communication Direction	Protocol	Ports	Description
Dell Isilon/PowerScale to CEE Server	TCP	TCP 12228	CEE Communication
CEE Server to Activity Agent Server (when not same server)	TCP	RPC Dynamic Range	CEE Event Data

Additional Firewall Rules for Integration between Enterprise Auditor and Activity Monitor

Firewall settings are dependent upon the type of environment being targeted. The following firewall settings are required for communication between the agent server and the Enterprise Auditor Console:

Communication Direction	Protocol	Ports	Description
Enterprise Auditor to Agent Server	TCP	445	SMB, used for Agent Deployment
Enterprise Auditor to Agent Server	TCP	Predefined	WMI, used for Agent Deployment

Validate Setup

Once the Activity Monitor agent is configured to monitor the Dell device, the automated configuration must be validated to ensure events are being monitored.

Validate Dell CEE Registry Key Settings

After the Activity Monitor activity agent has been configured to monitor the Dell device, it will configure the Dell CEE automatically if it is installed on the same server as the agent. This needs to be set manually in the rare situations where it is necessary for the Dell CEE to be installed on a different server than the Windows proxy server(s) where the Activity Monitor activity agent is deployed.

If the monitoring agent is not registering events, validate that the EndPoint is accurately set. Open the Registry Editor (run regedit). For the synchronous real-time delivery mode (AUDIT), use the following steps.

Step 1 – Navigate to the following windows registry key:

HKEY_LOCAL_MACHINE\SOFTWARE\EMC\CEE\CEPP\Audit\Configuration

Step 2 – Ensure that the Enabled parameter is set to 1.

Step 3 – Ensure that the EndPoint parameter contains an address string for the Activity Monitor agent in the following formats:

• For the RPC protocol, StealthAUDIT@'ip-address-of-the-agent'

• For the HTTP protocol, StealthAUDIT@http://'ip-address-of-the-agent':'port'

NOTE: All protocol strings are case sensitive. The EndPoint parameter may also contain values for other applications, separated with semicolons.

Step 4 – If you changed any of the settings, restart the CEE Monitor service.

For Asynchronous Bulk Delivery Mode

For the asynchronous bulk delivery mode with a cadence based on a time period or a number of events (VCAPS), use the following steps.

Step 1 – Navigate to the following windows registry key:

HKEY_LOCAL_MACHINE\SOFTWARE\EMC\CEE\CEPP\VCAPS\Configuration

Step 2 – Ensure that the Enabled parameter is set to 1.

Step 3 – Ensure that the EndPoint parameter contains an address string for the Activity Monitor agent in the following formats:

• For the RPC protocol, StealthVCAPS@'ip-address-of-the-agent'
• For the HTTP protocol, StealthVCAPS@http://'ip-address-of-the-agent':'port'

NOTE: All protocol strings are case sensitive. The EndPoint parameter may also contain values for other applications, separated with semicolons.

Step 4 – Ensure that the FeedInterval parameter is set to a value between 60 and 600; the MaxEventsPerFeed - between 10 and 10000.

Step 5 – If you changed any of the settings, restart the CEE Monitor service.

Set the following values under the Data column:

• Enabled – 1
• EndPoint – StealthAUDIT

If this is configured correctly, validate that the Dell CEE services are running. See the Validate Dell CEE Services are Running topic for additional information.

Validate Dell CEE Services are Running

After the Activity Monitor Activity Agent has been configured to monitor the Dell device, the Dell CEE services should be running. If the Activity Agent is not registering events and the EndPoint is set accurately, validate that the Dell CEE services are running. Open the Services (run services.msc).

The following services laid down by the Dell CEE installer should have Running as their status:

• Dell CAVA
• Dell CEE Monitor

Dell CEE Debug Logs

If an issue arises with communication between the Dell CEE and the Activity Monitor, the debug logs need to be enabled for troubleshooting purposes. Follow the steps.

Step 6 – In the Activity Monitor Console, change the Trace level value in the lower right corner to Trace.

Step 7 – In the Activity Monitor Console, select all Dell hosts from the Monitored Hosts list and Disable monitoring.

Step 8 – Download and install the Debug View tool from Microsoft on the CEE server:

http://docs.microsoft.com/en-us/sysinternals/downloads/debugview

Step 9 – Open the Registry Editor (run regedit). Navigate to following location:

HKEY_LOCAL_MACHINE\SOFTWARE\EMC\CEE\Configuration

Step 10 – Right-click on Debug and select Modify. The Edit DWORD Value window opens. In the Value data field, enter the value of 3F. Click OK, and the Edit DWORD Value window closes.

NOTE: If the Debug DWORD Value does not exist, it needs to be added.

Step 11 – Right-click on Verbose and select Modify. The Edit DWORD Value window opens. In the Value data field, enter the value of 3F. Click OK, and the Edit DWORD Value window closes.

NOTE: If the Verbose DWORD Value does not exist, it needs to be added.

Step 12 – Run the Debug View tool (from Microsoft). In the Capture menu, select the following:

• Capture Win32
• Capture Global Win32
• Capture Events

Step 13 – In the Activity Monitor Console, select all Dell hosts from the Monitored Hosts list and Enable monitoring.

Step 14 – Generate some file activity on the Dell device. Save the Debug View Log to a file.

Step 15 – Send the following logs to Netwrix Support:

• Debug View Log (from Dell Debug View tool)
• Use the Collect Logs button to collect debug logs from the activity agent

RECOMMENDED: After the logs have been gathered and sent to Netwrix Support, reset these configurations.

Linux CEE Debug Log

The debug log is stored in /opt/CEEPack/emc_cee_svc.log file. To enable verbose logging set Debug and Verbose parameters under Configuration to 255 and restart the CEE.

NOTE: Debug logs should only be used for troubleshooting purposes. It's recommended to have Debug Logs disabled by default.

...

<Configuration>

<CacheSize>100</CacheSize>

<Debug>255</Debug>

<HeartBeatIntervalSecs>10</HeartBeatIntervalSecs>

<InstrIntervalSecs>10</InstrIntervalSecs>

<NumberOfThreads>20</NumberOfThreads>

<Verbose>255</Verbose>

<HttpPort>12228</HttpPort>

<WatchDog>

<RestartCount>2</RestartCount>

<RestartDelay>5</RestartDelay>

<ResetRestartCountAfter>86400</ResetRestartCountAfter>

</WatchDog>

<LogFile>

<Path>/opt/CEEPack/</Path>

<MaxSize>100</MaxSize>

</LogFile>

</Configuration>

</CEEConfig>

NOTE: All protocol strings are case sensitive.
