Nutanix Appliance Access & Sensitive Data Auditing Configuration
The credentials used to run Enterprise Auditor scans on Nutanix appliances must have the Backup Admin: Backup Access only role assigned.
Nutanix Prism Central Interface
Follow the steps to configure the required account in the Nutanix Prism Central Interface.
Step 1 – Select the Home dropdown and select File Server.
Step 2 – On the file server page, under actions select Launch Files Console.
Step 3 – On the new files URL page, locate the Configuration dropdown and select Manage Roles.

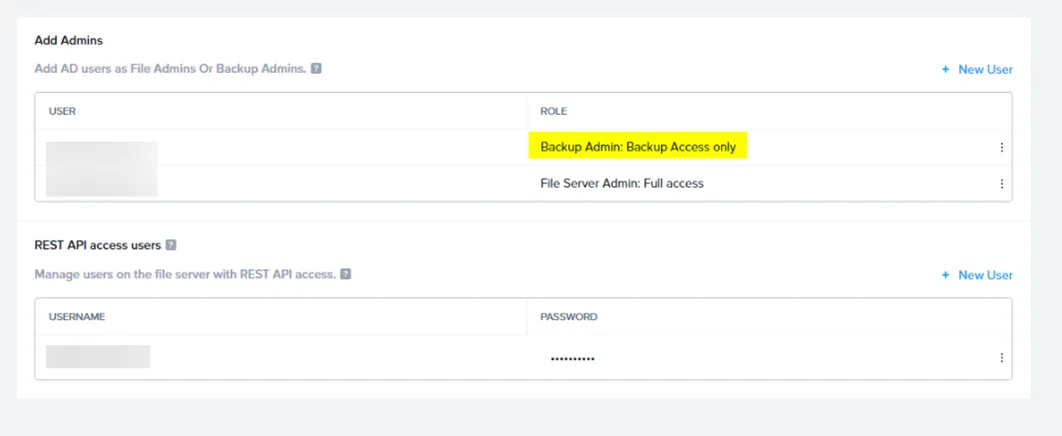

Step 4 – On the Manage Roles window, add an account with the Backup Admin: Backup Access only role.
This account must be used for running the Enterprise Auditor scans on Nutanix appliances.
Nutanix Activity Auditing Configuration
The Netwrix Activity Monitor can be configured to monitor activity on Nutanix devices.
A user having REST API access must be created on the Nutanix Files server to monitor the files server using Activity Monitor. Additional configurations are done by Activity Monitor with the help of this user. In the Nutanix Files server, select Configuration > Manage Roles. Under the REST API access users section, click New User to create a new user. Specify the username and the password.
NOTE: The user credentials created here are used when adding a Nutanix file server in Activity Monitor.
Nutanix Target Requirements
Netwrix Enterprise Auditor can execute Access Auditing (FSAA) and/or Sensitive Data Discovery Auditing scans on Nutanix Appliances. The Netwrix Activity Monitor can be configured to monitor activity on Nutanix Appliances and make the event data available for Enterprise Auditor Activity Auditing (FSAC) scans.
Access & Sensitive Data Auditing Permissions
The credentials used by the Enterprise Auditor scans must have the following permissions on the target host:
- Group membership in the role Backup Admin: Backup Access Only
See the Nutanix Appliance Access & Sensitive Data Auditing Configuration topic for additional information.
NOTE: These permissions are in addition to those needed to either deploy applet scans for running scans in proxy mode with applet or installing the File System Proxy Service Permissions for running scans in proxy mode as a service. See the File System Scan Options topic for additional information.
Access & Sensitive Data Auditing Port Requirements
The firewall ports required by Enterprise Auditor for Access Auditing (FSAA) and/or Sensitive Data Discovery Auditing scans are based on the File System scan mode to be used. See the File System Scan Options topic for additional information.
Activity Auditing Permissions
The Netwrix Activity Monitor can be configured to monitor activity on Nutanix devices. See the Nutanix Activity Auditing Configuration topic for instructions.
Activity Auditing Port Requirements
Firewall settings depend on the type of environment being targeted. The following firewall settings are required for communication between the Agent server and the Netwrix Activity Monitor Console:
| Communication Direction | Protocol | Ports | Description |
|---|---|---|---|
| Activity Monitor to Agent Server | TCP | 4498 | Agent Communication |
The Windows firewall rules need to be configured on the Windows server, which require certain inbound rules be created if the scans are running in applet mode. These scans operate over a default port range, which cannot be specified via an inbound rule. For more information, see the Microsoft Connecting to WMI on a Remote Computer article.
Additional Firewall Rules for Nutanix Appliances
The following firewall settings are required for communication between the Activity Monitor Activity Agent server and the target Nutanix device:
| Communication Direction | Protocol | Ports | Description |
|---|---|---|---|
| Activity Agent Server to Nutanix | TCP | 9440 | Nutanix API |
| Nutanix to Activity Agent Server | TCP | 4501 | Nutanix Event Reporting |
Protect the port with a username and password. The credentials will be configured in Nutanix.
Additional Firewall Rules for Integration between Enterprise Auditor and Activity Monitor
Firewall settings are dependent upon the type of environment being targeted. The following firewall settings are required for communication between the agent server and the Enterprise Auditor Console:
| Communication Direction | Protocol | Ports | Description |
|---|---|---|---|
| Enterprise Auditor to Agent Server | TCP | 445 | SMB, used for Agent Deployment |
| Enterprise Auditor to Agent Server | TCP | Predefined | WMI, used for Agent Deployment |
