AWS: Category

Use the Category page to select the type of scan for the targeted AWS instance or maintenance task to perform.

AWS Category page

The options on the Category page are:

  • AWS scan jobs

    • Collect Org data – Collects all organization info from an AWS instance
    • Collect IAM data – Collects all users, groups, and roles from an AWS instance
    • Collect S3 – Collects S3 data
    • Collect SDD data – Scans S3 objects for potentially sensitive data

  • Maintenance

    • Drop AWS DC Tables – Removes AWS data collector data and tables from the Enterprise Auditor database. See the Drop AWS Tables topic for additional information.

AWS: Criteria

The Criteria (Select DLP criteria for this scan) page is where criteria to be used for discovering sensitive data during a scan is configured. It is a wizard page for the category of Collect SDD Data.

This page requires the Sensitive Data Discovery Add-On to be been installed on the Enterprise Auditor Console to define the criteria and enable the Criteria Editor. See the Sensitive Data Discovery Add-On Installation topic for additional information.

AWS Query SDD Criteria

Default criteria is set at the Global Settings > Sensitive Data node. Choose between the Use Global Criteria Selection and the Use the Following Selected Criteria radio buttons.

For custom criteria, select the checkbox for the criteria to be used to search for sensitive data. There are Select All and Clear All buttons that can be used.

The table contains the following types of criteria:

  • System Criteria – Lists pre-defined criteria
  • User Criteria – Lists user-defined criteria

NOTE: Until the Sensitive Data Discovery Add-On is installed, only the headers for the System Criteria and User Criteria nodes are visible in the table.

User-defined criteria is created in the Criteria Editor, accessed through the Global Settings > Sensitive Data node. See the Sensitive Data Discovery Add-On topic for additional information.

Drop AWS Tables

Sometimes when troubleshooting an AWS issue, it becomes necessary to clear the AWS DC data and tables from the Enterprise Auditor database. Follow the steps to configure a job to remove tables.

Step 1 – Create a new job.

Step 2 – Configure the target host as Local host.

Step 3 – Assign a query using the AWS Data Collector.

Drop AWS DC Tables option on Amazon Web Services Data Collector Wizard Category page

Step 4 – In the Amazon Web Services Data Collector Wizard on the Category page, select the Drop AWS DC Tables category task. Click Next.

Step 5 – Click Next and then click Finish to close the Amazon Web Services Data Collector Wizard. Click OK to close the Query Properties window.

CAUTION: When the job is run, all of the AWS DC data and tables are removed from the database.

The job is now configured and ready to run.

NOTE: An AWS connection profile is not required for the Drop AWS DC Tables task.

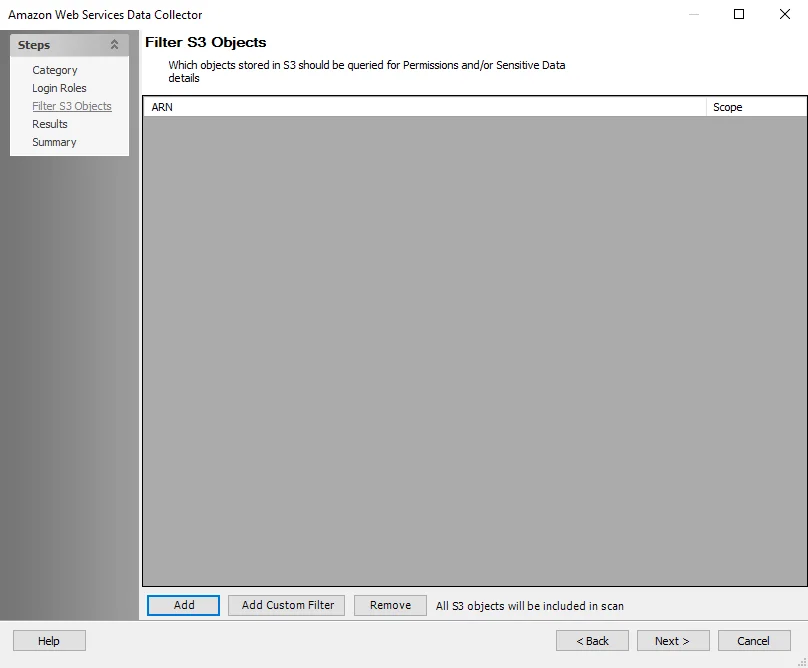

AWS: Filter S3 Objects

The Filter S3 Objects page provides the options to filter which objects stored in S3 should be queried for permissions and sensitive data. It is a wizard page for the categories of:

  • Collect S3
  • Collect SDD Data

Filter S3 Objects page

Use the buttons to customize the filter list:

  • Add – Opens the Select a bucket window. See the Add Filter topic for additional information.
  • Add Custom Filter – Create a custom filter. See the Add Custom Filter topic for additional information.
  • Remove – Remove a filter from the list

Add Filter​

The Select a Bucket window shows the available buckets in the AWS instance.

Select a bucket window

Select from the available buckets and click OK to add them to the Filter S3 Objects page.

Add Custom Filter​

The Add Custom Filter window allows a custom filter to be configured.

Add Custom Filter window

Configure a custom filter using the following format:

  • The characters * and ? are wildcards
    • * – matches any number of characters
    • ? – matches a single character
  • ARN should follow the format: arn:aws:s3:::<bucket_name>/<key_name>

Click Save to add the custom filter to the Filter S3 Objects page.

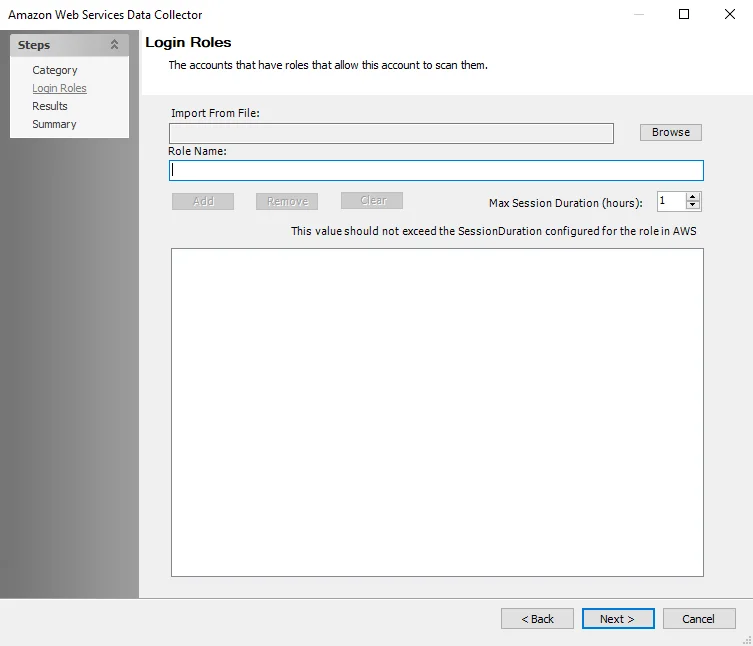

AWS: Login Roles

The Login Roles page is where the previously created AWS Roles are added. It is a wizard page for the categories of:

  • Collect Org data
  • Collect IAM data
  • Collect S3

AWS Query Login Roles

Add the login roles that will allow Enterprise Auditor to scan the AWS accounts. See the Configure AWS for Scans topic for additional information. The page has the following options:

  • Import From File – Browse to the location of a CSV file from which to import the roles
  • Role Name – Enter the name of the role
  • Add – Add the role from the Role Name textbox to the list
  • Remove – Remove the selected role from the list
  • Clear – Remove all roles from the list
  • Max Session Duration (hours) – Specify the maximum time the account can be logged in for. This value should not exceed the SessionDuration configured for the role in AWS. The default value is 1 and the maximum value is 12.

AWS Data Collector

The AWS Data Collector collects IAM users, groups, roles, and policies, as well as S3 permissions, content, and sensitive data from the target Amazon Web Services (AWS) accounts. The AWS Data Collector has been preconfigured for the AWS Solution. Both this data collector and the solution are available with a special Enterprise Auditor license. See the AWS Solution topic for additional information.

Protocols

  • 443

Ports

  • 443

Permissions

  • To collect details about the AWS Organization, the following permission is required:

    • organizations:DescribeOrganization

  • To collect details regarding IAM, the following permissions are required:

    • iam:GenerateCredentialReport
    • iam:GenerateServiceLastAccessedDetails
    • iam:Get*
    • iam:List*
    • iam:Simulate*
    • sts:GetAccessKeyInfo

  • To collect details related to S3 buckets and objects, the following permissions are required:

    • s3:Describe*
    • s3:Get*
    • s3:HeadBucket
    • s3:List*

Sensitive Data Discovery Considerations

The Sensitive Data Discovery Add-On must be installed on the Enterprise Auditor Console server, which enables Sensitive Data criteria for scans. If running Sensitive Data Discovery (SDD) scans, it will be necessary to increase the minimum amount of RAM. Each thread requires a minimum of 2 additional GB of RAM per host. For example, if the job is configured to scan 8 hosts at a time , then an extra 16 GB of RAM are required (8x2=16).

AWS Query Configuration​

The AWS Data Collector is configured through the Amazon Web Services Data Collector Wizard. The wizard contains the following pages, which change based up on the query category selected:

AWS: Results

The Results page is where properties that will be gathered are selected. It is a wizard page for all of the categories.

Results page

Properties can be checked individually or the Select All or Clear All buttons can be used. All checked properties are gathered. Available properties vary based on the category selected.

AWS: Sensitive Data Settings

The Sensitive Data Settings page is where sensitive data discovery settings are configured. It is a wizard page for the category of Collect SDD Data.

Sensitive Data Settings page

Configure the following options:

  • Don’t process files larger than: [number] MB – Limits the files to be scanned for sensitive content to only files smaller than the specified size

  • Include offline files (this may significantly increase scan times) – Includes offline files in the scan

  • Perform Optical Character Recognition for image files – Enables the data collector to scan for sensitive data within digital images of physical documents

    NOTE: The OCR option is intended to work for clear scanned physical documents or documents directly converted to images, with standard fonts. It will not work for scanning photos of documents and may not be able to recognize text on images of credit cards, driver's licenses, or other identity cards.

  • Store discovered sensitive data – Stores discovered sensitive data in the database

  • Limit stored matches per criteria to [number] – Limits database storage of matches per criteria for discovered sensitive data

  • Use the radio buttons to select the File types to scan:

    • Scan all file types – Scans everything in a given environment

    • Scan custom file types – Select the checkboxes from the list of file and document types that are included in a sensitive data scan. The table contains the following categories and their sub-options:

      • Compressed Archive files
      • Documents
      • Email
      • Image files
      • Presentations
      • Spreadsheets
      • Text/Markup files

  • Perform differential scan of – Enables you to choose whether to employ incremental scanning:

    • Files modified since last scan – Scans only files modified since the last scan
    • Files modified since [date] – Only scans files modified after the specified date
    • Files modified since the last [number] days – Scans files modified within the specified number of days

  • Number of SDD scan processes [number] – Increases the number of SDD scanner processes that spawn as part of a scan, increasing parallel scanning. The value should not exceed 2x the number of CPU threads available.

Remember, the sensitive data discovery options require the Sensitive Data Discovery Add-On to be been installed on the Enterprise Auditor Console.

AWS: Summary

The Summary page displays a summary of the configured query. It is a wizard page for all categories.

summary

Click Finish to save configuration changes. If no changes were made, it is a best practice to click Cancel to close the Amazon Web Services Data Collector Wizard to ensure that no accidental clicks are saved.
