Box: Activity Operation Scope

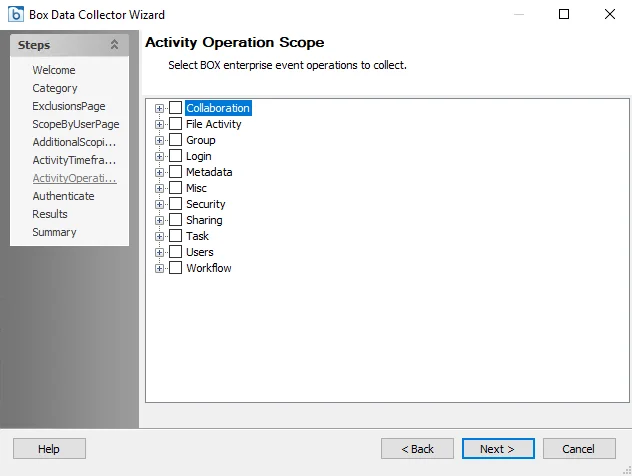

The Activity Operation Scope page (ActivityOperationScope) is where Box Enterprise events can be selected or unselected for scans. It is a wizard page for the Scan Box Activity category.

Event filters can be selected by group or the group may be expanded and the filters selected individually. All selected filters are gathered from the Box environment.

Event filters include:

• Collaboration
• File Activity
• Group
• Login
• Metadata
• Misc
• Security
• Sharing
• Task
• Users
• Workflow

Box: Activity Timeframe Scope

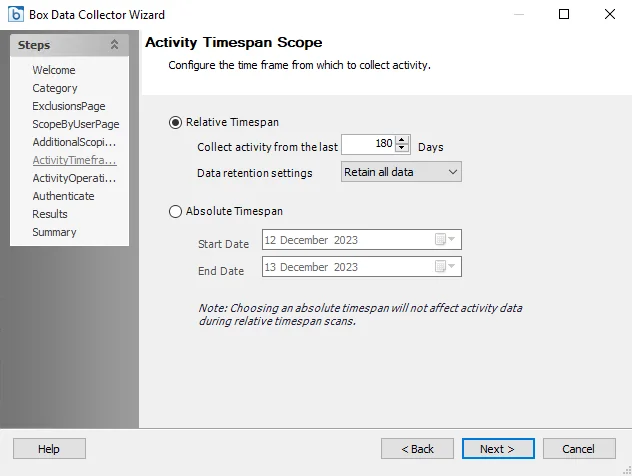

The Activity Timespan Scope page (ActivityTimeframeScope) is where Box activity data collection is configured. It is a wizard page for the Scan Box Activity category.

Select one of the following options to configure the timeframe for Box data collection:

• Relative Timespan – Collects activity from a set number of days relative to the present

  • Collect activity from the last [number] Days – Enter the number of days for which activity data collection is required. The default is 180. The maximum timespan is 365 days.

  • Data retention settings – Select a preferred retention setting

    • Within timespan – Deletes all data outside of the selected timespan
    • Retain all data – Retains all data collected inside or outside of the selected timespan

• Absolute Timespan – Enter the interval of days for which activity data collection is required. The default End Date is the current day.

  NOTE: Choosing an absolute timespan will not affect activity data during relative timespan scans.

Box: Additional Scoping

The Additional Scoping page is where the scan can be limited by depth of the scan. It is a wizard page for the Scan Box Permissions category.

Configure the scan depth level:

• Limit scanned depth to: [number] level – Select the checkbox and set the scan depth level to the desired depth. If this checkbox is not selected, then the entire Box environment will be scanned, according to the Box: Exclusions Page settings. If the scoping depth is set to 0 then only root will be scanned. Each increment will add another level of depth from root level.

Box: Authenticate

The Authenticate page is where connection to the Box environment is configured. It is a wizard page for all categories.

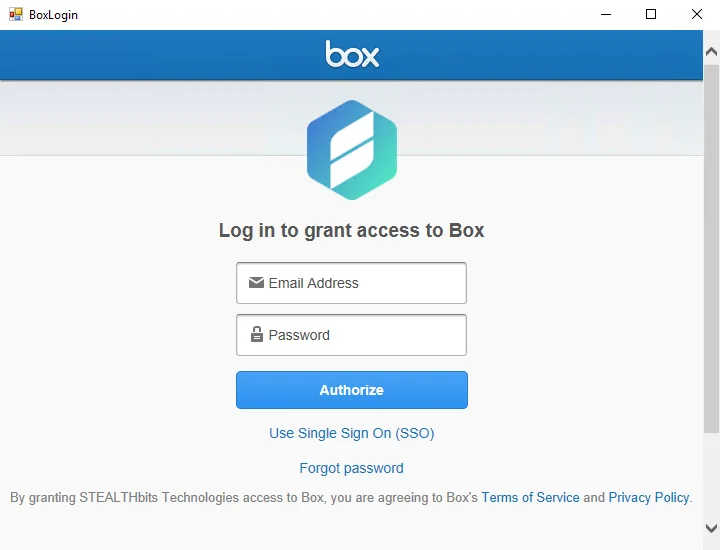

Click Authorize to launch the BoxLogin window and generate an authorization code. This code will allow Enterprise Auditor to report on the Box Enterprise.

Enter an email address and password for an account with Enterprise Admin credentials in the targeted Box environment. Then click Authorize to grant access to Box and generate the code. The Use Single Sign On (SSO) option is an alternative log in method.

Box: Category

Use the Category page to select the type of scan or import for the Box Enterprise targeted.

The Box Data Collector contains the following query categories:

• Box Activity Audit – Scan Box activity

  • Scan Box Activity – Performs an audit of Box activity
  • Bulk Import Box Activity – Performs a bulk import of Box activity

• Box Permission Audit – Scan Box permissions

  • Scan Box Permissions – Performs an audit for Box permissions
  • Import Box Permissions – Performs an import of Box permissions

Box: Exclusions Page

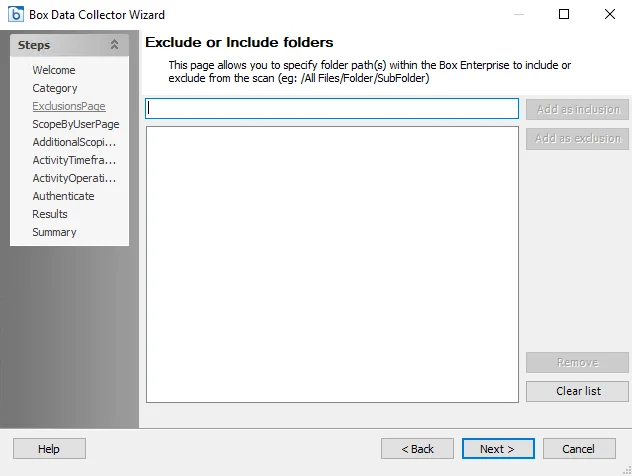

The Exclude or Include folders page (ExclusionsPage) is where the scan can be limited to include or to exclude folders within the Box Enterprise. It is a wizard page for of Scan Box Permissions category.

The options on the Exclusions Page are:

• Add as inclusion – Type the path of a folder in the text box to include in the scan. The folder path must not include a slash at the end.

  • Example format: /All Files/Folder/SubFolder
  • Incorrect format: /All Files/Folder/SubFolder/

• Add as exclusion – Type the path of a folder in the text box to exclude from the scan

The Remove option will delete a selected folder from the list. The Clear List option will remove all folders from the list.

Box Data Collector

The Box Data Collector audits access, group membership, and content within a Box enterprise.

NOTE: If the Box Data Collector is used in a new job, outside of the Box Solution, it is necessary to deselect the Skip Hosts that do not respond to PING option on the job’s Properties > Performance tab.

The Box Data Collector has been preconfigured within the Box Solution. Both this data collector and the solution are available with a special Enterprise Auditor license. See the Box Solution topic for additional information.

Protocols

• HTTP
• HTTPS

Ports

• TCP 80
• TCP 443

Permissions

• Box Enterprise Administrator

Box Query Configuration

The Box Data Collector is configured through the Box Data Collector Wizard. The wizard contains the following pages, which change based up on the query category selected:

• Welcome
• Box: Category
• Box: Exclusions Page
• Box: Scope by User Page
• Box: Additional Scoping
• Box: Activity Timeframe Scope
• Box: Activity Operation Scope
• Box: Authenticate
• Box: Results
• Box: Summary

The Welcome page gives an overview of the data collector. To proceed through the pages, click Next or use the Steps navigation pane to open another page in the wizard. Review the introductory and caution information about the Box Data Collector before proceeding.

The Welcome page can be hidden by checking the Do not display this page the next time box when the wizard is open and configuration settings are saved.

Box: Results

The Results page is where properties that will be gathered are selected. It is a wizard page for all categories.

Properties can be selected individually or the Select All or Clear All buttons can be used. All selected properties will be gathered. Available properties vary based on the category selected.

Box: Scope by User Page

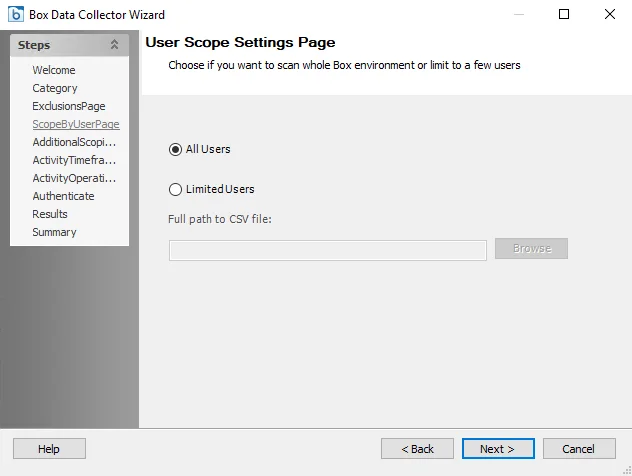

The User Scope Settings page (ScopeByUserPage) is where the scope of the scan can be limited to specified users and the resulting scan will only scan for the specified users. It is a wizard page for the Scan Box Permissions category.

Select whether to scan All Users or Limited Users. If scanning for Limited Users, click Browse and navigate to the path of the CSV file that contains the email addresses of users to be included in the scan. The CSV file should have one email address per row.

NOTE: The query will collect information related to User names and Group membership for all users in a target environment. However, if the query is scoped to specific users, no additional information is collected for users outside out of the scope. User names and group membership for the target environment is necessary to generate the Box Solution reports.

Standard Reference Tables & Views For the Box Data Collector

The Box Data Collector gathers essential user and group inventory information into standard reference tables. These tables and their associated views are outlined below:

Table	Details
SA_Box_Collaborations	Contains all of the trustees who have access on folders and defines the access type
SA_Box_Enterprises	Contains information on the enterprises within the Box environment
SA_Box_EventNames	Contains information on the names of events within the Box environment
SA_Box_Events	Contains information on the type of events within the Box environment
SA_Box_ExternalUsers	Contains one row per user and displays information on external users over the past 30 days
SA_Box_FileDetails	Contains one row per file and displays file-specific details
SA_Box_FolderDetails	Contains one row per folder and displays folder-specific details
SA_Box_GroupMembers	Contains unique row for each trustee per group and defines the access type of each member
SA_Box_Groups	Contains all of the enterprise-created groups and has a unique row for each group
SA_Box_Hosts	Contains the name and ID of all Box enterprises that have been scanned for permissions
SA_Box_Resources	Contains information about all audited resources, which can be files or folders. It contains a unique row per resource.
SA_Box_TaskStatus	Displays the tasks which have been completed and the corresponding USN value
SA_Box_Trustees	Contains basic information about all of the users and groups
SA_Box_UnusualUserActivity	Contains information about suspicious activity on user accounts
SA_Box_Users	Contains one row per user and displays information on users of any teams present

Views are the recommended way for Enterprise Auditor users to obtain the information gathered by the Box Data Collector. They contain additional information for building queries easily. The following is an explanation of the corresponding views created for some of the tables generated by the Box Data Collector:

Views	Details
SA_Box_CollaborationsView	Displays the collaborations applied to shared folders and the access type for the trustee
SA_Box_ExternalUsersView	Displays external user activity which has occurred over the past 30 days
SA_Box_GroupMembersView	Displays all of the users, which groups they are members of, and the access type on the group
SA_Box_ResourceEventsView	Displays all of the events, which users created it, the source of that event, and the name and type of event

Box: Summary

The Summary page is where configuration settings are summarized. It is a wizard page for all of the categories.

Click Finish to save configuration changes. If no changes were made, it is a best practice to click Cancel to close the Box Data Collector Wizard ensuring that no accidental clicks are saved.
