SQL: Filter

Use the Filter page to scope the query to target specific databases or instances. It is a wizard page for the categories of:

  • Permissions > Permissions Collection

  • Server Audits > Server Audit Events Collection

  • Sensitive Data > Sensitive Data Collection

  • Microsoft SQL Server:

    • Discovery
    • Custom SQL Query
    • Infrastructure
    • Operations
    • Utilities > Remove Storage Tables
    • Legacy Queries
  • Oracle:

    • Custom Oracle Query
    • Infrastructure
    • Operations
    • Utilities > Remove Storage Tables
  • MySQL:

    • Custom MySQL Query
    • Utilities > Remove Storage Tables
  • PostgreSQL:

    • Custom PostgreSQL Query
    • Utilities > Remove Storage Tables
  • Db2LUW:

    • Custom Db2LUW Query
    • Utilities > Remove Storage Tables
    • Db2LUW Permissions Scan
  • Utilities – Remove Storage Data

You must populate the SA_SQL_Instances table before available databases/instances can populate the Available Server audits list. For Oracle and SQL, Access Analyzer populates the SA_SQL_Instances table through an instance discovery query. See the 0-SQL_InstanceDiscovery Job topic for additional information. For PostgreSQL and MySQL Scans, you populate the SA_SQL_Instances table manually in the Manage Connections window. See the Manage Connections Window topic for additional information. After you populate the table, you can scope a query.

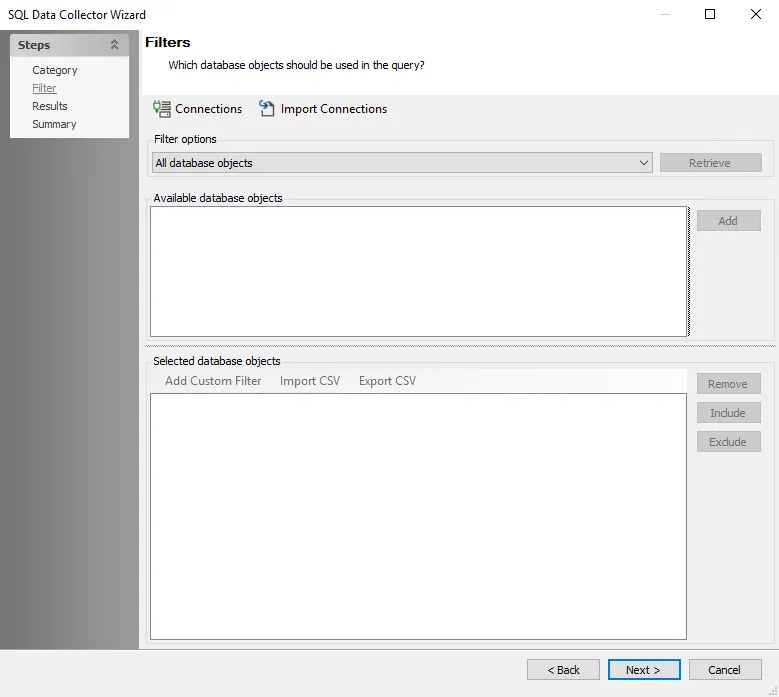

SQL Data Collector Wizard Filter page

The configurable filter options are:

  • Connections — Opens the Manage Connections window to add or modify database instances. See the Manage Connections Window topic for additional information.

  • Filter options

    • All database objects — No scoping

    • Only select database objects — Scope to specific databases

      • Click Retrieve to display available server audits
  • Available database objects — Displays known databases and instances for query scoping

    • Select from the available list and click Add
  • Selected databases or instances — Displays selected database objects scoped for the query. Additional options include:

    • Remove — Removes the selected database/instance from the query
    • Include — Reverts an exclusion. By default, all sub tables are included.
    • Exclude — Excludes selected databases/instances and displays them in red
    • Add Custom Filter — Opens the Add custom filter window to build a custom filter to apply to the selected databases/instances. See the Add Custom Filter Window topic for additional information.
    • Import CSV — Import a list of databases/instances from a CSV file
    • Export CSV — Exports the list of databases/instance to a CSV file through the Save As window

Manage Connections Window​

Use the Manage Connections window to add database instances to search. Click the Connections button to open it.

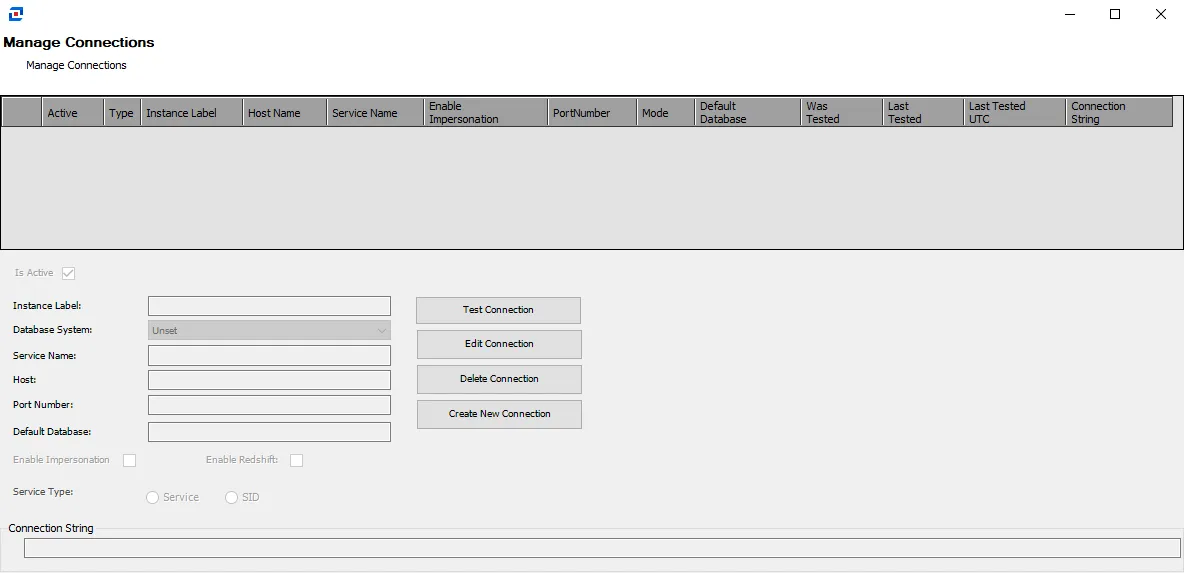

Manage Connections window

The Manage Connections table lists the previously added database instances and their attributes. Select a row in the table to edit that instance, or create a new instance to add to the table:

  • Is Active — Select the checkbox to include the database on the Servers Pane on the Filter page
  • Instance Label — The name of the server
  • Database System — Select from a list of available databases
  • Service Name — Name of the service
  • Host — Name or IP address of the host where the database is located
  • Port Number — Port number for the database. If you use a non-default port, specify it in the Port Number section.
  • Default Database — Account used to access the database. Admin is recommended.
  • Enable impersonation — Select to enable impersonation
  • Service Type— If applicable, select whether the service type is Service or SID

In the Manage Connections Table, the following information is also listed:

  • Was Inspected — Indicates whether Access Analyzer validated the connection information. Y indicates Access Analyzer validated the information. N indicates it hasn't.
  • Last Inspected — Indicates the date and time Access Analyzer last inspected the connection information. If blank, Access Analyzer hasn't validated the information yet.

The Manage Connections window has the following buttons:

  • Test Connection — Click to verify the connection to the database with the connection profile applied to the job group
  • Edit Connection — Click to edit information for the selected connection
  • Delete Connection — Click to delete the selected connection
  • Create New — Click to create a new connection

Add Custom Filter Window​

The Add custom filter window opens from the Filter page of the SQL Data Collector Wizard. It enables you to apply a custom scoping filter to the query.

Add custom filter window

Enter the filter in the window and click Save. You can use the following characters in the filter:

  • Forward slash (/) – Path separator
  • Asterisk (*) – Wild card for any combination of characters
  • Question mark (?) – Wild card for a single character

Use the following format to add a custom filter for a server:

  • SQL:

    [SQL Server Name]/[Host or IP Address]/[Database Name]/[TableName]

  • Oracle:

    [Oracle Server Name]/[Host or IP Address]/[Container Name]/[Schema]/[Table Name]

  • Azure SQL:

    [Azure SQL Server Name]/[Host or IP Address]/[Database Name]/[Table Name]

  • MySQL:

    [MySQL Server Name]/[Host or IP Address]/[DastabaseName]/[TableName]

  • PostgreSQL:

    [PostgreSQL Server Name]/[Host or IP Address]/[DastabaseName]/[Schema]/[TableName]

  • Db2:

    [Db2LUW Server Name]/[Host or IP Address]/[DastabaseName]/[TableName]
