Configure Node

Changes to configurations for the job’s assigned Host Lists, Queries, Analyses, Actions, and Reports are created through the [Job] > Configure node or through the Configure shortcut on the job’s Description page.

Configure Node
Configure NodeConfigure link on job description page

The sub-nodes under the [Job] > Configure node are:

  • Hosts Node – Assign a host list at the job level or manually add hosts to be targeted by the job
  • Queries Node – Select and configure a Access Analyzer data collector to scan targeted hosts
  • Analysis Node – Create and configure Analysis and Notification tasks for collected data
  • Actions Node – Create and configure Action tasks for taking action on collected and analyzed data
  • Reports Node – Create and configure Reports to be generated during job execution

Configure Page​

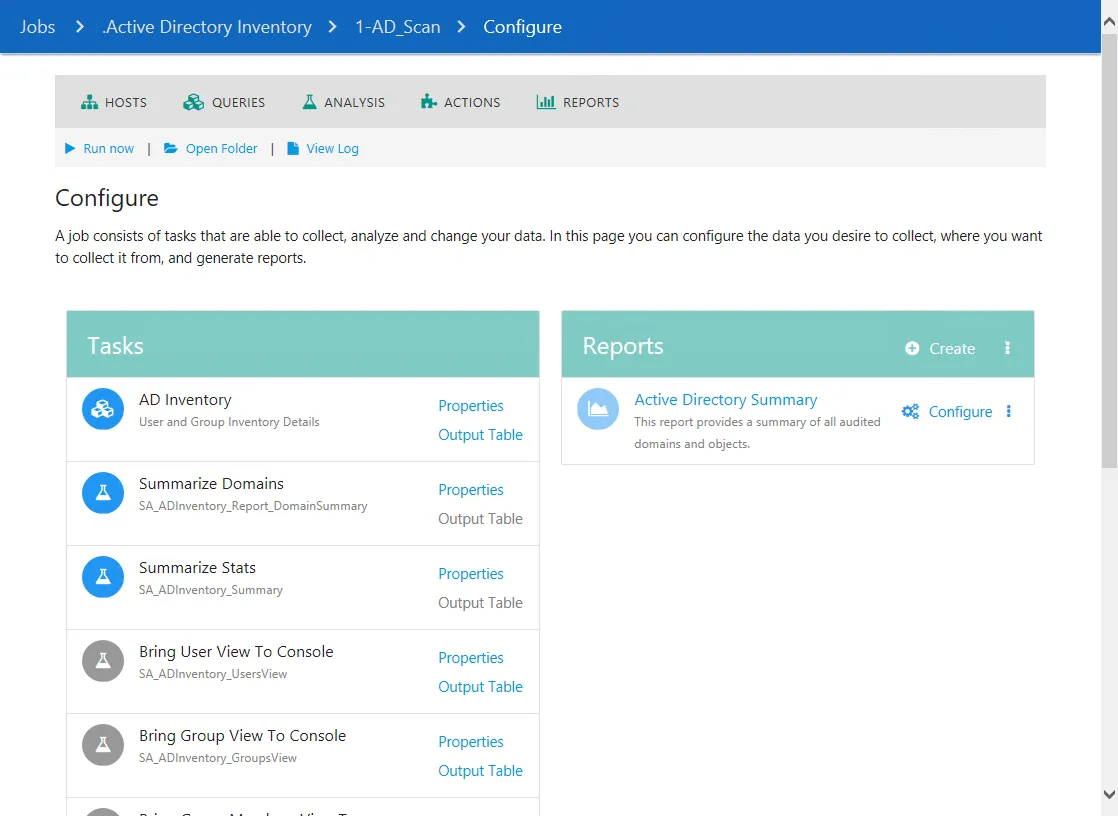

The job's Configure Page provides an overview with shortcuts for options that are configured in the job's Configure Node.

Configure page

The options on the Configure Page are:

  • Hosts - Navigates to the job's Hosts node
  • Queries - Navigates to the job's Queries node
  • Analysis - Navigates to the Analysis node
  • Actions - Navigates to the Actions node
  • Reports - Navigates to the Reports node
  • Run Now - Executes the job
  • Open Folder - Opens the job folder location with supporting files in the Windows Explorer
  • View Log - Opens the job’s log

The options in the Configure section are:

  • Tasks - If applicable, displays a list of the job's Queries, Analysis Tasks, and Action Modules

    • Click Properties to view the task's properties
    • Click Output Table to view the Results for the task under the Results Node

  • Hosts - Lists the assigned hosts for the job

  • Reports - If applicable, displays a list of the job's Reports
