Running Instances Node

The Running Instances node displays progress for all running jobs. This includes jobs that are run by a scheduled task, interactively within the open Access Analyzer instance, or interactively in any other running instance of Access Analyzer. The Running Instances node displays the instance name, its status and position in the queue, run times for all instances, and detailed views of each instance.

Running Instances node Overview page

This is the primary view of the Running Instances node that displays the progress of all jobs running.

Overview​

The Overview page displays information about all running jobs on the current server.

Overview page

For each instance this screen provides :

  • Job path
  • Credential used
  • Running time of the job
  • Status of the running job
  • Number of jobs scheduled in queue

It also has hyperlinks for:

  • Process ID
  • Host Name
  • Connection Profile
  • View Details
  • View Log
  • Stop
  • View Schedule

Clicking on any of the hyperlinks displays more information about the running job. The ProcessID, View Details, View Log, and Stop links only work while the job is running. Once the job is complete, these links are disabled. The host and Connection Profile links continue to work. The View Schedule link only displays and is valid for jobs that are running via a scheduled task and is not enabled for interactive job executions.

Number of jobs running on bottom bar

The number of jobs currently being run can be found in the lower-left-hand corner of the Access Analyzer Console.

View Host​

This view identifies the host list associated with the running job.

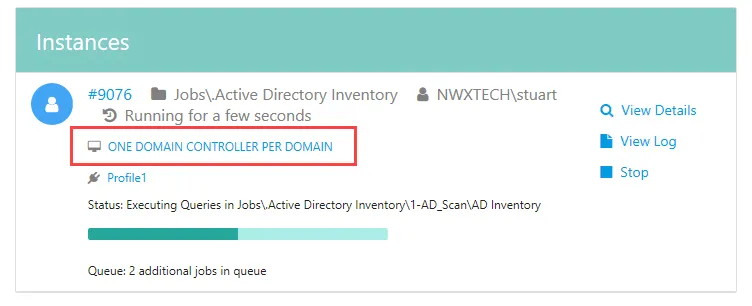

Host list link

Click the host list link to display the hosts assigned to the running job.

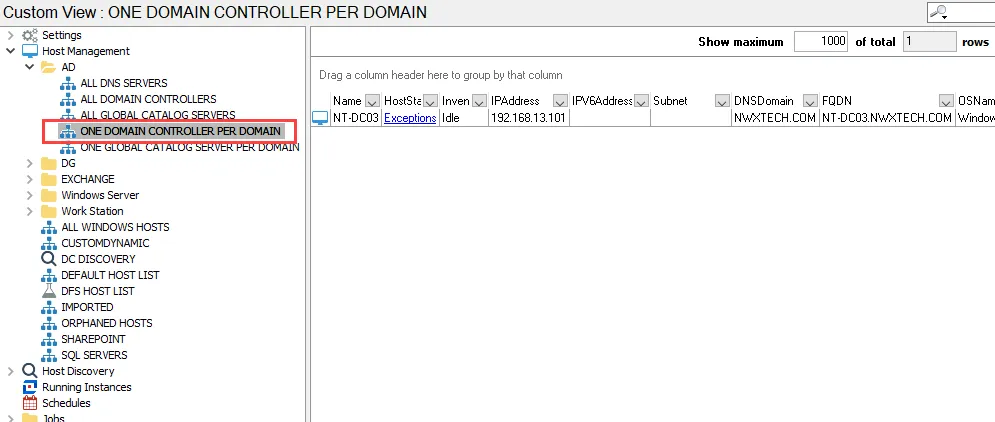

Host list in Host Management node

This view displays the host list table with host inventory data.

Process ID​

The Process ID correlates to the Process ID of the running instance of Access Analyzer in Task Manager. In addition, the Process ID comes coupled with the file path of associated scheduled tasks, an identifier for the account running the current instance of Access Analyzer, and a timestamp for the length of the instance.

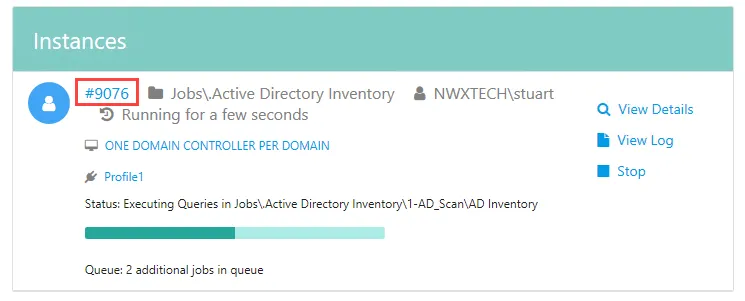

Process ID link

Click the Process ID link for additional details of the job status and queue.

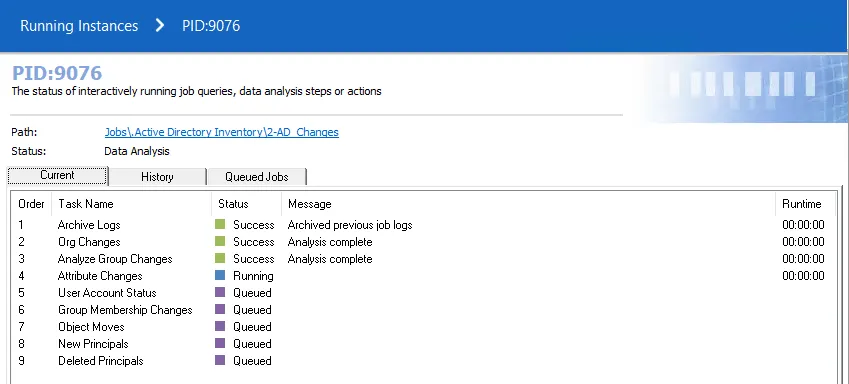

Job details page

The Process ID link displays a page with three tabs of information with details about the running job. See the Running Job Details topic for additional information.

View Details​

Additional details on the status of the tasks the job is running are available.

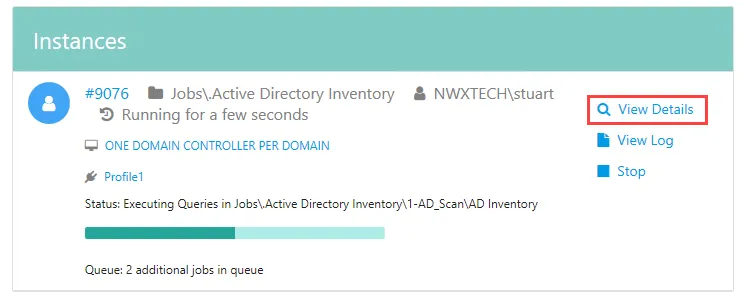

View Details link

Click the View Details link to display additional details of the job status and queue.

Job details page

The View Details link opens the running job's details with three tabs of information. See the Running Job Details topic for additional information.

View Log​

The log for this running job can be opened in a text editor, such as Notepad.

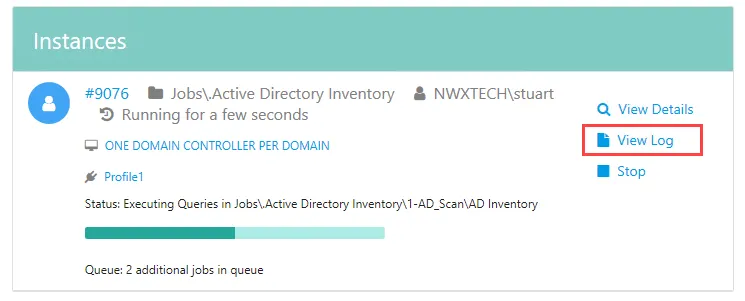

View Log link

Click View Log to display the current job log. The View Log link is only enabled while a job is running.

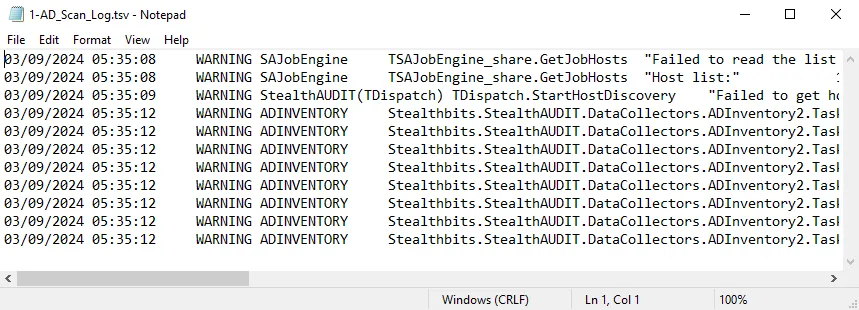

Log file in Notepad

The Log displays such details as errors, aborts, and terminations.

View Schedule​

The Access Analyzer Console can only run one job at a time. However, with the Schedule Service Account, the StealthAUDIT application can run multiple jobs simultaneously via Windows Task Scheduler.

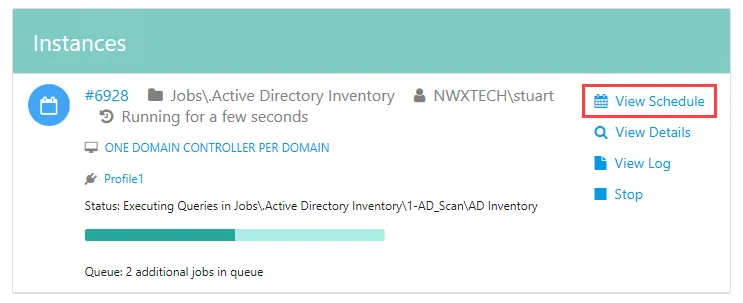

View Schedule link

Click the View Schedule link to display the corresponding Scheduled Task for the running job or job group. This link is only enabled for jobs that are running via scheduled task and will not be enabled for interactive job executions.

Schedule wizard

The Schedule wizard for the running task opens. See the Schedule Wizard topic for additional information.

Stop​

The job execution can be stopped if needed.

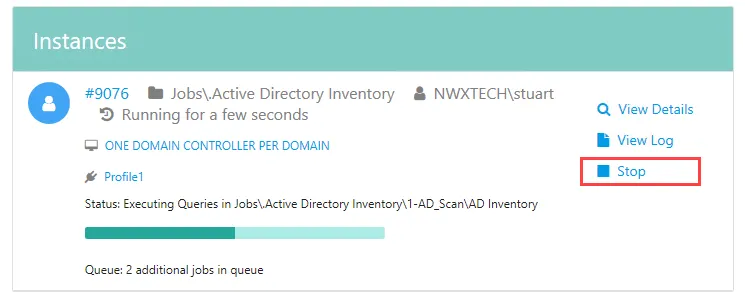

Stop button

Click Stop to abort all instances in the job queue. This link is only enabled while a job is running.
