Dell Isilon/PowerScale Target Requirements

Netwrix Access Analyzer (formerly Enterprise Auditor) can execute Access Auditing (FSAA) and/or Sensitive Data Discovery Auditing scans on Dell Isilon/PowerScale devices. The Netwrix Activity Monitor can be configured to monitor activity on Dell Isilon/PowerScale devices and make the event data available for Access Analyzer Activity Auditing (FSAC) scans.

Access & Sensitive Data Auditing Permissions

The credentials used by the Access Analyzer scans must have the following permissions on the target host:

• Group membership in the local Administrators group – LOCAL:System Provider

• Rights on the actual file tree or to the IFS root share

  • Share Permissions:

    • Read access

These permissions grant the credential the ability to enumerate shares, access the remote registry, and bypass NTFS security on folders. The credential used within the assigned Connection Profile for these target hosts requires these permissions. See the topic for instructions.

NOTE: These permissions are in addition to those needed to either deploy applet scans for running scans in proxy mode with applet or installing the File System Proxy Service Permissions for running scans in proxy mode as a service. See the File System Scan Options topic for additional information.

Additional Sensitive Data Discovery Auditing Permission

In order to execute scoped Sensitive Data Discovery Auditing scans, the credential must also have the LOCAL:System provider selected in each access zone in which the shares to be scanned reside.

The credential must have an Authentication Provider configured for the Isilon/PowerScale device. For example, if the credential is an Active Directory account, then the domain where the account resides must be an Active Directory Authentication Provider. This is configured in the OneFS® Storage Administration Console. Navigate to the Access tab, and select Authentication Providers.

Local Administrator Group Membership for Isilon

Follow the steps assign membership in the local Administrators group through the OneFS Storage Administration Console.

Step 1 – Navigate to the Access tab, and select Membership & Roles for the System Access Zone.

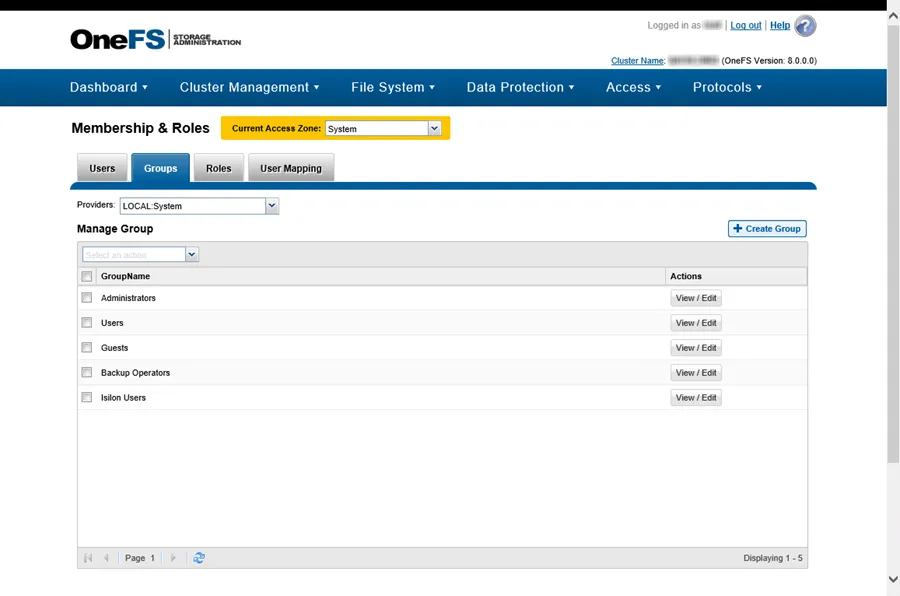

Step 2 – On the Groups tab, set the Providers to LOCAL: System. Then select View / Edit for the Administrators group. The View Group Details window opens.

Step 3 – Click Edit Group and the Edit Group window opens. Click Add Members, and enter the User Name and Provider in the Select a User window. Click Select, and then click Save Changes. The Edit Group window closes.

Step 4 – Click Close. The View Group Details window closes.

Share permissions can now be granted to this credential.

BackupAdmin Role Assignment for OneFS

Follow the steps to assign the credential to the BackupAdmin role through OneFS Storage Administration Console.

Step 1 – Navigate to the Access tab > Membership & Roles for the System Access Zone.

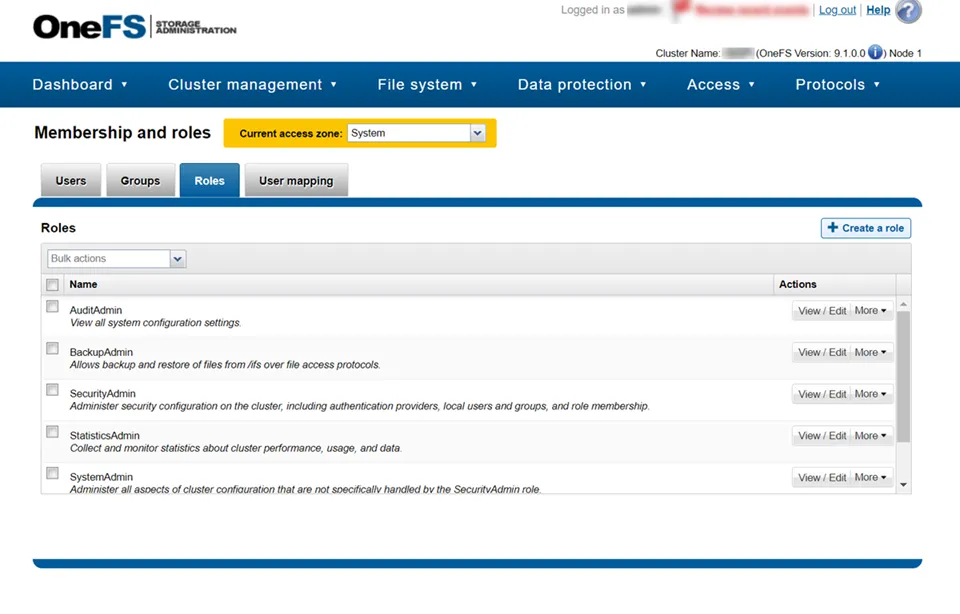

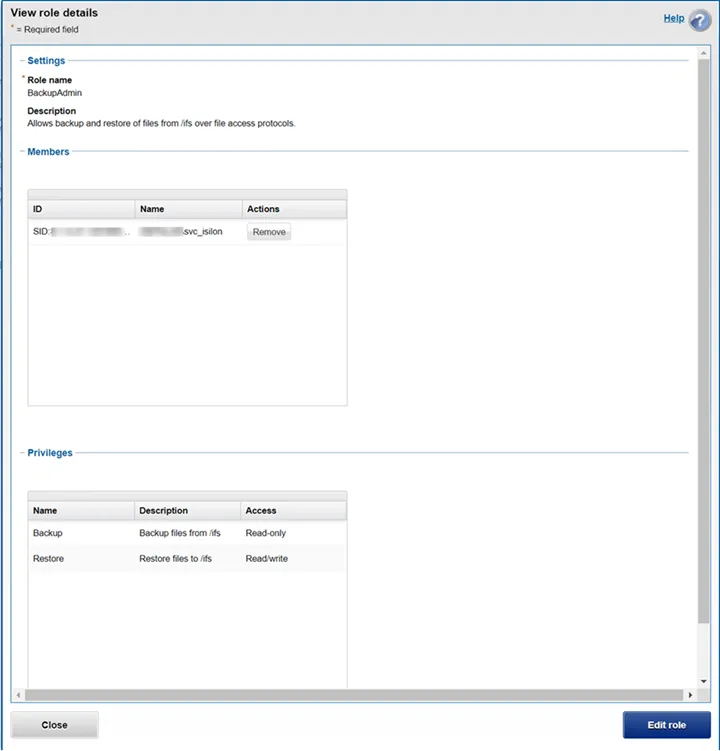

Step 2 – On the Roles tab, select View / Edit for the BackupAdmin role. The View Role Details window opens.

Step 3 – Click Edit role and the Edit role details window opens.

Step 4 – Click Add a member to this role.

Step 5 – Enter the User Name and Provider in the Select a User window then click Search. The user appears in the Search Results table.

Step 6 – Click Select and the Edit role window closes.

Step 7 – Click Save Changes and the successful save notification appears.

Step 8 – Click Close.

The View role details window closes.

NFS Export Scan Requirements for Isilon/PowerScale

Access Analyzer supports scanning Isilon/PowerScale NFSv3 exports. The following settings need to be configured in OneFS for the Access Analyzer server's IP address for each Isilon/PowerScale NFS export to be scanned.

The Access Analyzer server IP needs to be added to the following fields in each NFS export's settings, in the OneFS UI under Protocols > UNIX sharing (NFS) > View/Edit > Edit export (per NFS export):

• Always read-only clients
• Root Clients

The NFS export to be scanned also needs to be configured so root squash is disabled, which is performed in the same Edit export menu as the above settings.

Step 1 – Navigate to the export's Root user mapping settings.

Step 2 – Select Map root users to a specified user.

Step 3 – Set both User and Group to 0 (effectively mapping root client UID/GID to 0).

Both of these steps need to be performed in each NFS export's settings that a user would like to scan.

Troubleshooting NFSv3 Export Access

If Access Analyzer is not discovering the expected NFS export, it is possible that the export policy is not properly configured to allow the Access Analyzer server or proxy server IP Address to mount the NFS export. One step in troubleshooting this issue is to confirm a Unix client (or WSL for Windows) in the same IP range as the Access Analyzer server or proxy server can mount the NFS export.

Run the following command from a Unix host to verify the NFS mount is available:

showmount ‑e[NFS_HOSTNAME_OR_IP]

If the NFS export is returned as a result of the previous command, then Access Analyzer should also be able to mount it.

Access & Sensitive Data Auditing Port Requirements

The firewall ports required by Access Analyzer for Access Auditing (FSAA) and/or Sensitive Data Discovery Auditing scans are based on the File System scan mode to be used. See the File System Scan Options topic for additional information.

Activity Auditing Permissions

Windows Proxy Server for Activity Agent Monitoring of Dell Isilon/PowerScale

The Netwrix Activity Monitor must have an Activity Agent deployed on a Windows proxy server. While actively monitoring, the Activity Agent generates activity log files stored on the proxy server. The credential used to deploy the Activity Agent must have the following permissions on the proxy server:

• Membership in the local Administrators group
• READ and WRITE access to the archive location for Archiving feature only

It is also necessary to enable the Remote Registry Service on the Activity Agent server.

For integration between the Activity Monitor and Access Analyzer, the credential used by Access Analyzer to read the activity log files must have also have this permission.

Dell Isilon/PowerScale Requirements

Additionally, the EMC Common Event Enabler (CEE) should be installed on the Windows proxy server, where the activity agent is deployed.

RECOMMENDED: Use the latest available CEE version from the Dell Support website.

EMC CEE requires .NET Framework 3.5 to be installed on the Windows proxy server in order for the EMC CEE service to start.

See the Dell Isilon/PowerScale Activity Auditing Configuration topic for instructions.

Activity Monitor Archive Location

If the activity log files are being archived, configurable within the Netwrix Activity Monitor Console, then the credential used by Access Analyzer to read the activity log files must also have READ and WRITE permissions on the archive location.

Activity Auditing Port Requirements

Firewall settings depend on the type of environment being targeted. The following firewall settings are required for communication between the Agent server and the Netwrix Activity Monitor Console:

Communication Direction	Protocol	Ports	Description
Activity Monitor to Agent Server	TCP	4498	Agent Communication

The Windows firewall rules need to be configured on the Windows server, which require certain inbound rules be created if the scans are running in applet mode. These scans operate over a default port range, which cannot be specified via an inbound rule. For more information, see the Microsoft Connecting to WMI on a Remote Computer article.

Additional Firewall Rules for Dell Isilon/PowerScale Devices

The following firewall settings are required for communication between the CEE server/ Activity Monitor Activity Agent server and the target Dell Isilon/PowerScale device:

Communication Direction	Protocol	Ports	Description
Dell Isilon/PowerScale to CEE Server	TCP	TCP 12228	CEE Communication
CEE Server to Activity Agent Server (when not same server)	TCP	RPC Dynamic Range	CEE Event Data

Additional Firewall Rules for Integration between Access Analyzer and Activity Monitor

Firewall settings are dependent upon the type of environment being targeted. The following firewall settings are required for communication between the agent server and the Access Analyzer Console:

Communication Direction	Protocol	Ports	Description
Access Analyzer to Agent Server	TCP	445	SMB, used for Agent Deployment
Access Analyzer to Agent Server	TCP	Predefined	WMI, used for Agent Deployment
