Unity Initial Setup with Unisphere

Follow the steps to configure the initial setup for a Unity device with Unisphere.

Step 1 – Edit the NAS Server > Protection and Events > Events Publishing > Select Pool settings:

  • Add CEPA server – This is the server where CEE is installed. It is recommended that this is also the server were the Activity Monitor activity agent is deployed.
  • Enable the following events for Post Events.

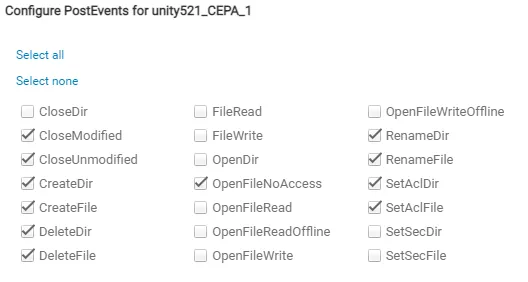

Required Unity events needed for CIFS Activity:

NAM Required Events For CIFS

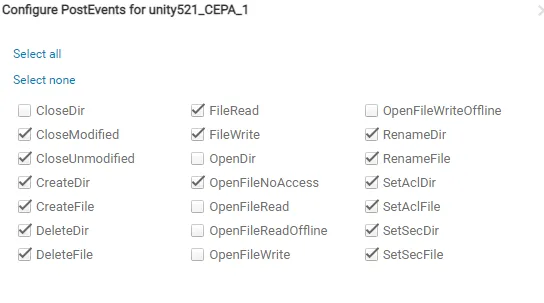

Required Unity events needed for NFS Activity:

NAM Required Events For NFS

Step 2 – Enable Events Publishing:

  • Edit the FileSystem > Advanced settings:

    • NFS Events Publishing – Enabled (required for NFS protocol monitoring)
    • SMB Events publishing – Enabled (required for SMB / CIFS protocol monitoring)

Once Unity setup is complete, it is time to configure and enable monitoring with the Activity Monitor.
