ExchangeMetrics: Message Activity Filter

The Message Activity Filter page configures which domains the data collector should return mail flow from specific senders and to specific recipients. For example, if @netwrix.com is entered in the Senders list and @netwrix.com in the Recipients list, message activity will be returned only for mail sent to and received from an @netwrix.com address. It is a wizard page for the categories of:

  • User’s Message Activity
  • User’s Message Activity Per Hour

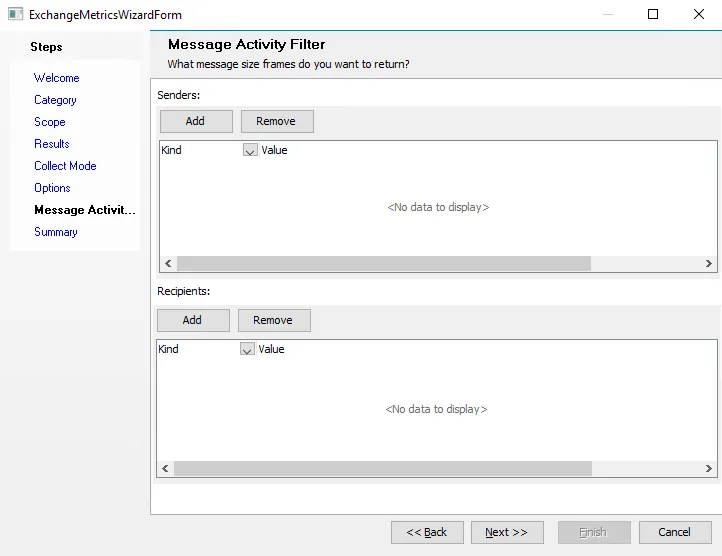

Exchange Metrics Data Collector Wizard Message Activity Filter page

Configure the Message Activity Filter using the following options:

  • Add – To add a filter to the desired category, click Add in the desired category to add an entry to that category

  • Select Exact Match in the added filter to reveal a drop-down list with the following condition options:

    • Exact matches
    • Contains
    • Begins with
    • Ends with

  • Kind – Select (Custom…) to open the Custom Filter menu. The Custom Filter menu provides options to create and configure other filters.

  • Value – Type the filter to be applied

The columns in the entry tables can be sorted and or filtered, using the same sorting and filtering methods of Access Analyzer data grids. The Remove option will delete a selected filter.
