SMARTLog: Log Type

The Log Type page is used to select the log type to be processed.

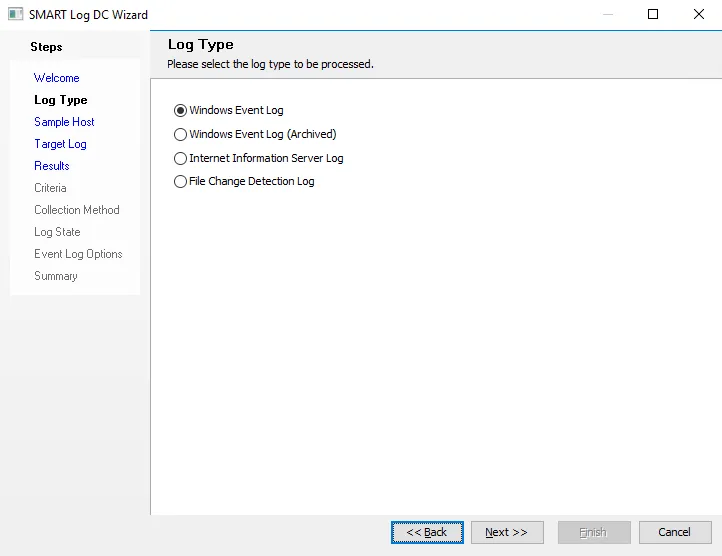

SMART Log DC Wizard Log Type page

The log types are:

  • Windows Event Log – Connects to and extract information from any Windows event log made available on the target host

  • Windows Event Log (Archived) – Extract events from an offline log by moving the log to the Access Analyzer Console and having it processed on the local host instead of the target host

  • Internet Information Server Log – An Exchange query that returns information from Outlook Web Access IIS logs found on CAS servers

    • The IIS log must be configured to generate specific columns in order for the SMARTLog Data Collector to audit them. See the IIS Log Auditing Requirements topic for additional information.

  • File Change Detection Log – This is a legacy option. It should not be selected.

IIS Log Auditing Requirements​

The SMARTLog Data Collector needs the IIS logs to generate the following columns:

  • Date (date)
  • Time (time)
  • ClientIP (c-ip)
  • UserName (cs-username)
  • UriSteam (cs-uri-stem)
  • UriQuery (cs-uri-query)
  • Protocol Status (HttpStatus)
  • Protocol substatus (HttpSubStatus)
  • BytesSent (sc-bytes)
  • BytesRecv (cs-bytes)
  • UserAgent (cs(User-Agent))
