Unix: Parsing

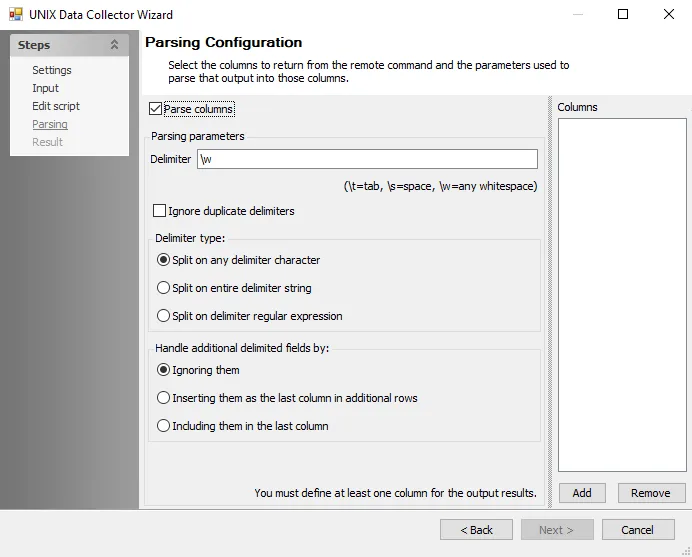

The Parsing Configuration page configures the columns to return from the remote command and the parameters used to parse that output into those columns.

The configurable options are:

• Parse Columns – Select the checkbox to enable the parsing parameters options

  • Delimiter – Specify the delimiter

  • Ignore duplicate delimiters – Check the checkbox to enable

  • Delimiter Type – Select one of the following options:

    • Split on any delimiter character
    • Split on entire delimiter string
    • Split on delimiter regular expression

  • Handle additional delimited fields by – Select one of the following options:

    • Ignoring them
    • Inserting them as the last column in additional rows
    • Including them in the last column

• Columns – Use the buttons to add or remove columns

  • Add – Opens the New Column window. Enter a new column name and click OK.
  • Remove – Removes the selected column

Click Next to continue the setup, or Back to return to the previous page.
