Exchange PowerShell Permissions

The ExchangePS Data Collector utilizes PowerShell to collect various information from the Exchange environment. This data collector utilizes Remote PowerShell to collect information about Exchange Users Configuration, Mailboxes, Public Folders, and Exchange Online Mail-Flow.

Job Group Requirements in Addition to ExchangePS

In addition to the permissions required by the ExchangePS Data Collector, the Connection Profile assigned to these job groups requires the following permissions:

    1. CAS Metrics
    1. Databases
    • This job group also requires permissions for the Exchange2K Data Collector, which is MAPI-based and has additional requirements
    1. Mailboxes
    1. Public Folders
    • This job group also requires permissions for the ExchangePublicFolder Data Collector, which is MAPI-based and has additional requirements
    1. Exchange Online

Permissions Explained​

Remote PowerShell and Windows Authentication Enabled

The Remote PowerShell and Windows Authentication configurations for Exchanges servers are required to be enabled on at least one Exchange server running the Client Access Service so that the ExchangePS Data Collector can make a remote PowerShell connection and authenticate through Access Analyzer.

Access Analyzer passes credentials saved in the Connection Profile to the data collector so that it is able to connect to the targeted host. This requires the Exchange server to allow for Windows Authentication. See the Enable Remote PowerShell for ExchangePS Data Collector topic and the Enable Windows Authentication for PowerShell Virtual Directory topic for additional information.

View-Only Organization Management Role Group

This is required so the ExchangePS Data Collector is able to run the various Exchange PowerShell cmdlets.

Public Folder Management

This permission is only required if utilizing the ExchangePublicFolder Data Collector or ExchangeMailbox Data Collector, as well as the PublicFolder or Mailbox Action Modules. This is required in order to make a connection through the MAPI protocol. The following job group requires the Public Folder Management Role Group:

    1. Public Folders > Ownership

If not running this collection, then this permission is not required.

Mailbox Search Role

This is required to collect Mailbox Access Audit logs and run Mailbox Search queries through the ExchangePS Data Collector. The following job group requires the Mailbox Search Role:

    1. Mailboxes > Logons

Application Impersonation Role

The Application Impersonation Role is a customer role you need to create. See the Create Custom Application Impersonation Role in Exchange topic for additional information.

Scoping Options​

There are five different scoping options within this data collector. Since not all query categories support all scoping options, No Scoping is an option. If there are no scoping options available, then the data collector should be run against the host specified in the Summary page of the data collector wizard.

No Scoping

This option will gather information about the entire Exchange Organization. When using the applet, the data collector will gather information about the Exchange Forest in which the Access Analyzer Console currently resides. For Remote PowerShell, the data collector will gather information about the Exchange Organization to which the Remote PowerShell connection was made. This refers to the server entered in the Client Access Server (CAS) field of the global configuration from the Settings > Exchange node or on the Scope Page of the data collector wizard. See the ExchangePS: Scope topic for additional information.

Scope by Database

This option will gather information about any databases which are chosen. When using the applet, the data collector will return databases in the Scope by DB page of the data collector wizard for the Exchange Organization in which the Access Analyzer Console currently resides, as well as, only return information about those databases. For Remote PowerShell, the data collector will return databases in the Scope by DB page of the data collector wizard for the Exchange Forest, as well as, only return information about those databases. See the ExchangePS: Scope by DB topic for additional information.

Scope by Mailbox

This option will gather information about any mailboxes which are chosen. When using the applet, the data collector will return mailboxes in the Scope by Mailboxes page of the data collector wizard for the Exchange Forest in which the Access Analyzer Console currently resides, as well as, only return information about those mailboxes. For Remote PowerShell, the data collector will return mailboxes in the Scope by Mailboxes page of the data collector wizard for the Exchange Forest, as well as, only return information about those mailboxes. See the ExchangePS: Scope by Mailboxes topic for additional information.

Scope by Server

This option will gather information about objects which reside on the chosen server. When choosing this option, the data collector will then use the Host List applied to the job’s Configure > Hosts node as the servers scoping list. When using the applet, the data collector will deploy a process to the targeted host to run the PowerShell on that server. For Remote PowerShell, the data collector will deploy no applet and utilize the WinRM protocol to gather information about the objects on that server.

Scope by Public Folder

This option will gather information about any public folders which are chosen. When using the applet, the data collector will return public folders in the Scope by Public Folders page of the data collector wizard for the Exchange Forest in which the Access Analyzer Console currently resides, as well as, only return information about those public folders. For Remote PowerShell, the data collector will return public folders in the Scope by Public Folders page of the data collector wizard for the Exchange Forest, as well as, only return information about those public folders. See the ExchangePS: Scope by Public Folders topic for additional information.

Enable Remote PowerShell for ExchangePS Data Collector​

Follow these steps to enable Remote PowerShell.

Step 1 – On the server that Access Analyzer will connect with Remote PowerShell, open PowerShell.

Step 2 – Run the following command:

Enable-PSRemoting

Step 3 – When prompted, type A and A again to enable the appropriate services and protocols.

Remote PowerShell has been enabled. See the Microsoft Tip: Enable and Use Remote Commands in Windows PowerShell article for additional information.

Next, enable Windows Authentication for PowerShell Virtual Directory on the same server.

Enable Windows Authentication for PowerShell Virtual Directory​

Once Remote PowerShell has been enabled on an Exchange Server in the environment, it is necessary to also enable Windows Authentication for the PowerShell Virtual Directory on the same Exchange server. Follow these steps to enable Windows Authentication.

Step 1 – On the server where Remote PowerShell was enabled, open the Internet Information Services (IIS) Manager.

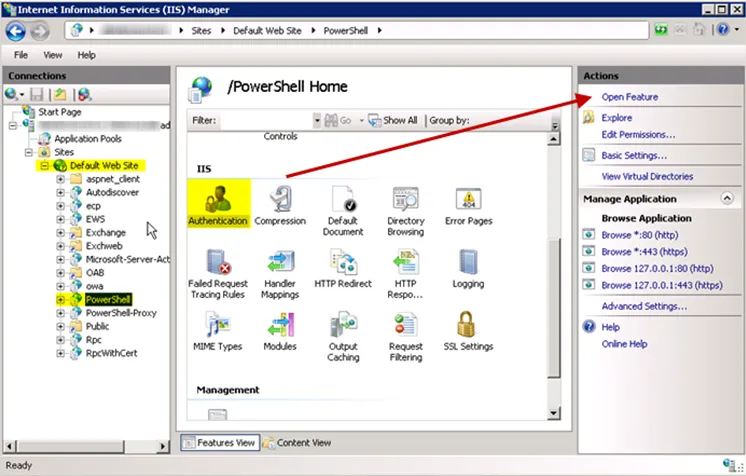

IIS Authentication Open Feature

Step 2 – Traverse to the PowerShell Virtual Directory under the Default Web Site. Select Authentication and click Open Feature.

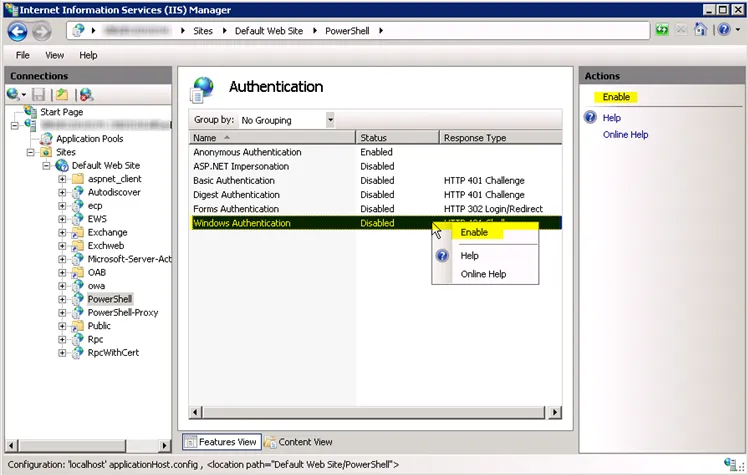

IIS Enable Windows Authentication

Step 3 – Right-click on Windows Authentication and select Enable.

Windows Authentication has been enabled for the PowerShell Virtual Directory.

Create Custom Application Impersonation Role in Exchange​

Follow the steps to create the custom Application Impersonation role. The process is the same for Exchange 2010 Service Pack 1 through Exchange 2019 and Exchange Online.

Step 1 – Within the Exchange Admin Center, navigate to the permissions section and select admin roles.

Step 2 – Add a new role group by clicking on the + button, and the New Role Group window opens.

New role group window

Step 3 – Configure the new role group with the following settings:

  • Name – Provide a distinct name for the role group, for example Application Impersonation
  • Description – Optionally indicate in the description that the new role group is required for Access Analyzer
  • Write scope – Remain set to Default
  • Roles – Click the + button to open the Select a Role window. Select the ApplicationImpersonation role from the available list and click Add. Then click OK to close the Select a Role window.
  • Members – Click the + button to open the Select Members window. Select the account from the available list and click Add. Remember, the account needs to be assigned the other permissions required for the EWSMailbox and/or EWSPublicFolder data collectors. Then click OK to close the Select Members window.

Step 4 – Save the new role group.

The new role group appears in the list.

Enable Exchange Mailbox Access Auditing​

The 4. Mailboxes Job Group requires the Exchange Mailbox Access Auditing to be enabled. In order to collect Mailbox Access Auditing events, it is necessary to enable Exchange Mailbox Access Auditing for Exchange. See the following Microsoft articles:
