Configure AWS for Scans

In order to scan multiple AWS accounts using one account you need to create a role in each target account, so that It can provide the designated scanning account permissions to scan resources it controls. This is achieved through the following steps which will need to be completed leveraging a user with administrative access to each target account:

Step 1 – Create a Managed Policy in each target account that will be used to allow access to account (S3, Org and IAM).

Step 2 – Create a Role in each target account that will be used to allow access to listing IAM users.

Step 3 – Create a Managed Policy in the designated scanning account that will be used to allow the service account to assume the configured role in each target account.

Step 4 – Add Role to Access Analyzer. The Role created in the scanning account will need to be added to the 1-AWS_OrgScan, 2-AWS_S3Scan, and 3-AWS_IAMScan job query configurations. See the AWS: Login Roles topic for additional information.

Once these steps are completed, the role must be added to the AWS queries within Access Analyzer.

Create a Managed Policy in Each Target Account

The following steps will need to be completed in each target account.

Step 1 – Sign into the Identity and Access Management Console (IAM) as an administrator of the Trusting account.

Step 2 – Browse to the Identity and Access Management (IAM) Console. Navigate to Policies and click Create policy.

Step 3 – Select the JSON tab.

Step 4 – Paste the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "CapabilityIamScan",
            "Effect": "Allow",
            "Action": [
                "iam:GenerateCredentialReport",
                "iam:GenerateServiceLastAccessedDetails",
                "iam:Get*",
                "iam:List*",
                "iam:Simulate*",
        "sts:GetAccessKeyInfo"
            ],
            "Resource": "*"
        },
        {
            "Sid": "CapabilityS3Scan",
            "Effect": "Allow",
            "Action": [
                "s3:Describe*",
                "s3:Get*",
                "s3:HeadBucket",
                "s3:List*"
            ],
            "Resource": "*"
        }
    ]
}

Step 5 – Click Review Policy.

Step 6 – Enter a name for the policy in the Name box.

Step 7 – Click Create Policy.

NOTE: If the designated scanning account is not in Root (Master Account), create a second policy in the Master Account with the following JSON definition:

Copy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "RequiredCapabilityOrgScan",
            "Effect": "Allow",
            "Action": [
                "iam:GenerateOrganizationsAccessReport",
                "organizations:Describe*",
                "organizations:List*"
            ],
            "Resource": "*"
        }
    ]
}

The next step is to create a role in each target account that will be used to allow access to listing IAM users.

Create a Role in Each Target Account

The following steps will need to be completed in each target account. For this, you will need the Account ID of the designating scanning account.

NOTE: If the scanning account is also a target account, be sure to complete these steps for the scanning account as well.

Step 1 – Sign into the Identity and Access Management Console (IAM) as an administrator of the target account.

Step 2 – Navigate to Access management > Roles and click Create role.

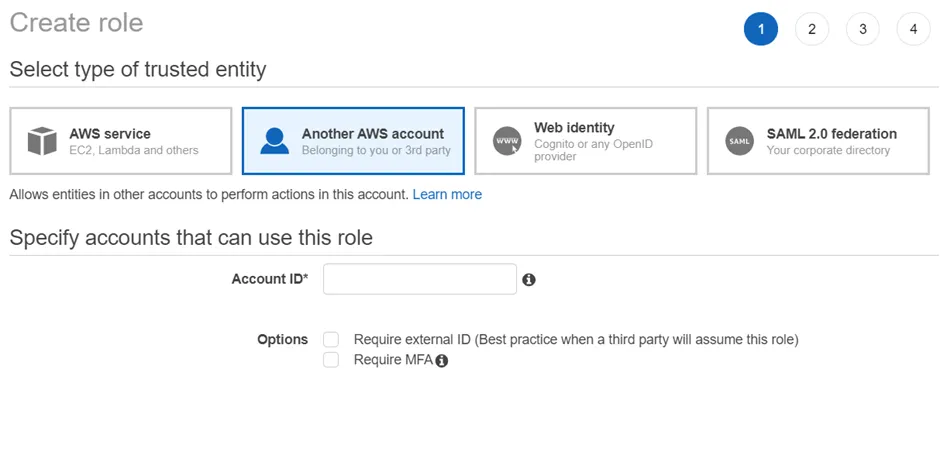

Step 3 – Select the Another AWS Account option and add the Account ID of the scanning account that will be leveraged within Access Analyzer.

Step 4 – Click Next: Permissions.

Step 5 – Add the policy or policies created earlier in this topic to this role.

Step 6 – Click Next: Tags.

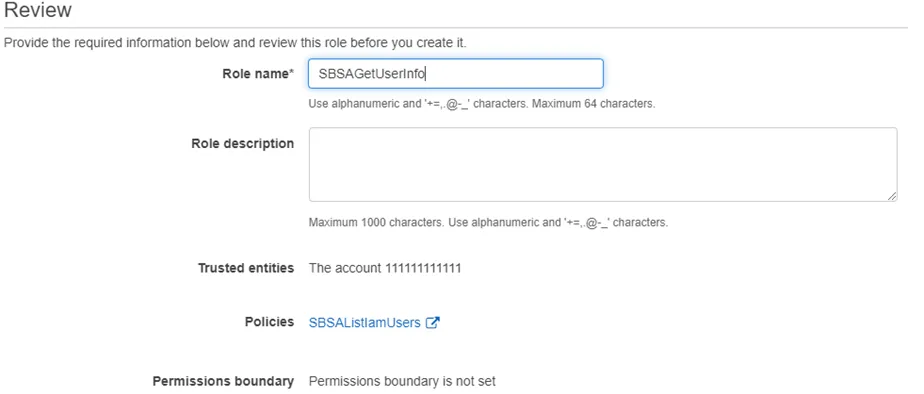

Step 7 – Click Next: Review.

Step 8 – Enter a Role name.

Step 9 – Click Create Role.

The next step is to create a Managed Policy in the designated scanning account that will be used to allow the service account to assume the configured role in each target account.

Configure the Scanning Account

Create a Managed Policy in the scanning account that will be used to allow the user to assume the roles configured in each target account.

Step 1 – Sign into the Identity and Access Management Console (IAM) as an administrator of the scanning account.

Step 2 – Navigate to Access Management > Policies and click Create policy.

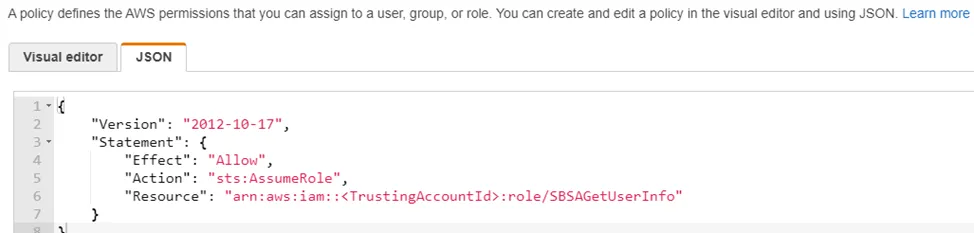

Step 3 – Select the JSON tab.

Step 4 – Paste the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "RequiredCapabilityOrgScan",
            "Effect": "Allow",
            "Action": [
                "iam:GenerateOrganizationsAccessReport",
                "organizations:Describe*",
                "organizations:List*"
            ],
            "Resource": "*"
        },
        {
            "Sid": "RequiredCapabilityMemberAccountAccess",
            "Effect": "Allow",
            "Action": "sts:AssumeRole",
            "Resource": "arn:aws:iam::*:role/ROLENAME"
        }
    ]
}

NOTE: Replace ROLENAME with the name of the role that was created. If the ROLENAME is different in each account, then a policy will need to be created for each distinct role name.

Step 5 – Click Review Policy.

Step 6 – Enter a Policy Name.

Step 7 – Click Create Policy.

Step 8 – Create a group with the service account user and assign both policies to this group.

Step 9 – Under Access Management > Users, select the service account user.

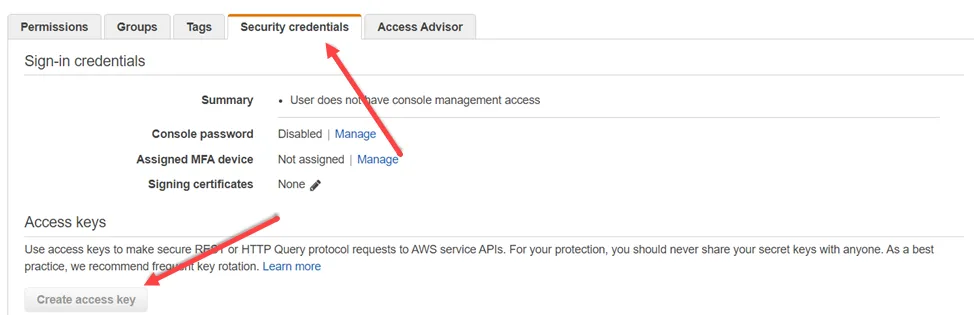

Step 10 – In the Security credentials tab, click Create access key. Make sure to note the Access key ID and Secret access key which need to be input into Access Analyzer.

You can now create the Connection Profile for the AWS Solution. See the Amazon Web Services for User Credentials topic for additional information.
