Host Discovery Queries

The Host Discovery Queries Pane contains a list of previously-configured queries.

The list of previously configured queries is provided in a table format with the following columns:

• Name – Displays the name assigned to the query during creation

• Query Source – Identifies where the query searches for hosts

• Query State – Displays the query’s current status (active or idle)

• Last count – Identifies the number of hosts found from the last scan

• Last Queried – Displays the date and time stamp for the last running of the query

• Connection Profile – Identifies the Connection Profile assigned to the query for access to the Query Source

• ID – GUID of the query task

• SANode – Name of the Access Analyzer Console server

• Snapshot mode – Identifies the type of discovery query:

  • Cumulative – Grows the host list by appending newly discovered hosts with each query execution
  • Snapshot – Only shows host found during the most recent query execution

  NOTE: The Snapshot mode is configured on the Options page of the Host Discovery Wizard.

View Hidden Columns

Follow the steps to view the hidden columns in the table:

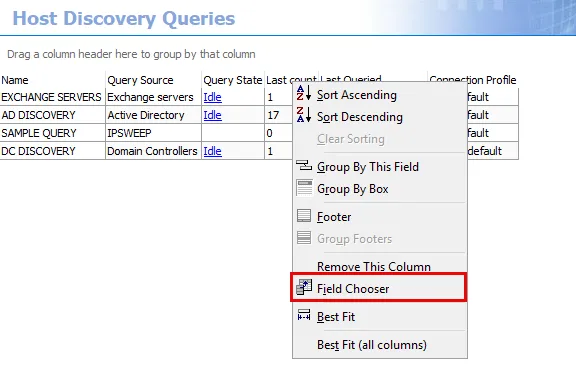

Step 1 – Right-click a header in the table, which opens a context menu.

Step 2 – Select Field Chooser, which opens the Customization window.

Step 3 – Select the Columns tab.

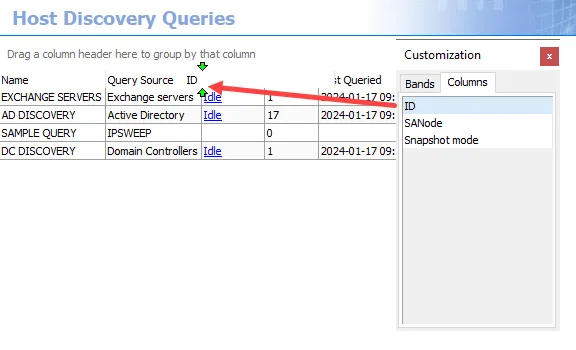

Step 4 – Drag and drop the desired column between any header of the table.

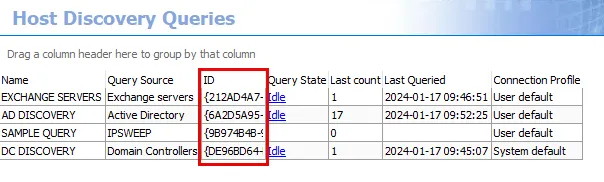

The header is now present in the table.
