AD_DomainControllerTraffic Job
The AD_DomainControllerTraffic Job provides a summary of the amount of traffic for Changes, Authentication, Replication, and LDAP Queries for each domain controller which can be used to identify issues with load balancing. If the AD_DCSummary job has been run, the roles for each domain controller will be provided.
Analysis Tasks for the AD_DomainControllerTraffic Job

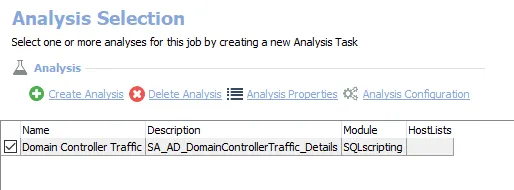

Navigate to the Active Directory > 6.Activity > Operations > AD_DomainControllerTraffic > Configure node and select Analysis to view the analysis tasks.
CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.
The default analysis task is:
- Summarize Protocol Usage – Creates the SA_AD_DomainControllerTraffic_Details table accessible under the job’s Results node
In addition to the tables created by the analysis tasks, the AD_DomainControllerTraffic Job produces the follow pre-configured report:
| Report | Description | Default Tags | Report Elements |
|---|---|---|---|
| Domain Controller Traffic | Identifies the amount of active directory events that occur on each domain controller. | CCPA GDPR SOX HIPPA PCI-DSS GLBA ITAR FERPA FISMA ISO27001 | This report is comprised of one element: - Table – Displays a Domain Controller summary |
