AD_DCSummary Job

The AD_DCSummary Job provides operational reporting related to the details collected for each domain controller. For each domain controller, the report identifies the FSMO role, whether it is a bridgehead server, whether it is a global catalog, and the time server it syncs to.

Analysis Task for the AD_DCSummary Job​

Navigate to the Active Directory > 5.Domains > AD_DCSummary > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis task(s). The analysis task(s) are preconfigured for this job.

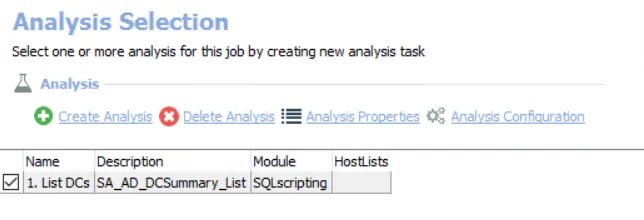

Analysis Selection

The default analysis tasks are:

    1. List DCs
    • Creates the AD_DCSummary_List table accessible under the job’s Results node
    • Creates an interim processing table in the database for use by downstream analysis and report generation

In addition to the tables and views created by the analysis task, the AD_DCSummary Job produces the following pre-configured report:

ReportDescriptionDefault TagsReport Elements
Domain Controllers OverviewThis report identifies domain controllers' roles and attributes within each domain.NoneThis report is comprised of two elements: - Bar Chart – Displays domain controllers by domain - Table – Provides details on domain controllers by domain
