AD_DSRMSettings Job

The AD_DRSMSettings Job provides details on domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, the DSRM Admin Account can be used to log in to the domain controller even if it has not been started in DSRM which can present a potential security vulnerability. Additional information on this registry key is available in this Microsoft Document.

Analysis Tasks for the AD_DSRMSettings Job​

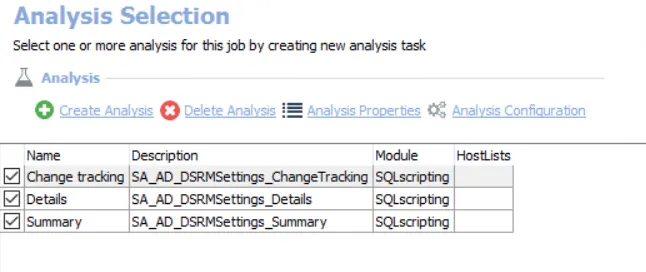

Navigate to the Active Directory > 5.Domains > AD_DSRMSettings > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis task(s). The analysis task(s) are preconfigured for this job.

dsrmsettingsanalysis

The default analysis tasks are:

  • Change tracking – Creates the SA_AD_DSRMSettings_ChangeTracking table accessible under the job’s Results node
  • Details – Creates the SA_AD_DSRMSettings_Details table accessible under the job’s Results node
  • Summary – Creates the SA_AD_DSRMSettings_Summary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_DSRMSettings Job produces the following pre-configured report:

ReportDescriptionDefault TagsReport Elements
DSRM Admin SecurityThis report highlights domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, the DSRM Admin account can be used to log in to the domain controller even if it has not been started in DSRM. This is a potential vulnerability. See the Microsoft Restartable AD DS Step-by-Step Guide for additional information.NoneThis report is comprised of two elements: - Pie Chart – Displays DSRM admin logon  by domain controller - Table – Provides details on domain controllers
