AD_DomainControllers Job

The 0.Collection > AD_DomainControllers Job collects domain controller details which will be further analyzed in order to provide information on domains, sites, and trusts.

Queries for the AD_DomainControllers Job​

The AD_DomainControllers Job uses the LDAP Data Collector and the ActiveDirectory Data Collector for the following queries:

CAUTION: Except the first query, do not modify the remaining queries. The remaining queries are preconfigured for this job.

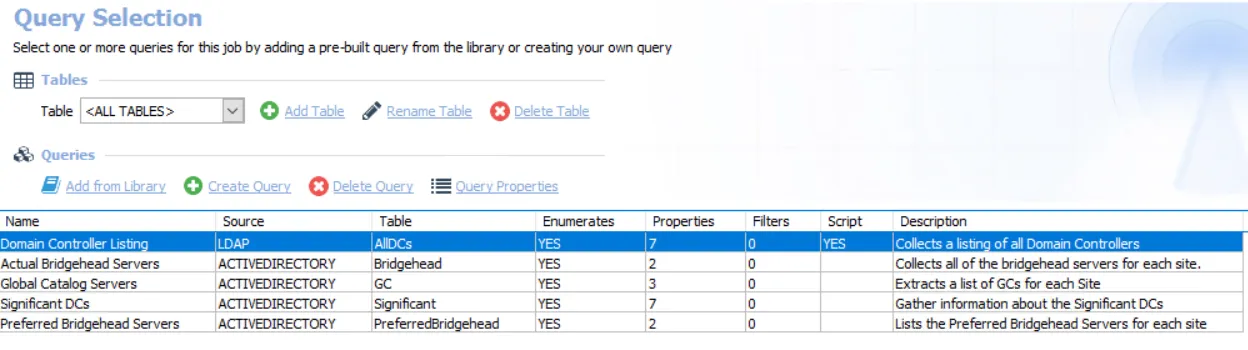

Query Selection

The queries for this job are:

  • Domain Controller Listing – Targets one domain controller per domain known to Access Analyzer to collect a listing of all domain controllers

  • Actual Bridgehead Servers – Targets one domain controller per domain known to Access Analyzer to collect all of the bridgehead servers for each site

  • Global Catalog Servers – Targets one domain controller per domain known to Access Analyzer to extract a list of GCs for each site

  • Significant DCs – Targets one domain controller per domain known to Access Analyzer to gather information about the significant DCs

  • Preferred Bridgehead Servers – Targets one domain controller per domain known to Access Analyzer to list the preferred bridgehead servers for each site

    NOTE: See the Active Directory Data Collector and LDAP Data Collector sections for additional information.

Connect Securely with TLS/SSL​

The Domain Controller Listing Query in the AD_DomainControllers Job is configured to use the LDAP Data Collector. This query can be optionally configured to connect securely with TLS/SSL.

CAUTION: Do not modify any other settings in this query.

Step 1 – Navigate to the job’s > Configure node and select Queries.

Step 2 – In the Query Selection view, select the Domain Controller Listing Query and click Query Properties. The Query Properties window displays.

Step 3 – Select the Data Source tab, and click Configure. The LDAP template form wizard opens.

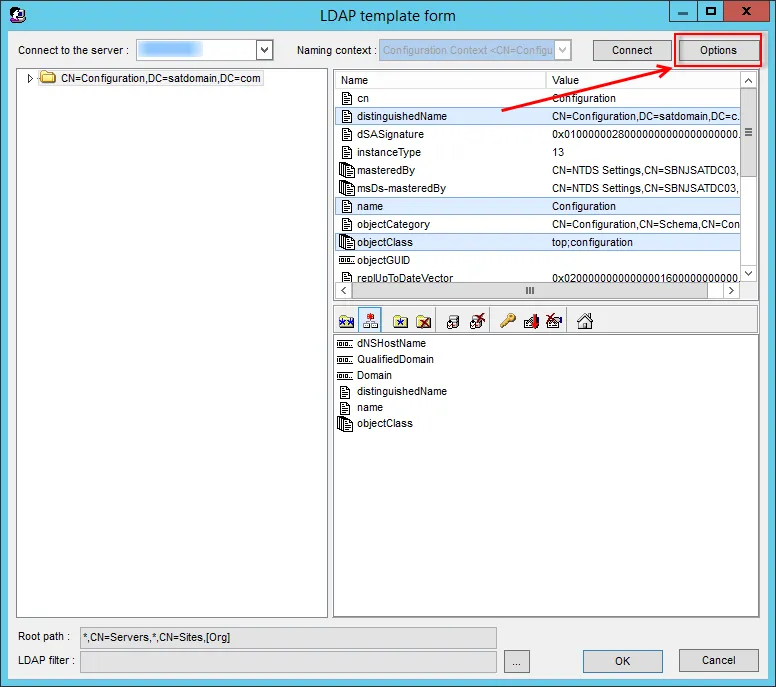

LDAP template form

Step 4 – Click Options.

Connection Options

Step 5 – On the Options page, select Connect Securely with TLS/SSL. Optionally, select Ignore Certificate Errors to connect even if certificate errors occur. Use Server Port 686 for a secure connection. Click OK to close the Options page.

Step 6 – Step 13 – Then click OK to close the LDAP template form wizard.

The job now connects securely with TLS/SSL.
