AD_MailSecurityGroups Job

The AD_MailSecurityGroups Job identifies mail-enabled security groups within Active Directory.

Analysis Tasks for the AD_MailSecurityGroups Job​

Navigate to the Active Directory > 1.Groups > AD_MailSecurityGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

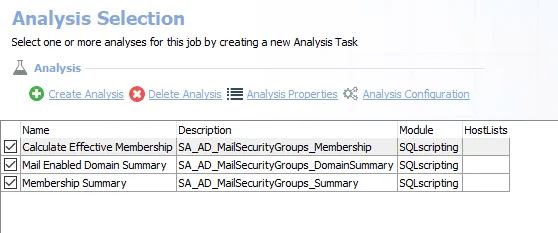

Analysis Tasks for the AD_MailSecurityGroups Job

The default analysis tasks are:

  • Calculate Effective Membership – Creates the SA_AD_MailSecurityGroups_Membership table accessible under the job’s Results node
  • Mail Enabled Domain Summary – Creates the SA_AD_MailSecurityGroups_DomainSummary table accessible under the job’s Results node
  • Membership Summary – Creates the SA_AD_MailSecurityGroups_Summary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_MailSecurityGroups Job produces the following pre-configured report:

ReportDescriptionDefault TagsReport Elements
Mail Enabled Security GroupsThis report displays summary data for mail enabled security groups.NoneThis report is comprised of three elements: - Stacked Bar Chart – Displays mail enabled security groups per domain - Table – Provides summary of mail enabled security groups - Table – Provides summary of mail enabled security groups by domain
