1-Box_Access Scans Job

The 1-Box_Access Scans Job collects the data which will be further analyzed in order to provide details on Box access rights, policies, configurations, and content.

Queries for the 1-Box_Access Scans Job​

The Scan Query uses the Box Data Collector to target all Box hosts and has been preconfigured to use the Scan Box Permissions Category. If this query is not configured but has the access token, a full scan of all folders at full depth is performed. Optionally, configure the query to limit the depth of the scan.

Queries for the 1-Box_Access Scans Job

The 1-Box_Access Scans Job has the following queries:

  • Scan Query – Collects access data which will be further analyzed in order to provide details on Box access rights, policies, configurations, and content

Prior to the first execution, it is necessary to authenticate to the targeted Box environment. This is done on the Authenticate page of the Scan query. Additionally, the following default configurations are commonly customized:

  • Exclusions page:

    • Not scoped

  • Additional Scoping page:

    • Not scoped

See the Configure the 1-Box_Access Scans Job section for instructions.

Configure the 1-Box_Access Scans Job​

The 1-Box_Access Scans Job contains the Scan Query. Follow the steps to configure the query.

Step 1 – Navigate to the Box > 0.Collection > 1-Box_Access Scans > Configure node and select Queries.

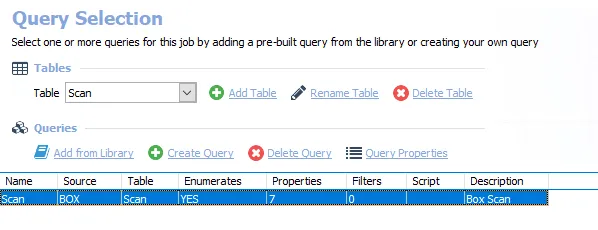

Step 1 – In the Query Selection view, select the Scan Query and click Query Properties. The Query Properties window opens.

Step 2 – Select the Data Source tab, and click Configure. The Box Data Collector Wizard opens.

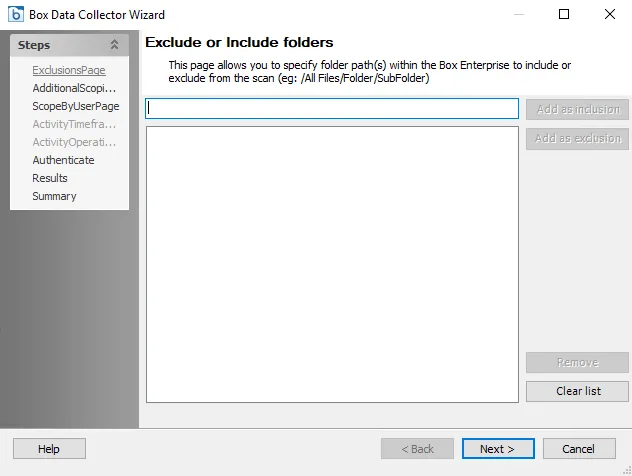

Box Data Collector Wizard Exclusions page

Step 3 – On the Exclusions Page:

  • Add folders to be excluded
  • Add folders to be included (scope scan to only these folders)

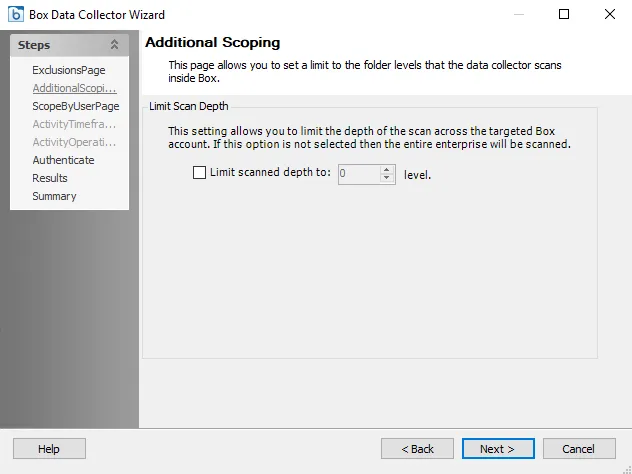

Box Data Collector Wizard Additional Scoping page

Step 4 – On the Additional Scoping page:

  • Optionally, select this option to limit the depth of the scan across the targeted Box account

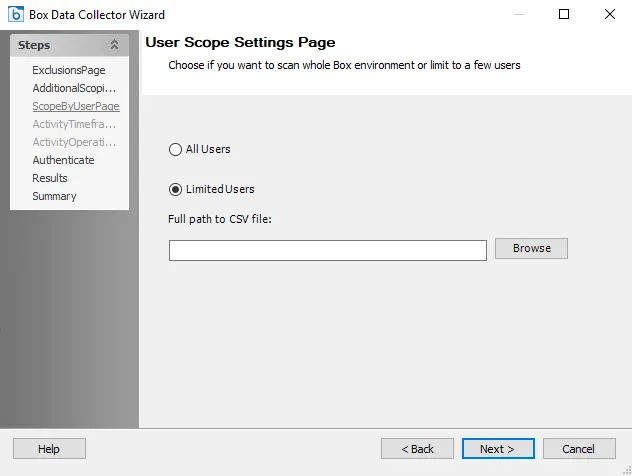

Box Data Collector Wizard Scope by User page

Step 5 – On the Scope By User Page:

  • Optionally, limit the scope of the scan to specified users by providing a CSV file

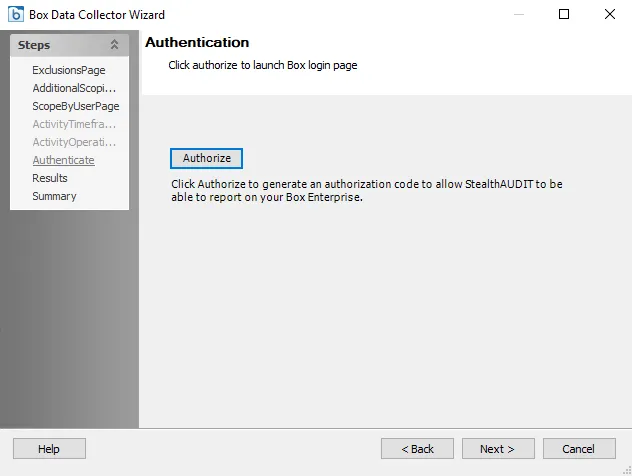

Box Data Collector Wizard Authenticate page

Step 6 – The Authenticate page is where the connection to the target Box environment is configured. Click Authorize to launch the BoxLogin window and generate an authorization code. This code allows Access Analyzer to report on the Box Enterprise.

NOTE: Authentication to the target Box environment only needs to be completed once, prior to the first scan and only in one of the scan jobs.

Step 7 – Navigate to the Summary page, click Finish to save any setting modifications or click Cancel if no changes were made. Then click OK to close the Query Properties window.

The 1-Box_Access Scans Job will execute according to the connection settings configuration.
