EX_DeliveryTimes Job

The EX_DeliveryTimes Job provides information around organizational and server-level delivery times.

Analysis Tasks for the EX_DeliveryTimes Job​

View the analysis tasks by navigating to the Exchange > 1. HUB Metrics > EX_DeliveryTimes > Configure node and select Analysis.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

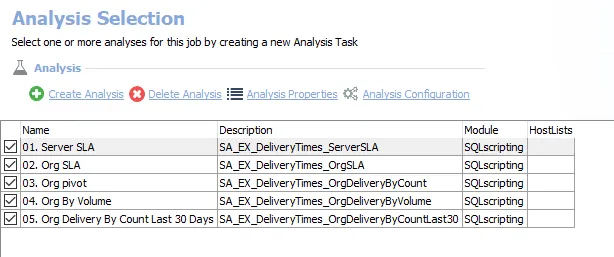

Analysis Tasks for the EX_DeliveryTimes Job

The following analysis tasks are selected by default:

    1. Server SLA – Creates the SA_EX_DeliveryTimes_ServerSLA table, accessible under the job’s Results node
    1. Org SLA – Creates the SA_EX_DeliveryTimes_OrgSLA table, accessible under the job’s Results node
    1. Org pivot – Creates the SA_EX_DeliveryTimes_OrgDeliveryByCount table, accessible under the job’s Results node
    1. Org By Volume – Creates the SA_EX_DeliveryTimes_OrgDeliveryByVolume table, accessible under the job’s Results node
    1. Org Delivery By Count Last 30 Days – Creates the SA_EX_DeliveryTimes_OrgDeliveryByCountLast30 table, accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the EX_DeliveryTimes Job produces the following pre-configured report:

ReportDescriptionDefault TagsReport Elements
Delivery TimesThis report highlights delivery times overall and by server to identify potential issues with SLAs.NoneThis report is comprised of three elements: - Line Chart – Displays percent of mail delivered by time frame (last 30 days) - Table – Provides details on mail delivered by time frame - Table – Provides details on percentage of mail delivered in under 1 minute
