EX_Mailflow_OrgOverview Job
The EX_Mailflow_OrgOverview job provides information around overall traffic in the organization. This job is set to analyze the last 30 days.
Parameter Configuration
The Configuration section on a Job's overview page allows you to easily modify any customizable parameters used by analysis tasks in the job. See the Parameter Configuration topic for instructions on how to edit parameters on a job overview page.
The EX_Mailflow_OrgOverview job has the following configurable parameter:
- Number of days of data to display
See the Analysis Tasks for the EX_Mailflow_OrgOverview Job topic for additional information.
Analysis Tasks for the EX_Mailflow_OrgOverview Job

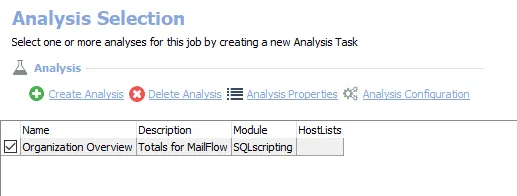

View the analysis tasks by navigating to the Exchange > 8. Exchange Online > EX_OrgOverview_Mailbox > Configure node and select Analysis.
The following analysis task is selected by default:
-
Organization Overview – Creates the EX_MailFlow_OrgOverview table, accessible under the job’s Results node
- By default, data for 30 days is displayed. This number of days can be modified by a parameter. See the Parameter Configuration topic for additional information.
- Alternatively, the
@Daysparameter can be modified in the SQL Script Editor. See the Configure the Customizable Parameters in an Analysis Task topic for additional information.
In addition to the tables and views created by the analysis task, the EX_Mailflow_OrgOverview job produces the following pre-configured report.
| Report | Description | Default Tags | Report Elements |
|---|---|---|---|
| Trend By MessageID (Organization Overview) | This report shows an overview of sent and received message statuses for the organization. | None | This report is comprised of two elements: - Line Chart – Displays the last 7 days trend by message ID - Table – Provides details on the last 30 days total traffic by message ID |
| Trend By Recipient | This report shows the trend of sent/received and total traffic by recipient. | None | This report is comprised of two elements: - Line Chart – Displays the last 7 days trend by recipient - Table – Provides details on the last 30 days traffic by recipient |
