EX_Mailbox_SDD Job

The EX_Mailbox_SDD job locates sensitive data found in mailboxes in the Exchange environment.

Queries for the EX_Mailbox_SDD Job​

The EX_Mailbox_SDD job uses the EWSMailbox Data Collector.

Queries for the EX_Mailbox_SDD Job

The following query is included in the EX_Mailbox_SDD job:

  • Exchange Sensitive Data Discovery – Collects potentially-sensitive data from mailboxes

    • Set to search all mailboxes. It can be scoped.

    • Default sensitive data criteria includes:

      • Birth Records
      • Credit Cards
      • Passwords
      • Tax Forms
      • US SSN

  • See the Configure the EWSMailbox Data Collector for the EX_Mailbox_SDD Job topic for additional information

Configure the EWSMailbox Data Collector for the EX_Mailbox_SDD Job​

The Exchange Sensitive Data Discovery query has been preconfigured to run with the EWSMailbox Data Collector to scan for sensitive data.

Follow the steps to configure the scope of the EWSMailbox Data Collector:

Step 1 – Navigate to the Exchange > 7. Sensitive Data > 0. Collection > EX_Mailbox_SDD > Configure node and select Queries.

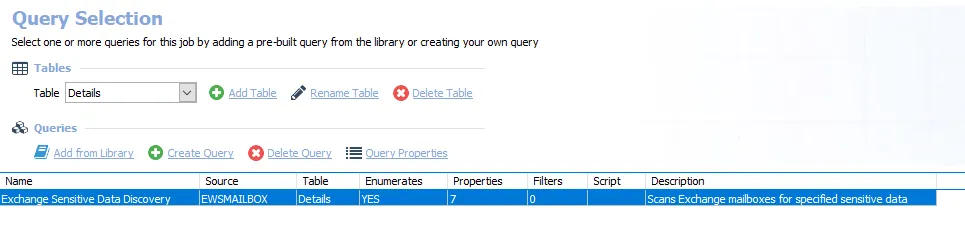

Step 2 – In the Query Selection view, select the Exchange Sensitive Data Discovery query and click Query Properties. The Query Properties window opens.

Step 3 – Select the Data Source tab, and click Configure. The EWS Mailbox Data Collector Wizard opens.

CAUTION: Do not make changes to other wizard pages as they have been pre-configured for the purpose of this job.

EWS Mailbox Data Collector Wizard Mailbox scope settings page

Step 4 – To scope the query for specific mailboxes, navigate to the Scope page. The query is configured by default to target All mailboxes. Change the Mailboxes to be queried to Select mailboxes from list. See the EWSMailbox: Scope topic for additional information.

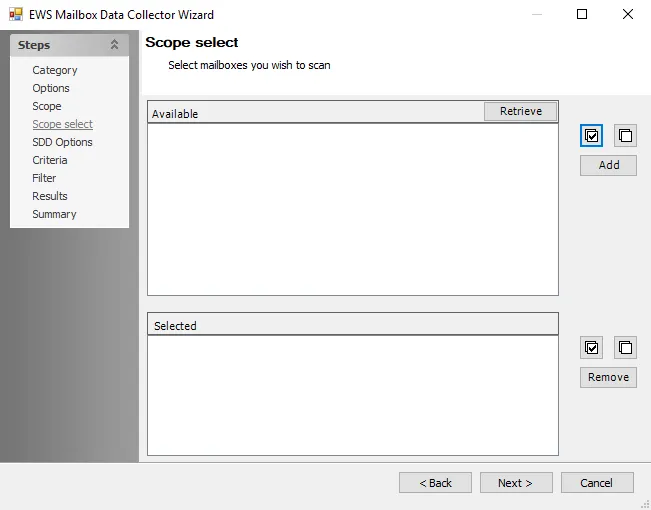

EWS Mailbox Data Collector Wizard Scope select page

Step 5 – To retrieve available mailboxes, click Retrieve on the Scope Select page. Select the desired mailboxes and click Add. See the EWSMailbox: Scope Select topic for additional information.

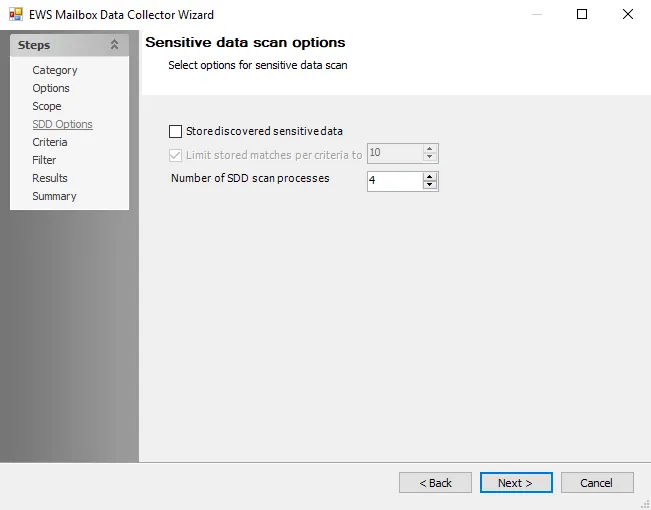

EWS Mailbox Data Collector Wizard SDD Options page

Step 6 – To enable storage of discovered sensitive data, navigate to the SDD Options page. Sensitive data matches can be limited to reduce storage space. See the EWSMailbox: SDD Options topic for additional information.

NOTE: By default, discovered sensitive data strings are not stored in the Access Analyzer database.

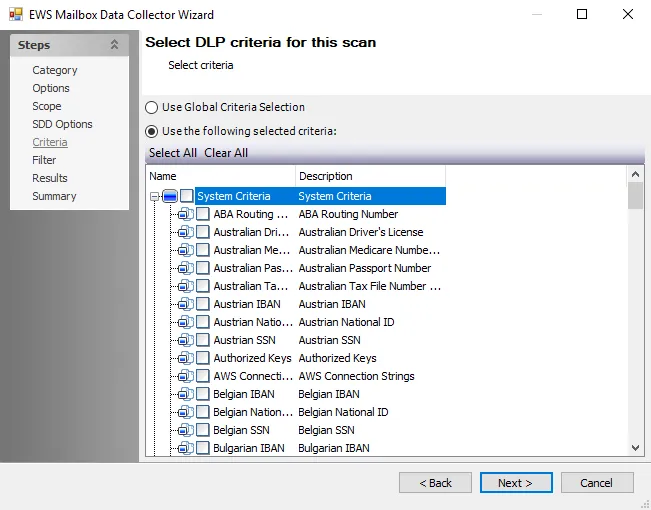

EWS Mailbox Data Collector Wizard Criteria page

Step 7 – To modify criteria, navigate to the Criteria page. Add or remove criteria as desired. See the EWSMailbox: Criteria topic for additional information.

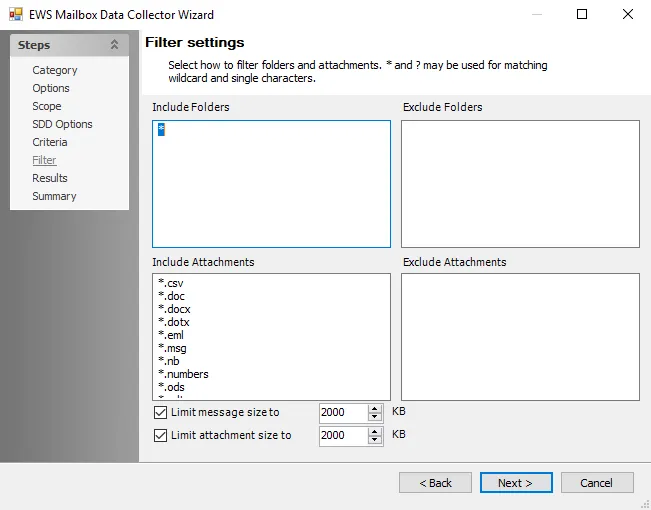

EWS Mailbox Data Collector Wizard Filter page

Step 8 – To filter the scan to specific mailbox folders, navigate to the Filter page. Include or exclude folders and attachments as desired. See the EWSMailbox Data Collector topic for additional information.

  • To modify the threshold for message size, set the Limit message size to value as desired. The default is 2000 KB.
  • To modify the threshold for large attachment size, set the Limit attachment size to value as desired. The default is 2000 KB.

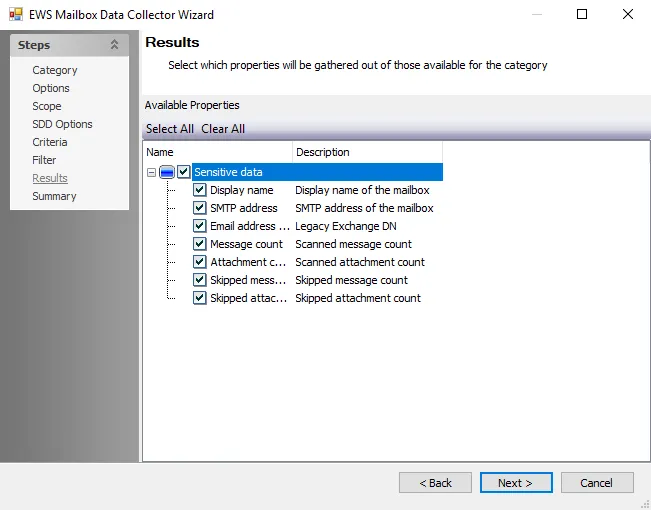

EWS Mailbox Data Collector Wizard Results page

Step 9 – Navigate to the Results page to select which properties are gathered based on category. See the EWSMailbox: Results topic for additional information.

NOTE: By default, all categories are selected under sensitive data.

Step 10 – Navigate to the Summary page, click Finish to save any setting modifications or click Cancel if no changes were made. Then click OK to close the Query Properties window

The job now applies the modification to future job executions.

Analysis Tasks for the EX_Mailbox_SDD Job​

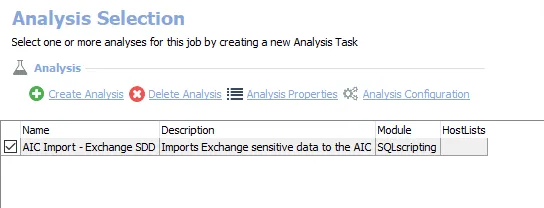

View the analysis task by navigating to the Exchange > 7.Sensitive Data > EX_Mailbox_SDD > Configure node and select Analysis.

CAUTION: Do not modify or deselect the selected analysis task. The analysis task is preconfigured for this job.

Analysis Tasks for the EX_Mailbox_SDD Job

The following analysis task is selected by default:

  • AIC Import - Exchange SSD – Imports Exchange sensitive data to the Access Information Center
