File Types > FS_FileTypes Job

The FS_FileTypes job is designed to report on file type information from targeted file servers.

File Types > FS_FileTypes Job in the Jobs Tree

The FS_FileTypes job is located in the File Types job group.

Analysis Tasks for the FS_FileTypes Job​

View the analysis tasks by navigating to the FileSystem > 4.Content > File Types > FS_FileTypes > Configure node and select Analysis.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

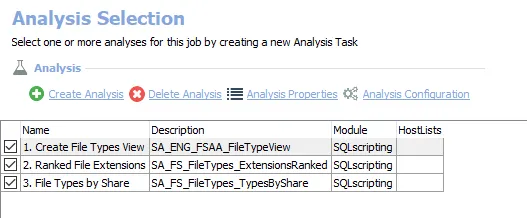

Analysis Tasks for the FS_FileTypes Job

The following analysis tasks are selected by default:

    1. Create File Types View – Creates the SA_ENG_FSAA_FileTypeView view accessible under the job’s Results node
    1. Ranked File Extensions – Creates the SA_FS_FileTypes_ExtensionsRanked table accessible under the job’s Results node
    1. File Types by Share – Creates the SA_FS_FileTypes_TypesByShare table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the FS_FileTypes job produces the following pre-configured report:

ReportDescriptionDefault TagsReport Elements
File TypesThis report identifies what types of files are located within your distributed file system and how much space they are taking up in gigabytes.NoneThis report is comprised of two elements: - Pie Chart – Displays file types extensions ranked - Table – Provides details on file types by share
