SG_WDigestSettings Job
The SG_WDigestSettings job lists WDigest settings on all targeted hosts. In particular, the UseLogonCredentials key is examined. If this key is not set properly for a given host, cleartext passwords will be stored in memory. See the Microsoft Security Advisory article for more information.
Queries for the SG_WDigestSettings Job
The SG_WDigestSettings job uses the Registry and WMICollector Data Collectors for the following queries:
CAUTION: The queries are preconfigured for this job. Never modify the queries.

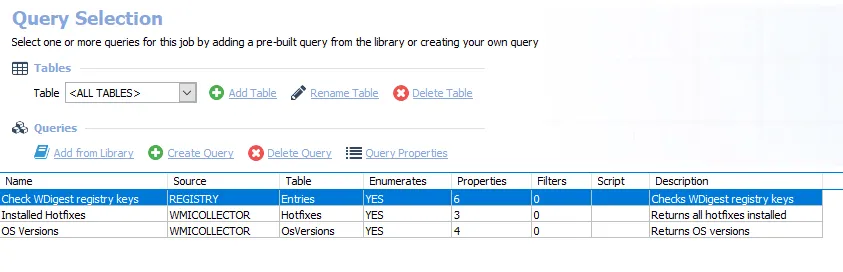

The queries for the SG_WDigestSettings job are:
- Check WDigest registry keys – Checks WDigest registry keys
- Installed Hotfixes – Returns all hotfixes installed
- OS Versions – Returns OS versions
Analysis Tasks for the SG_WDigestSettings Job

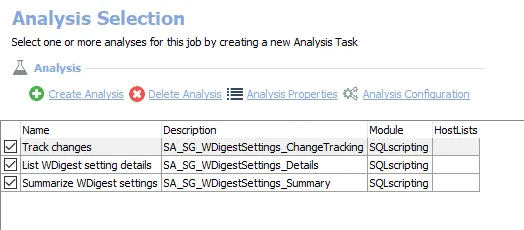

Navigate to the Windows > Authentication > SG_WDigestSettings > Configure node and select Analysis.
CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.
The default analysis tasks are:
- Track changes – Creates the SG_WDigestSettings_ChangeTracking table accessible under the job’s Results node
- List WDigest setting details – Creates the SG_WDigestSettings_Details table accessible under the job’s Results node
- Summarize WDigest Settings – Creates an interim processing table in the database for use by downstream analysis and report generation
In addition to the tables created by the data collector, the SG_WDigestSettings job produces the following pre-configured report.
| Report | Description | Default Tags | Report Elements |
|---|---|---|---|
| WDigest Settings | This report summarizes WDigest registry settings on targeted hosts. See the Microsoft Security Advisory article for additional details. | None | This report is comprised of two elements: - Pie Chart – Displays WDigest settings by host - Table – Provides WDigest setting details |
