Scan Microsoft 365

Connect one Microsoft 365 tenant's SharePoint Online sites and OneDrive drives to Access Analyzer and run two scans: an Access scan that collects sites, permissions, and sharing links, and a Sensitive data scan that classifies the documents the Access scan found. At the end you'll have data in the Data security dashboard and the SharePoint reports.

Access Analyzer calls the source type SharePoint Online. It signs in to the tenant as an application with a certificate, so setup is a round trip between Access Analyzer and the Microsoft Entra app registration.

Before You Start​

In Entra ID. You need an administrator who can create an app registration, upload a certificate to it, and grant admin consent for its permissions. The registration needs application permissions that let Access Analyzer read SharePoint sites, their permissions, and their files. Don't create a client secret for it: SharePoint Online sources authenticate only with a certificate, and Access Analyzer generates that certificate for you in step 1.

The network. The Access Analyzer server needs outbound HTTPS (TCP 443) to login.microsoftonline.com, graph.microsoft.com, and your tenant's SharePoint hosts (<tenant>.sharepoint.com and <tenant>-my.sharepoint.com).

An Entra ID source for the same tenant. Effective permissions in SharePoint depend on group membership, and Access Analyzer takes that from the latest completed Entra ID Identity sync of the same tenant. Follow Scan Entra ID first. Without it, Access Analyzer calculates effective permissions from SharePoint data alone.

In Access Analyzer. Sign in with the Admin role.

1. Create the Service Account and Its Certificate​

SharePoint Online sources use a Client ID/certificate service account. Unlike an Entra ID source, which records the tenant ID on the source itself, a SharePoint Online source takes the tenant ID from the service account.

  1. In the Microsoft Entra admin center, create an app registration for Access Analyzer.
  2. On the registration's Overview page, copy the Application (client) ID and the Directory (tenant) ID.
  3. In Access Analyzer, go to Configuration > Service accounts and click Add service account.
  4. In Name, enter a unique name, for example sharepoint-access-analyzer-app.
  5. In Service account type, select Client ID/certificate.
  6. In Client (application) ID, paste the Application (client) ID.
  7. In Tenant ID, paste the Directory (tenant) ID.
  8. Under Certificate, leave Generate for me selected. When you save the account, Access Analyzer creates a self-signed RSA-2048 certificate that is valid for one year.
  9. Click Add account.
  10. In the Account created and certificate generated message, note the thumbprint and expiry date.
  11. Click Download certificate (.pem) and save the file.
  12. Click Done.

Add service account drawer with the Client ID/certificate type selected

If your organization issues its own certificates, select Upload my own instead and provide a .pem file, up to 1 MB, that contains both the certificate and its unencrypted private key. Access Analyzer rejects expired certificates and PFX files. The Client ID and certificate page covers both options and what to do when the certificate is due to expire.

2. Upload the Certificate to the App Registration​

  1. In the Microsoft Entra admin center, open the app registration.
  2. Under Certificates & secrets, upload the .pem file you downloaded. It holds only the public certificate.
  3. Check that the thumbprint Entra ID shows matches the one from step 1.
  4. Add the application permissions Access Analyzer needs.
  5. Grant admin consent for the tenant.
warning

The generated certificate expires one year after you create the account, and scans fail when it does. When you regenerate or replace it in Access Analyzer, upload the new public certificate to the app registration before the next scan runs.

3. Add the Source​

  1. Go to Configuration > Sources and click Add source.
  2. In Source type, select SharePoint Online.
  3. Under Details, enter a Name, such as the tenant name.
  4. Under Connection, in SharePoint domain, enter the tenant's SharePoint host, for example contoso.sharepoint.com.
  5. Leave Azure cloud at Azure (Commercial) unless the tenant is in a government or China cloud.
  6. Under Access, in Service account, select the account from step 1.
  7. Click Test connection. Access Analyzer signs in with the certificate and checks that the registration can reach the tenant. A Connection successful message confirms it; a Connection failed alert gives the reason. If it fails, confirm that you uploaded the certificate and granted admin consent.
  8. Click Add source.

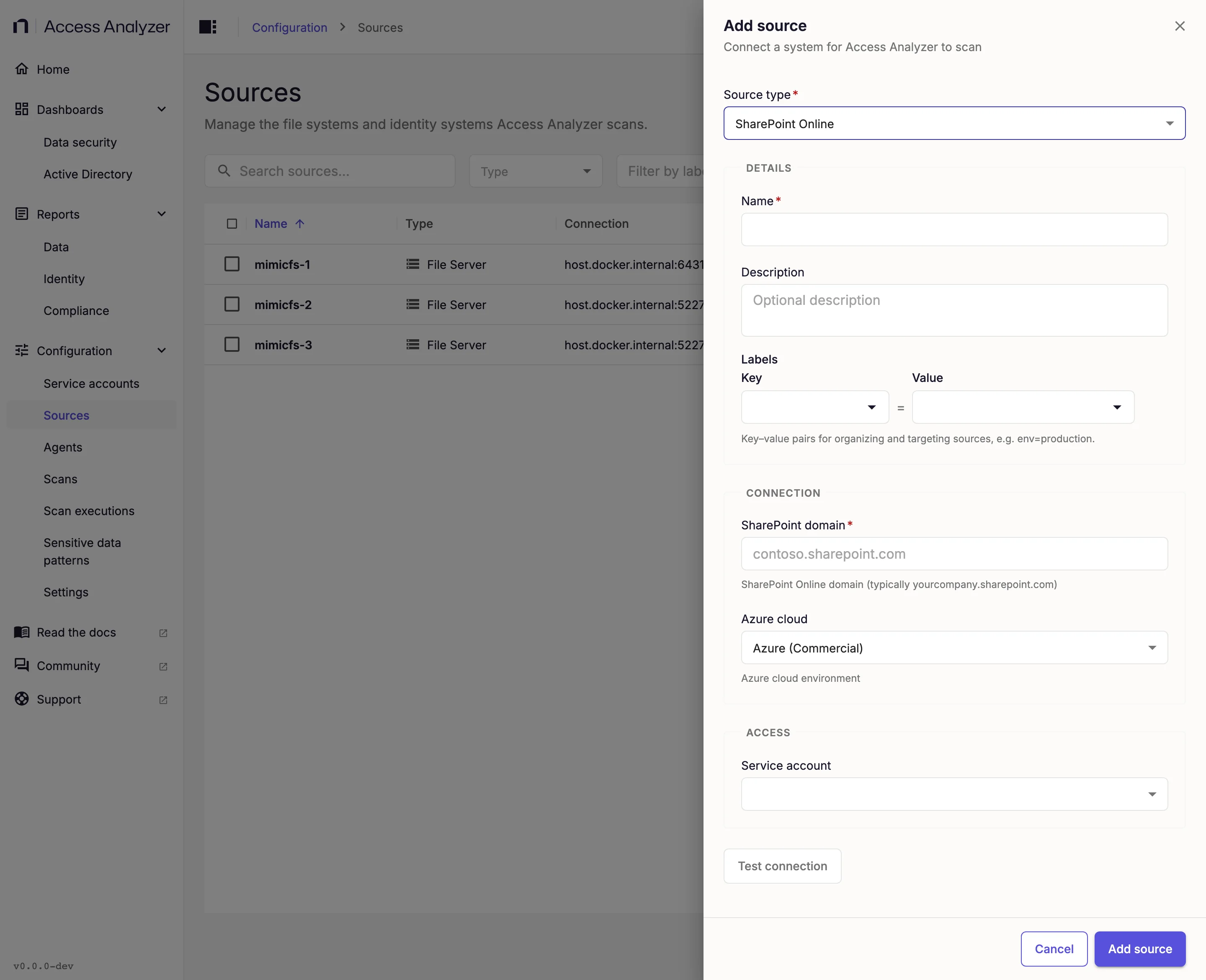

Add source drawer for a SharePoint Online source

Field details are on the Microsoft 365 source page.

4. Create the Access Scan​

Run the Access scan first. The Sensitive data scan in step 6 classifies documents from the inventory this scan builds.

  1. Go to Configuration > Scans and click Create scan.

  2. On the Type step, select Access and click Next.

    Create scan Type step with the Access, Sensitive data, and Identity sync cards

  3. On the Target step, keep Specific sources and select the tenant.

  4. On the Configure step, leave Use default configuration selected for the first run. The defaults are Workers 4, Collect OneDrive on, and no entries in Include site collections, Exclude site collections, or Exclude object URLs, so the scan covers every site collection and every OneDrive drive.

  5. On the Schedule step, leave Manual — run on demand for the first run. Leave the agent set to System agent.

  6. On the Review step, enter a Name such as Contoso SharePoint - access.

  7. Click Create & run now.

Create scan Review step with the scan named and the summary shown

When you're ready to narrow the scan, edit it and select Customize this source on the Configure step. Include site collections limits the scan to the site collections you list and takes no wildcards; Exclude site collections and Exclude object URLs accept the * wildcard. Keep Workers at 4 unless the tenant has SharePoint Online prioritization (adaptive throttling) turned on; even then, 32 is the practical maximum before throttling cancels out the gain. Every Access scan is a full crawl of the sites in scope; there is no differential option. Scan types describes each setting.

5. Watch the Execution​

Go to Configuration > Scan executions. The list refreshes on its own, and the Objects column grows as the scan reads the tenant. A first scan of a large tenant takes a while.

Scan executions list

If the status is Failed, open the row's actions menu, click View logs, and check the Detailed logs tab. A sign-in error points at the certificate or the app registration. Scan executions lists every status.

6. Create the Sensitive Data Scan​

After the Access scan shows Completed, create the second scan. It downloads documents from the Access scan's inventory and classifies them against sensitive data patterns. By default the scan skips documents larger than 10 MB and files with excluded extensions; both limits are in Application settings.

  1. Go to Configuration > Scans and click Create scan.

  2. On the Type step, select Sensitive data and click Next.

  3. On the Target step, select the same tenant.

  4. On the Configure step, under Sensitive data classification, choose which pattern groups the scan uses. Leave Inherit from global configuration on to use the groups marked Scanned by default at Configuration > Sensitive data patterns, or turn it off and pick groups under Sensitive Data Pattern Groups to Classify. SharePoint Online has no other Sensitive data settings.

    Create scan Configure step for a Sensitive data scan showing the classification settings

  5. On the Schedule step, leave Manual — run on demand.

  6. On the Review step, enter a Name such as Contoso SharePoint - sensitive data.

  7. Click Create & run now.

note

On a fresh install, no pattern group carries Scanned by default, and a scan with no groups selected classifies against every pattern group. Select the groups you care about before putting the scan on a schedule.

Sensitive data patterns describes the built-in groups and confidence levels.

7. Check the Dashboards and Reports​

Dashboards and reports don't refresh on their own. Open one and click Refresh to reload it; results from a scan that has just finished can take some time to appear.

Dashboards > Data security shows the tenant in Total Data Repositories, Total Objects Scanned, Permissions Analyzed, SharePoint Sites by Type, and Data Source Inventory. After the Sensitive data scan, Sensitive Data Findings and Sensitive Data by Source include SharePoint too.

Reports > Data, on the SharePoint tab, has four reports.

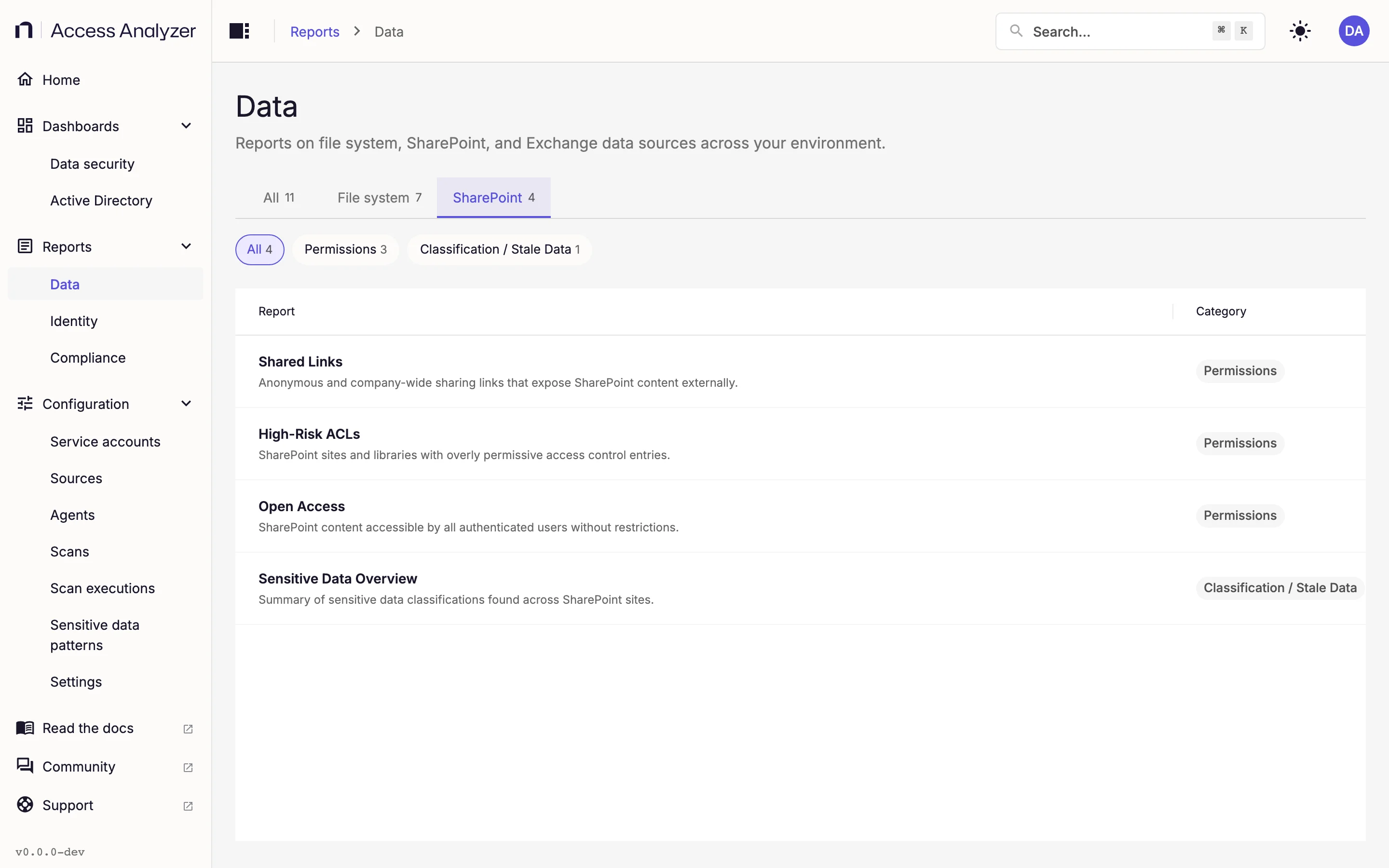

Data reports page on the SharePoint tab

ReportNeedsWhat it shows
Shared LinksAccess scanAnonymous and company-wide sharing links that expose content externally
High-Risk ACLsAccess scanSites and libraries with overly permissive access control entries
Open AccessAccess scanContent that all authenticated users can reach without restriction
Sensitive Data OverviewSensitive data scanSensitive data classifications across SharePoint sites

Shared Links also appears under Reports > Compliance for each framework. The other three SharePoint reports live only on the Data page. Data reports describes every report and its filters, and the Data security dashboard page covers each card.
