Netwrix Activity Monitor

Netwrix Activity Monitor records who did what in the systems it monitors. Access Analyzer knows what data you have and who can reach it. Connect the two and Access Analyzer also knows who actually opened, changed, or deleted that data on file servers, in SharePoint Online, and in Microsoft 365 Copilot. You can see, for example, which users touched sensitive files on a share that's open to everyone.

The connection is one-way: an Activity Monitor agent sends events to the Access Analyzer server over a Transmission Control Protocol (TCP) connection on port 4504, secured with TLS.

How the Integration Works

Setup is a one-time enrollment, followed by a continuous stream of events.

Once Access Analyzer accepts the token, each side remembers the other's certificate, and the agent never needs the token again. From then on the agent sends events as they happen, and Access Analyzer stores them alongside its scan results.

The Activity Monitor output sends three kinds of events: File System, SharePoint Online, and Microsoft 365 Copilot.

Where the Data Appears

Activity data shows up in three places. Only the dashboard includes SharePoint Online and Copilot events; the two reports cover file server activity.

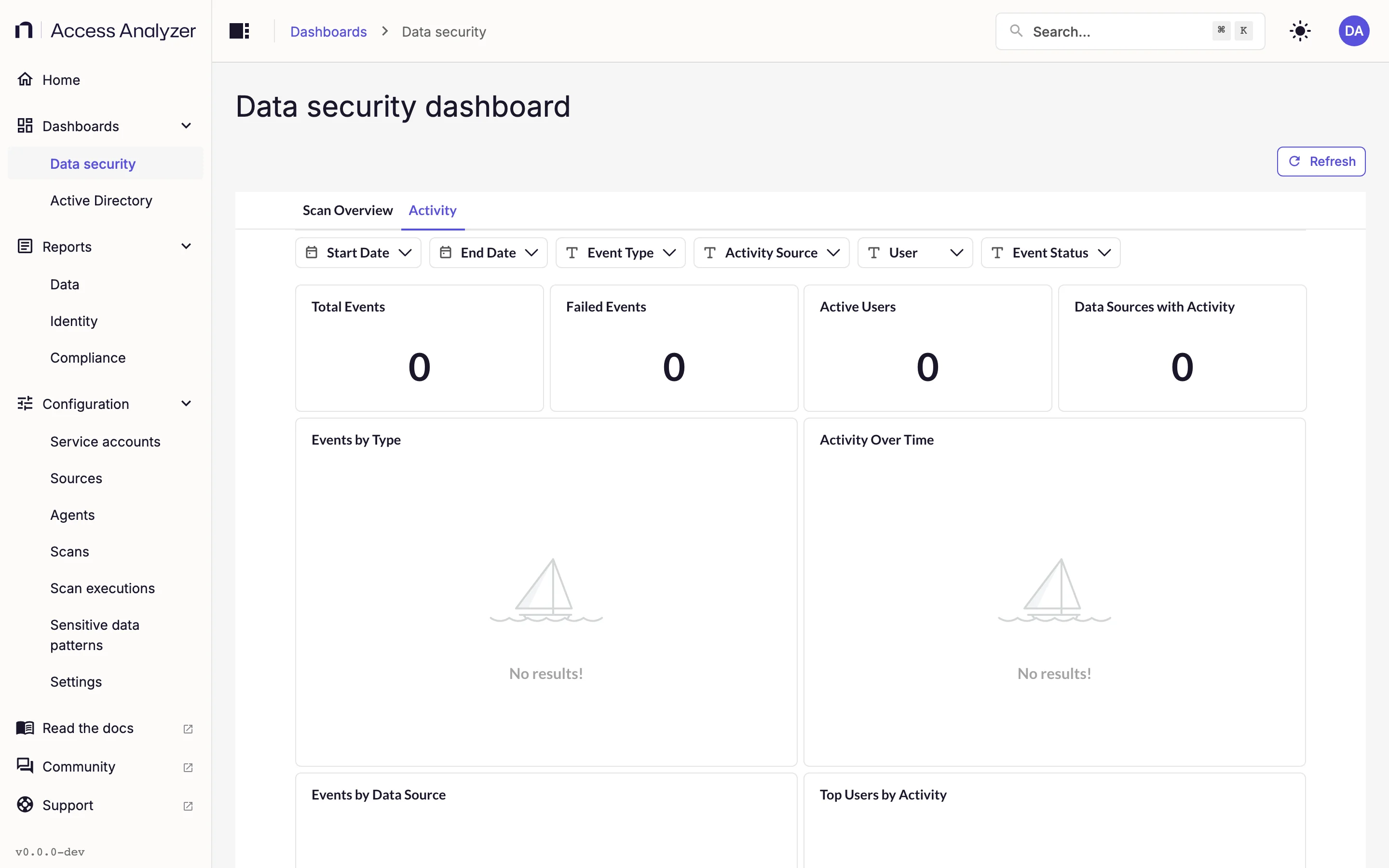

• The Data security dashboard has an Activity tab with the tiles Total Events, Failed Events, Active Users, and Data Sources with Activity; the charts Events by Type, Activity Over Time, Events by Data Source, and Top Users by Activity; and an Activity Detail table. Filter it by Start Date, End Date, Event Type, Activity Source, User, and Event Status.
• The Activity Investigation report under Data reports. Every framework under Compliance reports includes it too.
• The Share Audit report, also under Data reports, draws on file server activity in its Activity tab, in the Probable Owner card on the Overview tab, and in the Users by Activity on Sensitive Files chart on the Sensitive Data tab.

Until an enrolled agent sends events, every card on the Activity tab reads No results!.

Prerequisites

• Activity Monitor version. Netwrix Activity Monitor 10.0 with an output of type Access Analyzer 26. The Activity Monitor documentation covers adding and editing that output.
• Network path. The host running the Activity Monitor agent must reach the Access Analyzer server on TCP port 4504. Open that port inbound on the server's firewall and on anything between the two hosts.
• TLS certificate. The Access Analyzer listener on port 4504 presents the same TLS certificate as the web interface, the one you supplied when you installed Access Analyzer. The connection uses TLS 1.3. If the certificate has expired, the listener doesn't start and agents can't connect.
• Admin role. Only an Admin sees the Enrollment token panel, generates tokens, and changes the connection settings. A Viewer can see the connection settings but not change them. See Users and roles.

Generate an Enrollment Token

1. Sign in to Access Analyzer as an Admin.

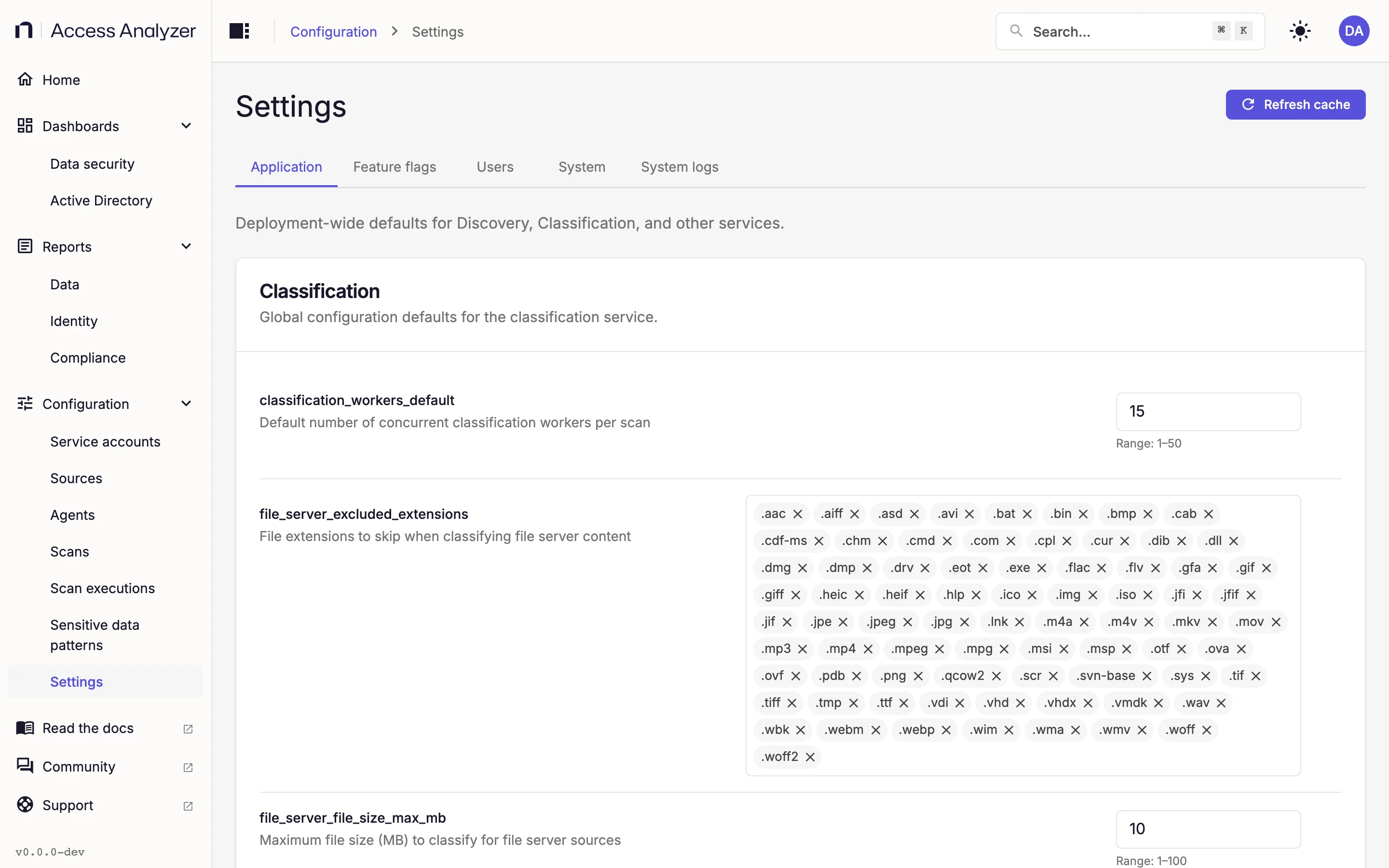

2. Go to Settings > Application.
3. Scroll to the Netwrix Activity Monitor card. The Enrollment token panel is at the bottom of the card, below the four connection settings.
4. Click Generate token. If a token already exists, the button reads Generate new token instead.
5. Click the Copy icon next to the token. The message Token copied to clipboard confirms it.

The panel shows the token in a read-only field with an Expires line under it. Three things about the token matter when you plan an enrollment session:

• It's valid for one hour, so generate it right before you start enrolling. After an hour Access Analyzer rejects it and you generate a new one.
• Generating a new token invalidates any earlier token. Only the newest token works. Don't click Generate new token while a colleague is still enrolling with the previous one.
• One token can enroll several agents. The first enrollment doesn't consume it. If you have five Activity Monitor agents to connect, generate one token and use it for all five within the hour.

For example, a token generated at 09:00 expires at 10:00. Between those times you can enroll as many agents as you like with it. At 09:30, if you generate another token, the 09:00 token stops working immediately, even though it hasn't reached its expiry time.

If the panel is disabled, the port 4504 listener has no TLS certificate and Access Analyzer can't issue a token. The panel shows NAM listener certificate isn't configured on this server. NAM is short for Netwrix Activity Monitor. The listener uses the certificate you supplied at installation; see Troubleshooting.

Enroll the Activity Monitor Agent

The rest of the setup happens in Activity Monitor. The following steps are the outline; the field-by-field description is in the Activity Monitor documentation for the Access Analyzer 26 output.

1. In Activity Monitor, add an output of type Access Analyzer 26, or open the properties of an existing one.
2. In Server in SERVER:PORT format, enter the Access Analyzer server and the listener port, for example aa.corp.example.com:4504. A short name, fully qualified domain name (FQDN), or IP address all work, as long as the agent can resolve it.
3. In Enrollment Token, paste the token you copied from Access Analyzer.
4. Click Enroll.

The agent connects, checks that the server's certificate matches the one described in the token, and sends the token. Access Analyzer accepts it, records the agent, and events start flowing. Repeat for each agent, reusing the same token while it's valid.

Certificate Trust After Enrollment

Enrollment does more than check the token. The token carries a fingerprint of the public key in the Access Analyzer server's TLS certificate, so the agent knows it has reached the right server before it sends anything. In return, Access Analyzer records the fingerprint of the public key in the agent's certificate. Renewing a certificate with the same key pair keeps that trust intact. From then on the two sides recognize each other by those certificates alone.

That trust depends on the certificates in use at enrollment time:

• If you replace the Access Analyzer TLS certificate with one that uses a different key pair, enrolled agents no longer trust the server. Generate a new token and enroll each agent again.
• If an agent's certificate changes, for example because it generated a new key pair, Access Analyzer no longer trusts that agent. Enroll it again with a fresh token.

Access Analyzer treats an agent that connects with an unrecognized certificate as new: the agent has 10 seconds by default to present a valid token before Access Analyzer disconnects it.

Connection Settings

The four settings in the Netwrix Activity Monitor card on Settings > Application tune how the listener treats agent connections. The defaults suit most environments. Each row shows its setting key, with the allowed range under the field. To change a value, edit it and click Save changes in the bar that appears at the bottom of the page. Changes apply to new connections without a restart. Application settings describes how the settings page itself behaves, including the Overridden badge and the reset-to-default control.

Setting	Default	Range	What it controls
activitymonitor_connection_timeout	900	5–3600	Seconds of inactivity before Access Analyzer drops an idle Activity Monitor agent.
activitymonitor_enrollment_ban_duration_seconds	10	5–300	Seconds to ban a source IP after it presents an invalid enrollment code (the code is the part of the token the agent sends).
activitymonitor_enrollment_first_message_timeout_seconds	10	5–60	Seconds to wait for the first message from a newly connected Activity Monitor agent.
activitymonitor_max_message_size	16777216	65536–67108864	Maximum size in bytes of a single Activity Monitor message (default 16 MB).

For example, with the default activitymonitor_connection_timeout of 900, Access Analyzer disconnects an agent that sends nothing for 15 minutes. Raise it to 3600 to keep a quiet agent connected for up to an hour.

Troubleshooting

The listener writes to the application logs.

1. Go to Settings > System logs. Only an Admin can open this tab.
2. In Component, select nam-listener.
3. Set From and To to the window in which you tried to enroll.

The System logs page explains the filters and the Log details drawer.

The listener logs these messages:

Message	Meaning
nam listener: bound	The listener started and is accepting connections on port 4504.
nam listener: connection limit reached, rejecting	The listener is at its limit of 100 simultaneous connections and refused a new one.
nam listener: TLS certificate expires soon	The certificate is close to its expiry date. Renew it before then; the listener doesn't start with an expired certificate.
nam writer: unknown activity type, dropped	An event arrived with an activity type Access Analyzer doesn't store, so Access Analyzer dropped it.

Match the symptom to its likely cause:

Symptom	Likely cause	What to do
Enroll fails and nothing appears in the logs for that time	TCP port 4504 is blocked between the agent host and the Access Analyzer server.	Open the port on the server's firewall and any firewall in between. Confirm the agent host can resolve the server name you entered.
Enroll fails even though the agent reaches the server	The token is more than an hour old, or someone clicked Generate new token after you copied it.	Generate a new token and enroll again. After a rejected token, Access Analyzer ignores connections from that agent's IP address for activitymonitor_enrollment_ban_duration_seconds (10 seconds by default), so wait before retrying.
Every agent stopped sending data at the same time	The listener is no longer running because the Access Analyzer TLS certificate has expired, or someone replaced the certificate with one that uses a different key pair, so enrolled agents no longer recognize the server.	Check Settings > System logs for nam listener: bound after the last restart. If the certificate has expired, renew it; see Install Access Analyzer. If someone replaced it with a different key pair, generate a new token and enroll each agent again.
One agent stopped sending data after a change on its host	The agent's certificate changed.	Enroll that agent again.
The Enrollment token panel is disabled with NAM listener certificate isn't configured on this server.	The listener has no TLS certificate to present, so Access Analyzer can't issue tokens.	The listener uses the certificate supplied during installation. Confirm the installation completed with a valid certificate and key; see Install Access Analyzer.
