SQL Server Reports
SQL Server reports are accessed through the Resource Audit interface. Explore the SQL Server resources by expanding the levels within the Resources pane and selecting the desired resource. The data within these reports is collected by the Access Analyzer SQL solution. See the SQL Solution topic in the Netwrix Access Analyzer Documentation for additional information.
A single SQL Server can have multiple instances. Each instance where data is collected has its own node in the Access Information Center. SQL Server reports fall into the following categories:
- Permissions reports
- Activity reports
- Sensitive Data Content reports
The following report is available at the SQL Server node:
SQL Server Reports Quick Reference Guide
The following SQL Server reports are available for selections within the Resources pane.
SQL Server Node Report
The following report is available at the SQL Server node level:
| Report | Description |
|---|---|
| Sensitive Content Summary Report | Provides a count of tables where criteria matches were found in the targeted environment. This report includes a Details table. |
SQL Server > Instance Level Reports
The following reports are available at the instance level:
| Report | Description |
|---|---|
| Activity Report | Displays activity across the entire instance logged during the selected date range. |
| Sensitive Content Details Report | Provides details of tables where criteria matches were found on the selected instance. This report includes a table with criteria matches visible to Access Information Center users with either Security Team Member or Administrator roles. The Matches table requires the storage of discovered sensitive data within the Access Analyzer database or it will be blank. |
| Sensitive Content Summary Report | Provides a count of tables where criteria matches were found on the selected instance. This report includes a Details table. |
SQL Server > Databases Node Reports
The following reports are available at the Databases node level:
| Report | Description |
|---|---|
| Activity Report | Displays activity across the databases logged during the selected date range. |
| Sensitive Content Report | Provides a list of tables and a hit count per table where criteria matches were found on the selected resource. This report includes a table with criteria matches visible to Access Information Center users with either Security Team Member or Administrator roles. The Matches table requires the storage of discovered sensitive data within the Access Analyzer database or it will be blank. |
SQL Server > Databases Node > Database & Table Levels Reports
The following reports are available at the database and table levels:
| Report | Description |
|---|---|
| Activity Report | Displays activity across the databases logged during the selected date range. |
| Permissions Report | Shows the permissions for the trustee on the selected resource. |
| Sensitive Content Report | Provides a list of paths and a hit count per table where criteria matches were found on the selected resource. This report includes a table with criteria matches visible to Access Information Center users with either Security Team Member or Administrator roles. The Matches table requires the storage of discovered sensitive data within the Access Analyzer database or it will be blank. |
SQL Server > Instance Permissions Node Report
The following report is available at the Permissions node level:
| Report | Description |
|---|---|
| Permissions Report | Shows the permissions for the trustee on the instance. |
SQL Server > Roles Node Report
The following report is available at the Roles node level:
| Report | Description |
|---|---|
| Permissions Report | Shows the permissions for the instance’s SQL roles. |
Instance Level Reports
The following reports are available at the instance level:
Remember, instance permissions are populated at the Instance Permissions node. See the Instance Permissions Node Report topic for additional information.

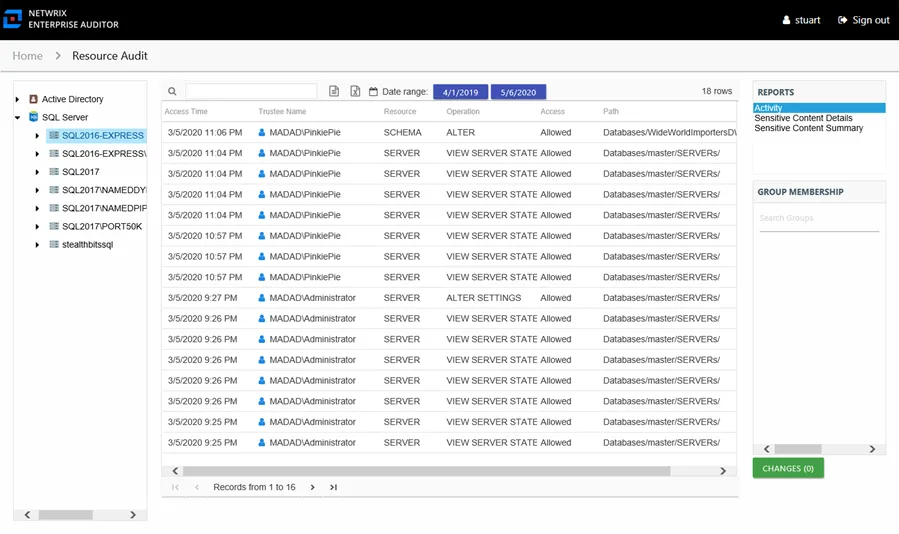

Activity Report
The Activity report at the instance level displays activity across the entire instance logged during the selected date range.
This report is comprised of the following columns:
- Access Time – Date and timestamp for when the operation occurred
- Trustee Name – Owner of the trustee account
- Trustee Account – Active Directory account associated with the trustee
- Department – Department to which the trustee account belongs
- Title – Trustee’s title as read from Active Directory
- Mail – Trustee’s email account as read from Active Directory
- EmployeeId – Corporate ID for the employee as read from Active Directory
- Description – Description of the trustee object as read from Active Directory
- DistinguishedName – Distinguished name for the trustee account
- ObjectSid – Security ID of the object
- Disabled – True or False if trustee account is disabled
- Deleted – True or False if trustee account is deleted
- Resource – Type of resource
- Operation – Type of operation performed
- Access – Whether the trustee was granted access to execute the operation: Allowed or Denied
- Path – Database object that was acted upon
- Target Path – Query that triggered the activity event to be stored
- Process Name – Not populated in SQL Server reports
Instance Permissions Node Report
The following report is available at the Instance Permissions node:
- Activity – Displayed but not populated at the Instance Permissions node
- Permissions Report
- Sensitive Content – Displayed but not populated at the Instance Permissions node

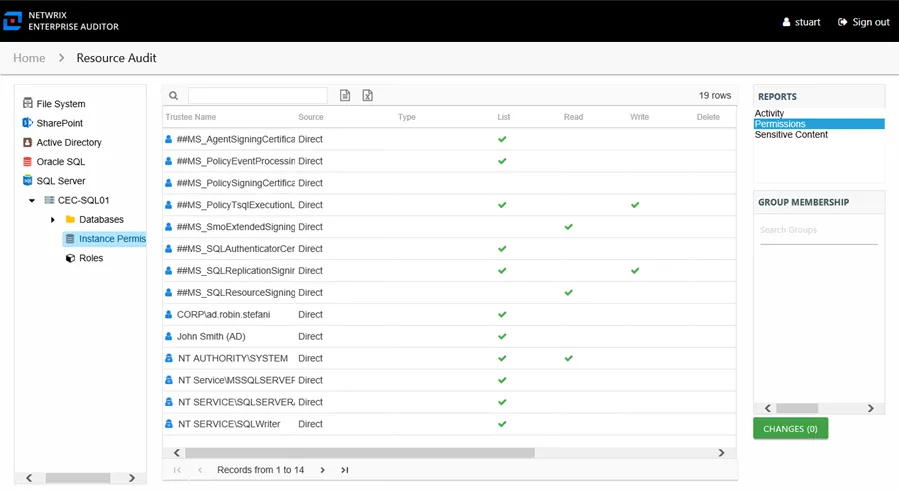

Permissions Report
The Permissions report at the Instance Permissions node shows the instance permissions for the trustee.
This report is comprised of the following columns:
- Trustee Type – Type of the trustee (for example, Domain User, Database User, or Domain Group)
- Trustee Name – Owner of the trustee account
- Trustee Account – Active Directory account associated with the trustee
- Department – Department to which the trustee account belongs
- Title – Trustee’s title as read from Active Directory
- Mail – Trustee’s email account as read from Active Directory
- EmployeeId – Corporate ID for the employee as read from Active Directory
- Description – Description of the trustee object as read from Active Directory
- DistinguishedName – Distinguished name for the trustee account
- ObjectSid – Security ID of the object
- Disabled – True or False if trustee account is disabled
- Deleted – True or False if trustee account is deleted
- Stale – True or False if trustee account is stale (according to the length of inactive time used by the Access Analyzer data collection and analysis configuration to identify stale accounts)
- Type – Direct or Inherited type of permission
The following rights are a normalized representation of the SQL permission levels (SQL Roles) granted to the trustee:
- List – Right to view list of resources
- Read – Right to view/read resources
- Write – Right to add or modify resources
- Delete – Right to delete resources
- Manage – Equivalent to full control over resources
The following columns display the combined direct and inherited rights:
- Allow Mask – Bitmask corresponding to Windows ACE permission bits for combined direct and inherited allow rights
- Deny Mask – Bitmask corresponding to Windows ACE permission bits for combined direct inherited deny rights
Roles Node Reports
The following report is available at the Roles node:
- Activity – Displayed but not populated at the Roles node
- Permissions Report
- Sensitive Content – Displayed but not populated at the Roles node

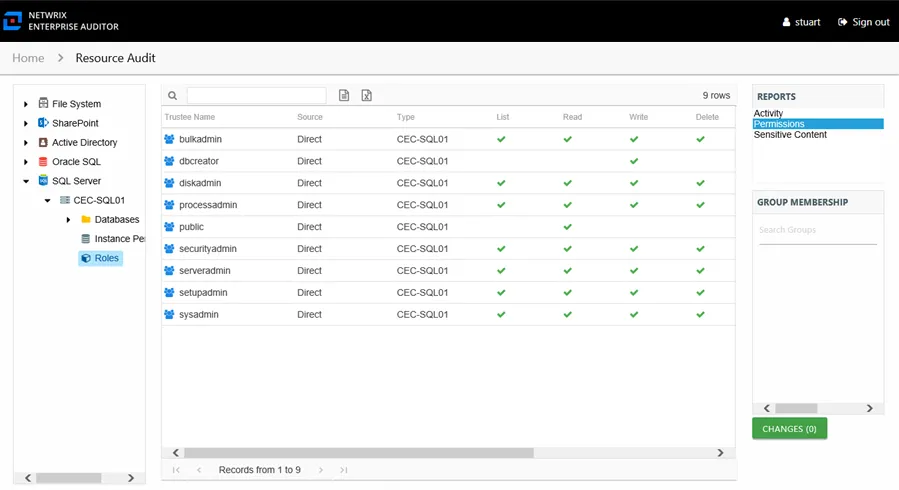

Permissions Report
The Permissions report at the Roles node shows the permissions for the instance’s SQL roles.
This report is comprised of the following columns:
- Trustee Type – Type of the trustee (for example, Domain User, Database User, or Domain Group)
- Trustee Name – Owner of the trustee account
- Trustee Account – Active Directory account associated with the trustee
- Department – Department to which the trustee account belongs
- Title – Trustee’s title as read from Active Directory
- Mail – Trustee’s email account as read from Active Directory
- EmployeeId – Corporate ID for the employee as read from Active Directory
- Description – Description of the trustee object as read from Active Directory
- DistinguishedName – Distinguished name for the trustee account
- ObjectSid – Security ID of the object
- Disabled – True or False if trustee account is disabled
- Deleted – True or False if trustee account is deleted
- Stale – True or False if trustee account is stale (according to the length of inactive time used by the Access Analyzer data collection and analysis configuration to identify stale accounts)
- Type – Direct or Inherited type of permission
The following rights are a normalized representation of the SQL permission levels (SQL Roles) granted to the trustee:
- List – Right to view list of resources
- Read – Right to view/read resources
- Write – Right to add or modify resources
- Delete – Right to delete resources
- Manage – Equivalent to full control over resources
The following columns display the combined direct and inherited rights:
- Allow Mask – Bitmask corresponding to Windows ACE permission bits for combined direct and inherited allow rights
- Deny Mask – Bitmask corresponding to Windows ACE permission bits for combined direct inherited deny rights
Databases Node Reports
The following reports are displayed at the Databases node:
- Activity Report
- Permissions – Displayed but not populated at the Databases node
- Sensitive Content Report

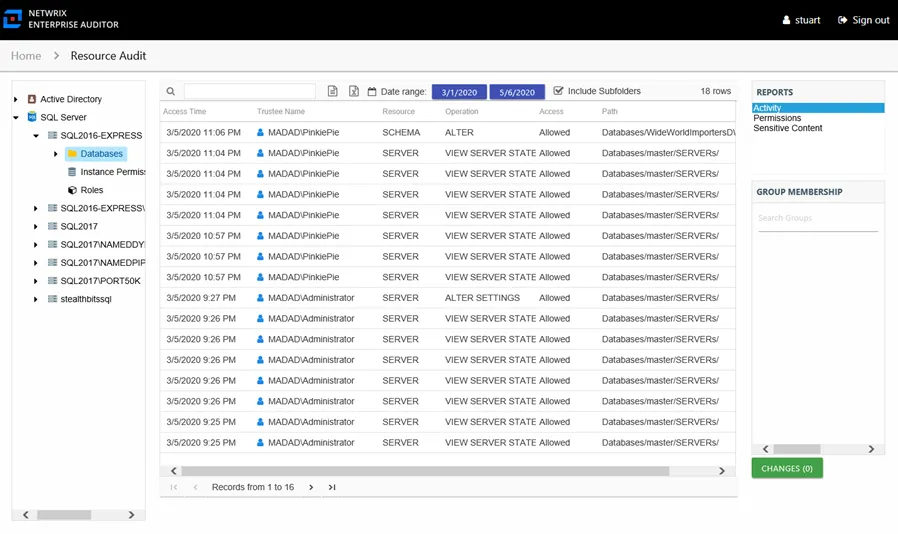

Activity Report
The Activity report at the Databases node displays activity across the databases logged during the selected date range. The Include Subfolders option is active by default until removed. See the Results Pane topic for information on changing this option.
This report is comprised of the following columns:
- Access Time – Date and timestamp for when the operation occurred
- Trustee Name – Owner of the trustee account
- Trustee Account – Active Directory account associated with the trustee
- Department – Department to which the trustee account belongs
- Title – Trustee’s title as read from Active Directory
- Mail – Trustee’s email account as read from Active Directory
- EmployeeId – Corporate ID for the employee as read from Active Directory
- Description – Description of the trustee object as read from Active Directory
- DistinguishedName – Distinguished name for the trustee account
- ObjectSid – Security ID of the object
- Disabled – True or False if trustee account is disabled
- Deleted – True or False if trustee account is deleted
- Resource – Type of resource
- Operation – Type of operation performed
- Access – Whether the trustee was granted access to execute the operation: Allowed or Denied
- Path – Database object that was acted upon
- Target Path – Query that triggered the activity event to be stored
- Process Name – Not populated for SQL Server reports
The table data grid functions the same way as other table grids. See the Data Grid Features topic for additional information.
Database & Table Levels Reports
The following reports are available at the database and table levels:

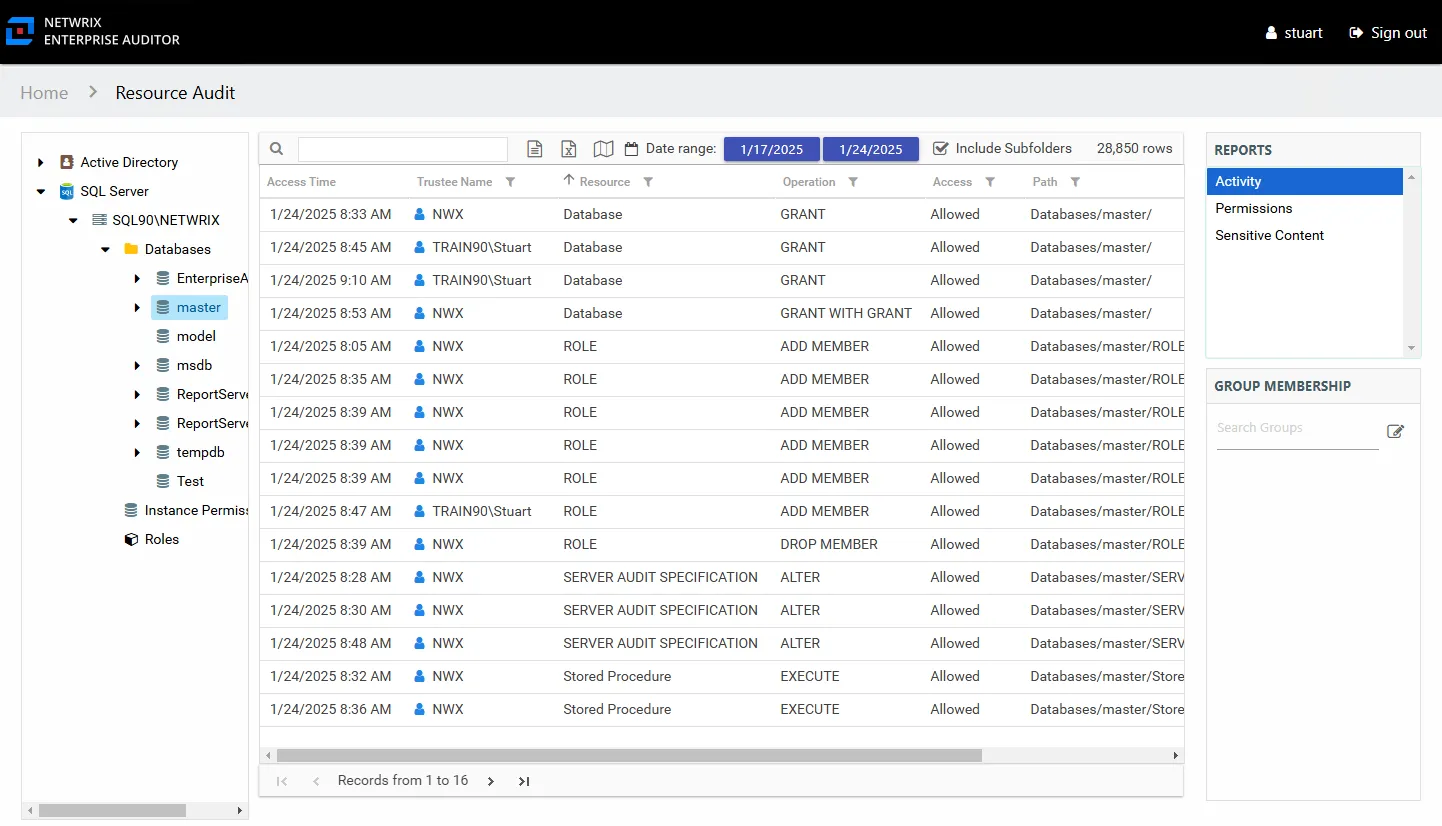

Activity Report
The Activity report at the database and table levels displays activity on the selected resource logged during the selected date range. The Include Subfolders option is active by default until removed. See the Results Pane topic for information on changing this option.
This report is comprised of the following columns:
- Access Time – Date and timestamp for when the operation occurred
- Trustee Name – Owner of the trustee account
- Trustee Account – Active Directory account associated with the trustee
- Department – Department to which the trustee account belongs
- Title – Trustee’s title as read from Active Directory
- Mail – Trustee’s email account as read from Active Directory
- EmployeeId – Corporate ID for the employee as read from Active Directory
- Description – Description of the trustee object as read from Active Directory
- DistinguishedName – Distinguished name for the trustee accountt
- ObjectSid – Security ID of the object
- Disabled – True or False if trustee account is disabled
- Deleted – True or False if trustee account is deleted
- Resource – Type of resource
- Operation – Type of operation performed
- Access – Whether the trustee was granted access to execute the operation: Allowed or Denied
- Path – Database object that was acted upon
- Target Path – Query that triggered the activity event to be stored
- Process Name – Not populated for SQL Server reports
The table data grid functions the same way as other table grids. See the Data Grid Features topic for additional information.
Permissions Report
The Permissions report at the database and table levels shows the permissions for the trustee on the selected resource.
This report is comprised of the following columns:
- Trustee Type – Type of the trustee (for example, Domain User, Database User, or Domain Group)
- Trustee Name – Owner of the trustee account
- Trustee Account – Active Directory account associated with the trustee
- Department – Department to which the trustee account belongs
- Title – Trustee’s title as read from Active Directory
- Mail – Trustee’s email account as read from Active Directory
- EmployeeId – Corporate ID for the employee as read from Active Directory
- Description – Description of the trustee object as read from Active Directory
- DistinguishedName – Distinguished name for the trustee account
- ObjectSid – Security ID of the object
- Disabled – True or False if trustee account is disabled
- Deleted – True or False if trustee account is deleted
- Stale – True or False if trustee account is stale (according to the length of inactive time used by the Access Analyzer data collection and analysis configuration to identify stale accounts)
- Type – Direct or Inherited type of permission
The following rights are a normalized representation of the SQL permission levels (SQL Roles) granted to the trustee:
- List – Right to view list of resources
- Read – Right to view/read resources
- Write – Right to add or modify resources
- Delete – Right to delete resources
- Manage – Equivalent to full control over resources
The following columns display the combined direct and inherited rights:
- Allow Mask – Bitmask corresponding to Windows ACE permission bits for combined direct and inherited allow rights
- Deny Mask – Bitmask corresponding to Windows ACE permission bits for combined direct inherited deny rights
