Output for Monitored Domains

Once a domain is being monitored the event stream can be sent to multiple outputs.

Configured outputs are grouped under the domain. You can have multiple outputs configured for a domain. The domain event outputs are:

• File – Creates an activity log as a JSON file for every day of activity

  NOTE: This is required to search event data for Active Directory within the application.

• Syslog – Sends activity events to the configured SIEM server

• Netwrix Threat Manager (StealthDEFEND) – Sends activity events to Netwrix Threat Manager or receives Active Directory monitoring events from Netwrix Threat Prevention for integration with Netwrix Access Analyzer (formerly Enterprise Auditor)

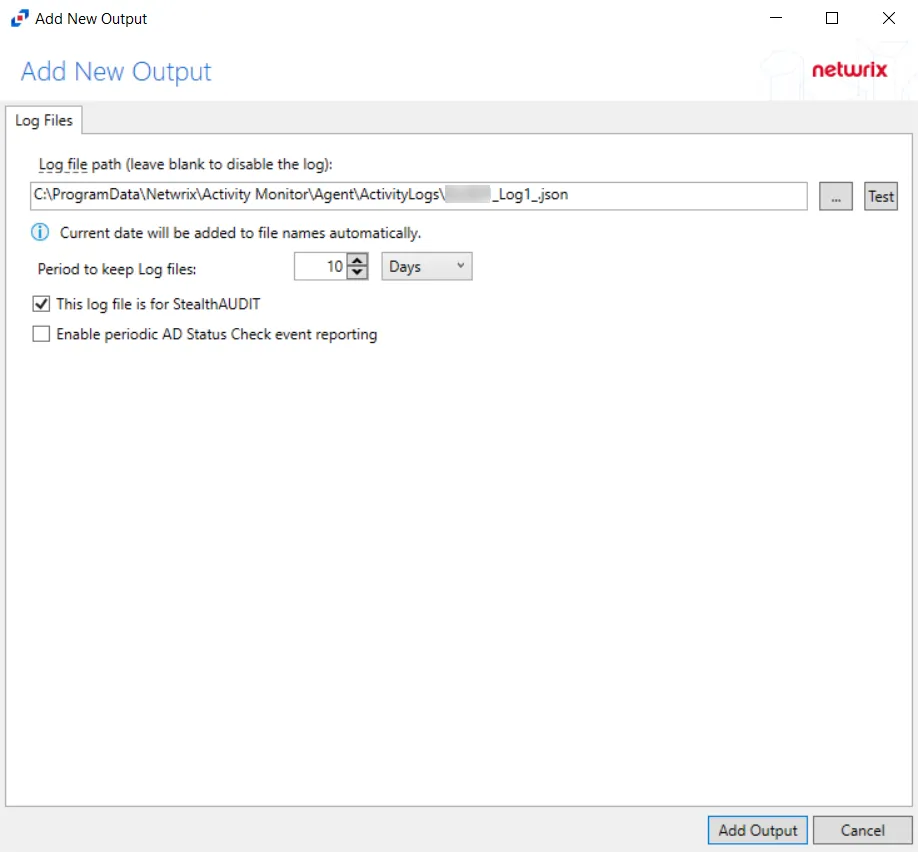

Add File Output

Follow the steps to add a File output.

Step 1 – On the Monitored Domains tab, select the desired domain and click Add Output.

Step 2 – Select File from the drop-down menu. The Add New Output window opens.

Step 3 – Configure the tab(s) as desired.

Step 4 – Click Add Output to save your settings. The Add New Output window closes.

The new output displays in the table. Click the Edit button to open the Output properties window to modify these settings. See the Output Types topic for additional information.

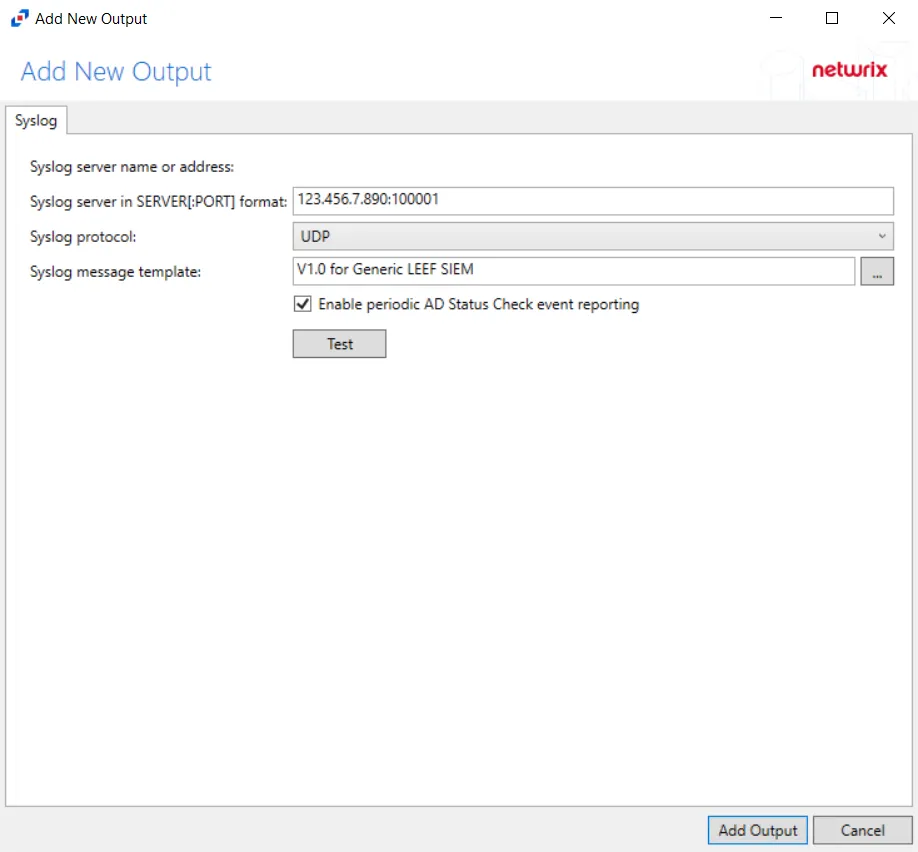

Add Syslog Output

Follow the steps to add a Syslog output.

Step 1 – On the Monitored Domains tab, select the desired domain and click Add Output.

Step 2 – Select Syslog from the drop-down menu. The Add New Output window opens.

Step 3 – Configure the tab(s) as desired.

Step 4 – Click Add Output to save your settings. The Add New Output window closes.

The new output displays in the table. Click the Edit button to open the Output properties window to modify these settings. See the Output Types topic for additional information.

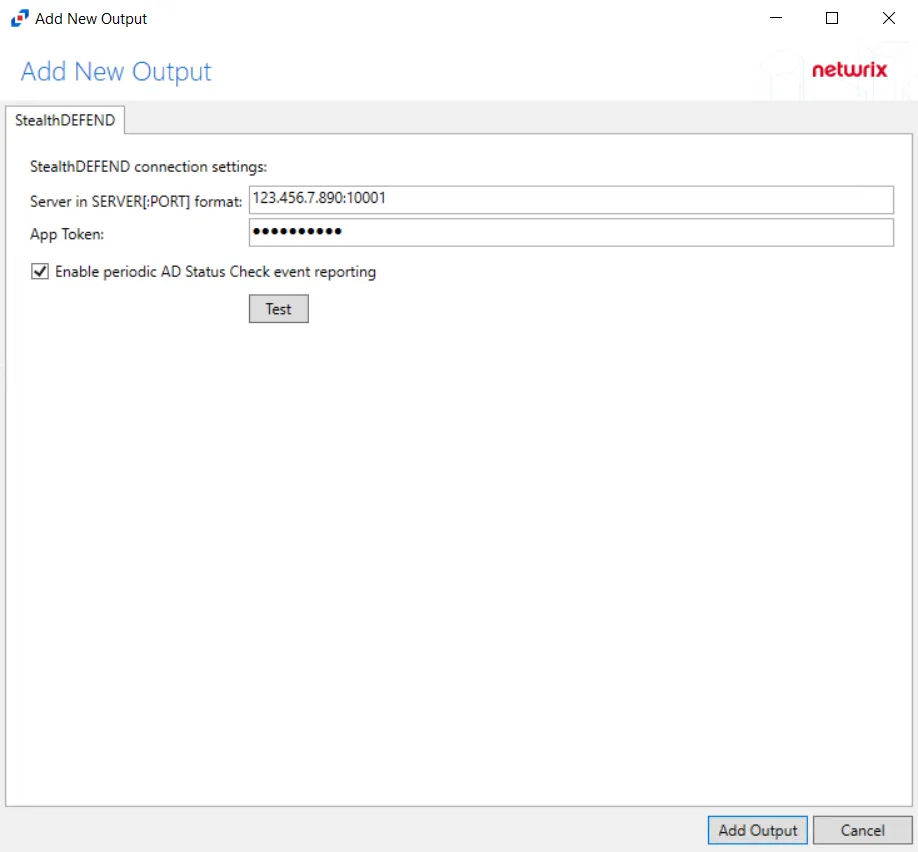

Add Netwrix Threat Manager Output

NOTE: An App Token created by Netwrix Threat Manager is used to authenticate connection between the applications. See the App Tokens Page topic of the Netwrix Threat Manager Documentation for additional information.

Follow the steps to add a Netwrix Threat Manager output.

Step 1 – On the Monitored Domains tab, select the desired domain and click Add Output.

Step 2 – Select Netwrix Threat Manager (StealthDEFEND) from the drop-down menu. The Add New Output window opens.

Step 3 – Configure the tab(s) as desired.

Step 4 – Click Add Output to save your settings. The Add New Output window closes.

The new output displays in the table. Click the Edit button to open the Output properties window to modify these settings. See the Output Types topic for additional information.

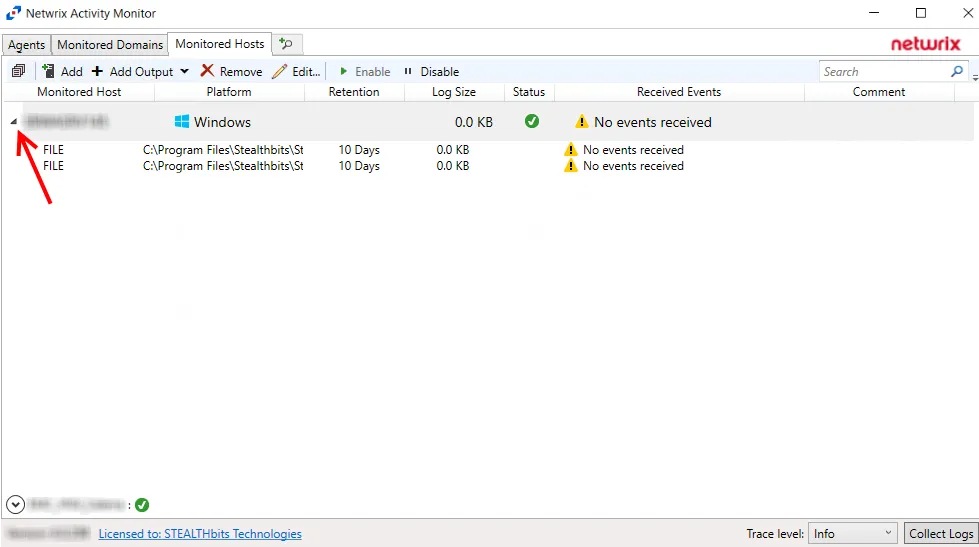

Output for Monitored Hosts

Once a host is being monitored the event stream can be sent to multiple outputs.

Configured outputs are grouped under the host. You can have multiple outputs configured for a host. The host event outputs are:

• File – Creates an activity log as a TSV or JSON file for every day of activity
• Syslog – Sends activity events to the configured SIEM server or Netwrix Threat Manager, where supported

Add File Output

Follow the steps to add a File output.

Step 1 – On the Monitored Hosts tab, select the desired host and click Add Output.

Step 2 – Select File from the drop-down menu. The Add New Output window opens.

Step 3 – Configure the tab(s) as desired.

Step 4 – Click Add Output to save your settings. The Add New Output window closes.

The new output displays in the table. Click the Edit button to open the Output properties window to modify these settings. See the Output Types topic for additional information.

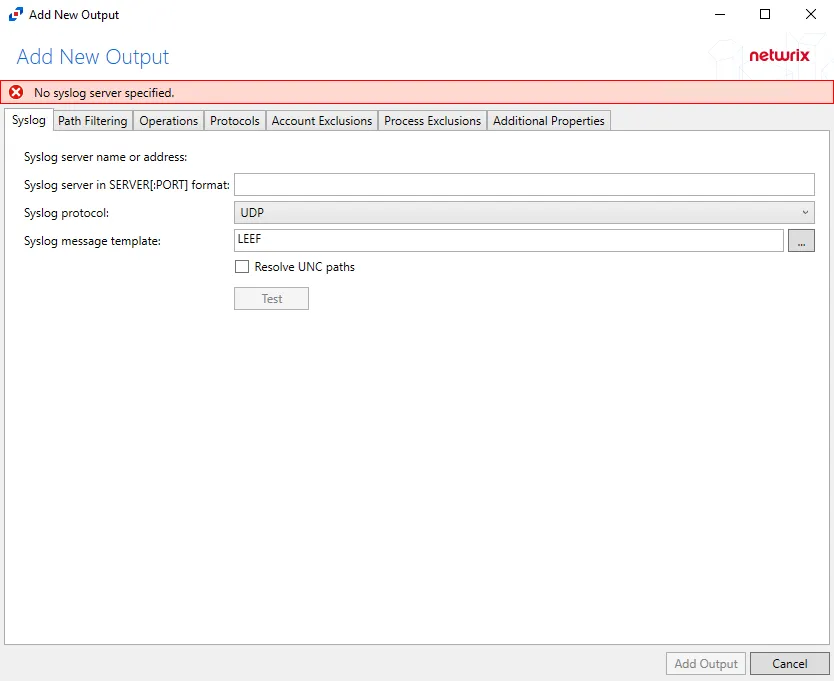

Add Syslog Output

Follow the steps to add a Syslog output.

Step 1 – On the Monitored Hosts tab, select the desired host and click Add Output.

Step 2 – Select Syslog from the drop-down menu. The Add New Output window opens.

Step 3 – Configure the tab(s) as desired.

Step 4 – Click Add Output to save your settings. The Add New Output window closes.

The new output displays in the table. Click the Edit button to open the Output properties window to modify these settings. See the Output Types topic for additional information.

Additional Properties Tab

The Additional Properties tab on an output Properties window is where comments and displayed host name can be modified. These settings are initially configured when the output is added.

Select an output from the Monitored Hosts tab and click Edit to open the output Properties window.

The options are:

• Report hostname as – The value entered here will customize the hostname that is reported for the event in the activity log outputs
• Comment – The value entered here will appear in the Comments column in the Monitored Hosts tab table.

Often, the Additional Properties Tab is used to indicate the purpose of the output, e.g. for Netwrix Access Analyzer (formerly Enterprise Auditor). This can be useful if using multiple outputs with different configurations for different purposes. For example, a SharePoint site could be added as a host and configured for Netwrix Access Analyzer (formerly Enterprise Auditor) data collection. It can be added again with different monitoring options and be configured for SIEM notification.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

Integration with Netwrix Threat Prevention for NAS Monitoring

If a Threat Prevention Agent has been deployed to the same Windows proxy server where and activity agent is deployed to monitor NAS devices, then the Comment column in the monitored hosts table identifies the host as being “Managed by Threat Prevention”, and that ‘monitored host’ configuration is not editable through the Activity Monitor Console. Simply add the host again for other outputs.

Log Files Tab

The Log Files tab on an output Properties window is where the activity log settings can be modified. These settings are initially configured when the output is added.

Select a File output from either the Monitored Domains tab or the Monitored Hosts tab and click Edit to open the output Properties window. The tab varies based on the type of domain/host selected.

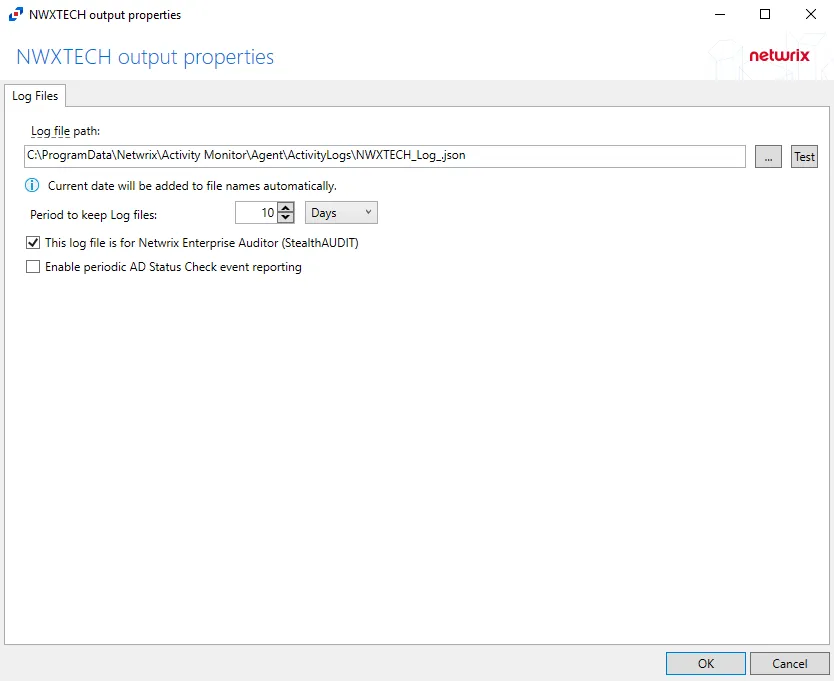

For Active Directory Domains

The tab contains the following settings:

• Log file path – Identifies the full path of the activity log files on the activity agent server. The date timestamp is appended to the file name automatically.

• Period to keep Log files – Activity logs are deleted after the number of days entered. The default is 10 days. The Active Directory activity log settings also affect log size by controlling the information recorded per event.

  NOTE: This setting effects activity log retention whether or not the archiving feature is enabled.

  RECOMMENDED: Keep a minimum of 10 days of activity logs. Raw activity logs should be retained to meet an organization’s audit requirements.

• This log file is for Netwrix Access Analyzer (formerly Enterprise Auditor) (StealthAUDIT) – Indicates whether Netwrix Access Analyzer (formerly Enterprise Auditor) collect the data from this configured output

  NOTE: While the Activity Monitor can have multiple configurations per host, Netwrix Access Analyzer (formerly Enterprise Auditor)can only read one of them.

• Enable periodic AD Status Check event reporting – Indicates periodic AD Status Check event reporting is enabled, which means the agent will send out status messages every five minutes to verify whether the connection is still active.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

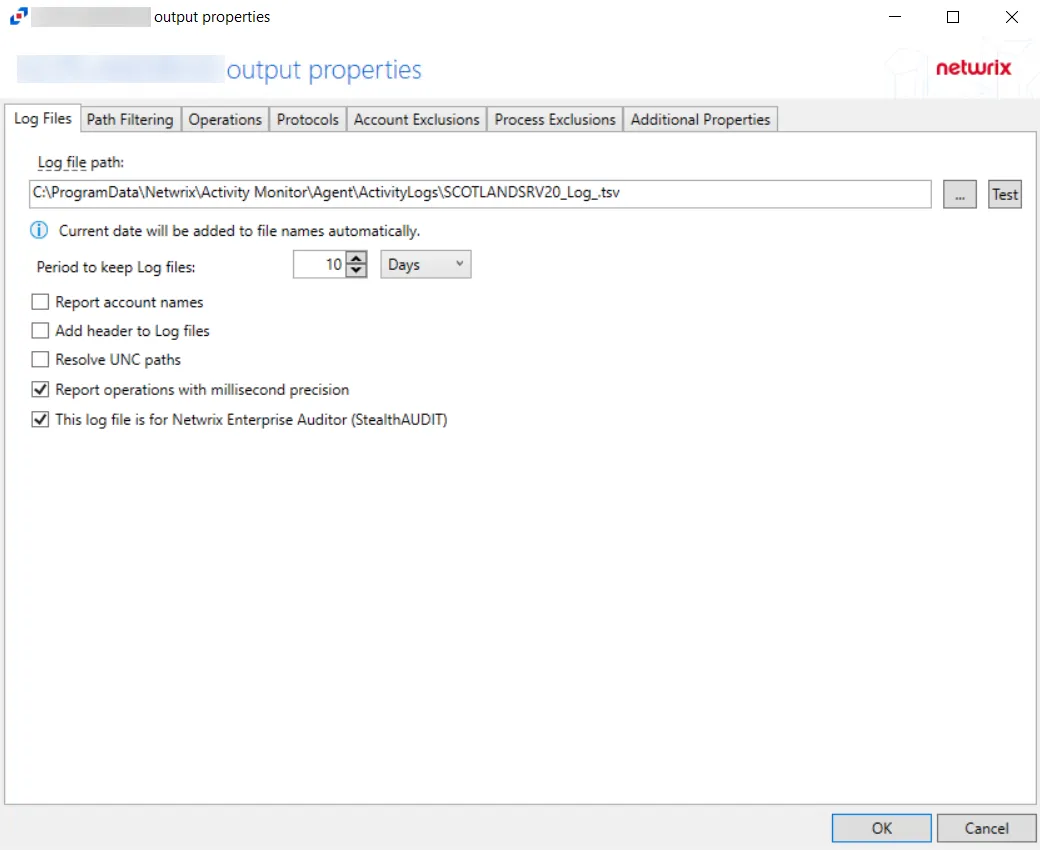

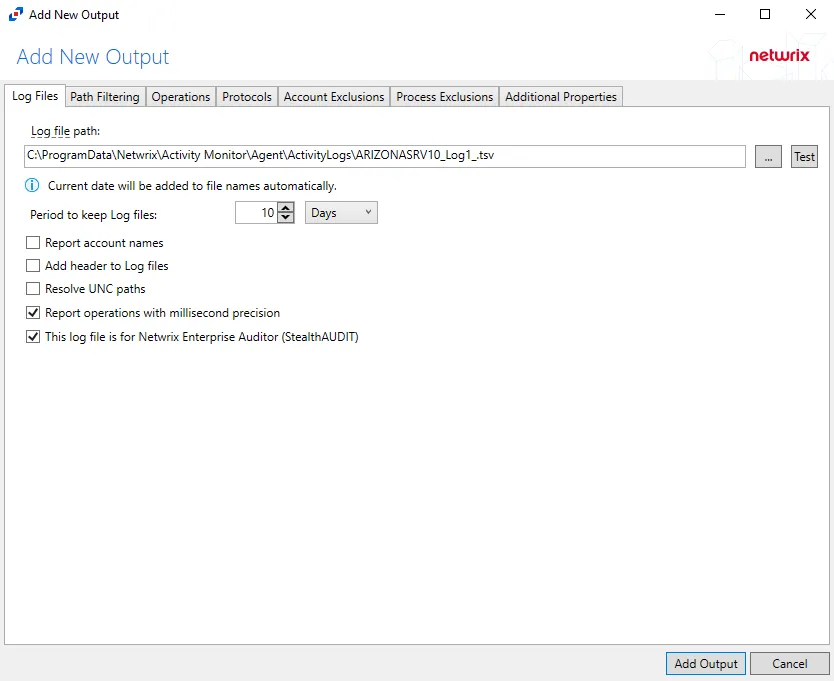

For File Server and NAS Device Hosts

The tab contains the following settings:

• Log file path – Identifies the full path of the activity log files on the activity agent server. The date timestamp is appended to the file name automatically.

• Period to keep Log files – Activity logs are deleted after the number of days entered. The default is 10 days.

  NOTE: This setting effects activity log retention whether or not the archiving feature is enabled.

  RECOMMENDED: Keep a minimum of 10 days of activity logs. Raw activity logs should be retained to meet an organization’s audit requirements.

  • For integration with Netwrix Access Analyzer (formerly Enterprise Auditor) File System Solution, this value must be higher than the number of days between the 0.Collection > 1-FSAC System Scans Job scans. See the Netwrix Access Analyzer Documentation for additional information.
  • For integration with Netwrix Threat Prevention NAS monitoring, this setting only controls the log retention period for NAS devices, as Netwrix Threat Prevention does not read Windows file server activity from Activity Monitor.

• Report account names – Indicates if an Account Name column is added in the activity log files

• Add header to Log files – Indicates if headers are added in the activity log filesAdd header to Log files – Indicates if headers are added in the activity log files

  NOTE: This is needed to feed data into Splunk in a Syslog output. However, Netwrix Access Analyzer (formerly Enterprise Auditor) does not support log files with headers. Therefore, do not select this option for a File output designed for Netwrix Access Analyzer (formerly Enterprise Auditor).

• Report UNC paths – Indicates if a UNC Path column and a Rename UNC Path column are added in the activity log files. This option corresponds to the REPORT_UNC_PATH parameter in the INI file. When the option is enabled, the added columns are populated when a file is accessed remotely through the UNC Path. If a file is accessed locally, these columns are empty.

  • The UNC Path is in the following format:

    • For CIFS activity – The path is in \\[HOST]\[SHARE]\[PATH] format, e.g. \\ExampleHost\TestShare\DocTeam\Temp.txt
    • For NFS activity – The path is in [HOST]:/[VOLUME]/[PATH] format, e.g. ExampleHost:/ExampleVolume/DocTeam/Temp.txt

  NOTE: When this option is selected, a warning message might be displayed.

• Report operations with millisecond precision – Indicates the timestamps of events being recorded in the activity log file has been changed for better ordering of events if multiple events occur within the same second

• This log file is for Netwrix Access Analyzer (formerly Enterprise Auditor) (StealthAUDIT) – Indicates whether Netwrix Access Analyzer (formerly Enterprise Auditor) collect the data from this configured output

  NOTE: While the Activity Monitor can have multiple configurations per host, Netwrix Access Analyzer (formerly Enterprise Auditor)can only read one of them.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

For Linux Hosts

The tab contains the following settings:

• Log file path – Identifies the full path of the activity log files on the activity agent server. The date timestamp is appended to the file name automatically.

• Period to keep Log files – Activity logs are deleted after the number of days entered. The default is 10 days.

  NOTE: This setting effects activity log retention whether or not the archiving feature is enabled.

  RECOMMENDED: Keep a minimum of 10 days of activity logs. Raw activity logs should be retained to meet an organization’s audit requirements.

• Add header to Log files – Indicates if headers are added in the activity log filesAdd header to Log files – Indicates if headers are added in the activity log files

  NOTE: This is needed to feed data into Splunk in a Syslog output. However, Netwrix Access Analyzer (formerly Enterprise Auditor) does not support log files with headers. Therefore, do not select this option for a File output designed for Netwrix Access Analyzer (formerly Enterprise Auditor).

• Add C:\ to the beginning of the reported file paths – Adds C:\ to the beginning of the reported file paths in the activity log file

• Report UNC paths – Indicates if a UNC Path column and a Rename UNC Path column are added in the activity log files. This option corresponds to the REPORT_UNC_PATH parameter in the INI file. When the option is enabled, the added columns are populated when a file is accessed remotely through the UNC Path. If a file is accessed locally, these columns are empty.

• Report operations with millisecond precision – Indicates the timestamps of events being recorded in the activity log file has been changed for better ordering of events if multiple events occur within the same second

• This log file is for Netwrix Access Analyzer (formerly Enterprise Auditor) (StealthAUDIT) – Indicates whether Netwrix Access Analyzer (formerly Enterprise Auditor) collect the data from this configured output

  NOTE: While the Activity Monitor can have multiple configurations per host, Netwrix Access Analyzer (formerly Enterprise Auditor)can only read one of them.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

For Microsoft Entra ID, SharePoint Online, and SQL Server Hosts

The tab contains the following settings:

• Log file path – Identifies the full path of the activity log files on the activity agent server. The date timestamp is appended to the file name automatically.

• Period to keep Log files – Activity logs are deleted after the number of days entered. The default is 10 days.

  NOTE: This setting effects activity log retention whether or not the archiving feature is enabled.

  RECOMMENDED: Keep a minimum of 10 days of activity logs. Raw activity logs should be retained to meet an organization’s audit requirements.

• This log file is for Netwrix Access Analyzer (formerly Enterprise Auditor) (StealthAUDIT) – Indicates whether Netwrix Access Analyzer (formerly Enterprise Auditor) collect the data from this configured output

  NOTE: While the Activity Monitor can have multiple configurations per host, Netwrix Access Analyzer (formerly Enterprise Auditor)can only read one of them.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

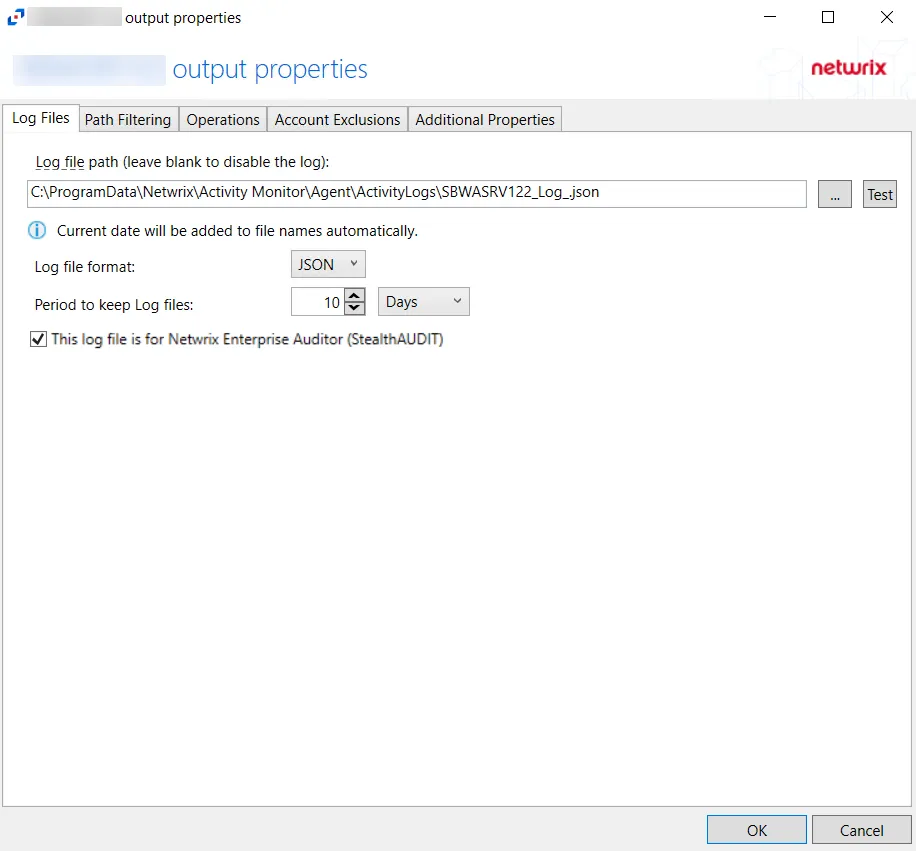

For SharePoint Hosts

The tab contains the following settings:

• Log file path – Identifies the full path of the activity log files on the activity agent server. The date timestamp is appended to the file name automatically.

• Log file format – Indicates the file type used for the activity log. The default is JSON. See SharePoint JSON Log File topic and the SharePoint TSV Log File topic for additional information.

• Period to keep Log files – Activity logs are deleted after the number of days entered. The default is 10 days.

  NOTE: This setting effects activity log retention whether or not the archiving feature is enabled.

  RECOMMENDED: Keep a minimum of 10 days of activity logs. Raw activity logs should be retained to meet an organization’s audit requirements.

• This log file is for Netwrix Access Analyzer (formerly Enterprise Auditor) (StealthAUDIT) – Indicates whether Netwrix Access Analyzer (formerly Enterprise Auditor) collect the data from this configured output

  NOTE: While the Activity Monitor can have multiple configurations per host, Netwrix Access Analyzer (formerly Enterprise Auditor)can only read one of them.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

Objects Tab

The Objects tab on an output Properties window is where monitoring scope by SQL Server objects can be modified. These settings are initially configured when the output is added.

Select an output for a SQL Server host on the Monitored Hosts tab and click Edit to open the output Properties window.

The Refresh button populates the list of SQL Server objects for the selected host. By default, all objects are checked and will be monitored. Check and uncheck objects as desired.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

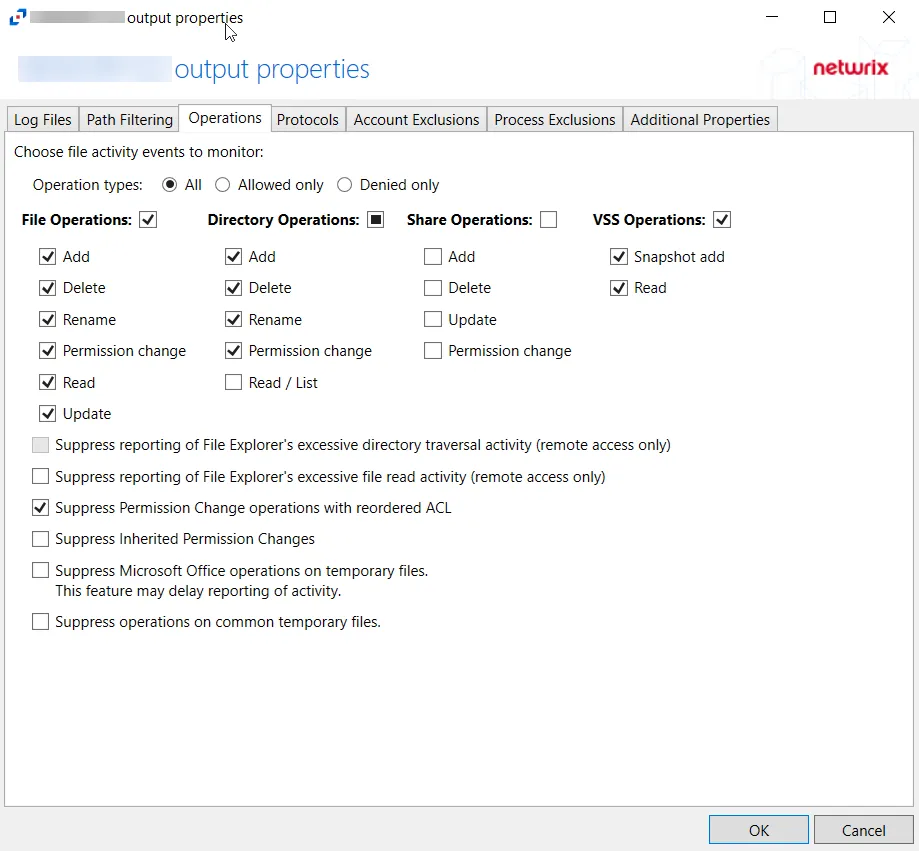

Operations Tab

The Operations tab on an output Properties window is where monitoring scope by operation can be modified. These settings are initially configured when the output is added.

Select an output from the Monitored Hosts tab and click Edit to open the output Properties window. The tab varies based on the type of host selected.

For Linux Hosts

The tab contains the following settings and features:

Use the options in the Operations tab to filter the list of available audit activities. The options are:

• File Operations – Scope by file operation events: Add, Delete, Rename, Permission change, Read, Update
• Directory Operations – Scope by directory operation events: Add, Delete, Rename, Permission change, Read / List

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

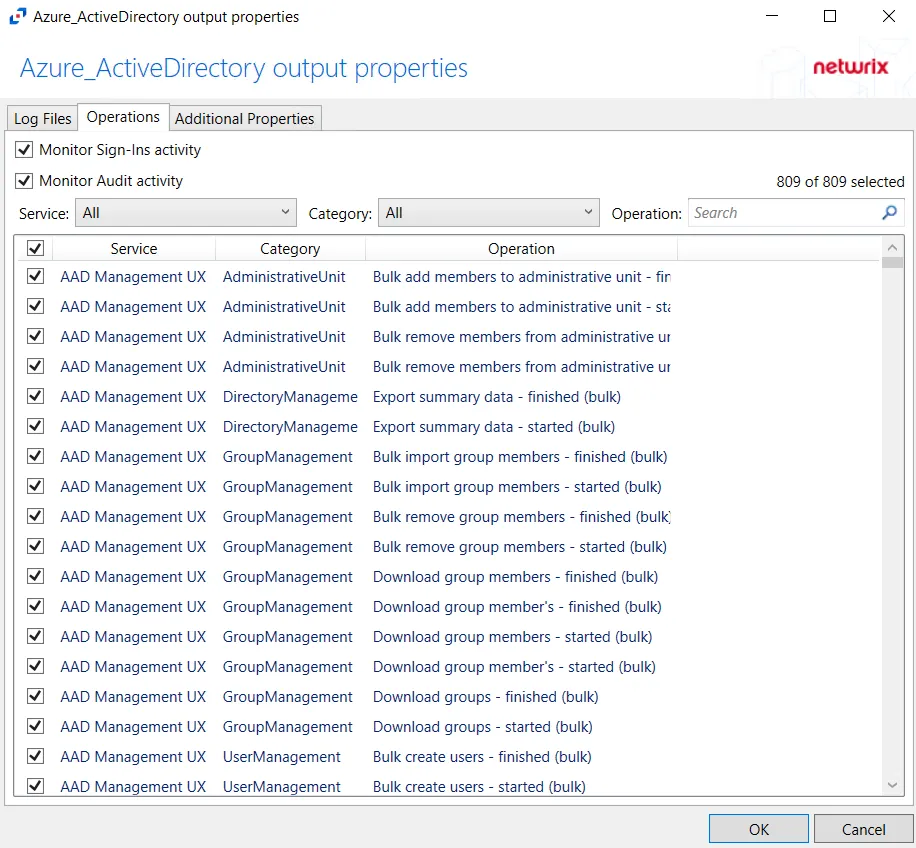

For Microsoft Entra ID Hosts

The tab contains the following settings and features:

• Monitor Sign-Ins activity – Indicates if user sign-ins activity is monitored
• Monitor Audit activity – Indicates if audit for all operations is monitored
• Service – Filter the table by Service using the drop-down menu
• Category – Filter the table by Category using the drop-down menu
• Operation – Filter the table by Operation using the textbox

The table lists operations being monitored, displaying columns for Service, Category, and Operation.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

For Nasuni Hosts

The tab contains the following settings and features:

• File Operations – Scope by file operation events: Add, Delete, Rename, Permission change, Read, Update
• Directory Operations – Scope by directory operation events: Add, Delete, Rename, Permission change, Read / List
• Link Operations – Scope by link operation events: Add, Delete
• Suppress reporting of File Explorer's excessive directory traversal activity – When you open a folder, Windows File Explorer tends to read all sub-folders to display proper icons and meta-data. This activity occurs without the explicit intent of the user. This option tries to suppress such automatic activity. It is only available when the Read / List option for Directory Operations is selected.
• Suppress reporting of File Explorer's excessive file read activity – When you open a folder, Windows File Explorer tends to read files in the folder to display proper icons and meta-data. This activity occurs without the explicit intent of the user. This option tries to suppress such automatic activity. It is only available when the Read option for File Operations is selected.
• Suppress Microsoft Office operations on temporary files – Filters out events for Microsoft Office temporary files. When Microsoft Office files are saved or edited, many temporary files are created. With this option enabled, events for these temporary files are ignored.
• Suppress operations on common temporary files – Filters out events for common temporary files. With this option enabled, events for these common temporary files are ignored.
• Suppress duplicate operations for [VALUE] seconds

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

For Nutanix Hosts

The tab contains the following settings and features:

• File Operations – Scope by file operation events: Add, Delete, Rename, Permission change, Read, Update
• Directory Operations – Scope by directory operation events: Add, Delete, Rename, Permission change

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

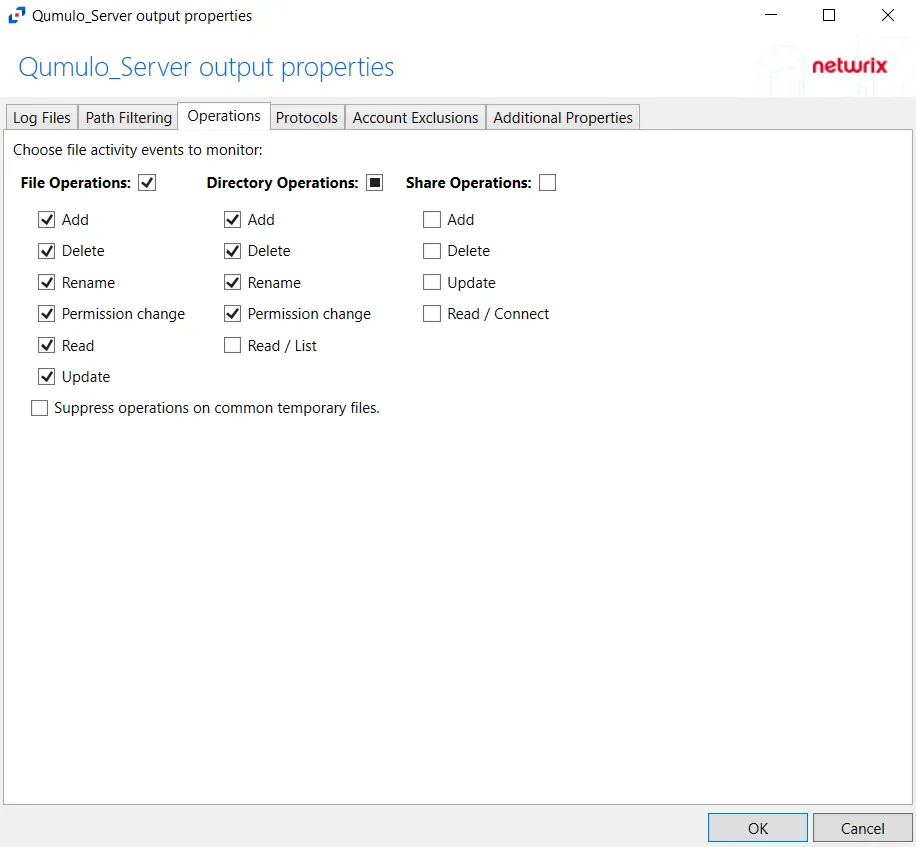

For Qumulo Hosts

The tab contains the following settings and features:

• File Operations – Scope by file operation events: Add, Delete, Rename, Permission change, Read, Update
• Directory Operations – Scope by directory operation events: Add, Delete, Rename, Permission change, Read / List
• Share Operations – Scope by share operation events: Add, Delete, Update, Read / Connect
• Suppress operations on common temporary files – Filters out events for common temporary files. With this option enabled, events for these common temporary files are ignored.

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

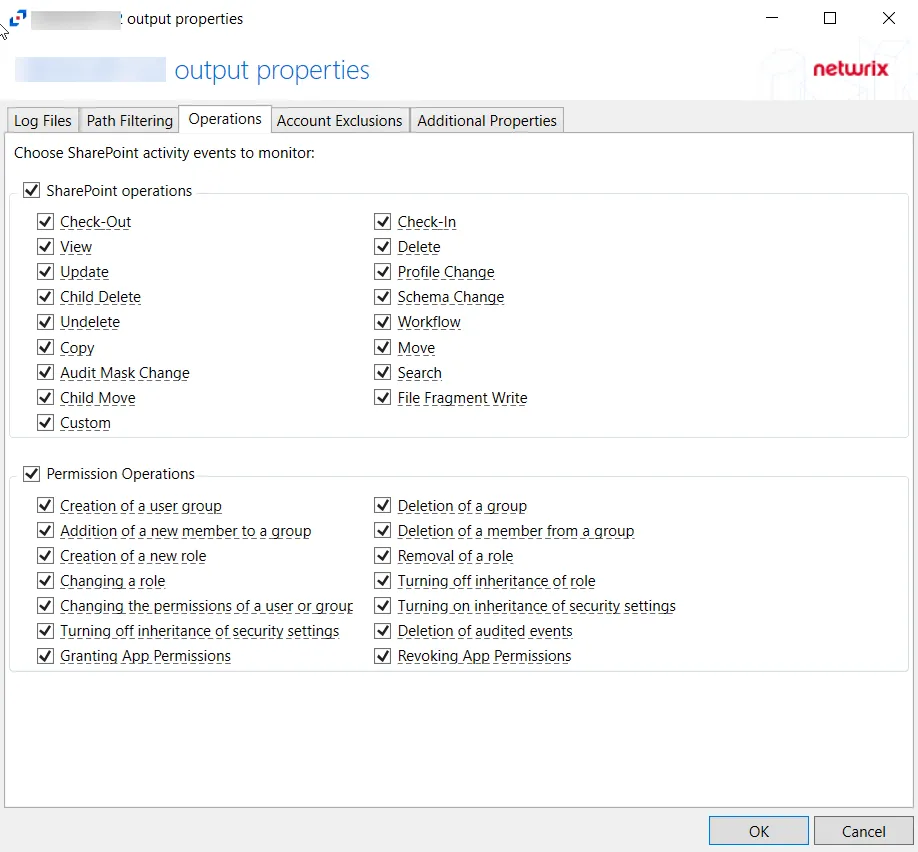

For SharePoint Host

The tab contains the following settings and features:

• SharePoint operations – Scope by SharePoint operation events: Check-Out, View, Update, Child Delete, Undelete, Copy, Audit Mask Change, Child Move, Custom, Check-In, Delete, Profile Change, Schema Change, Workflow, Move, Search, File Fragment Write
• Permission Operations – Scope by permission operation events: Creation of a user group, Addition of a new member to a group, creation of a new role, Changing a role, Changing the permissions of a user or group, Turning off inheritance of security settings, Granting App Permissions, Deletion of a group, Deletion of a member from a group, Removal of a role, Turning off inheritance of role, Turning on inheritance of security settings, Deletion of audited events, Revoking App Permissions

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

For SharePoint Online Host

The tab contains a subset of tabs. Each tab has a Select All check box to include all events for that tab.

You can scope by the following events:

Tab	Event
Content Explorer	Accessed item
DLP	Designated false positive
DLP	Matched DLP rule
DLP	Undone DLP action
File and Page	Accessed File
File and Page	Accessed File (ext)
File and Page	Changed compliance policy label
File and Page	Changed record status to locked
File and Page	Changed record status to unlocked
File and Page	Checked in file
File and Page	Checked out file
File and Page	Copied file
File and Page	Deleted file
File and Page	Deleted file from recycle bin
File and Page	Deleted file from second-stage recycle bin
File and Page	Deleted record compliance policy label
File and Page	Detected document sensitivity mismatch
File and Page	Detected malware in file
File and Page	Discarded file checkout
File and Page	Downloaded file
File and Page	Modified file
File and Page	Modified file (ext)
File and Page	Moved file
File and Page	Performed search query
File and Page	Prefetched page
File and Page	Previewed file
File and Page	Recycled all minor versions of file
File and Page	Recycled all versions of file
File and Page	Recycled version of file
File and Page	Renamed file
File and Page	Restored file
File and Page	Uploaded file
File and Page	View signaled by client
File and Page	Viewed page
File and Page	Viewed page (ext)
Folder	Copied folder
Folder	Created folder
Folder	Deleted folder
Folder	Deleted folder from recycle bin
Folder	Deleted folder from second-stage recycle bin
Folder	Modified folder
Folder	Moved folder
Folder	Renamed folder
Folder	Restored folder
List	Created list
List	Created list column
List	Created list column
List	Created list content type
List	Created list item
List	Created site column
List	Created site content type
List	Deleted list
List	Deleted list column
List	Deleted list content type
List	Deleted list item
List	Deleted site column
List	Deleted site content type
List	Recycled list item
List	Restored list
List	Restored list item
List	Updated list
List	Updated list column
List	Updated list content type
List	Updated list item
List	Updated site column
List	Updated site content type
Other	Other events
Sensitive Label	Applied sensitivity label to file
Sensitive Label	Applied sensitivity label to site
Sensitive Label	Changed sensitivity label applied to file
Sensitive Label	Removed sensitivity label from file
Sensitive Label	Removed sensitivity label from site
Sharing and Access Request	Accepted access request
Sharing and Access Request	Accepted sharing invitation
Sharing and Access Request	Added permission level to site collection
Sharing and Access Request	Blocked sharing invitation
Sharing and Access Request	Created a company shareable link
Sharing and Access Request	Created access request
Sharing and Access Request	Created an anonymous link
Sharing and Access Request	Created secure link
Sharing and Access Request	Created sharing invitation
Sharing and Access Request	Deleted secure link
Sharing and Access Request	Denied access request
Sharing and Access Request	Removed a company shareable link
Sharing and Access Request	Removed an anonymous link
Sharing and Access Request	Shared file, folder, or site
Sharing and Access Request	Unshared file, folder, or site
Sharing and Access Request	Updated access request
Sharing and Access Request	Updated an anonymous link
Sharing and Access Request	Updated sharing invitation
Sharing and Access Request	Used a company shareable link
Sharing and Access Request	Used an anonymous link
Sharing and Access Request	Used secure link
Sharing and Access Request	User added to secure link
Sharing and Access Request	User removed from secure link
Sharing and Access Request	Withdrew sharing invitation
Site Administration	Added allowed data location
Site Administration	Added exempt user agent
Site Administration	Added geo location admin
Site Administration	Allowed user to create groups
Site Administration	Canceled site geo move
Site Administration	Changed a sharing policy
Site Administration	Changed device access policy
Site Administration	Changed exempt user agents
Site Administration	Changed network access policy
Site Administration	Completed site geo move
Site Administration	Created Sent To connection
Site Administration	Created site collection
Site Administration	Deleted orphaned hub site
Site Administration	Deleted Sent To connection
Site Administration	Deleted site
Site Administration	Enabled document preview
Site Administration	Enabled legacy workflow
Site Administration	Enabled Office on Demand
Site Administration	Enabled result source for People Searches
Site Administration	Enabled RSS feeds
Site Administration	Joined site to hub site
Site Administration	Registered hub site
Site Administration	Removed allowed data location
Site Administration	Removed geo location admin
Site Administration	Renamed site
Site Administration	Scheduled site geo move
Site Administration	Set host site
Site Administration	Set storage quota for geo location
Site Administration	Unjoined site from hub site
Site Administration	Unregistered hub site
Site Permissions	Added site collection admin
Site Permissions	Added user or group to SharePoint group
Site Permissions	Broke permission level inheritance
Site Permissions	Broke sharing inheritance
Site Permissions	Created group
Site Permissions	Deleted group
Site Permissions	Modified access request setting
Site Permissions	Modified 'Members Can Share' setting
Site Permissions	Modified permissions level on site collection
Site Permissions	Modified site permissions
Site Permissions	Removed permission level from site collection
Site Permissions	Removed site collection admin
Site Permissions	Removed user or group from SharePoint group
Site Permissions	Requested site admin permissions
Site Permissions	Restored sharing inheritance
Site Permissions	Updated group
Synchronization	Allowed computer to sync files
Synchronization	Blocked computer from syncing files
Synchronization	Downloaded file changes to computer
Synchronization	Downloaded files to computer
Synchronization	Uploaded file changes to document library
Synchronization	Uploaded files to document library

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

For SQL Server Hosts

The tab contains the following settings and features:

• DML operations – Scope by DML operation events: Select, Update, Merge, Insert, Delete, Execute
• Audit operations – Scope by audit operation events: Login, Logout, Login Failed, Error
• Permission operations – Scope by permission operation events: Grant, Deny, Revoke, Alter Role
• Suppress subsequent logon/logout events from the same user in [VALUE] minutes interval

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

For Windows File Server Hosts

The tab contains the following settings and features:

• Operation Type – Scope events by operation type:

  • All – Both allowed and denied operations
  • Allowed only – Only allowed operations
  • Denied only – Only denied operations

• File Operations – Scope by file operation events: Add, Delete, Rename, Permission change, Read, Update

• Directory Operations – Scope by directory operation events: Add, Delete, Rename, Permission change, Read / List

• Share Operations – Scope by share operation events: Add, Delete, Update, Permission change

• VSS Operations – Scope by VSS operation events: Snapshot add, Snapshot delete, Read

• Suppress reporting of File Explorer's excessive directory traversal activity – When you open a folder, Windows File Explorer tends to read all sub-folders to display proper icons and meta-data. This activity occurs without the explicit intent of the user. This option tries to suppress such automatic activity. It is only available when the Read / List option for Directory Operations is selected.

• Suppress reporting of File Explorer's excessive file read activity – When you open a folder, Windows File Explorer tends to read files in the folder to display proper icons and meta-data. This activity occurs without the explicit intent of the user. This option tries to suppress such automatic activity. It is only available when the Read option for File Operations is selected.

• Suppress Permission Change operations with reordered ACL – Prevents tracking events where permission updates occurred resulting in reordered ACEs, but with no other changes in the ACL

• Suppress Inherited Permissions Changes – Prevents tracking events where changes for inherited permissions occurred. This option is provided to improve overall performance and reduce output log volume.

• Suppress Microsoft Office operations on temporary files – Filters out events for Microsoft Office temporary files. When Microsoft Office files are saved or edited, many temporary files are created. With this option enabled, events for these temporary files are ignored.

• Suppress operations on common temporary files – Filters out events for common temporary files. With this option enabled, events for these common temporary files are ignored.

• Suppress duplicate operations for [VALUE] seconds

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

SeeSuppress Windows Explorer Activity topic for more information.

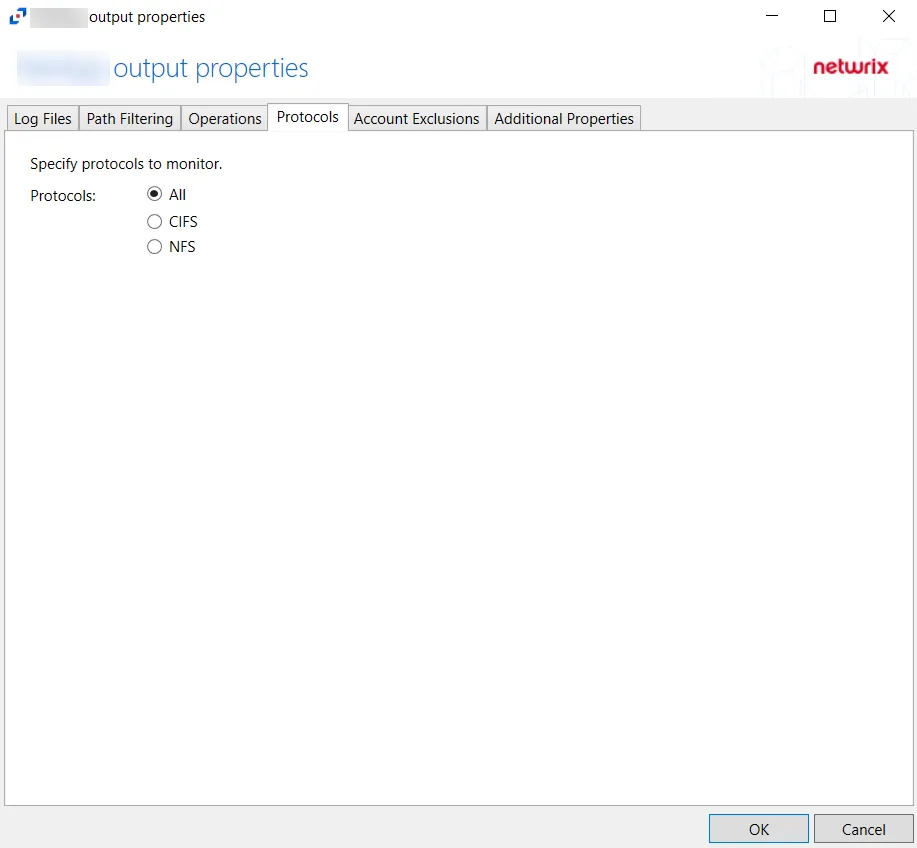

Protocols Tab

The Protocols tab on an output Properties window is where monitoring scope by protocol can be modified. These settings are initially configured when the output is added.

Select an output from the Monitored Hosts tab and click Edit to open the output Properties window.

The tab contains the following settings:

• Protocols – Indicates if All protocols, only CIFS protocols, or only NFS protocols are included

Click OK to commit the modifications. Click Cancel to discard the modifications. The output Properties window closes.

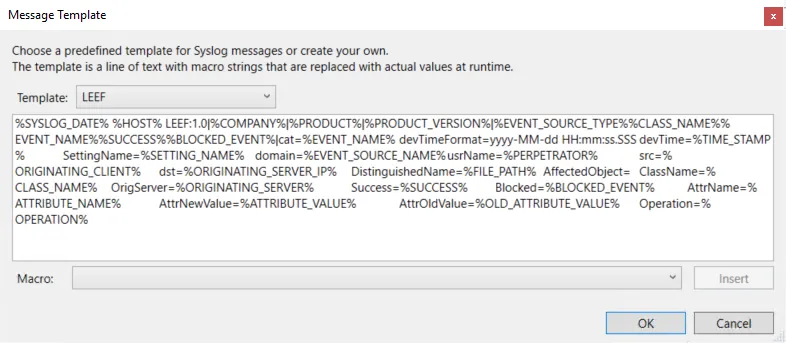

Message Template Window

The Message Template window is opened from the ellipsis (…) button for the Syslog Message Template field on the Syslog tab of the output Properties window.

You can select a preconfigured template from the drop-down menu or create a custom template. The available preconfigured templates vary based on the type of domain/host selected.

For Monitored Domains

Monitored Domains Syslog outputs have the following preconfigured Templates:

• V 1.0 for AlienVault SIEM
• V 1.0 for Generic CEF SIEM – Incorporates the CEF message format
• V 1.0 for Generic LEEF SIEM – Incorporates the LEEF message format
• V 1.0 for Generic SYSLOG SIEM
• V 1.0 for HP ArcSight SIEM
• V 1.0 for LogRhythm SIEM
• V 1.0 for McAfee ESM SIEM
• V 1.0 for IBM QRadar SIEM
• V 1.0 for Splunk SIEM
• V 2.0 for IBM QRadar SIEM 7.2.4
• V 2.0 for Splunk SIEM

Custom templates can be created. Select the desired template or create a new template by modifying an existing template within the Message Template window. The new message template will be named Custom. Macro variables are also available to customize the Syslog message template.

Macro Variables for Monitored Domains

Macros are text strings that are replaced with actual values at run time. The following Macro variables are available to customize the Syslog message template:

Variable	Definition
%AFFECTED_OBJECT_ACCOUNT_NAME%	Affected Object Name
%AFFECTED_OBJECT_SID%	Affected Object SID
%ATTRIBUTE_NAME%	Attribute Name
%ATTRIBUTE_VALE%	New Attribute Value
%BLOCKED_EVENT%	True if the operation was denied, False otherwise
%CLASS_NAME%	Class Name
%COMPANY%	Company Name
%DN%	Distinguished Name of the Affected Object
%ERTYPE_ID%	Event Type ID
%EVENT_CODE%	Code
%EVENT_NAME%	Event Name
%EVENT_SOURCE_NAME%	Event Source Name
%EVENT_SOURCE_TYPE%	Event Source Type
%EVENTNAMETRANSLATED%	Translated Event Name
%EVENTS_COUNT%	Consolidated Events Count
%HOST%	Message Source Hostname
%OLD_ATTRIBUTE_VALUE%	Old Attribute Value
%OPERATION%	Operation Performed
%ORIGINATING_CLIENT%	Originating Client
%ORIGINATING_SERVER%	Originating Server
%ORIGINATING_SERVERIP%	Originating Server IP Address
%ORIGINATINGCLIENTHOST%	Originating Server Host Name
%ORIGINATINGCLIENTIP%	Originating Client IP Address
%ORIGINATINGCLIENTMAC%	Originating Client MAC
%ORIGINATINGCLIENTPROTOCOL%	Originating Client Protocol
%PERMISSIONS_SDDL_DESCRIPTION%	Windows only: Permission change details in readable format
%PERPETRATOR%	Perpetrator
%PERPETRATOR_NAME%	Perpetrator Name
%PERPETRATOR_SID%	Perpetrator SID
%USERNAME%	'Username' part of the %PERPETRATOR_NAME% field if it is in 'DOMAIN\Username' format
%PRODUCT%	Product Name
%PRODUCT_VERSION%	Product Version
%SETTING_NAME%	Setting Name
%SUCCESS%	Success
%STATUS%	Status
%SYSLOG_DATE%	Current Date Time in Syslog Format
%SYSLOG_EVENTID%	Syslog Event ID
%TARGETHOST%	Target Host
%TARGETHOSTIP%	Target Host IP
%TIME_STAMP%	Date Timestamp of Event
%TIME_STAMP_UTC%	Date Timestamp of Event in UTC

For Monitored Hosts

Monitored Hosts Syslog outputs have the following preconfigured Templates:

• AlienVault / Generic Syslog
• CEF – Incorporates the CEF message format
• HP Arcsight
• LEEF – Incorporates the LEEF message format
• LogRhythm
• McAfee
• QRadar – Use this template for IBM QRadar integration. See the Netwrix File Activity Monitor App for QRadar topic for additional information.
• Splunk – Use this template for Splunk integration. See the Configure the File Activity Monitor App for Splunk topic for additional information.
• Netwrix Threat Manager (StealthDEFEND) – Use this template for Netwrix Threat Manager integration. This is the only supported template for Threat Manager.

Custom templates can be created. Select the desired template or create a new template by modifying an existing template within the Message Template window. The new message template will be named Custom. Macro variables are also available to customize the Syslog message template.

Macro Variables

Macros are text strings that are replaced with actual values at run time. Not all macro variables are applicable to all environment types. The following Macro variables are available to customize the Syslog message template:

Environment	Variable	Definition
SharePoint Online	%ABSOLUTE_URL%	Absolute URL of the affected object
SharePoint Online	%ACCESS%	Access granted by the sharing operation
SharePoint	%APPPRINCIPAL_ID%	App Principal ID
File Servers & NAS Devices	%ATTRIBUTE_NAME%	Rename events only: Fixed string: Filename
File Servers & NAS Devices	%ATTRIBUTE_VALUE%	Rename events only: New file path
File Servers & NAS Devices SharePoint	%BLOCKED_EVENT%	True if the operation was denied, False otherwise
SharePoint SharePoint Online	%CLIENT_IP%	IP address of the user
File Servers & NAS Devices SharePoint SharePoint Online	%COMPANY%	Fixed string: Stealthbits
SharePoint Online	%CUSTOM_EVENT%	Custom Event information
SharePoint Online	%DEST_FILE_EXT%	New file extension of copied or moved file
SharePoint Online	%DEST_FILENAME%	Name of the file that is copied or moved
SharePoint Online	%DEST_RELATIVE_PATH%	URL of the destination folder where a folder is copied or moved
SharePoint Online	%DLP_EXCEPTION%	Reasons why a policy no longer applies and any information about false positive or override
SharePoint Online	%DLP_POLICY%	Policy(s) that triggered the event
SharePoint Online	%DLP_SENSITIVE%	Indicates whether the event contains the value of the sensitive data type (true/false)
SharePoint SharePoint Online	%DOC_LOCATION%	A relative URL of the file or document accessed by the user
SharePoint SharePoint Online	%EVENT_DATA%	- For SharePoint, raw event data - Fore SharePoint Online, additional event data
File Servers & NAS Devices	%EVENT_NAME%	Operation type: Read/Create/Update/Delete/Access Rights Change/ Rename/ <empty>. The same as %OPERATION%
SharePoint SharePoint Online	%EVENT_SOURCE%	Originating source of the event (SharePoint or ObjectModel)
File Servers & NAS Devices	%EVENT_SOURCE_NAME%	Domain name
SharePoint SharePoint Online	%EVENT_TYPE%	Event type
File Servers & NAS Devices	%FILE_NAME%	File name
File Servers & NAS Devices	%FILE_PATH%	Full path
File Servers & NAS Devices	%FILE_SIZE%	Size of File
File Servers & NAS Devices	%FILE_TYPE%	File extension
SharePoint	%FULL_PATH%	Full Path
File Servers & NAS Devices SharePoint SharePoint Online	%HOST%	Hostname of Agent
SharePoint Online	%ID%	Unique ID of the audit record
File Servers & NAS Devices	%IO_TYPE%	Type of I/O: Filesystem/VSS
SharePoint	%ITEM_ID%	Item ID
SharePoint SharePoint Online	%ITEM_TITLE%	Item title
SharePoint SharePoint Online	%ITEM_TYPE%	Item type (File, Folder, Web, Site, Tenant, DocumentLibrary, Page)
SharePoint Online	%LIST_ID%	ID of the List
SharePoint Online	%LIST_ITEM_ID%	ID of the List Item
SharePoint Online	%LIST_NAME%	Name of the List
SharePoint Online	%LIST_URL%	URL of the List
SharePoint	%LOCATION_TYPE%	Location type of the SharePoint document location
SharePoint Online	%MACHINE_DOMAIN_INFO%	Information about device sync operation
SharePoint Online	%MACHINE_ID%	Information about device sync operation
SharePoint Online	%NEW_DOC_LOCATION%	A relative URL to which the object is copied or moved
File Servers & NAS Devices	%NEW_FILE_NAME%	Rename event only: New file name
File Servers & NAS Devices	%NEW_FILE_PATH%	Rename event only: New full path
File Servers & NAS Devices	%NEW_FILE_TYPE%	New File Extension
File Servers & NAS Devices	%OBJECT_TYPE%	Object type: FILE/FOLD/UNK
File Servers & NAS Devices	%OLD_ATTRIBUTE_VALUE%	Rename only: Old file path
File Servers & NAS Devices	%OPERATION%	Operation type: Read/Create/Update/Delete/Access Rights Change/Rename/Unknown
SharePoint Online	%ORGANIZATION_ID%	Organization tenant ID
File Servers & NAS Devices	%ORIGINATING_CLIENT%	IP Address of originating client or process name
File Servers & NAS Devices	%ORIGINATING_CLIENT_HOST%	Hostname of originating client
File Servers & NAS Devices	%ORIGINATING_SERVER%	Hostname of monitored host
File Servers & NAS Devices	%ORIGINTAING_SERVER_IP%	IP Address of monitored host
SharePoint	%PARAM%	Parameters that come with the event
SharePoint	%PATH%	Truncated path
File Servers & NAS Devices	%PERMISSIONS_SDDL_DESCRIPTION%	Windows events only: Permission change details in readable format
File Servers & NAS Devices	%PERMISSIONS_SDDL_DIFF%	Windows events only: Permission change details in SDDL format, '<REMOVED> <ADDED>'
File Servers & NAS Devices	%PERPETRATOR%	User name
File Servers & NAS Devices SharePoint SharePoint Online	%PRODUCT%	Fixed string: Activity Monitor
File Servers & NAS Devices SharePoint SharePoint Online	%PRODUCT_VERSION%	Product Version
File Servers & NAS Devices SharePoint SharePoint Online	%PROTOCOL%	Protocol type: CIFS/NFS/VSS/FTP/HDFS/HTTP/HTTPS/Unknown
File Servers & NAS Devices	%PROTOCOL_VERSION%	NetApp Data ONTAP Cluster-Mode device events only: Protocol Version
File Servers & NAS Devices	%RENAMEUNCPATH%	Rename events only: New UNC path / New NFS export path
SharePoint Online	%RESULT_STATUS%	Succeeded, PartiallySucceeded, Failed, True, or False
SharePoint Online	%SCOPE%	online or onprem
SharePoint Online	%SHARING_ID%	Unique ID of the sharing operation
SharePoint SharePoint Online	%SITE_ID%	ID of the Site
SharePoint Online	%SITE_NAME%	Name of the Site
SharePoint SharePoint Online	%SITE_URL%	URL of the Site
SharePoint Online	%SOURCE%	Source (SharePoint, SharePointFileOperation, …)
SharePoint Online	%SOURCE_FILE_EXT%	File extension
SharePoint Online	%SOURCE_FILENAME%	File or folder name
SharePoint	%SOURCE_NAME%	Source Name
SharePoint Online	%SOURCE_RELATIVE_PATH%	URL of the folder that contains the file accessed by the user
File Servers & NAS Devices SharePoint SharePoint Online	%SUCCESS%	True if the operation was allowed, False otherwise
File Servers & NAS Devices SharePoint SharePoint Online	%SYSLOG_DATE%	Timestamp of event (server time, Syslog format: MMM dd HH:mm:ss)
File Servers & NAS Devices	%TAGS%	Operation Tags. Reports 'Copy' for events that are probable copies
SharePoint Online	%TARGET_NAME%	UPN or name of the target user or group that a resource was shared with
SharePoint Online	%TARGET_TYPE%	Type of target user or group that a resource was shared with (Member, Guest, Group, or Partner)
File Servers & NAS Devices SharePoint SharePoint Online	%TIME_STAMP%	Timestamp of event (server time, format: yyyy-MM-dd HH:mm:ss.zzz)
SharePoint Online	%TIME_STAMP_OFFSET%	Timestamp of event with timezone offset (server time, format: yyyy-MM-ddTHH:mm:ss.zz+HH:mm)
File Servers & NAS Devices SharePoint SharePoint Online	%TIME_STAMP_UTC%	Timestamp of event (UTC, format: yyyy-MM-dd HH:mm:ss.zzz)
SharePoint Online	%TIME_STAMP_Z%	Timestamp of event (UTC, format: yyyy-MM-ddTHH:mm:ss.zzZ)
File Servers & NAS Devices	%UNCPATH%	UNC path / NFS export path
SharePoint Online	%UPDATE_TYPE%	Added, Removed, or Updated
SharePoint Online	%USER_AGENT%	User client or browser
SharePoint SharePoint Online	%USER_ID%	- For SharePoint, ID of the SharePoint user - For SharePoint Online, UPN of the user who performed the operation
SharePoint SharePoint Online	%USER_LOGIN%	- For SharePoint, SharePoint User Login / Encoded Claim - For SharePoint Online, An alternative ID of the user. "DlpAgent" for DLP events.
SharePoint SharePoint Online	%USER_NAME%	SharePoint user name
File Servers & NAS Devices SharePoint	%USER_SID%	User SID or UID
SharePoint Online	%USER_TYPE%	Type of the user performed the operation
SharePoint Online	%VERSION%	New version of the document/version of deleted document
SharePoint	%WEB_APPLICATION_NAME%	Title of the SharePoint Web Application
SharePoint SharePoint Online	%WEB_TITLE%	Title of the Site Collection
SharePoint Online	%WORKLOAD%	Office 356 service where the activity occurred
