Policy Templates: FIM File Integrity

File System Integrity Monitoring is crucial for security and most Security Policies/Standards e.g. PCI DSS, mandate use of this control. Netwrix Change Tracker will monitor and alert on any file or folder change – a new file appearing, such as a Trojan being added to the System 32 folder, or an application hack/modification will be detected and alerted.

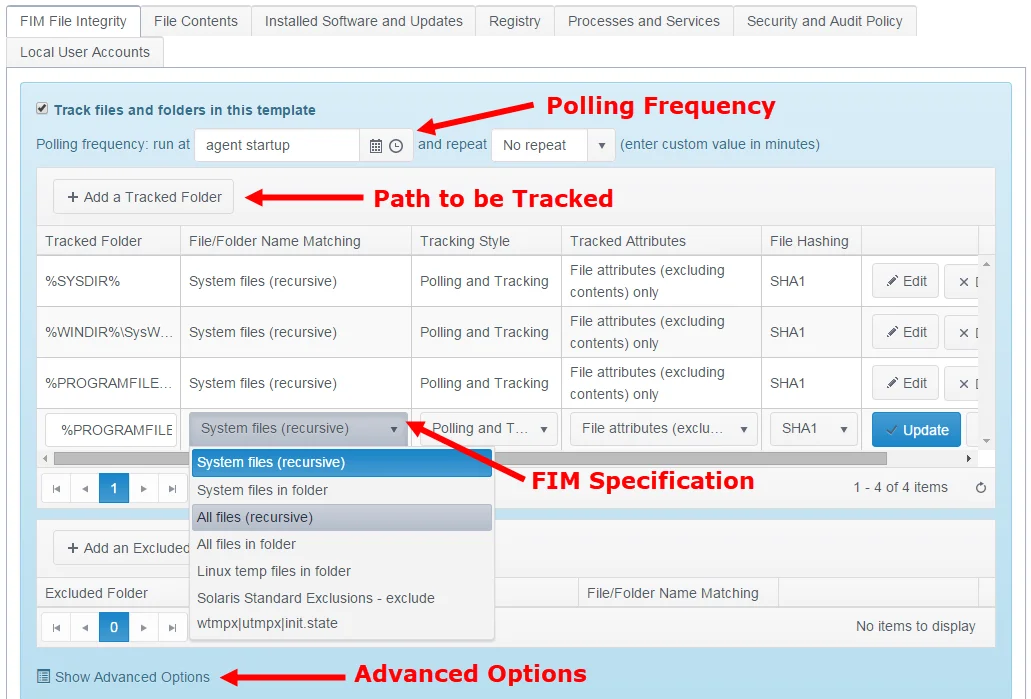

• Polling Frequency – The default setting is to run a full poll (effectively a new baseline operation) only when the Agent has been restarted e.g. after a reboot but the Agent may be run in a ‘polling-only’ mode. This disables live tracking (the Tracking Style attribute for the Tracker should be set to Polling) and means that the only change detection is performed when the scheduled poll is run. While this loses the benefits of real-time change detection, it can be desirable in sensitive environments where server resource loads need to be minimized under all conditions.

• Define Path – Click + Add a Tracked Folder to add a new folder/path to be tracked. Change Tracker provides a range of tokens (conceptually similar to the Windows Environment Variables) so that template definitions can be universally applied even if the OS Installation volumes used are different, e.g. OS installed onto D: rather than C:

  %SYSDIR% = \Windows\System32

  %WINDIR%\SysWOW64 = \Windows\SysWOW64

  %PROGRAMFILES% = \Program Files

  %PROGRAMFILES(x86)% = \Program Files (x86)

• Tracking Specification:

  • Tracked Folder – File Hashing – Selects the Cryptographic Hash Algorithm used to record a DNA Fingerprint for each file – this option will record a secure hash value for the files being tracked and use this as a definitive metric for file integrity.

  • File/Folder Name Matching – System files recursive will limit tracking to *.exe, *.dll, *.sys, *.drv files for this folder and any sub-folders. All files will track all files with or without an extension.

  • Tracking Style – See point 1 regarding Poll Period, options are tracking only, polling and tracking or poll only.

  • Tracked Attributes – Options are:

    • File Attributes – Excluding contents only

      NOTE: Contents tracking is defined under the File Contents tab

    • Folder/Directory Attributes – Only or All File and Folder Attributes. Default is to use File Attributes only as tracking changes at the Folder level in Windows may sometimes give spurious events due to the way in which the Windows file system behaves.

  • File Hashing – Selects the Cryptographic Hash Algorithm used to record a ‘DNA Fingerprint’ for each file – this option will record a secure hash value for the files being tracked as a definitive metric for file integrity. Options are:

    • None
    • MD5
    • SHA1
    • SHA256
    • SHA384
    • SHA512.

In fact, all significant attributes for each file are tracked and any change to any attribute will be detected. The secure hash checksum provides a DNA Fingerprint of a file, such that, in the case of a Trojan, even if the Trojan file is made to look identical to a legitimate system file, it will still be identified as being a changed file.

Exclusions are configured in a similar manner to the inclusive tracking above.

NOTE: For Advanced Options: see File and Folder Match Filters for more information.

Policy Templates: FIM File Integrity for Legacy Platforms/Agentless Operation

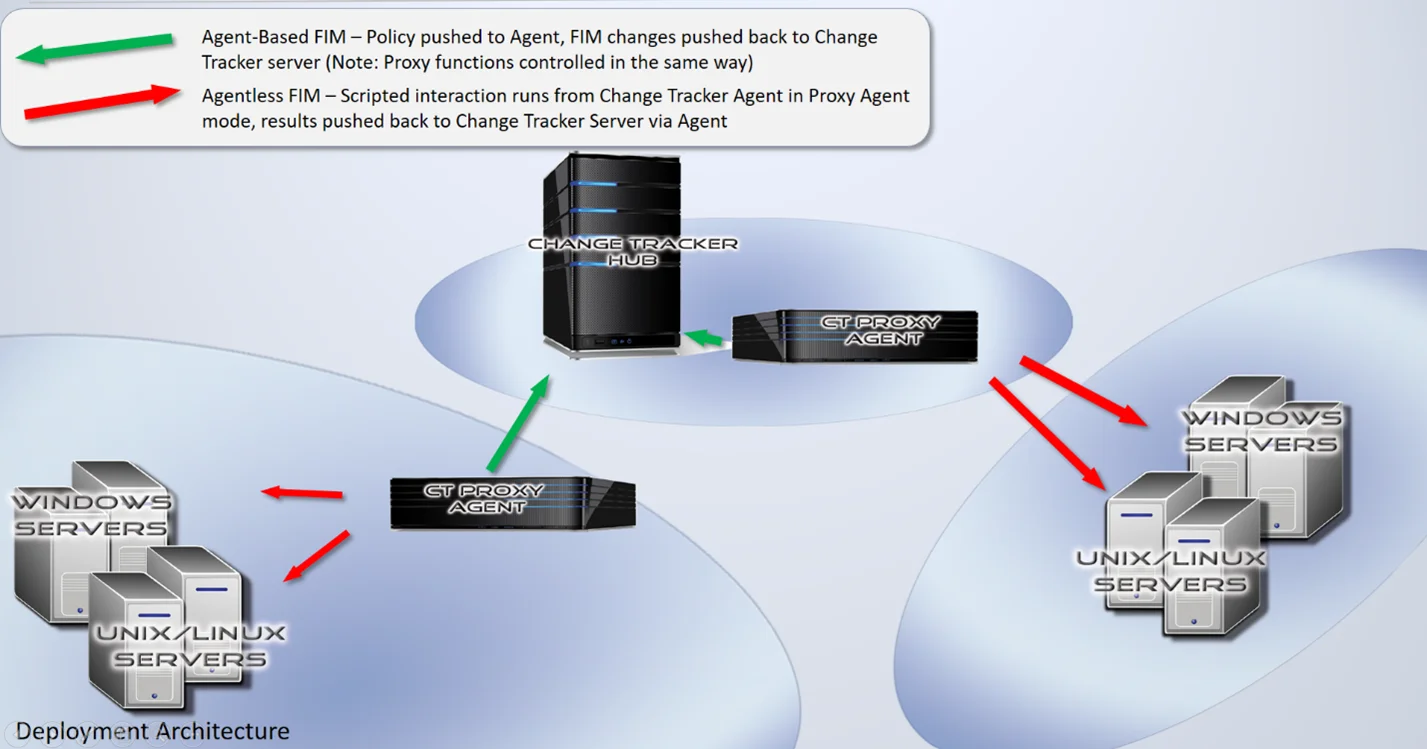

Where it is desirable to not use an Netwrix Change Tracker Agent, or where the platform to be monitored does not currently have an Netwrix Agent available for it e.g. HP Non-Stop, Netwrix provide various Agentless FIM options.

All Agentless monitoring is performed via a Master Proxy Agent – the Proxy function is supported by any Netwrix Change Tracker Agent and the dedicated Netwrix Agent App Proxy Agent. See the Registry Inclusion/Exclusion Match Rules section for more information.

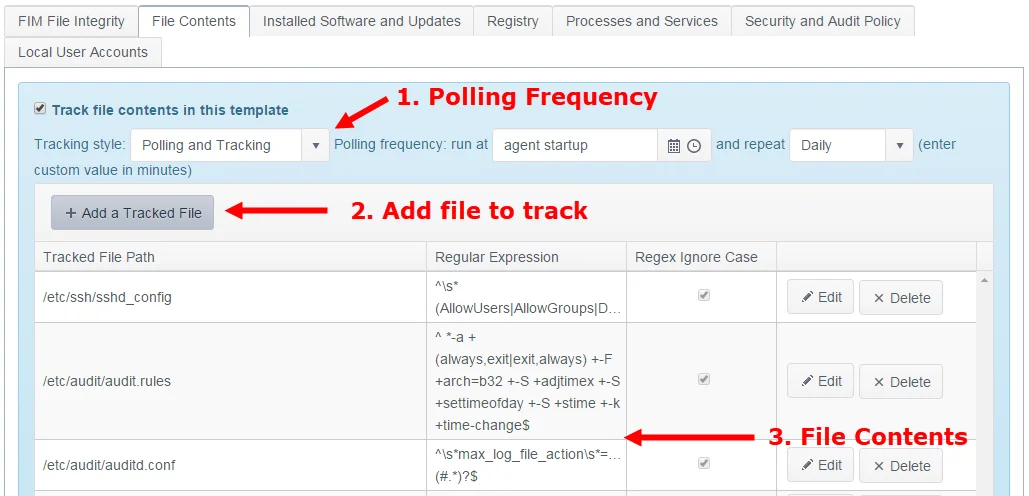

Policy Templates: File Contents

Configuration settings conveyed using config files can be tracked directly using the File Contents Tracker. Similarly, to the FIM Tracker, changes can be tracked continuously to give real-time notifications of any changes, or via a periodically scheduled poll. Netwrix Change Tracker supports a regular expression-based data-extraction operation to precisely focus the tracking on salient entries only.

Step 1 – Polling Frequency. The default setting is to run a full poll (effectively a new baseline operation) only when the Agent has been restarted e.g., after a reboot but the Agent may be run in a ‘polling-only’ mode. This disables live tracking (the Tracking Style attribute for the Tracker should be set to ‘Polling’) and means that the only change detection is performed when the scheduled poll is run. While this loses the benefits of real-time change detection, it can be desirable in sensitive environments where server resource loads need to be minimized under all conditions.

Step 2 – Define Path. Click + Add a Tracked Folder to add a new folder or path to be tracked.

Step 3 – Tracking Specification:

• Tracked File Path – File Hashing. Selects the Cryptographic Hash Algorithm used to record a DNA Fingerprint for each file – this option will record a secure hash value for the files being tracked and use this as a definitive metric for file integrity.
• Regular Expression. If left blank, the entire contents of the file will be recorded and tracked, but using a Regular Expression will focus tracking on contents isolated by the regex, useful if only certain elements of a file contents need to be tracked.
• RegEx Ignore Case. If using a Regular Expression this ensures that tracking is case insensitive.
