Cloud Policy Setup Wizard

Step 1 – New Policy: Use the Actions button to start a new Cloud Tracker system set-up.

Step 2 – Cloud Report Template: The following templates include all Cloud reports available in your system.

cloudsystemsetup

Step 3 – Create a new Cloud System and Credentials: The Cloud Set-Up Wizard is context-sensitive, so the Cloud Platform you select determines the Credentials dialogue that appears next.

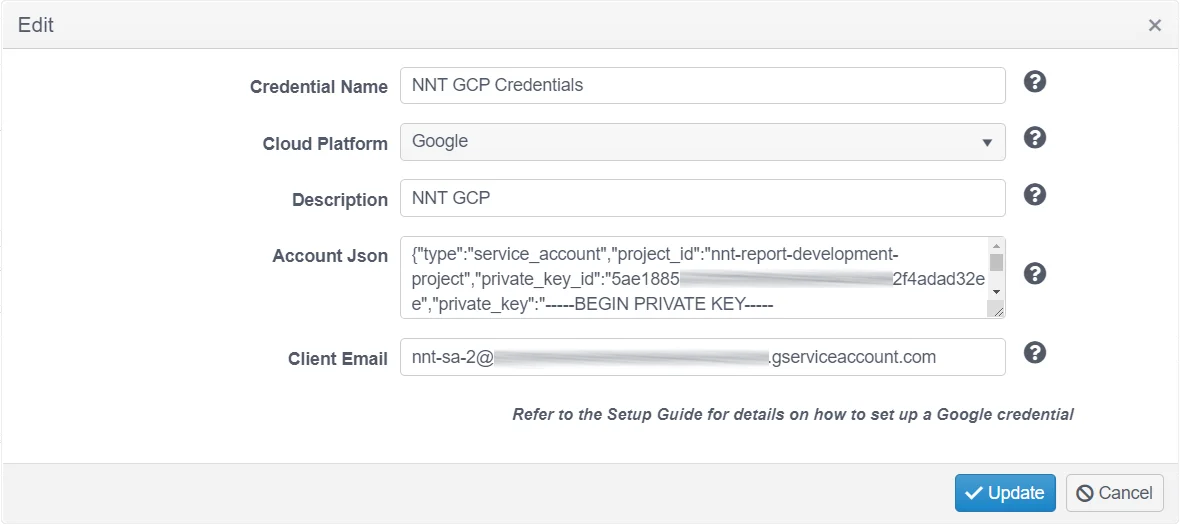

Google Cloud Platform Credentials example:

Google Cloud Platform credentials dialog showing Credential Name, Cloud Platform, and Description fields

note

Click the Query icon to get a quick tip on what the Credential field requires.

  • Credential Name – Enter a name to uniquely identify these credentials
  • Cloud Platform – Select from the dropdown options presented
  • Description – Optionally provide a credential description

After you enter the Credentials, Change Tracker automatically selects an Agent to run the Cloud Compliance Report from and then tests the Credentials. By default, Change Tracker uses the local Agent on the Hub Server.

note

This must always be the latest Net Core Gen 7 Agent. See the Netwrix Support site for more details.

You can change this using the links displayed after the Credentials test completes. If the Credentials aren't working, you can edit them and verify you entered them correctly.

Cloud security is higher and more complex than standard access credentials for regular servers and hypervisors, so ask for help if needed.

cloudcompletedsetup

You're now ready to run your first Cloud Compliance Report – click the Run Report button.

AWS Platform Credentials Example:

cloudaws-credentials

  • Credential Name – Enter a name to uniquely identify these credentials Cloud
  • Platform – Select from the dropdown options presented
  • Description – Optionally provide a credential description
  • ARN – AWS Resource Name of a role a user can assume when establishing a trust relationship.
  • ExternalId – An Id used in establishing the trust relationship
  • Root AccessKeyId – The Access Key Id of the AWS user the trust relationship is established for
  • Root SecretAccessKey – The Access Key Secret of the AWS user the trust relationship is established for

Special Instructions for AWS Cloud Reporting​

The NNT Cloud Tracker feature set uses the Microsoft PowerShell cmdlets for AWS.

You may experience a failure message after the Credentials Test has run: "Can't execute AWS commands, error: The specified module 'AWSPowerShell. NETCore wasn't loaded because no valid module file was found in any module directory".

In this case, run the following PowerShell setup on the host running the Gen7Agent NETCore used for Cloud Tracker work:

Step 1 – Install PowerShell NETCore version 7.x (this is the new cross-platform version of PowerShell based on NETCore, separate from the PowerShell that ships with Windows). See the Microsoft Installing the MIS package article for additional information.

Although the agent provides its own PowerShell scripting, you must install this NETCore version of PowerShell so that you can install the various AWS/Azure PowerShell core support libraries. Some Change Tracker reports use these libraries to collect data from the cloud environments.

Step 2 – Install AWS Cmdlets for use in AWS compliance reports, run the following in the PowerShell NETCore command prompt (PowerShell 7(x64) Start menu item, Run As Administrator).

Install-Module -name AWSPowerShell.NetCore -scope AllUsers

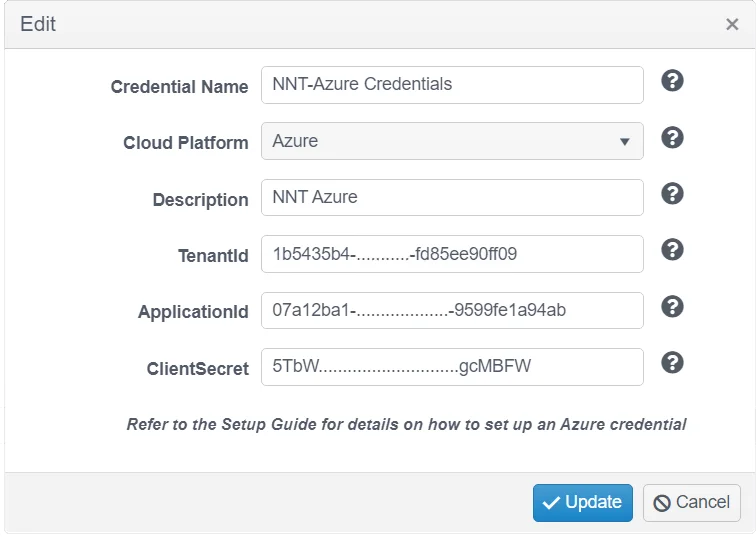

Azure Platform Credentials Example:

Azure Platform credentials dialog showing Credential Name, Cloud Platform, Tenant ID, Application ID, and Client Secret fields

  • Credential Name – Enter a name to uniquely identify these credentials
  • Cloud Platform – Select from the dropdown options presented
  • Description – Optionally provide a credential description
  • Tenant ID – From the Azure portal, click properties and copy the Tenant Id
  • Application ID – The Azure application (client) ID
  • ClientSecret – The application client secret

Special Instructions for Azure Cloud Reporting​

The NNT Cloud Tracker feature set uses the Microsoft PowerShell cmdlets for AWS.

You may experience a failure message after the Credentials Test has run: "Can't execute Az commands, error on Import-Module: The specified module 'Az' wasn't loaded because no valid module file was found".

In this case, run the following PowerShell setup on the host running the Gen7Agent NETCore used for Cloud Tracker work:

Step 1 – Install PowerShell NETCore version 7.x (this is the new cross-platform version of PowerShell based on NETCore, separate from the PowerShell that ships with Windows). See the Microsoft Installing the MIS package article for additional information.

Although the agent provides its own PowerShell scripting, you must install this NETCore version of PowerShell so that you can install the various AWS/Azure PowerShell core support libraries. Some Change Tracker reports use these libraries to collect data from the cloud environments.

Step 2 – Install Azure Cmdlets for use in Azure compliance reports, run the following in the PowerShell NETCore command prompt (PowerShell 7(x64) Start menu item, Run As Administrator):

Install-Module -name Az -scope AllUsers
