Live Tracking

Live Tracking is a style of tracking to capture all changes in real-time that can be set when configuring a tracking policy. See the Policy Templates: FIM File Integrity topic for additional information.

Windows​

The Gen 7 Agent minifilter driver is a small, lightweight kernel driver used to collect real-time file I/O changes. When a Gen 7 Agent is configured for live tracking on a Windows server, it relies on the file I/O monitoring that the minifilter driver provides. The driver is installed during the installation of the Gen 7 Agent and is registered with the Windows Filter Manager when live tracking is required. See Microsoft's article Filter Manager Concepts for additional information.

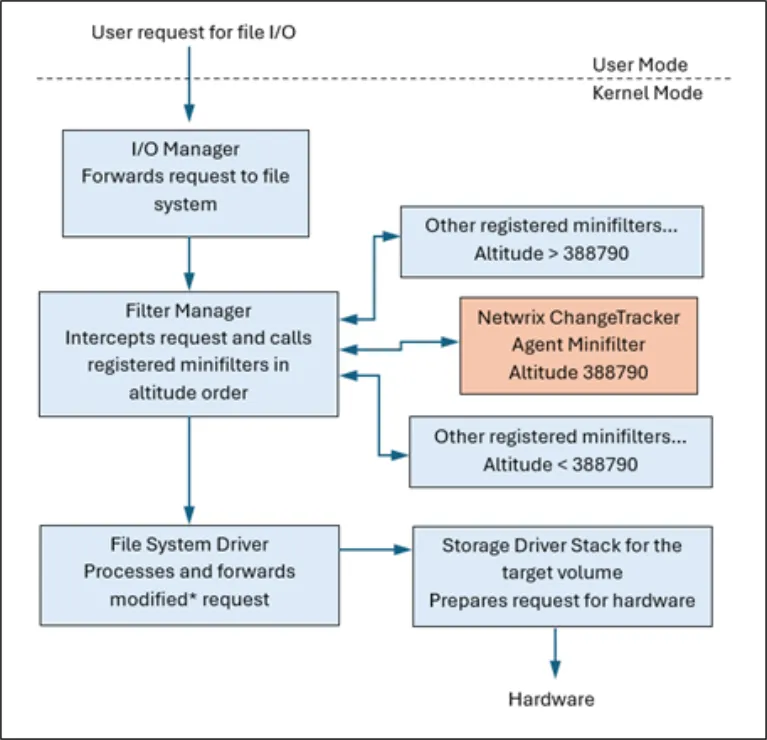

The Windows Filter Manager calls out to all registered drivers sequentially when any I/O activity occurs (see the diagram below). The order in which they are called is based upon a given driver’s altitude value, going from lowest to highest. The Netwrix Gen 7 Agent minifilter driver has been allocated an altitude value of 388790. This was allocated by Microsoft when the driver was submitted for approval as seen here Allocated filter altitudes – see the Activity Monitor section (NNTInfo.sys).

Common minifilter drivers that are installed on a given Windows server are those associated with Virus Scanning, Encryption and/or Continuous Backup. Many of these can lock files whilst processing the request and in some cases, such as Encryption, modify the request.

NOTE: The Gen 7 Agent minifilter driver does not lock files or modify the I/O request, it simply monitors change.

Logging of changes is only done for those files that meet the filter requirements of the Change Tracker Policy Tracking Template applied to the running Gen 7 Agent.

For I/O changes that are part of the Tracking Template, the driver simply logs the change to a memory buffer. This memory buffer is monitored by the installed Gen 7 Agent which queries and empties it every 100 milliseconds.

Neither the server nor the agent requires a restart after live tracking has been enabled.

minifilter_767x740

The Change Tracker minifilter doesn't make any alterations to user requests, it only monitors I/O activity.

Linux​

On Linux devices, The Gen 7 Agent uses Sysdig to capture low level data like who made the change. See Github's article Sysdig for additional information.
