Notes on Upgrade

Consider the following when upgrading to Directory Manager 11 from GroupID 9 and 10.

NOTE: In the following text, the term ‘source version’ refers to the GroupID version you are upgrading from.

Notes

Step 1 – Portals from the source version will not be upgraded to Directory Manager 11.

Step 2 – To upgrade to Directory Manager 11 on a different box, the GroupID source version file system must be available on the Directory Manager 11 server. To ensure this, follow step 1 in the Prerequisites for Upgrade topic.

The source version file system is required for the following:

• When you create a new portal in Directory Manager 11, you can import the advanced settings and design settings of a Self-Service portal from the source version. See step 13 in the Create a Portal in Native IIS topic.

• In the source version, you specified a list of attributes to replicate for an identity store. These attributes are saved to a file on the file system.
  To upgrade on a different box, the file containing the selected attributes for each identity store must be present on the Directory Manager 11 server. If the wizard does not find it, Directory Manager 11 will display the default attributes for identity store replication (rather than your selected attributes).

  File name: <name of the domain the identity store is created on>_<identity store ID>.xml
  Example: techinfo.local_4.xml, techinfo.onmicrosoft.com_6.xml
  A separate file exists for each identity store.

  File Path on the Directory Manager 11 server: C:\Program Files\Imanami\GroupID `<source version>`\Replication\IdentityStoresReplicationAttributes\

• To upgrade schedules, Synchronize jobs, and generated reports on a different box, the relevant files must be available on the Directory Manager 11 server.

• If you have uploaded a CSV file containing a list of disallowed passwords for an identity store, that file should also be available on the Directory Manager 11 server for the Upgrade wizard to process it.

  File name: The name of the uploaded file.
  For example: DisallowedPasswords.txt

  File Path on the Directory Manager11 server: C:\Program Files\Imanami\GroupID `<source version>`\GroupIDDataService\PasswordCenter\PasswordExceptionLists\`<identity store name>`_`<identity store ID>`\

  Example: C:\Program Files\Imanami\GroupID 10.0\GroupIDDataService\PasswordCenter\PasswordExceptionLists\ADStore_4\

Step 3 – When importing design settings of a Self-Service portal on the same box or on a different box, remember the following:

• Design settings for the toolbars and navigation bars will not be imported due to architectural changes in Directory Manager 11.
• The Group Search and User Search forms will not be upgraded as they are not available in Directory Manager 11.
• Portal branding, logo, and any customizations to a Self-Service portal will be lost.

Step 4 – When importing advanced settings for a portal on the same box or on a different box, remember the following:
If, in the source version, you have set the value of the Self-Service portal’s advanced setting Default Startup Page to ‘Group Search’ or ‘Organizational Hierarchy’, then it will not be upgraded. The ‘Group Search’ page has been removed from Directory Manager 11 while the ‘Organizational Hierarchy’ page is not supported as a startup page.

Step 5 – Any notifications pending in the notification queue in the source version will not be upgraded.

Step 6 – An identity store created for G Suite will not be upgraded.

Step 7 – In case of upgrade on a different box, the DC Priority settings for an Active Directory domain are not upgraded to Directory Manager version 11.0.23315.04.

Step 8 – In the source version, the debug logs for upgrade were created in a temporary folder for the logged-on user, that could be accessed using the %TEMP% environment variable.
File name: ~GroupID10_Upgrade

In Directory Manager 11, these debug logs will be created at the following location on the Directory Manager 11 server:
C:\ProgramData\Imanami\GroupID 11.0\Upgrade Tool\
File name: directorymanager11_Upgrade.log

Step 9 – In the source version, Replication service logs were captured under the debug mode, with no user interface to change this setting. On upgrade to Directory Manager 11, the file logging and Windows logging mode is set to default, i.e., ‘Error’. After upgrade, it is recommended that you go to Replication service settings and change file logging to the ‘Debug’ mode (if required). See the Specify Log Settings for a Service topic.

Step 10 – In the source version, log settings for an identity store inherently applied to Date service logs. On upgrade to Directory Manager 11, these log settings are moved to the Data service, with the file logging mode set to default, i.e., ‘Error’. To change the mode in Directory Manager 11, go to Data service settings and change it as required. See the Specify Log Settings for a Service topic.

Step 11 – The following applies in case of upgrade from GroupID 10 SR1.
When the approver in pending workflow requests is a variable, such as managedBy, additionalOwner, etc., then during upgrade, the variable will be resolved to the GUID of the object that it represents at that point in time. Hence, the variable is replaced with a static value.

Step 12 – SAML configurations with the Self-Service portals, Password Center portals, Automate, or any other GroupID client will be lost during upgrade, and will not be available in Directory Manager 11.

Step 13 – Reports will no longer be available on a shared location, as was in the source version. In Directory Manager 11, users can download reports in different formats, including PDF, from the Directory Manager portal.

Step 14 – When upgraded on a different box, file-based Synchronize jobs available on shared locations will move to the data sources created for them on the Directory Manager 11 file system.

Step 15 – During upgrade, scripts for Smart Groups and Synchronize jobs are upgraded to Directory Manager 11 without any change. If a script contains a location in a variable (for example, for exporting files), that setting will not work in case of upgrade on a different box. Make sure you change the location after upgrade.

Step 16 – In the source version, source and destination providers in Synchronize jobs were saved as connection strings in a file. Similarly, when using an external data source for Smart Groups, connection was established on the basis of a connection string. On upgrade, a data source will be created for each distinct connection string.
The Upgrade wizard will process connection strings for Smart Groups first. Then while processing Synchronize jobs, it will not create another data source if the same connection strings come up again.

Step 17 – In case of upgrade on a different box, ODBC connections defined using system DSN will be lost. As a result:

• Smart Groups whose memberships are determined using system DSN (external data source) will be affected.
• Synchronize jobs with the source or destination provider configured using system DSN will not work.

Step 18 – Insights in GroupID 10 has been renamed to Entitlement in Directory Manager 11.
In GroupID 10, one schedule named ‘Insights’ existed for Insights, which will be upgraded and renamed to ‘GroupID Entitlement’. Directory Manager 11 will also have two new schedules for Entitlement; ‘Entitlement Scope’ and ‘Entitlement Temporary Permissions’. These new schedules will be auto created for identity stores that have Entitlement settings defined.

Step 19 – You cannot run the Configuration Tool and the Upgrade wizard more than once using the same database (for upgrade to Directory Manager version 11.0.23315.04).

Upgrade

Directory Manager 11 supports upgrade from the following:

• GroupID 10.0
• GroupID 9.0

Prerequisites for Upgrade

The following must be in place before you run the Upgrade wizard.

NOTE: In the following text, the term ‘source version’ refers to the GroupID version you are upgrading from.

Step 1 – For upgrade on a different box, the source version file system must be present on the Directory Manager 11 server. For that, do the following:

1. On the source version server, for example, GroupID 10 server, go to [GroupID Installation Drive]:\Program Files\Imanami\ and copy the GroupID 10 folder.

2. Go to the Directory Manager 11 server, create a path as follows, and paste the GroupID 10 folder there:

   C:\Program Files\Imanami\

   On pasting the GroupID 10 folder, it will be as:
   C:\Program Files\Imanami\GroupID 10\

Step 2 – The following applies to upgrade on a different box.
If a gMSA is used as the service account for an identity store in the source version, you must configure that gMSA on the Directory Manager 11 server before you upgrade.
To configure a gMSA, see the gMSA for Active Directory topic.

Step 3 – A disabled identity store in the source version will not be upgraded to Directory Manager 11.
To upgrade a disabled identity store, you must enable it in the source version before upgrade. Then disable it in Directory Manager 11 immediately after upgrade.

Step 4 – To upgrade schedules and Synchronize jobs on a different box, you must run a utility on the Directory Manager 11 server before running the Upgrade wizard. Contact Netwrix Customer Support for more info.

If you forget the passphrase you used to encrypt GroupID data, upgrade is not possible.

Upgrade Logs

Two log files are created on upgrade:

• File name: UpgradeLog
  Path: X:\Imanami\GroupID 11.0\GroupIDUpgradeTool\
  (X represents the Directory Manager installation drive)
• File name: directorymanager11_Upgrade.log
  Path: C:\ProgramData\Imanami\GroupID 11.0\Upgrade Tool\
  (This file contains debug logs.)

Upgrade to Directory Manager 11

The topic guides you to upgrade to Directory Manager 11.1 from Directory Manager 10.

Follow the steps to upgrade.

Step 1 – To launch the Upgrade wizard, click Next on the GroupID Successfully Configured page of the Configuration Tool.

OR

Click Start > Imanami > GroupID Upgrade Tool 11.0.

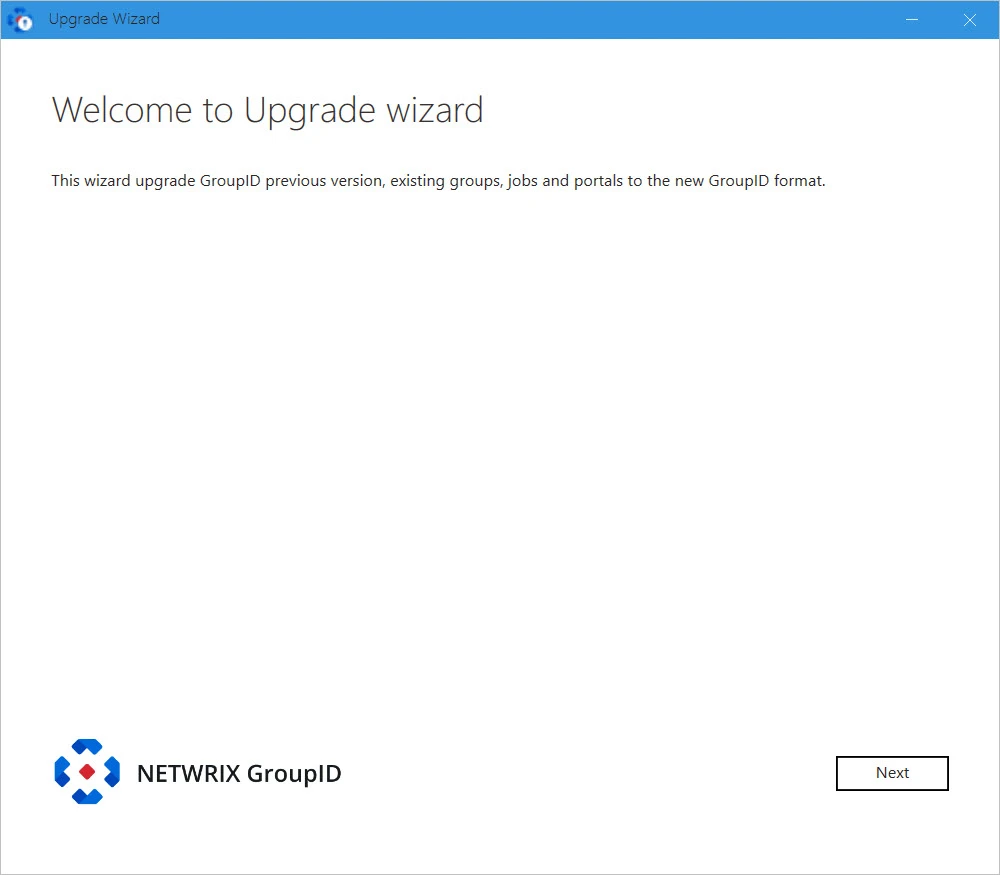

Step 2 – Read the welcome message and click Next.

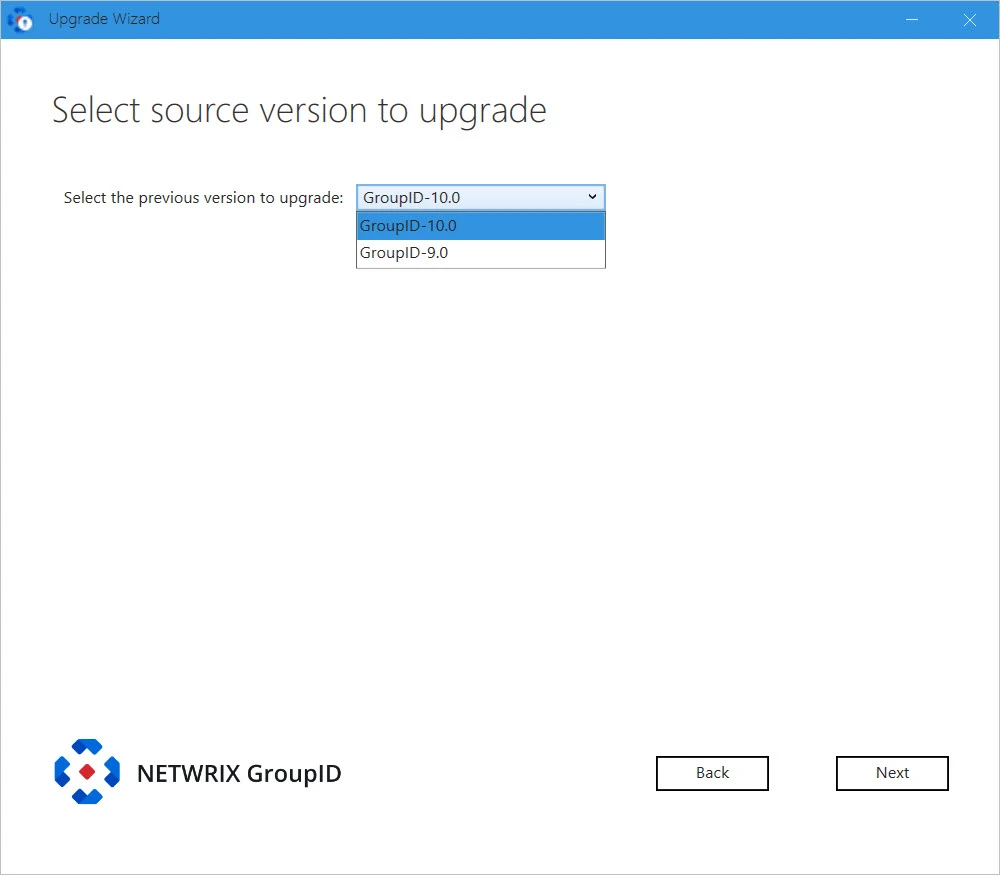

Step 3 – From the Select the previous version to upgrade list, select the Directory Manager version to upgrade from.

NOTE: The following steps discuss the upgrade process with Directory Manager 10 as the source version. The process may vary for different source versions.

Step 4 – Click Next.

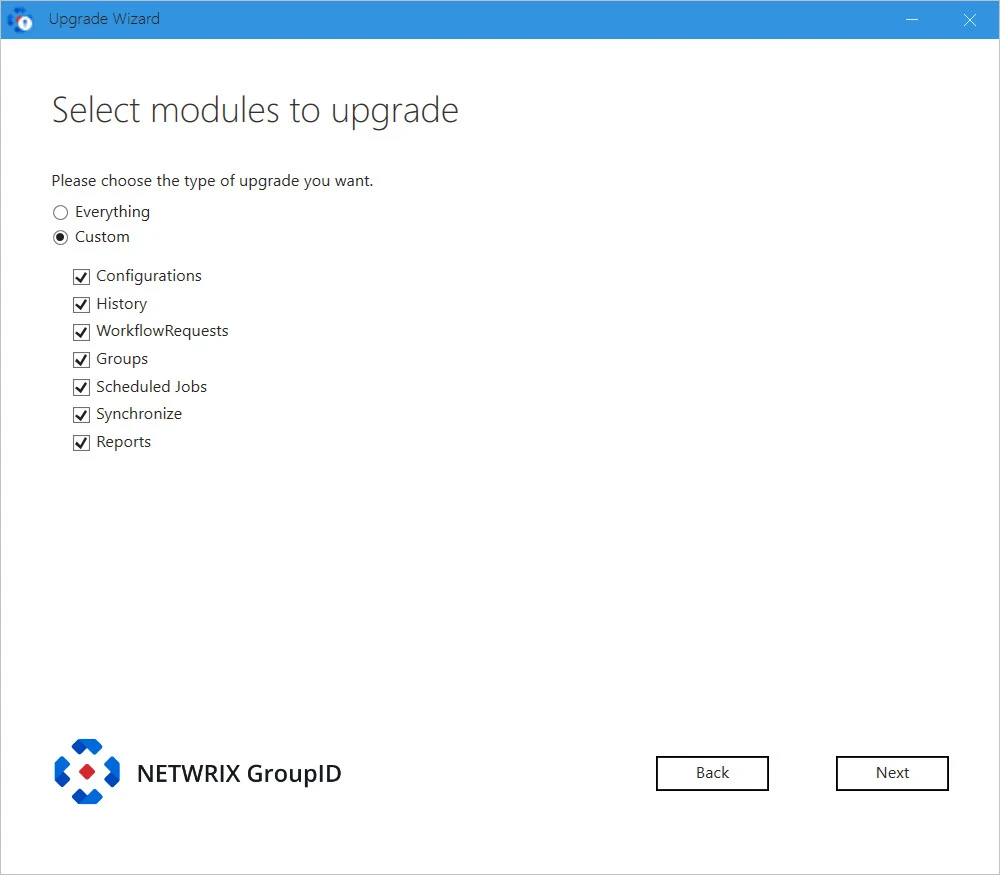

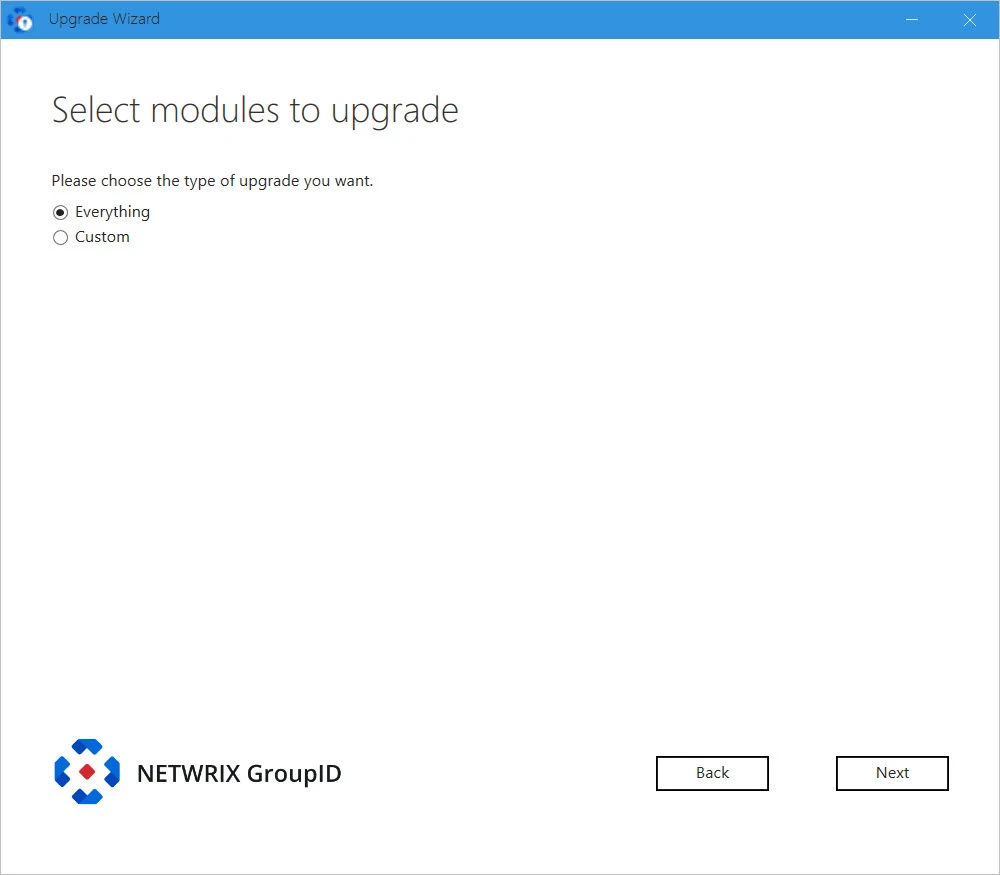

On the Select Modules to upgrade page, select the type of Directory Manager data for upgrade. You can choose to upgrade all or selective data of the previous version. Options are:

• Everything – upgrades all data, which covers all options discussed under Custom.

• Custom – choose what data you want to upgrade. On selecting it, the following options are listed, from where you can choose the data to upgrade.



  NOTE: If later on, you wish to upgrade specific groups and their history via the Upgrade-Group commandlet, then you must upgrade the Configuration and History in the first upgrade run. This will upgrade the history in the database as per Directory Manager 11.1 format and replicates it to Elasticsearch. Later on, when you upgrade specific groups and their history using the Upgrade-Group commandlet, that will be done successfully. See the Upgrade-Group commandlet for additional information.

  If you want to upgrade configurations, history and all groups using the Directory Manager Upgrade wizard , then you must select the Configurations, History, and Groups checkboxes.

Step 5 – Click Next.

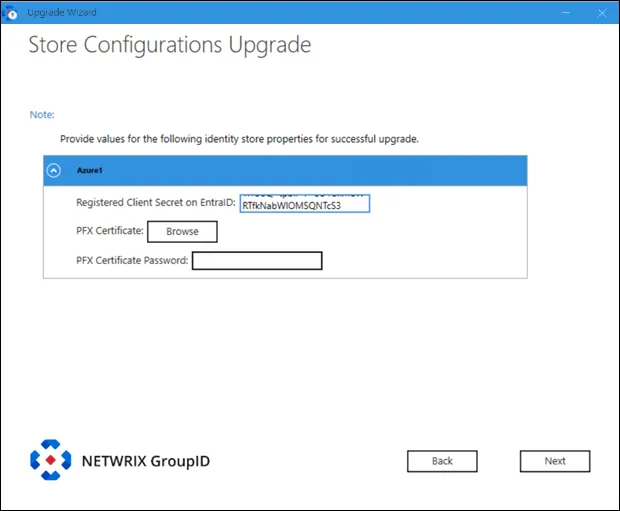

Step 6 – If you have an Microsoft Entra ID based identity store in Directory Manager 10, the following page appears.

Provide the following information:

• Registered Client Secret on EntraID: provide the client secret value generated against the certificate uploaded Microsoft Entra Admin Centerwhile registering the Directory Managerapplication.
• PFX Certificate: Click Browse to navigate to the folder where the certificate is saved. This certificate must be the same uploaded for the registered Directory Manager app in Microsoft Entra ID.
• PFX Certificate Password: Provide password of the PFX certificate.

Step 7 – Click Next.

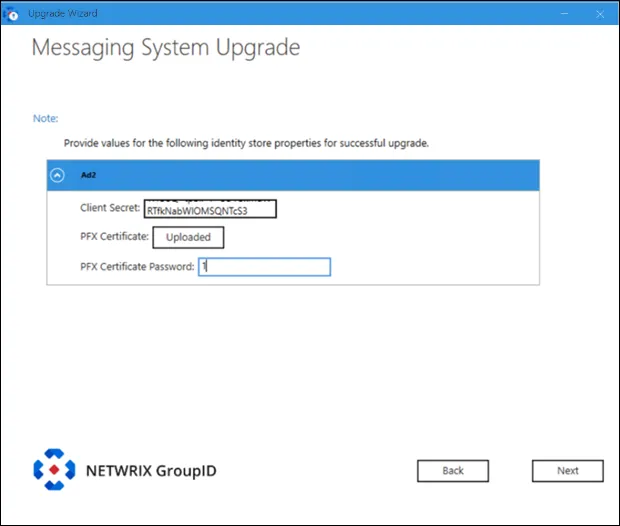

Step 8 – If in the Directory Manager source version, Office 365 messaging provider is configured in a Microsoft Entra ID based identity store or in an AD identity store, the Upgrade wizard displays the following page.

Provide the following information:

• Client Secret: provide the client secret value generated against the certificate uploaded to Microsoft Entra Admin Center while registering the Directory Manager application.
• PFX Certificate: Click Browse to navigate to the folder where the certificate is saved. This certificate must be the same uploaded for the registered Directory Manager app in Microsoft Entra ID.
• PFX Certificate Password: Provide password of the PFX certificate.

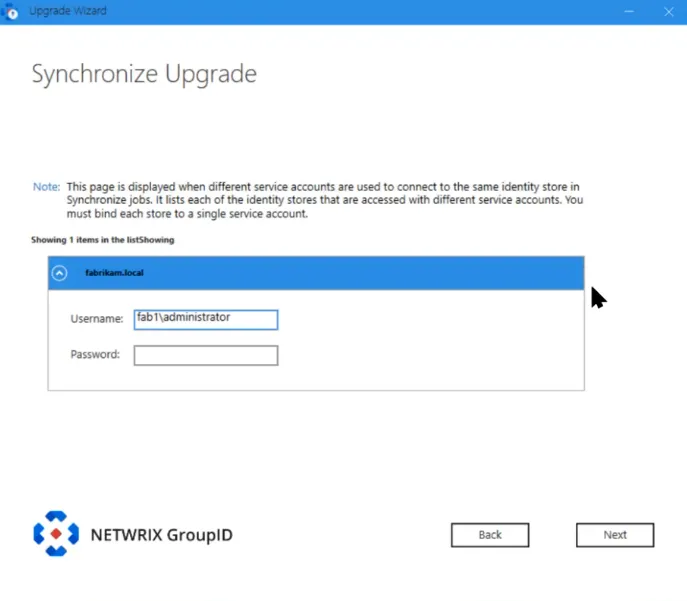

Step 9 – If any Synchronize jobs exist in Directory Manager 10 or the version you are upgrading from, then the wizard checks the destination domain set for them. Let's assume you have 5 jobs that connect to different child domains in a forest with different service accounts and different messaging providers.

• If an identity store already exists in Directory Manager 10 for the destination domains that the jobs connect to, then jobs are moved to the respective identity stores in Directory Manager 11.1.

• When there is no identity store in Directory Manager 10 for the destination domain that the jobs connect to, the Upgrade wizard reads the FQDN of the destination domains used in the jobs and tries to create a forest structure. On identifying one, it proceeds to create an identity store for the forest, requiring you to provide a service account. (The user name and password fields will be auto populated but you can change them.) All jobs with destination provider for that forest domain or any of its child domains will be moved to the new identity store.



  NOTE: The service account you provide here should have at least read permission in the entire forest, so that all objects from the forest can be replicated to Elasticsearch.

  The wizard does not create a separate identity store for each child domain in the same forest. In case it cannot determine a forest structure, it creates separate identity stores for each domain.

Step 10 – For Synchronize jobs that use Office 365 as messaging provider in Directory Manager 10, the wizard would require you to provide the PFX certificate. All Synchronize jobs that use Office 365 as messaging provider will be listed on the wizard page. Expand each job and provide the PFX certificate along with its password.

Provide the following information:

• Certificate: Click Browse to navigate to the folder where the certificate is saved. This certificate must be the same uploaded for the registered Directory Manager app in Microsoft Entra ID.
• Password: Provide password of the PFX certificate.
• Client Secret: provide the client secret value generated against the certificate uploaded to Microsoft Entra Admin Center while registering the Directory Manager application.

Step 11 – Click Next.

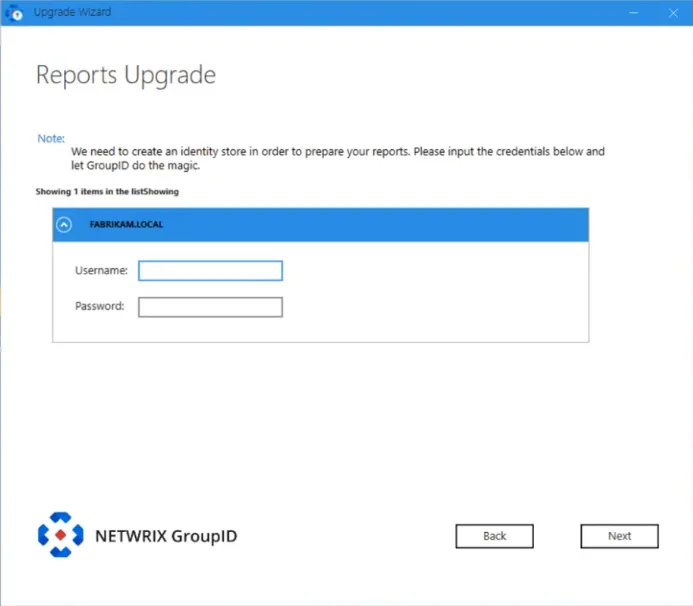

Step 12 – In Directory Manager 10 and earlier versions, reports were generated for the domain that the Directory Manager server was joined to. During upgrade, the wizard checks if an identity store for that domain exists or not.

• If an identity store for that domain exists or if it being created for a Synchronize job in this upgrade process, Directory Manager will bind the reports to it.
• If an identity store for that domain does not exist, then you have to create an identity store for it. It must essentially be an Active Directory identity store. The wizard will bind the reports generated in Directory Manager 10 to the identity store, so you will be able to view them in Directory Manager 11.1.


NOTE: If no report has been generated in Directory Manager 10, the page related to reports upgrade will not be displayed.

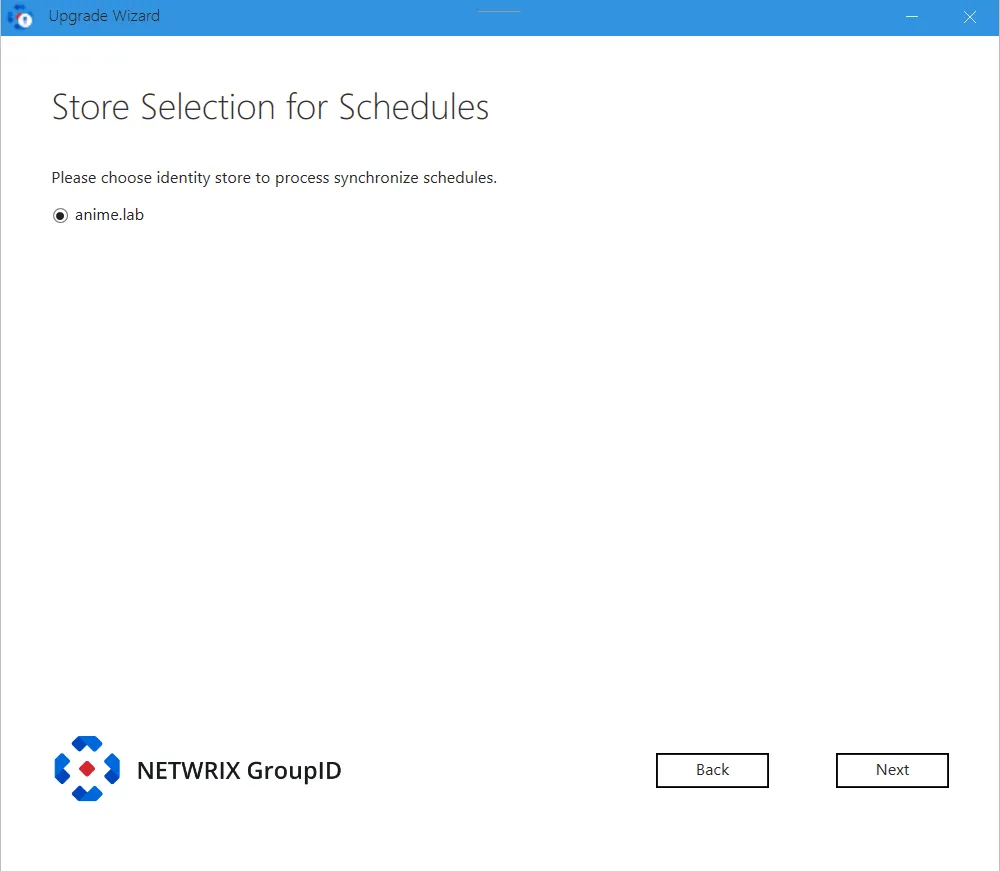

Step 13 – During upgrade, Synchronize schedules are also moved to identity stores.
The Upgrade wizard will check the jobs added to a schedule. If the destination in a job is a directory provider, it will automatically move the schedule to the respective identity store.

Remember, during upgrade, identity stores are created for destination directory providers of Synchronize jobs (i.e., for providers that do not have an identity store in the source version).

Consider the following:

• If a schedule has Synchronize jobs where one job uses an Active Directory domain (DomainA) as destination and another job uses a file-based provider as destination, then the schedule will auto move to the identity store created for DomainA.

• For schedules with Synchronize jobs that use file-based providers as destination, the Upgrade wizard will display the following page that will list all such schedules. Select an identity store for each schedule, so that the schedule moves to that identity store.



  The rules stated above also apply to schedules with job collections added to them.

Step 14 – Click Next.

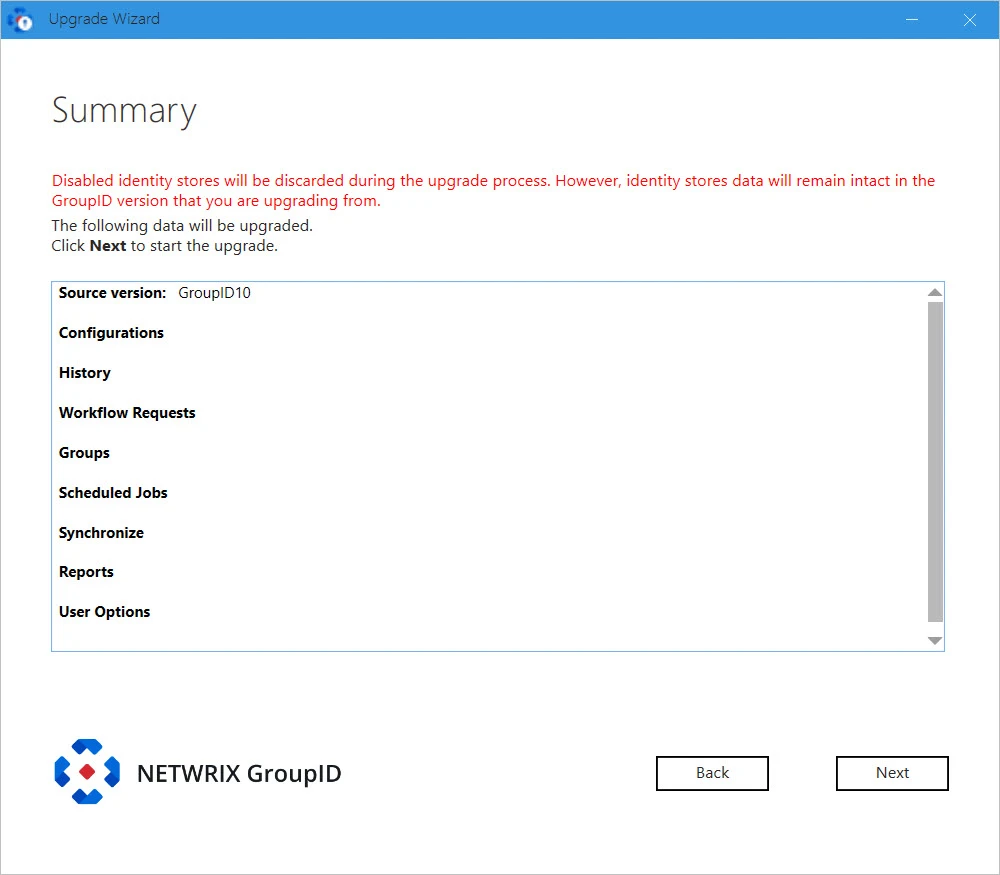

This page displays a complete summary of the data to be copied/upgraded for your selected options. These options were selected on the Select modules to upgrade page..

NOTE: If there are any disabled identity store(s) in the source Directory Manager version, Directory Manager will not upgrade those identity store(s). However, data of those identity store(s) will remain intact in the source Directory Manager version.

Step 15 – Review the summary and click Next.

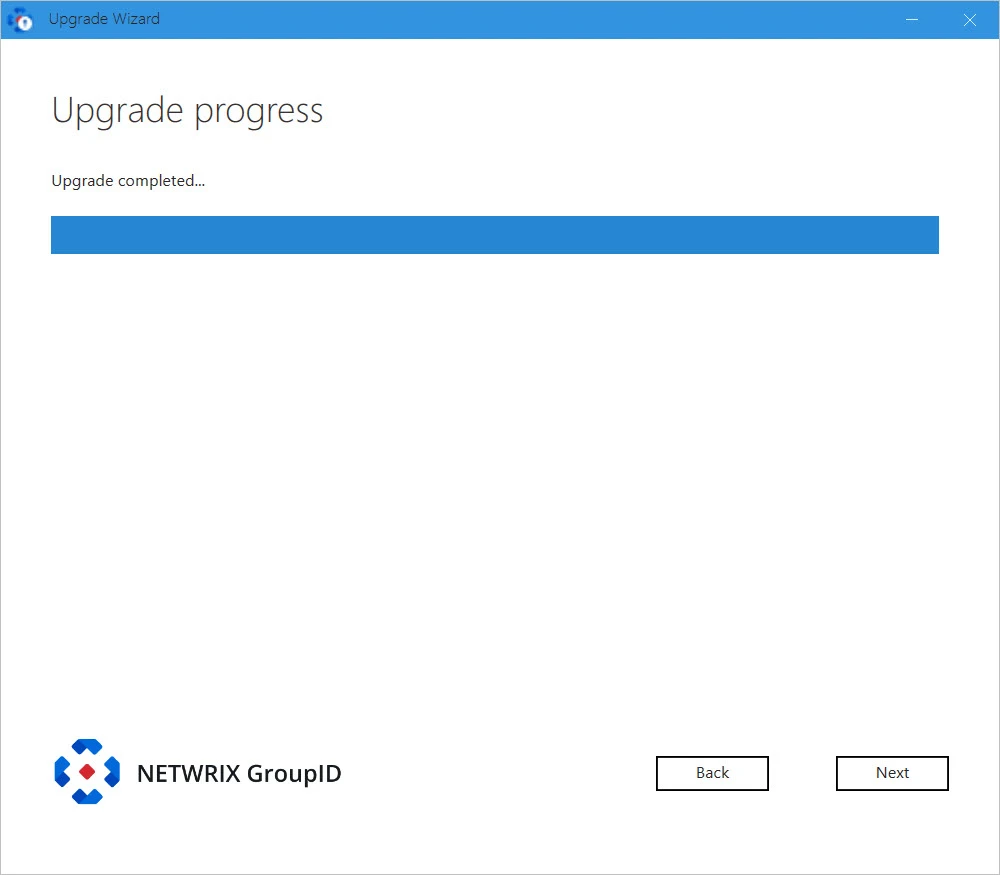

Directory Manager is upgraded while the Upgrade Process displays the upgrade progress. On successful upgrade, the Upgradce Completed message above the progress bar is displayed.

Step 16 – Click Next.

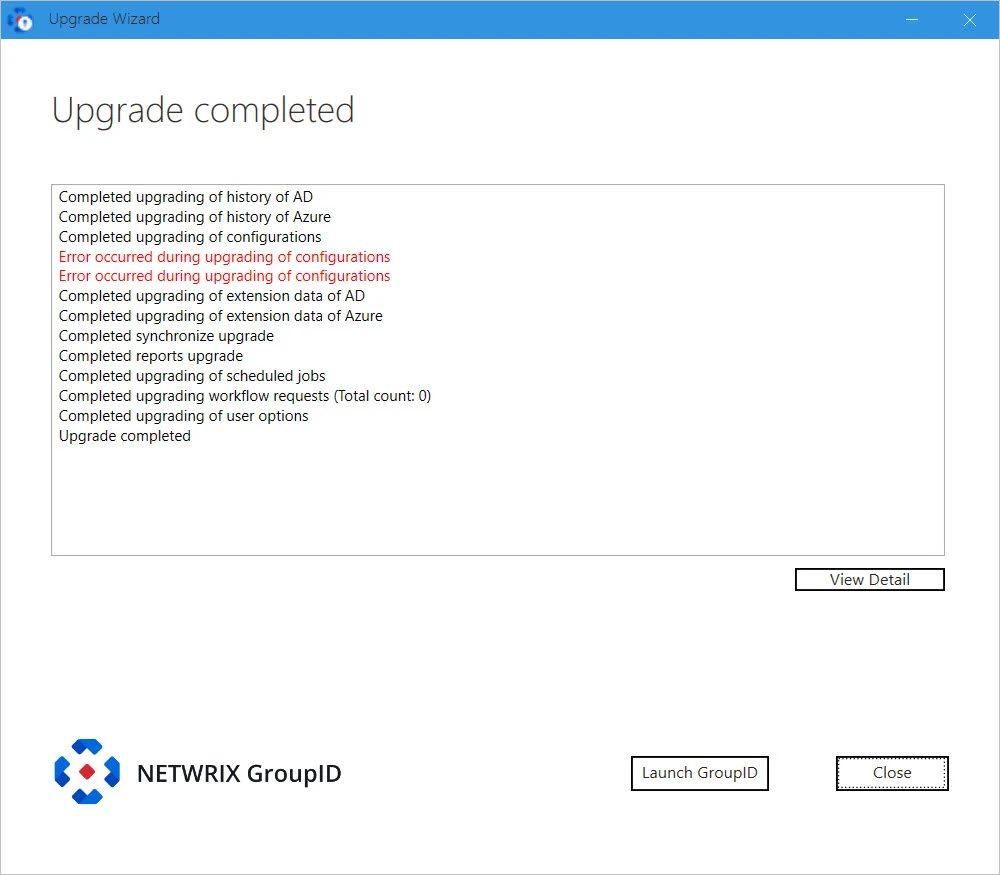

The Upgrade Completed page displays the status of features selected for upgrade.

Step 17 – You can click:

• View Details: to view log file generated during the Upgrade process.
• Launch GroupID: to start using Directory Manager 11.1.
• Close: to close the Upgrade wizard.
