Certificates

Netwrix Endpoint Policy Manager (formerly PolicyPak) can add or remove certificates within Firefox. These certificates must be in the binary-encoded DER format and cannot be Base64-encoded. If you need to learn how to convert a certificate, see the section "Exporting Certificates to the Binary-Encoded DER Format" below.

Video: To see a video of Endpoint Policy Manager managing Firefox's add-ons, go to http://www.endpointpolicymanager.com/video/endpointpolicymanager-manage-firefox-certificates.html

You can see Firefox's certificates under Options | Advanced | Certificates | View Certificates, as shown in Figure 42.

certificates

Figure 42. The Servers tab within the Certificate Manager.

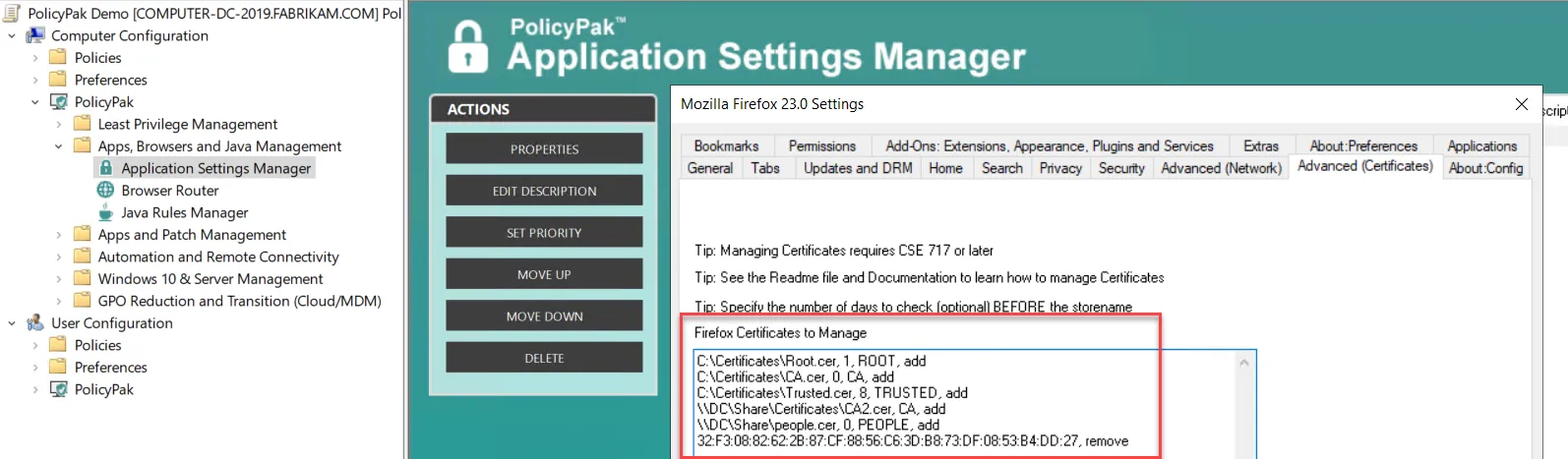

To manage Firefox's certificates, you need to specify the location of the certificate to import (source) and the location where you want to deliver it (target). The source location can be local, on a file server, etc.

certificates_1

Figure 43. Specifying the Firefox certificate location.

Target locations require a keyword to specify the location. The possible values are listed in Table 3.

Table 3: Keywords for target locations.

KeywordLocationNote
RootAuthoritiesRoot and Intermediate Certificate Authorities
TrustedServers
PeoplePeople
Your CertsNot Supported
OtherNot Supported

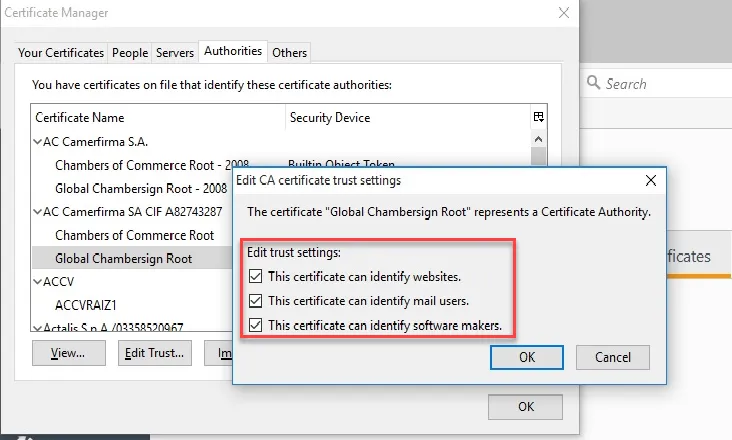

You can also specify how often (in days) the source certificate file should be checked for changes using the following: \\DC\Share\Fabrikam-CA.cer, 1, ROOT, add. If the optional parameter is not specified, it defaults to 0, meaning that the client-side extension (CSE) will re-read the certificate file every time Firefox starts. Note that if the file is unavailable or the remote location is offline, the launch of Firefox is not slowed down. Additionally, you might want to deliver certificates to all these stores, as shown in Figure 44.

certificates_2

Figure 44. Editing the trust settings.

To do so, use the following syntax: \\Server\Share\FF.cer,1,C;C;C,add. Note that the certificate authority is omitted in this correct syntax. For more information on this advanced syntax, see the following

NOTE: http://www.endpointpolicymanager.com/knowledge-base/preconfigured-paks/firefox-how-can-i-deliver-certificates-to-certificate-authority-store-and-select-websites-mail-users-and-software-makers.html.

NOTE: In order to decrease network load, you may want to specify the number of days explicitly.

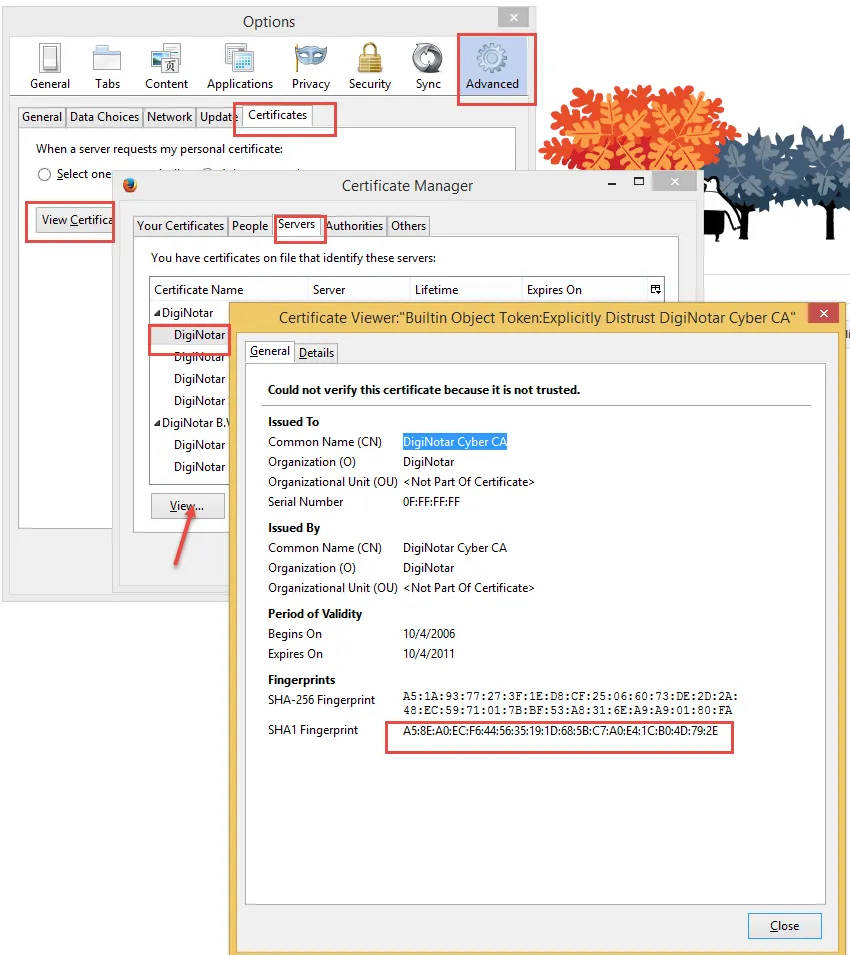

To delete a certificate, you must know its SHA 1 fingerprint. You do not need to specify where the certificate is currently stored; if the fingerprint matches a certificate in any store, it is removed.

certificates_3

Figure 45. SHA Fingerprint location.

Exporting Certificates to the Binary-Encoded DER Format​

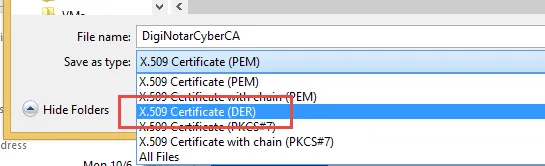

Endpoint Policy Manager can only work with binary-encoded DER certificates. If you have a certificate of another type, you may import it first into Firefox. Then, you can immediately export it as a DER file, as shown in Figure 46.

certificates_4

Figure 46. Explorting a certificate as a DER.

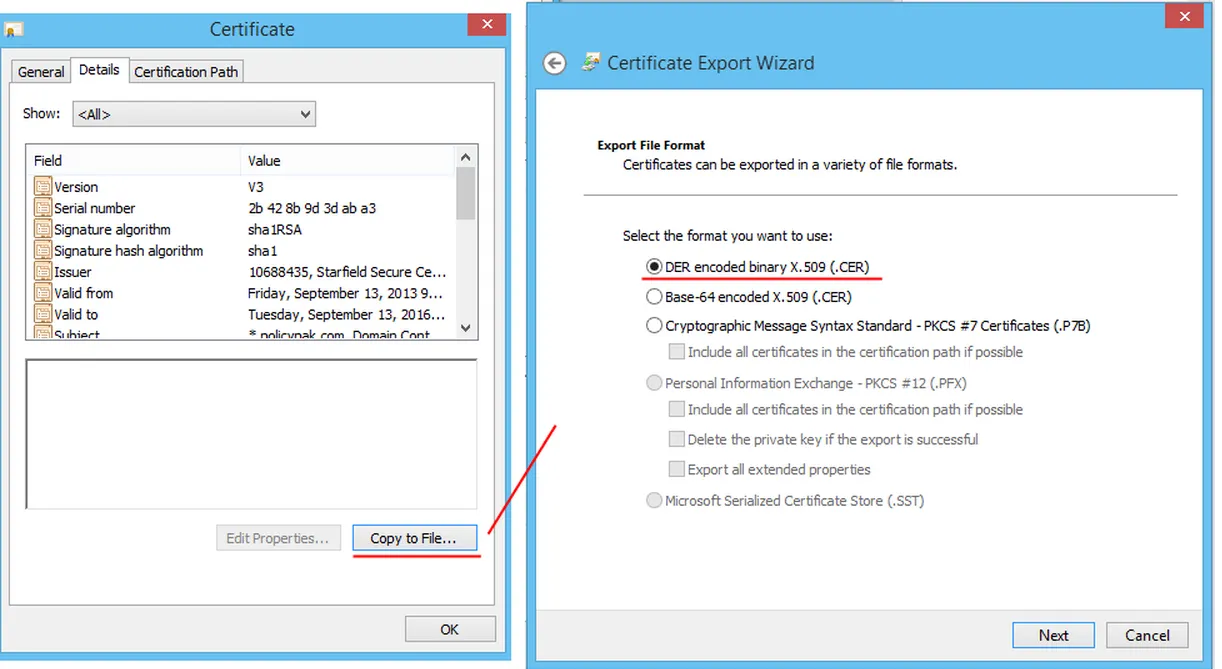

You can optionally perform the same type of export by looking at the file itself in the Details tab of Explorer, and then selecting the "Copy to File" button. Then, select "DER encoded binary X.509 (CER)," as shown in Figure 47.

certificates_5

Figure 47. Exporting via Explorer.

Troubleshooting Certificates​

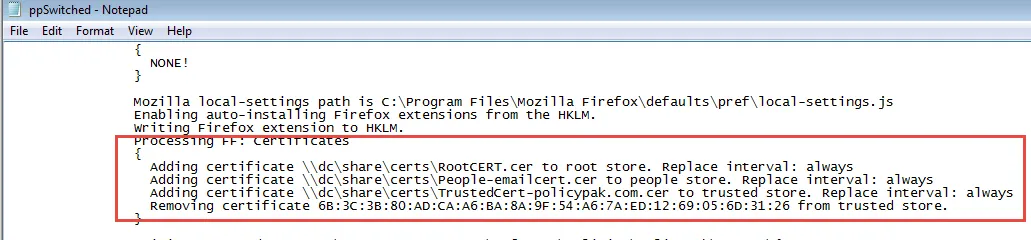

If you are not seeing the results you expect, you can look in Endpoint Policy Manager's logs (see Book 3: Application Settings Manager for more information) as well as Firefox's log. An example of Endpoint Policy Manager's log showing that certificates are correctly being added can be seen in Figure 48.

certificates_6

Figure 48. The Endpoint Policy Manager log with certificate details.

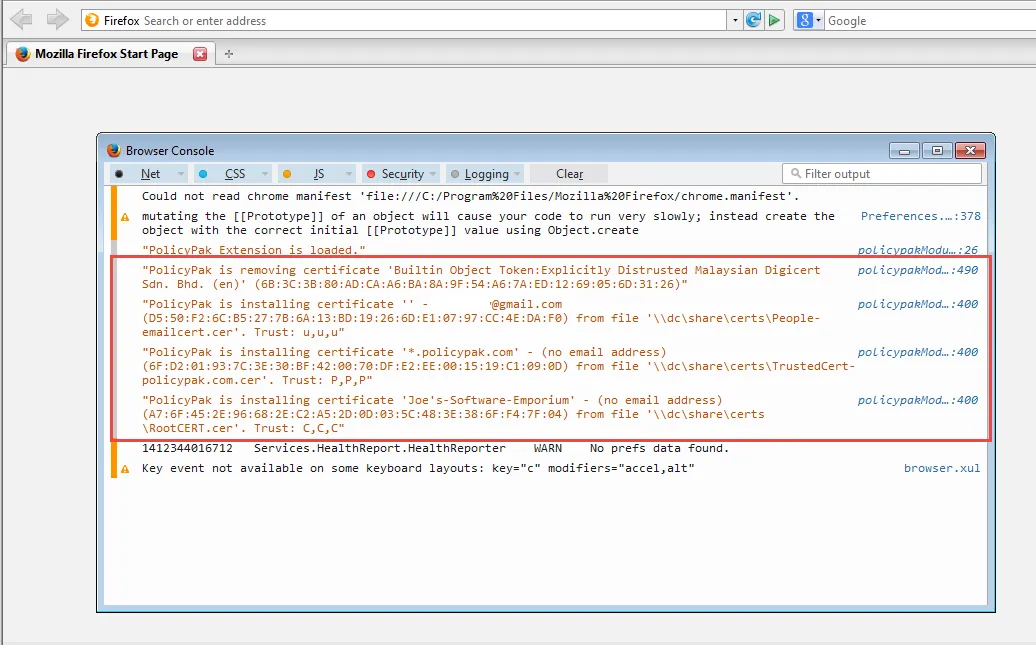

You can also use Firefox's log by clicking Ctrl+Shift+J on any page. In the log below (Figure 49), you can see certificates being added to the proper stores.

certificates_7

Figure 49. The Firefox log with certificate details.

The most common reasons for certificates not showing up the store you want are the following:

  • The certificate is NOT in binary/DER format. See the preceding section "Exporting Certificates to the Binary-Encoded DER Format" in order to get certificates into the correct format first.
  • The certificate is not designed to work in the store of your choice. For instance, you've selected an email certificate and tried to use it in the ROOT or CA store.
  • You have misspelled the name of the file. For instance, the file is named
\\server\share\file123.cer but you specified
\\server\share\file123 or
\\server\share\file123.x509.
  • When specifying a certificate and the number of days after which Endpoint Policy Manager should check for updates, you have transposed the values. The correct way to specify a certificate and have Endpoint Policy Manager check for updates every two days is

\\DC\Share\Fabrikam-CA.cer, 2, CA, add and not

\\DC\Share\Fabrikam-CA.cer, CA, 2, add. In the logs, you would see this transposition error as shown in Figure 50.

certificates_8

Figure 50. Log showing a transposition error.
