Quick Start - Mapping Extensions to Applications

NOTE: For some video overviews of Endpoint Policy Manager File Associations Manager, see the Endpoint Policy Manager Cloud: Managing File Assocations topic for additional information.

Even after applications such as Acrobat, Metro Media Player, and Outlook are installed, those applications are not associated by default with the appropriate file extensions.

Using Endpoint Policy Manager File Associations Manager, we want to make the following maps:

PDF — Acrobat Reader (MSI version)
MAILTO — Outlook or Claws Mail (MSI version)
MP4 — Metro Media Player (UWP version)

Follow these steps to associate the extensions:

Step 1 – Create a GPO and link it to where your computers are. For example, a GPO named PPFAM Policies is linked to the East Sales Computers OU.

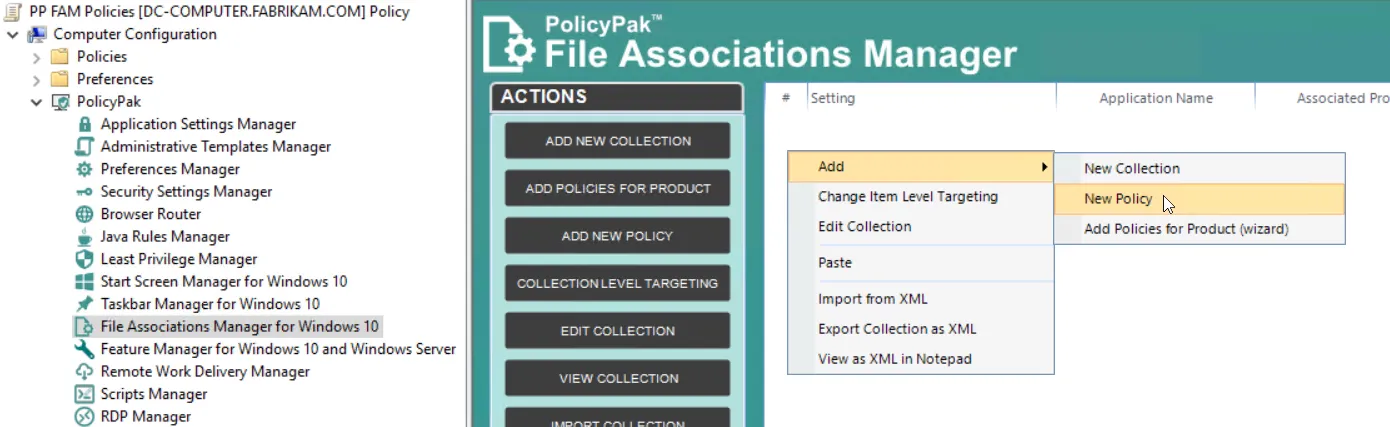

Step 2 – In Computer Configuration > PolicyPak > File Associations Manager, select Add > New Policy.

about_policypak_file_associations_11

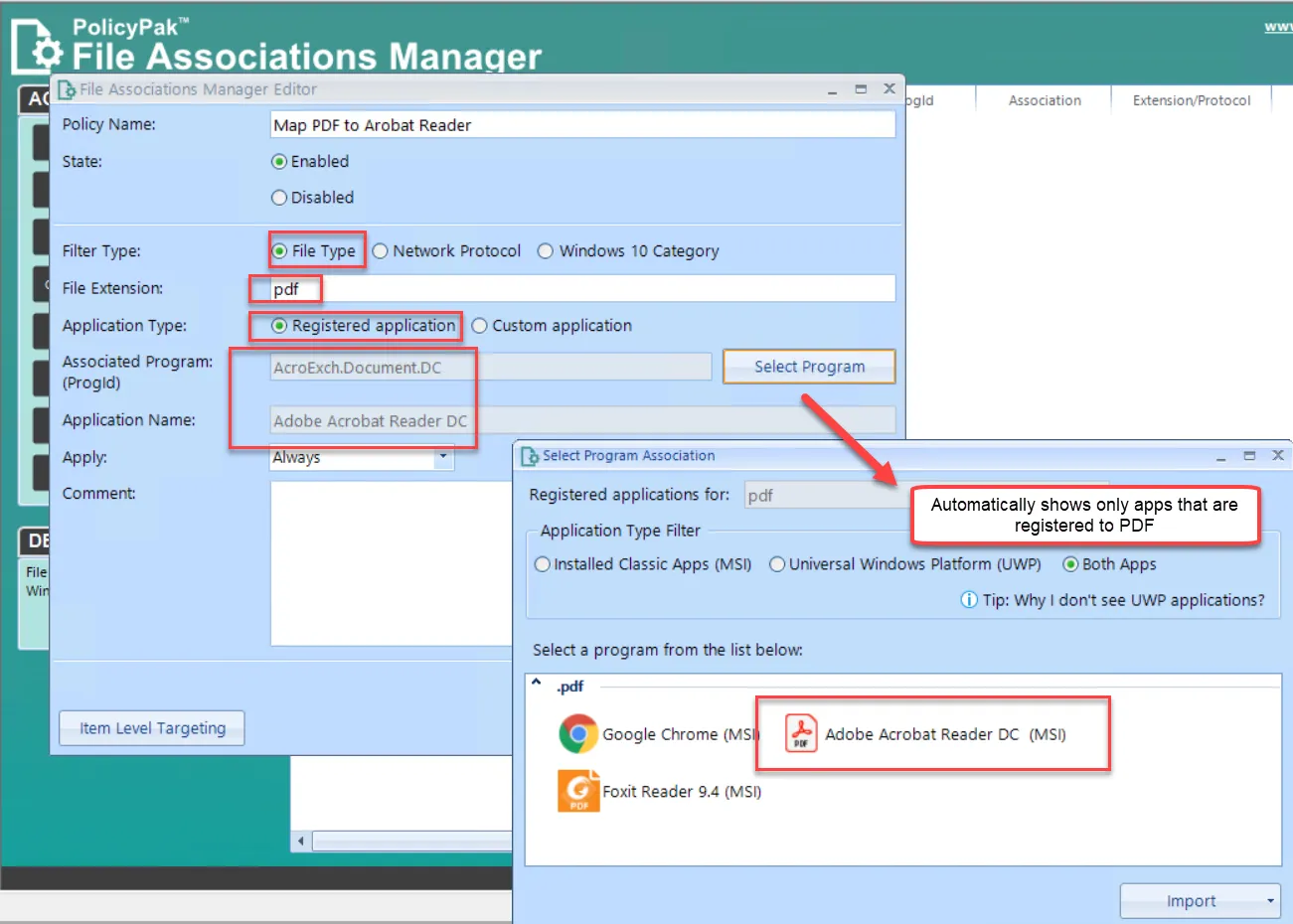

Step 3 – The Endpoint Policy Manager File Associations Manager policy editor displays, showing the most common configuration. For this Quickstart, make the following selections:

Filter Type: File Type
File Extension: PDF
Action Type: Registered application
Select Program: Since you typed PDF earlier, clicking Select Program automatically show applications on your machine (the one with the Group Policy editor) that are capable of opening PDF files. Since you already installed Adobe Reader, the program is selectable.

Step 4 – The Associated Program (ProgID) and Application Name are automatically filled in.

about_policypak_file_associations_12

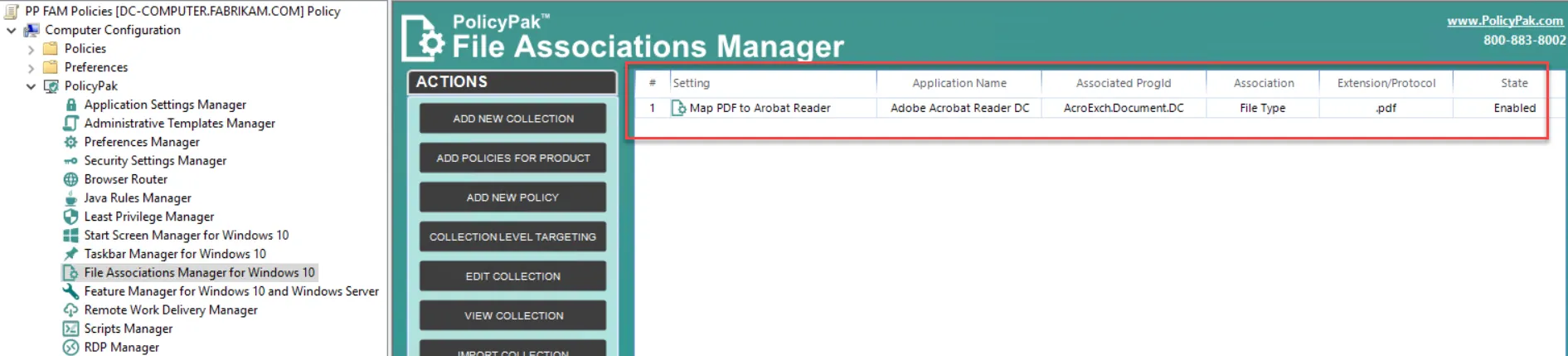

Step 5 – When you click OK to save the policy, the entry looks like this:

about_policypak_file_associations_13

Step 6 – Create another policy to map MAILTO: to Outlook or Claws Mail (your machine must have Outlook or Claws Mail already installed). Go to Add > New Policy. For this policy, choose Network Protocol as the filter type, then type in mailto (using either lowercase or uppercase) in the Network Protocol field. Click Select Program and locate Claws Mail.

about_policypak_file_associations_14

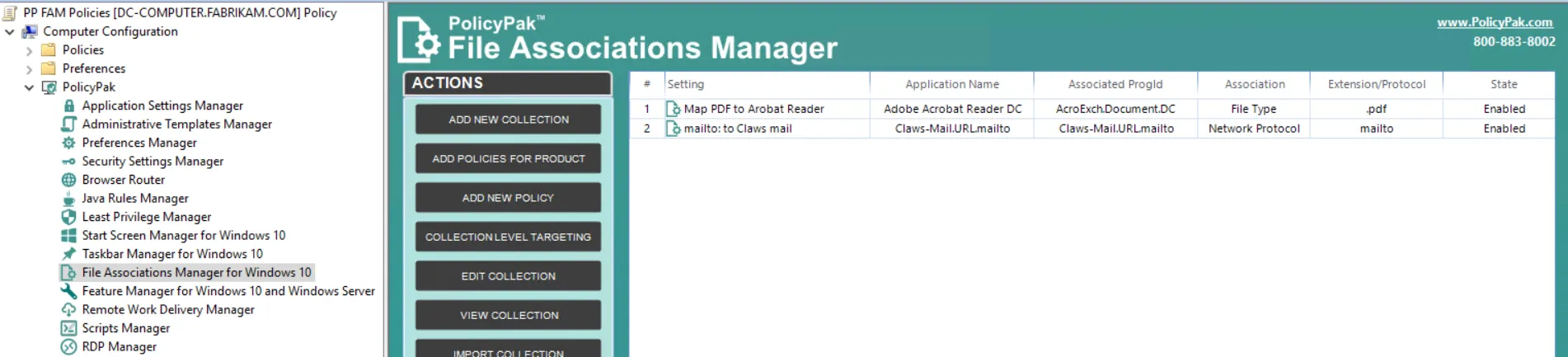

You now have two entries, one for PDF and one for MAILTO:

about_policypak_file_associations_15

Now we create a map from MP4 to the UWP version of Metro Media Player. You must have the UWP (Windows Universal/Windows store) version of Metro Media Player on your management station for these steps.

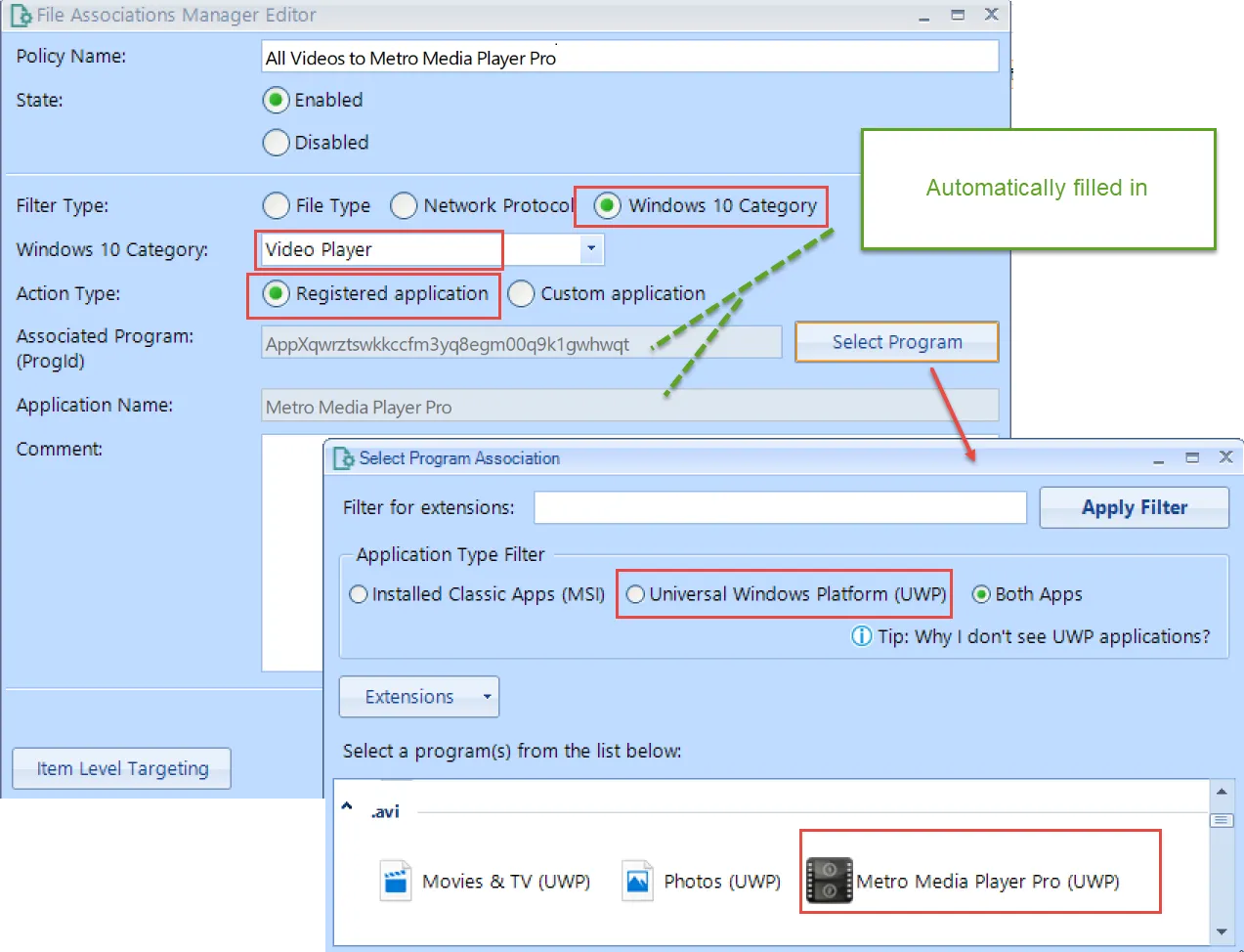

Step 7 – Create a new policy to map all videos to the UWP version of Metro Media Player. To do this, click the Windows 10 Category radio button, and then select Video Player. Click Select Program, find an instance of Metro Media Player (UWP), and select it. When you do, the Associated Program (Progid) and Application Name are automatically filled in.

about_policypak_file_associations_16

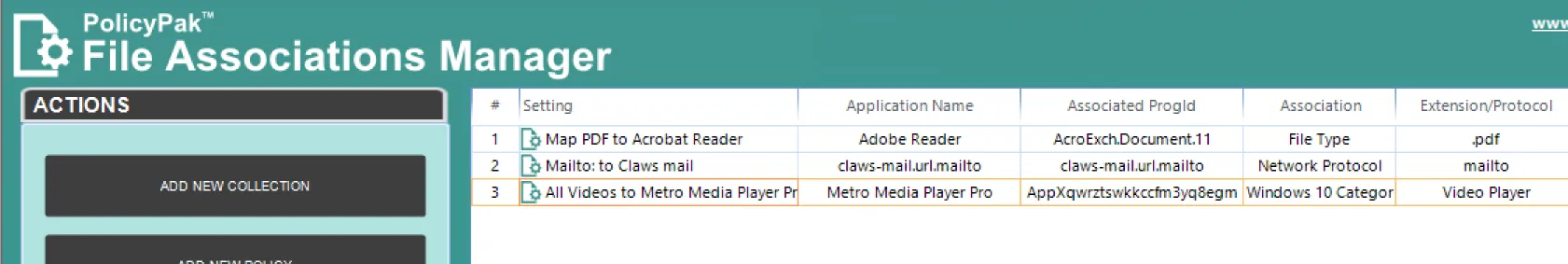

Now, you'll have a new entry.

about_policypak_file_associations_17

Make sure the endpoint has the same programs installed as the management station and also has the Endpoint Policy Manager CSE installed.

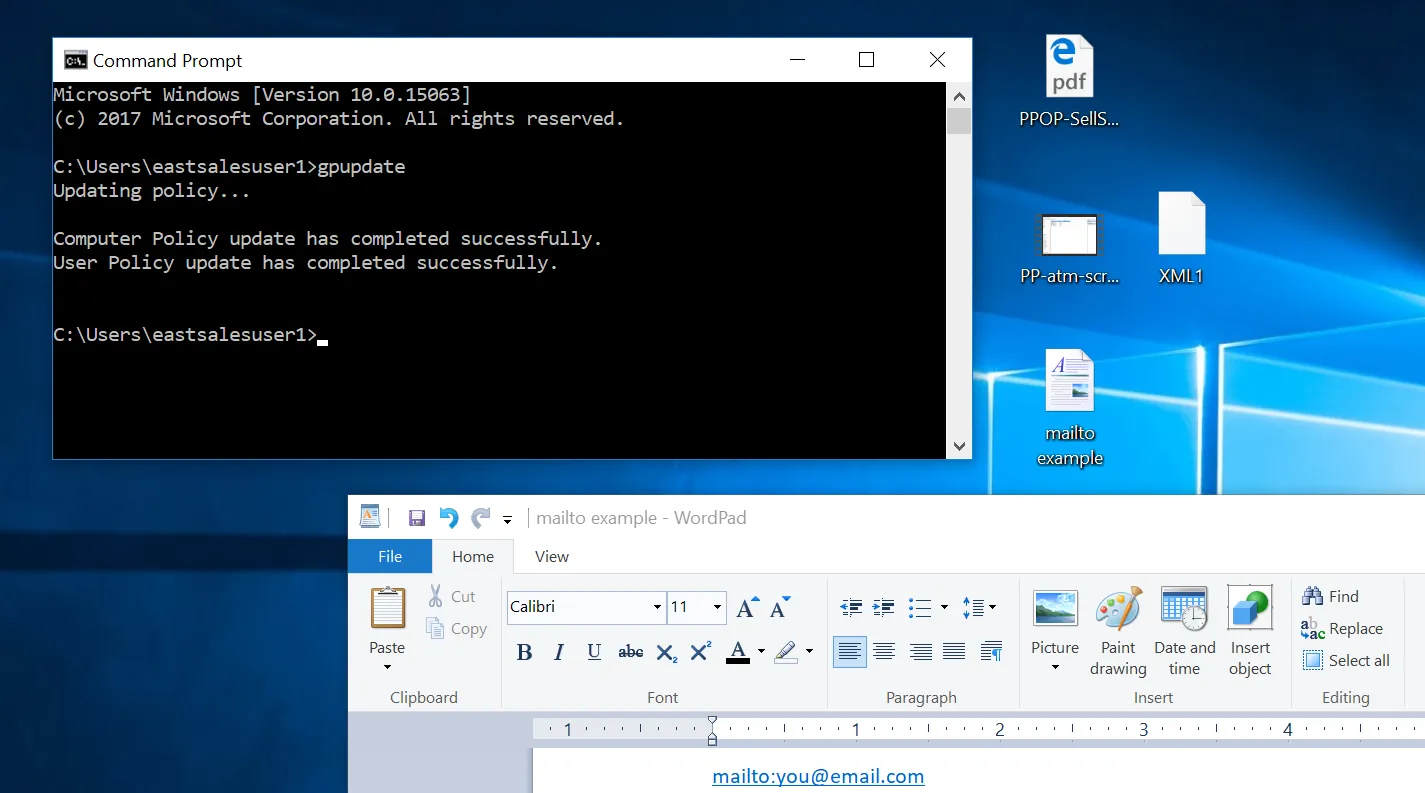

Step 8 – Run GPupdate. Note that when settings are applied using Group Policy they do not take effect until that user logs off and then logs on again. Also note that after GPupdate is run there is no discernible change in the icons of the newly registered file types.

about_policypak_file_associations_18

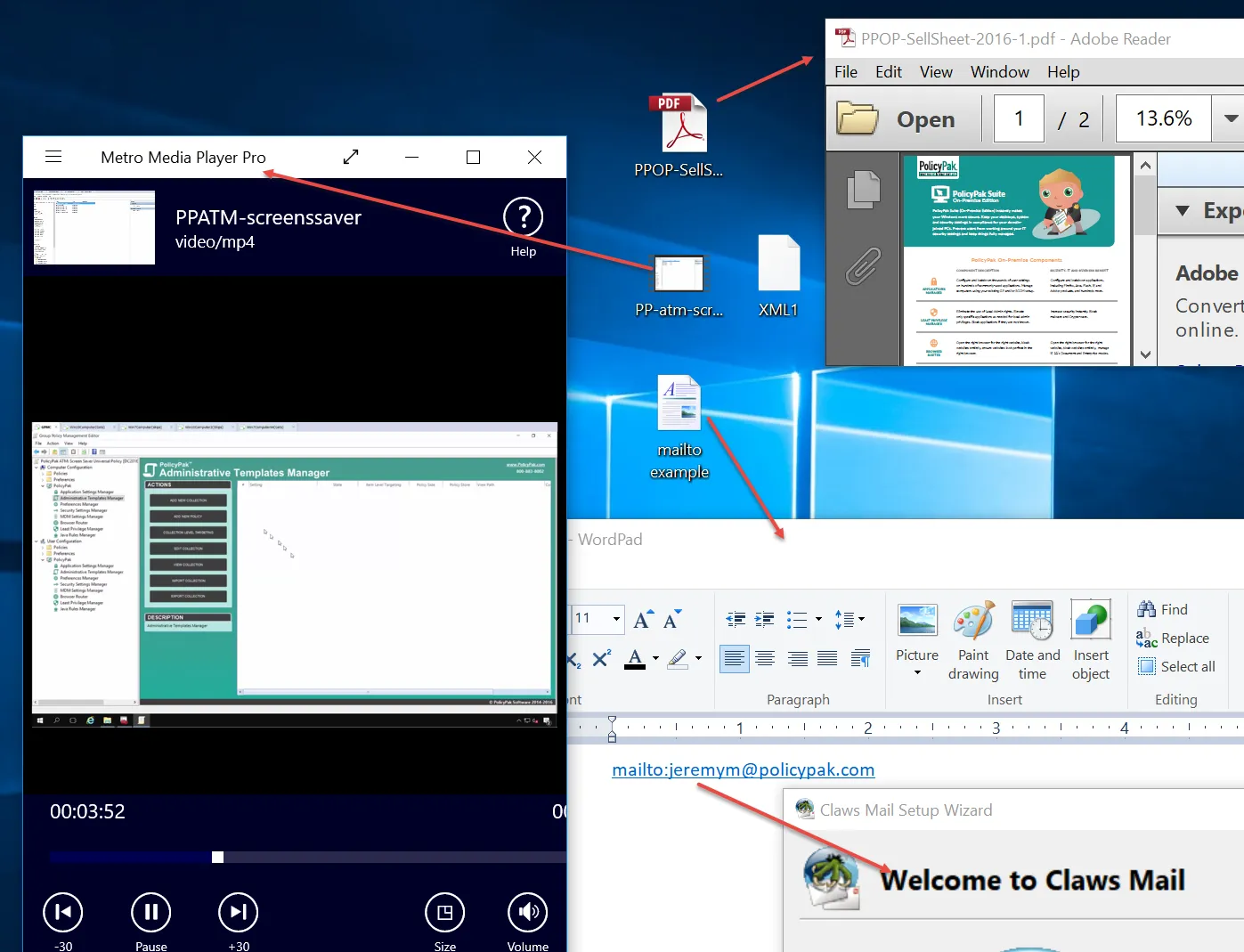

Once you run GPupdate you should see the PDF icon change. After this, double-clicking on a PDF should open Acrobat Reader, double-clicking on the MP4 should open Metro Media Player, and opening your Wordpad doc, which has a MAILTO: email address, should open Claws Mail (or Outlook).

about_policypak_file_associations_19
