Tests Pane

The Test pane lets you create tests. Tests are like GPOs; in fact, they're based on GPOs, and as such have the following qualities and requirements:

  • Creating a test requires GPO creation rights in the domain.

  • A test can be imported from an existing GPO, or exported as a GPO (file-based backup suitable for import using GPMC)

  • A test can contain:

    • All Microsoft Administrative Templates
    • Most Microsoft Security policies (see the table in "Supported Group Policy Settings for Reporting")
    • Most Microsoft Group Policy Preferences (see the table in "Supported Group Policy Settings for Reporting")
    • Any Endpoint Policy Manager setting

Tests may be simple or complex. We recommend that tests be as simple as possible and focus on one specific thing you want to know. In the next section, you'll join tests together to make a final query.

Begin a test by creating a root folder to contain your tests. Then, create a new test by right-clicking on the "All tests" container and selecting "Create test," as shown in Figure 19.

gpcr_concepts_and_quickstart_20

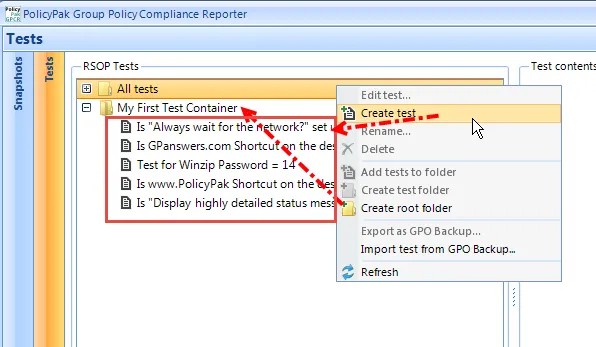

Figure 19. Creating a root folder to contain tests.

As you create tests, decide which settings you want to ensure are actually delivered to your users or computers. In the examples above in Figure 18, the tests are named to help you express the questions you want to answer. When you think about specific questions you want answered, it becomes easier to know what you're testing for and makes the test manageable. The names of those example tests are the following:

  • Is "Always wait for the network" set upon computers?
  • Is GPanswers.com Shortcut on the desktop?
  • Test for Winzip Password = 14
  • Is www.PolicyPak Shortcut on the desktop?
  • Is "Display highly detailed status messages" set to Enabled?

When you create or edit a test, a temporary GPO is created in the domain, and the Group Policy Management Editor appears, as shown in Figure 20.

gpcr_concepts_and_quickstart_21

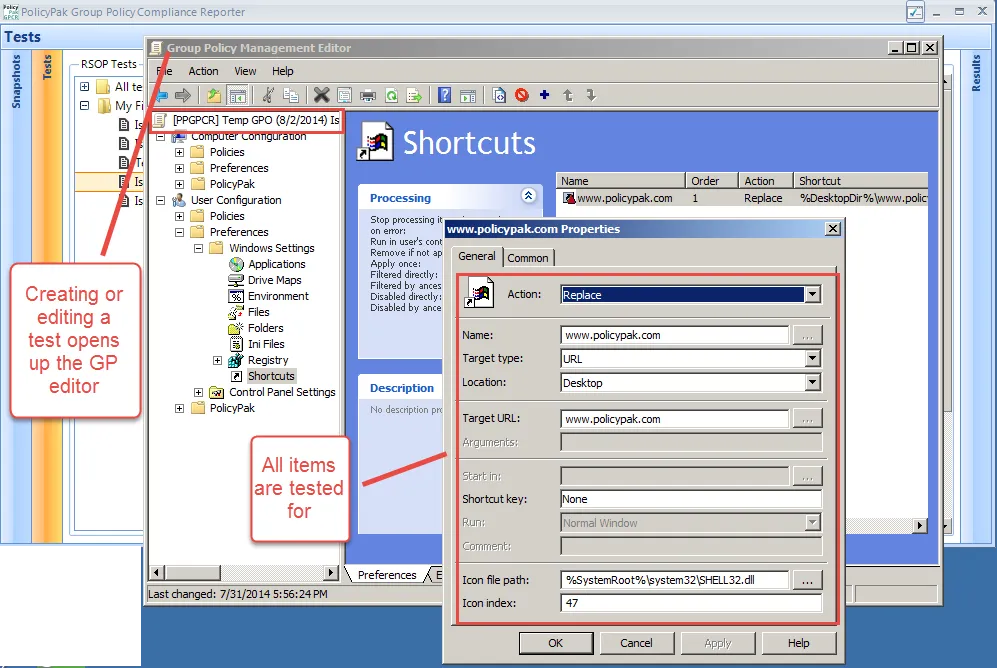

Figure 20. A temporary Group Policy Object is created.

At this point you can test for thousands of possible conditions. In Figure 19, we're using a Group Policy Preferences item and making a test to see that www.endpointpolicymanager.com (and all related settings within the Preference item) are tested for.

When you're done editing your test, click "OK" and close the GPO. Note, you may receive a "Waiting…" dialog box (seen in Figure 21) flash by as the data inside the GPO (which is saved locally to your machine or the Endpoint Policy Manager GPCR server) and the temporary GPO are deleted from the domain. If the Group Policy Management Editor is closed but fails to tell Endpoint Policy Manager GPCR that it has closed, you have the option to select "Force save" using the "Waiting..." dialog box.

gpcr_concepts_and_quickstart_22

Figure 21. The option to force save.

Once the editor is closed, the test is saved, and you can see the test contents, as shown in Figure 22.

gpcr_concepts_and_quickstart_23

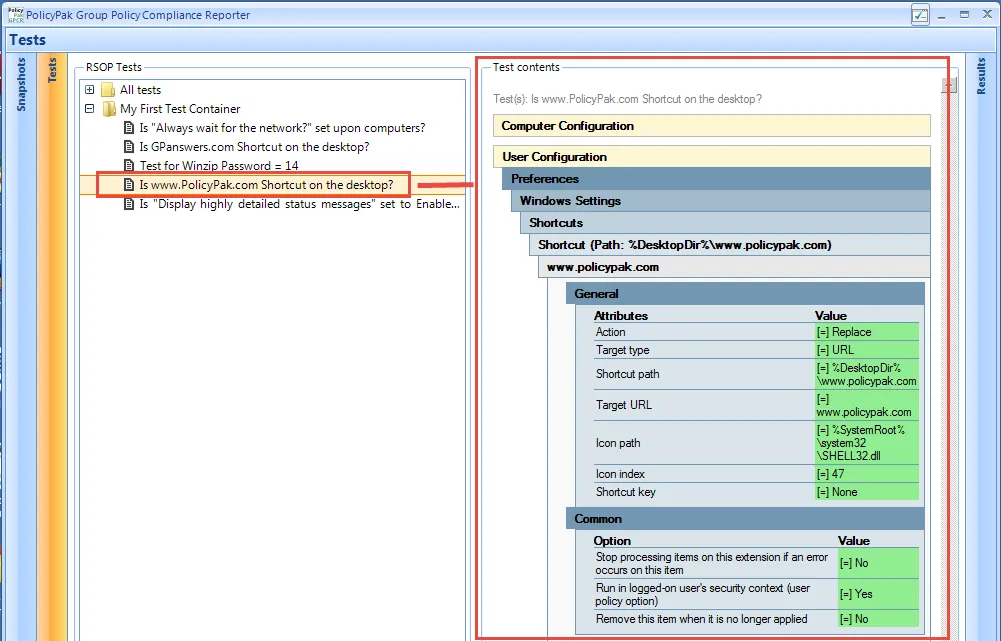

Figure 22. Viewing the test contents once the test is saved.

The test contents show what you did within the Group Policy Management Editor and exactly what will be tested for (the value is in green with an "=" next to it). Not all areas of Group Policy are available for testing with Endpoint Policy Manager GPCR. Information on the areas of Group Policy available for testing can be found in the section "Supported Group Policy Settings for Reporting." If you try to test one of those unavailable Group Policy areas, Endpoint Policy Manager GPCR indicates that the data contained in those sections is not supported. An example of this is shown in Figure 23 where a test was made with Software Installation (on the Computer side) and Folder Redirection (on the User side). You can see the resulting error that occurred.

NOTE: If a test contains supported and unsupported data, the supported data will work and the unsupported data is will be ignored during testing.

gpcr_concepts_and_quickstart_24

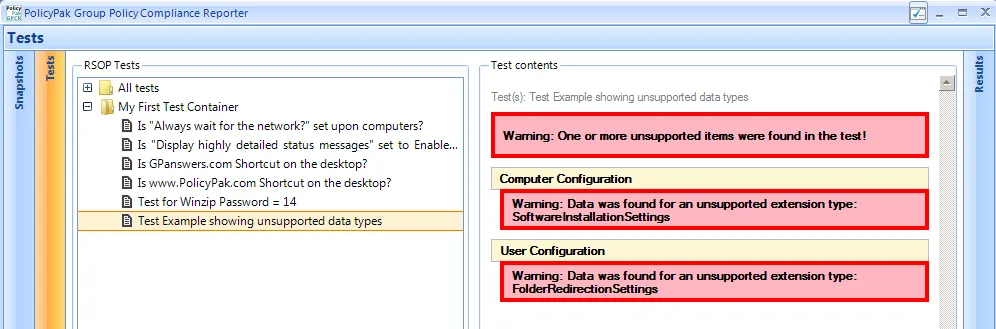

Figure 23. Unsupported data within tests show up within the test contents reports.

Now that you have a test (or multiple tests) defined, you can continue onward to the Results pane.
