Troubleshooting Item Level Targeting (ILT) Evaluations when using the Endpoint Policy Manager ILT Engine

Starting with CSE 3068, Netwrix Endpoint Policy Manager (formerly PolicyPak) replaces the in-box Microsoft Item Level Targeting Evaluation engine with its own Endpoint Policy Manager ILT Engine.

When the PP ILT engine is used, new logging occurs should you need extra troubleshooting.

  • User side logs: %LocalAppData%\endpointpolicymanager\component_name\ppTargetingFilters_v2.log
  • Computer side logs: %ProgramData% endpointpolicymanager\component_name\ppTargetingFilters_v2.log

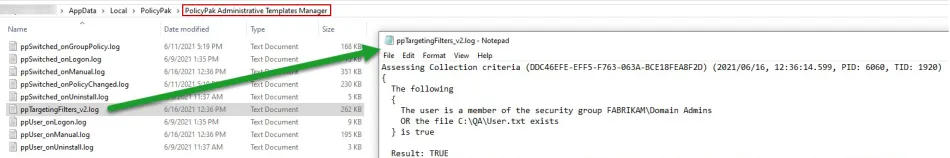

An example of this can be seen here, when ILT is used with Endpoint Policy Manager Admin Templates Manager on the USER side:

880_1_image-20220204232914-1_950x158

How the Endpoint Policy Manager ILT Engine Works / Error Handling​

With this new ILT engine every single condition is evaluated separately and asynchronously, and the results are logged as they become available. The ppTargetingFilters_v2.log will contain the details of every individual condition being assessed, including interim results (i.e., paths with resolved variable names, etc.). If there is an error, the error gets logged as well.

When an individual condition cannot be evaluated because of an error, the PP ILT engine will try to use a previously cached result for that single condition (not the entire filter).

For example, a typical error you could encounter is where an LDAP condition cannot be evaluated because the DC is not available, (i.e., the user is logged into a remote PC but has not established a VPN connection to the company network as yet).

In this case the PP ILT engine will try to use the previously CACHED or manually defined "DEFAULT" result if available, but will still attempt to re-evaluate any other conditions in the same filter.

Disabling Endpoint Policy Manager Item Level Targeting and using in-Box Preferences Targeting​

If you encounter a serious issue which requires that you stop using the Endpoint Policy Manager ILT engine and must instead revert back to the Microsoft ILT engine you can use a Endpoint Policy Manager ADMX setting to do it.

NOTE: Learn how to implement the Endpoint Policy Manager ADMX settings from this KB.

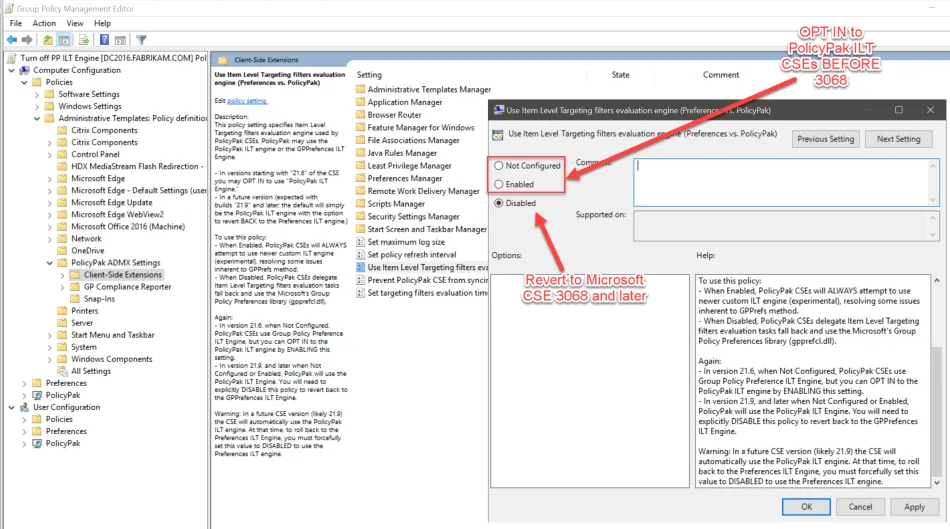

ADMX Computer Configuration | Policies | Administrative Templates | PolicyPak ADMX Settings | Client-Side Extensions | Use Item Level Targeting filters evaluation engine (Preferences vs. Endpoint Policy Manager ).

880_2_image-20220204232914-2_950x529

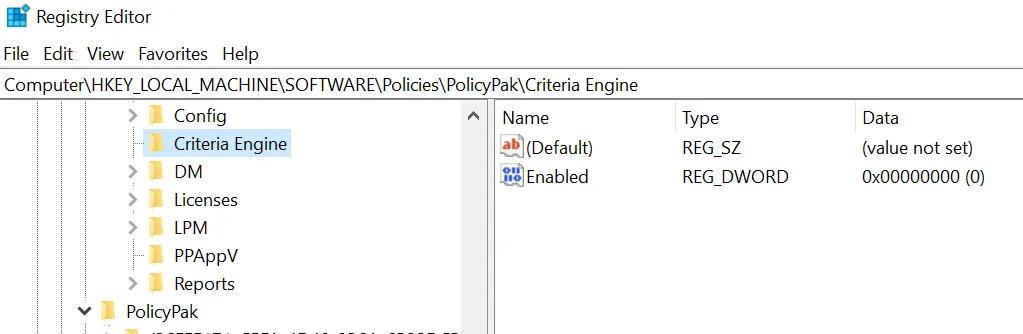

Additionally, when the PP ILT engine is enabled the registry key below will be present and set to "1" for Enabled.

Registry Hive HKEY_LOCAL_MACHINE

Registry Path SOFTWARE\Policies\PolicyPak\Criteria Engine

Value Name Enabled

Value Type REG_DWORD

Enabled Value 1 (when opted in BEFORE build 3068) or ABSENT when used as default in build 3068 and later.

Disabled Value 0

880_3_image-20220204232914-3
