Google Cloud Platform

In this section, we outline the integration of Endpoint Protector into your Google Cloud Platform (GCP) environment. While Endpoint Protector is not available among default images, this guide provides a straightforward process for obtaining and deploying it. You will upload a custom image, create a Virtual Machine Instance, and configure the necessary settings to enable Endpoint Protector. Follow the steps below to successfully deploy Endpoint Protector within your Google Cloud infrastructure.

Obtaining and Downloading the GCP Image​

Endpoint Protector is not available from the default images on the Google Cloud Platform. To obtain it, follow the process described below:

Step 1 – Download the Endpoint Protector image from the link provided by your Endpoint Protector Representative. If this image has already been obtained, you can skip this step.

Step 2 – To upload the Endpoint Protector image to the Google Cloud Platform, navigate to the Cloud Storage Browser page on the Google Cloud Platform Console and create a bucket.

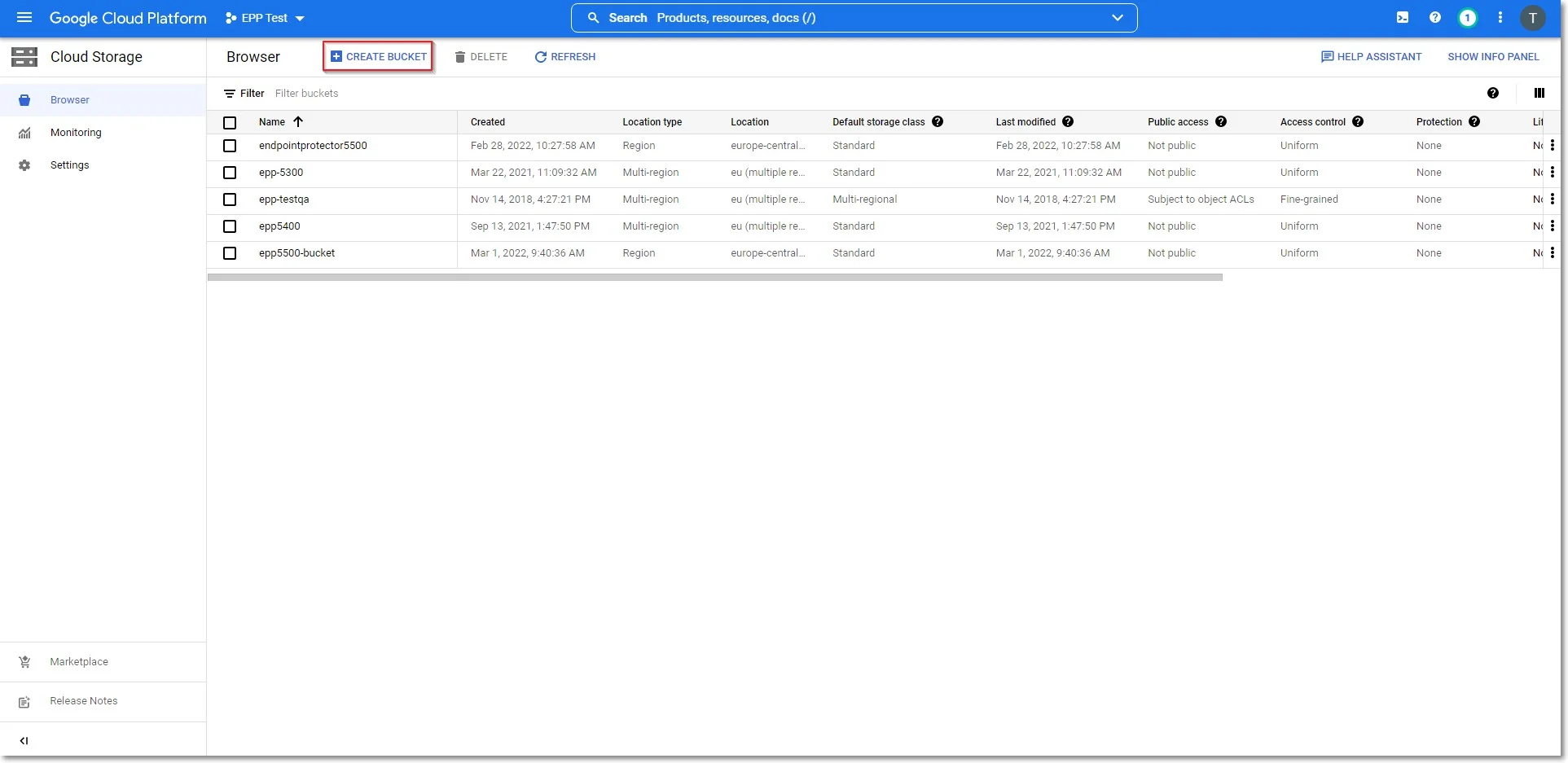

Creating a bucket

Step 3 – Provide the necessary information (i.e., Name, Storage Class, Location), then click Create.

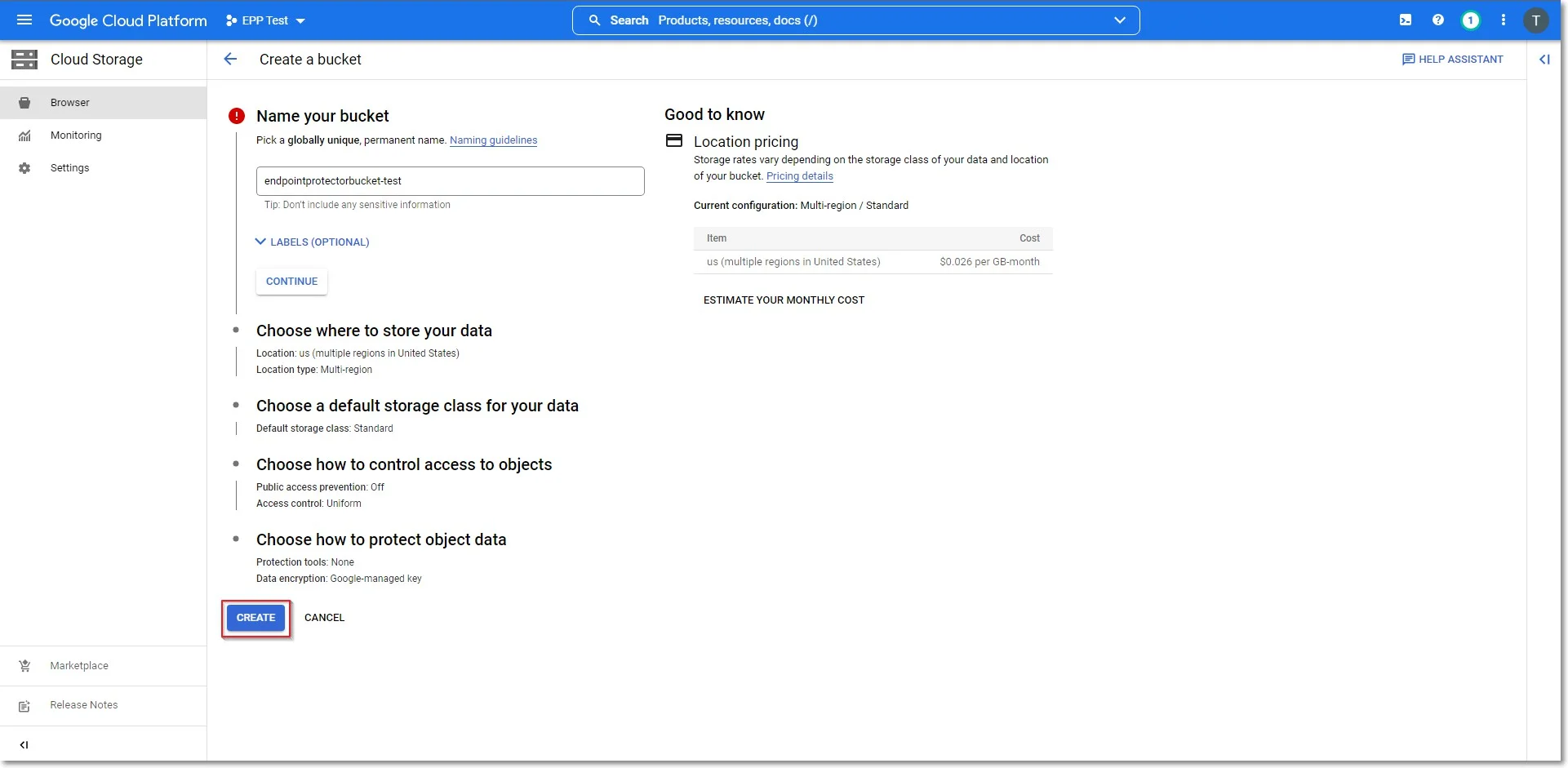

Naming the bucket

Step 4 – Once the bucket is created, upload the Endpoint Protector image file received from Endpoint Protector.

NOTE: The upload can take several hours, depending on the size of the compressed image and the speed of the network connection.

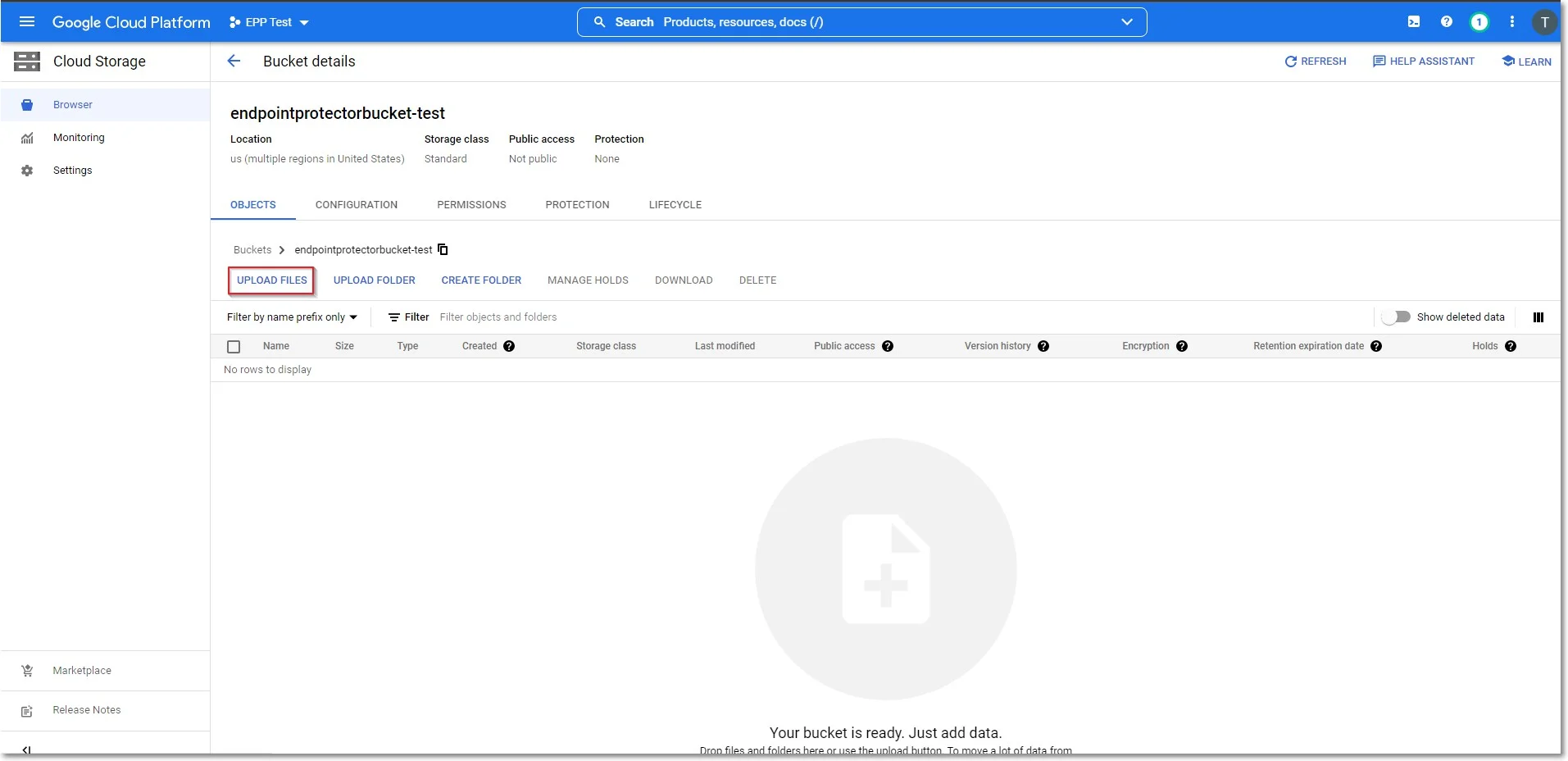

Uploading Endpoint Protector image to the bucket

Step 5 – After the Endpoint Protector image has been uploaded to Google Cloud Storage, navigate to the Images page on the Google Cloud Platform Console.

Step 6 – Set the Source to Virtual disk (VMDK, VHD) and select Go to new image import.

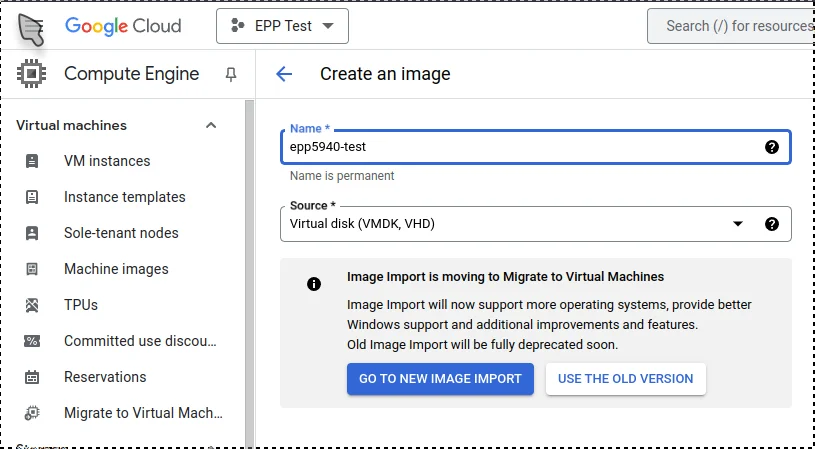

New Image Import

Step 7 – When prompted, enable the required API.

Step 8 – In the GCP search bar, type Migrate to Virtual Machines and select it.

Step 9 – Go to the Targets tab and click Add a target project.

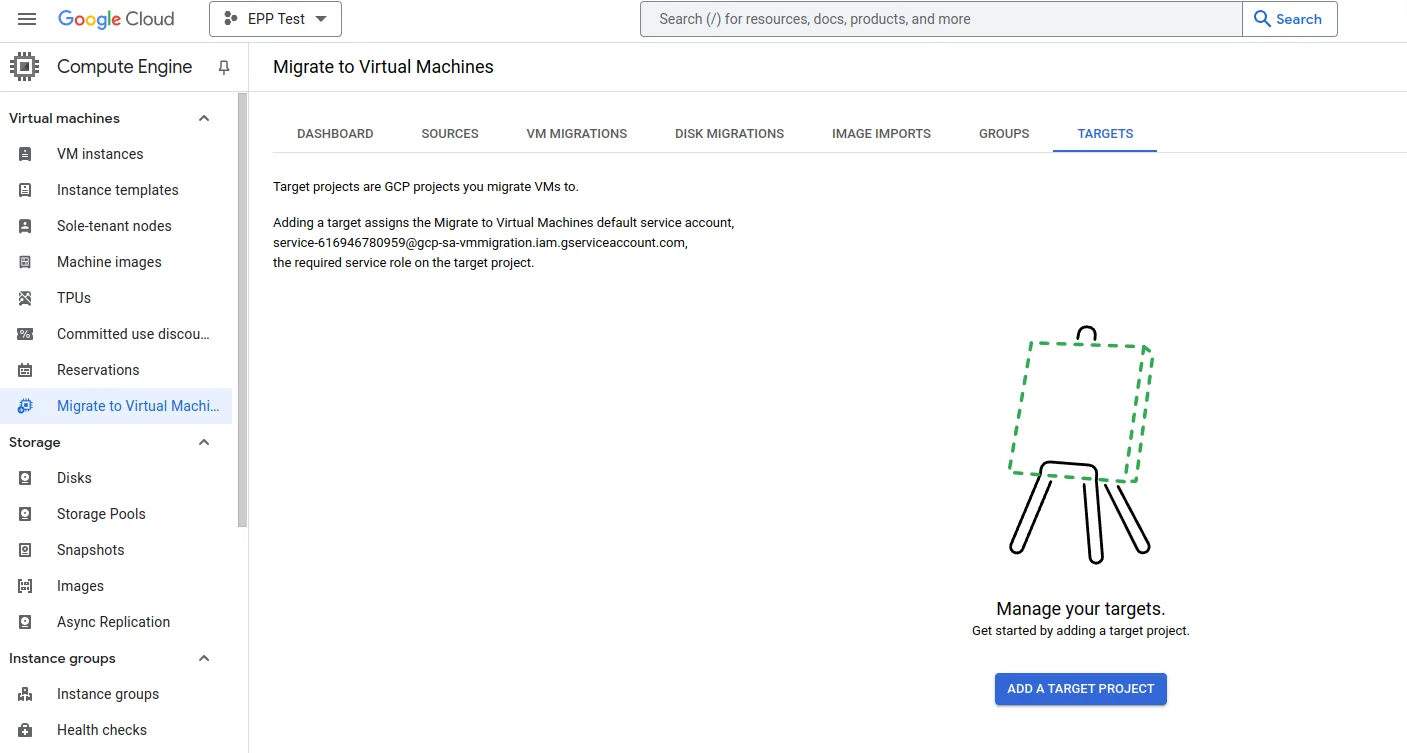

Add a target project

Step 10 – Select the project and Click Add.

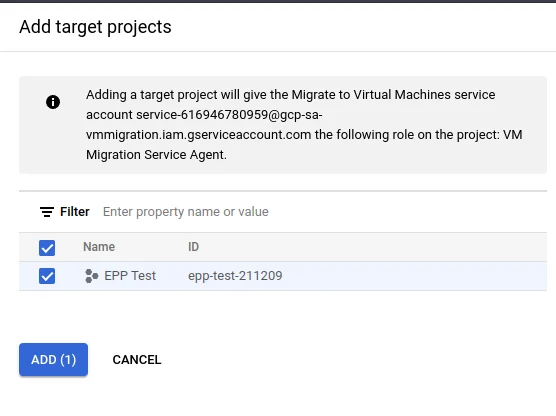

Selecting Target Project

Step 11 – Navigate to the Image Imports tab and click Create image.

  • Provide a name for the image.
  • Set Source Cloud Storage file (.vmdk).
  • Select the Region.
  • Enable Skip OS adaptation.
  • Click Create.

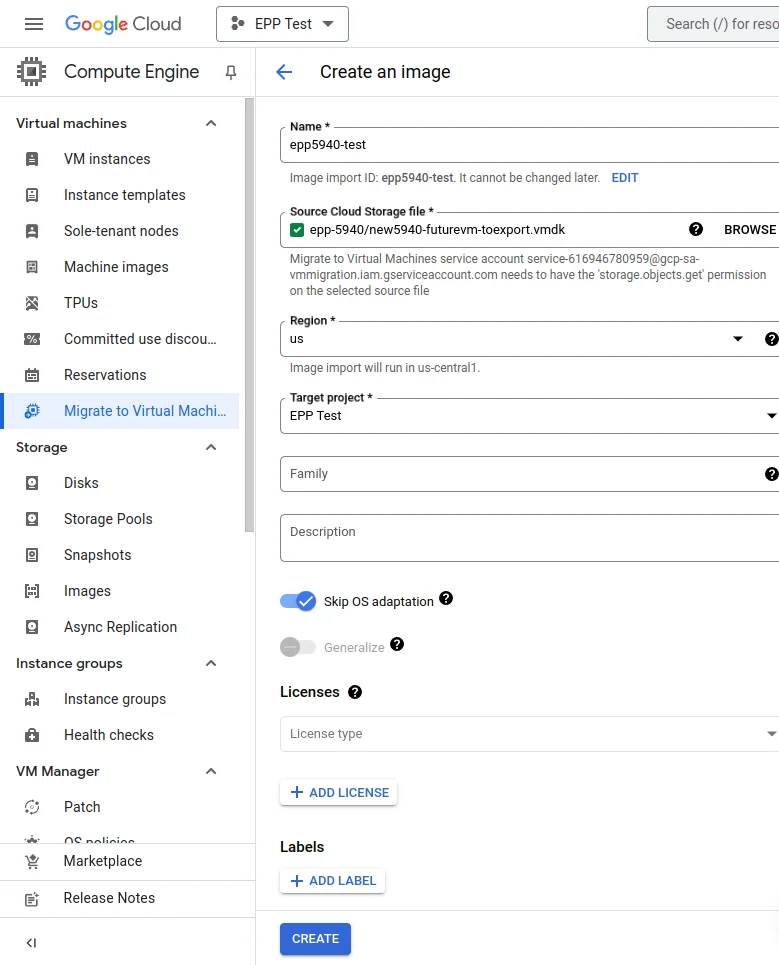

Creating an Image

Step 12 – Once the process is complete, navigate to the Images page and locate the newly created disk image. Click on it to view its details.

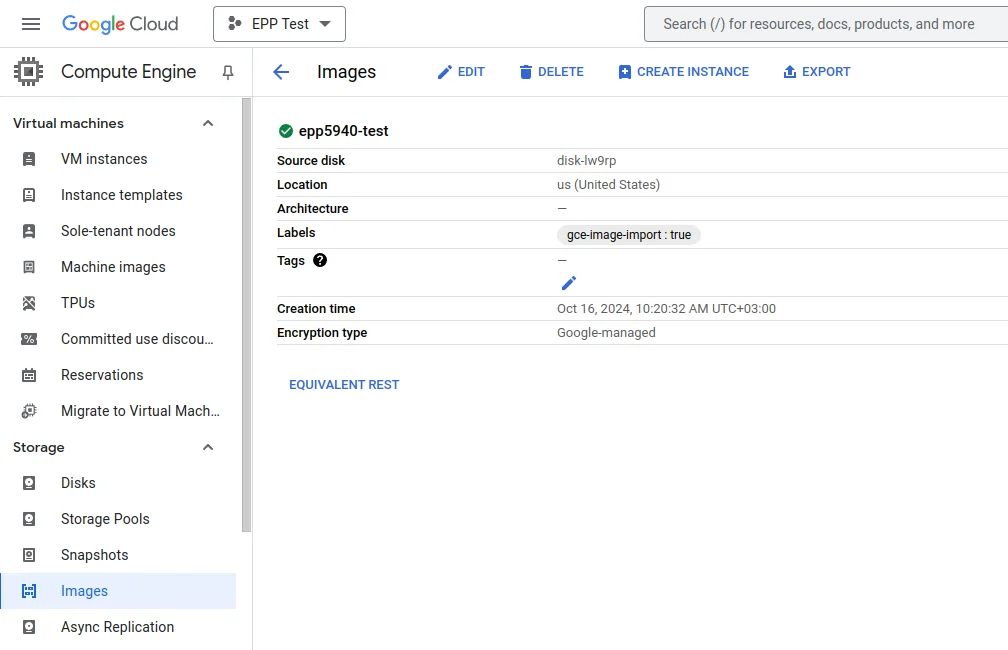

Create Instance

Step 13 – Click Create Instance and select the newly created disk image as the boot disk.

Step 14 – Configure the instance settings based on your environment’s requirements, such as machine type, network settings, and storage.

Step 15 – Complete the setup process and verify that the instance is functioning as expected.
