Usercube-Configuration-Transform

This tool applies a series of transformations specified in a JSON file, on the content of a given directory.

Example​

The following example searches all occurrences of Directory_User in the files inside C:/identitymanagerDemo/Conf whose names:

  • contain guest to replace all occurrences with Directory_Guest;
  • contain bot to replace all occurrences with Directory_Bot.

The resulting files are saved in C:/identitymanagerDemo/ConfTransformed.


./identitymanager-Configuration-Transform.exe --input "C:/identitymanagerDemo/Conf" --output "C:/identitymanagerDemo/ConfTransformed" --transformation-file "C:/identitymanagerDemo/transformations.json"

transformations.json

{
  "*guest*": {
    "Directory_User": "Directory_Guest"
  },
  "*bot*": {
    "Directory_User": "Directory_Bot"
  }
}

Arguments​

Argument NameDetails
--input requiredType String Description Path of the directory on which the transformations are to be applied.
--transformation-file requiredType String Description Path of the JSON file that contains the transformations to be applied. The first half of the following JSON transformation file intends to search all files in the input directory whose names are filename (case-insensitively). In those files, any occurrence of ToBeReplaced (case-sensitively) is replaced with Replacement. { "filename": { "ToBeReplaced": "Replacement" }, "partialfilename*": { "ToBeReplaced2": "Replacement2" } } Note: instead of a specific file name, Usercube can search for files whose names contain a specific string, using the character *.
------
--output requiredType String Description Path of the folder where the result will be saved.

Usercube-Deploy-Configuration

Retrieves all XML configuration files from a given folder, in order to calculate the configuration items to insert, update or delete in the application.

Examples​

Locally​

The following example deploys an on-premise configuration via a direct connection to the database through its connection string:


./identitymanager-Deploy-Configuration.exe -d "C:/identitymanager/Conf" --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

Remotely​

The following example deploys a SaaS configuration via an HTTP POST request to the server of the remote configuration:


./identitymanager-Deploy-Configuration.exe -d "C:/identitymanager/Conf" --api-url https://my_usercube_instance.com

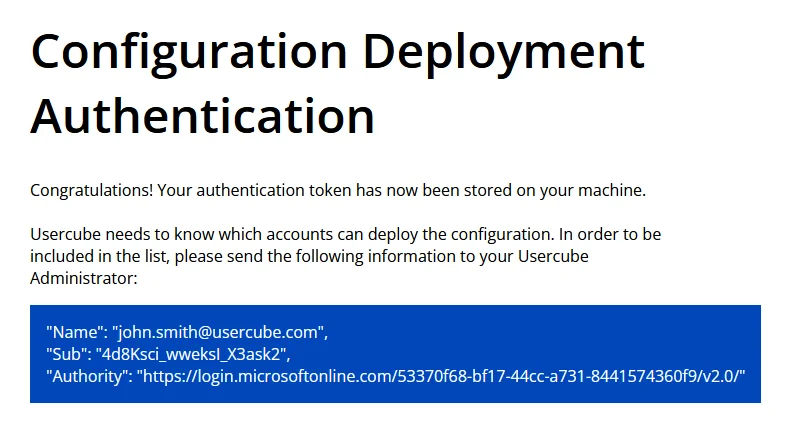

To be able to deploy a SaaS configuration, you must first provide your Usercube administrator with identity information. See how to deploy a SaaS configuration for the first time.

Arguments​

Argument NameDetails
--configuration-directory (-d) requiredType String Description Path to the configuration folder.
--continuous-deployment (-a) optionalType No Value Description Enables automatic deployment when saving an XML file.
--deployment-slot optionalType DeploymentSlot Description Type of the targeted server among the slot names provided by NETWRIX' SaaS team. For example: Development, Staging, Production. Note: required when working in a SaaS production environment.
--dump-changes-directory optionalType String Description Path to a directory that will receive the logs of all modifications made to the database. Note: can be used with --simulate-only for an additional security before deploying to production.
--enable-saas-checks optionalType No Value Description Enables the checks necessary to deploy in a SaaS environment. Note: enabled automatically when working in SaaS. This argument can be used when deploying locally in order to anticipate a future SaaS deployment.
--force-bindings (-bi) optionalType No Value Description Forces the recomputation of binding paths in the database.
--force-cascade-delete optionalType No Value Description Enables the deletion or archiving of XML configuration items that require extra care and/or approval, usually for dependency issues. Warning: NETWRIX recommends using this option only when prompted by the deployment tool.
--force-categories (-c) optionalType No Value Description Forces the recomputation of the counters for role categories in the database.
--force-expressions (-e) optionalType No Value Description Forces the recomputation of C# expressions in the database.
--force-permissions (-p) optionalType No Value Description Forces the recomputation of access permissions in the database.
--force-translations optionalType No Value Description Forces the recomputation of the translations for the activity template states and the internal display name properties in the database.
--http-client-timeout-supplement optionalType Int32 Description Duration (in minutes) after which the deployment command times out, in addition to the default 30 minutes.
--no-create-index optionalType No Value Description Disables the creation of indexes related to the configuration. Warning: NETWRIX recommends using this option only when advised by the support team.
--reset-database optionalType No Value Description Deletes the whole database and creates an empty one before deploying.
--resource-identity-property optionalType String Description Overrides the resource identity property used by the SelectUserByIdentityQueryHandler settings.
--simulate-only optionalType No Value Description Computes and previews on the screen all the changes to be made, but without editing the database.
------
--api-client-id optionalType String Description Login of the account authorized by NETWRIX for configuration export/deployment in a SaaS environment. Note: soon deprecated, rather contact the support team.
--api-secret optionalType String Description Password of the account authorized by NETWRIX for configuration export/deployment in a SaaS environment. Note: soon deprecated, rather contact the support team.
--api-url optionalType String Description URL of the server to export/deploy the configuration to, for remote changes. Note: required when --database-connection-string is not specified.
------
--database-connection-string optionalType String Description Connection string of the database. Note: required when --api-url is not specified.
--product-translation optionalType No Value Description Path of the JSON file that contains the application's translations. See more details on how to import the product's translations.
--scope optionalType String Description Path of a folder or file to export/deploy, instead of exporting/deploying the whole configuration.
------
--log-level optionalType LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Usercube-Export-Configuration

Generates in a folder the files of the configuration found in the database.

While the deployment process is about taking the configuration elements from the XML files to insert them in the database, the export process is about taking the configuration elements from the database to generate XML files:

  • a basic export will export the XML configuration that was latest deployed to the database, including images like logos and favicons;

  • a marked export will export the whole configuration as XML files, including the configuration elements created via the UI;

    As Usercube can be configured by writing manually in XML files and/or using the UI, the marked export helps combining both.

    NETWRIX recommends configuring Usercube via the UI as much as possible, and completing the configuration via XML files when needed.

  • a translation export will export the translation JSON files;

  • a scaffolding export will export the XML configuration generated by scaffoldings.

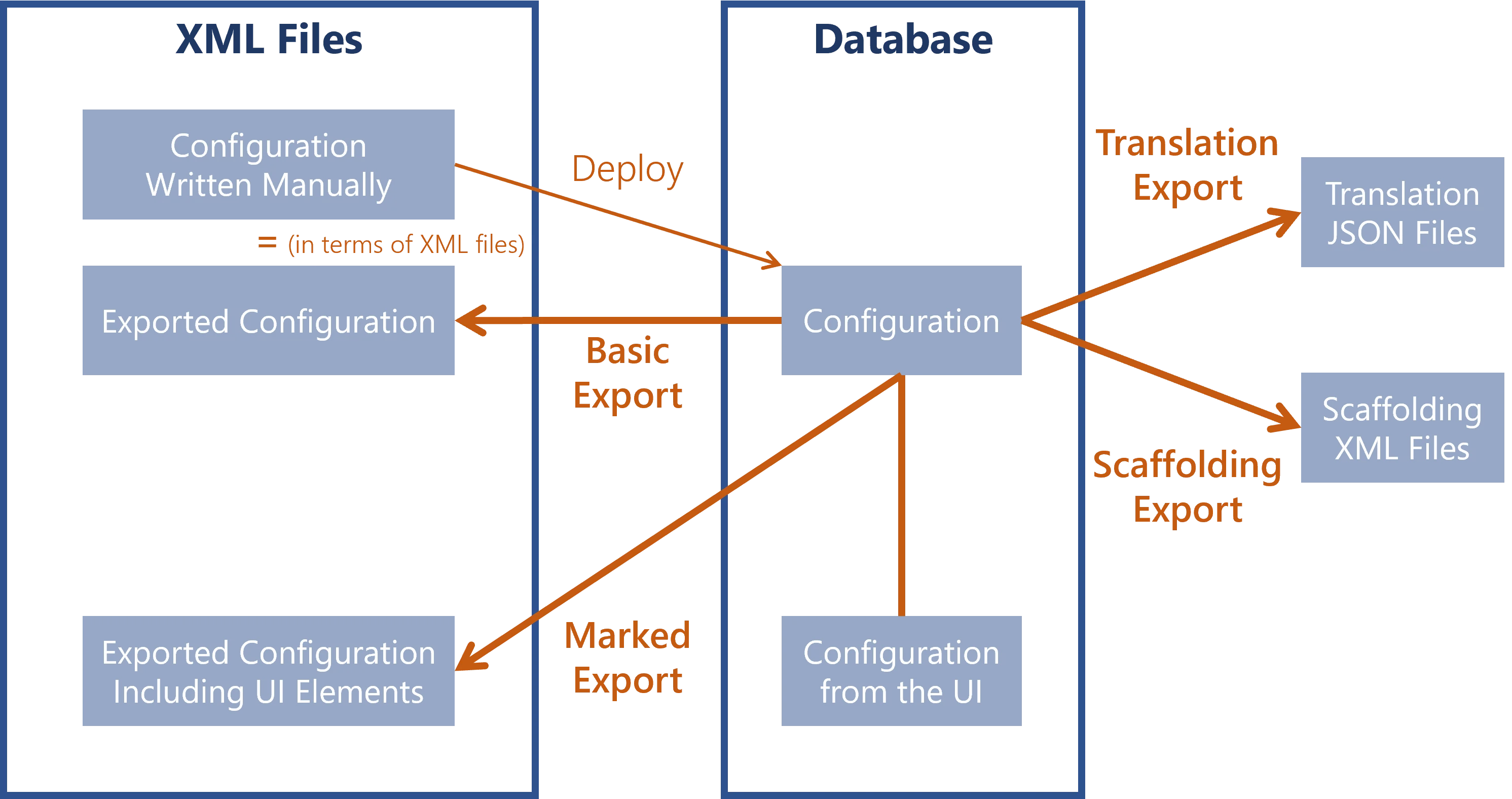

Schema - Export Process

For all export types, NETWRIX recommends using as output directory a folder other than the one containing the old XML configuration. This way, the exported configuration does not overwrite the old one, and:

  • the changes can be clearly viewed in a file comparison tool;
  • the interesting changes can be selected individually and inserted in the old configuration, to update the configuration while keeping any manual changes such as comments.

Focus on the marked export​

By default, the configuration elements created via the UI are stored in the database just like the rest of the configuration, but they are not included in deployment and export processes.

While UI elements are not marked, they are not included in the XML/database comparison performed during the configuration deployment process. It means that deploying any configuration will not affect UI elements.

On the other hand, once UI elements are marked, they will be included in the XML/database comparison performed during the next configuration deployment process. Then, if these UI elements are not in the deployed XML files, they will be removed from the database.

Be careful about what configuration to deploy and export.

When configuring through both the UI and XML files, make sure to:

  • export all UI modifications before making changes in XML files and deploying the configuration again;
  • deploy all XML modifications before making changes in the UI and exporting the configuration again.

Examples​

Locally vs. remotely​

The following example exports an on-premise configuration via a direct connection to the database through its connection string:


./identitymanager-Export-Configuration.exe -d "C:/identitymanager/ExportedConf" --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

The following example exports a SaaS configuration via an HTTP POST request to the server of the remote configuration:


./identitymanager-Export-Configuration.exe -d "C:/identitymanager/ExportedConf" --api-url https://my_usercube_instance.com

To be able to export a SaaS configuration, you must first provide your Usercube administrator with identity information. See how to export a SaaS configuration for the first time.

Basic export for a change of environment​

The following example exports all configuration elements of the database as a set of XML files, to the C:/identitymanager/ExportedConf folder, for example to move from the pre-production environment to the production environment.


./identitymanager-Export-Configuration.exe --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" --configuration-directory "C:/identitymanager/ExportedConf"

All XML files from C:/identitymanager/ExportedConf are removed and replaced with the new set of XML files, generated based on the configuration elements from the database.

The default behavior of this tool exports all XML files, from the configuration elements stored in the database and the XML/database relationships, as well as logos and favicons. Translations are not exported.

Most modifications made in the UI will be ignored too.

Export UI configuration elements outside the role model​

The following example exports all configuration elements as a set of XML files, including the configuration modifications made through the UI, except any elements linked to the role model.


./identitymanager-Export-Configuration.exe --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" --configuration-directory "C:/identitymanager/ExportedConf" --mark-for-export

All XML files from C:/identitymanager/ExportedConf are removed and replaced with the new set of XML files, generated based on the configuration elements from the database, including UI elements (not role-model-related) that are now marked for export.

Export all UI configuration elements​

The following example exports all configuration elements as a set of XML files, including all configuration modifications made through the UI, especially role-model-related elements.


./identitymanager-Export-Configuration.exe --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" --configuration-directory "C:/identitymanager/ExportedConf" --mark-for-export --mark-rolemodel-for-export

All XML files from C:/identitymanager/ExportedConf are removed and replaced with the new set of XML files, generated based on the configuration elements from the database, including all UI elements that are now marked for export.

Export translation files​

The following example exports to C:/identitymanager/ExportedConf the JSON translation files stored in the database, one per language, replacing the ancient versions potentially pre-existing in the output directory.


./identitymanager-Export-Configuration.exe --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" --configuration-directory "C:/identitymanager/ExportedConf" --export-translation

Export scaffoldings for debug​

The following example exports XML files containing the configuration generated by all scaffoldings. It exports one folder per scaffolding type, and in each folder one XML file per scaffolding, containing the configuration generated by the scaffolding.


./identitymanager-Export-Configuration.exe --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" --configuration-directory "C:/identitymanager/ConfScaffoldings" --export-scaffolding

All XML files from C:/identitymanager/ConfScaffoldings are removed and replaced with the new set of XML files, generated based on the scaffoldings from the configuration.

The scaffolding export's output is meant only for viewing in debug situations and must not be inserted in the configuration.

Arguments​

Argument NameDetails
--configuration-directory (-d) requiredType String Description Path of a directory that will receive the exported configuration.
--default-file optionalType String Description Path of the file where configuration items are stored by default, when they are not related to a predefined storing file. Note: when not specified, these items are not exported.
--export-scaffolding optionalType No Value Description Exports all scaffoldings and the scaffolded items, i.e. all items generated by scaffoldings.
--export-translation optionalType No Value Description Exports the JSON files containing all translations, by language.
--format-configuration optionalType No Value Description Formats the configuration from the folder specified in --configuration-directory, in order to correspond to the export result.
--mark-for-export optionalType No Value Description Exports all configuration elements that were created via the UI, except for those linked to the role model, i.e. the elements exported by the --mark-rolemodel-for-export option.
--mark-rolemodel-for-export optionalType No Value Description Exports all the configuration elements linked to the role model: SingleRole; CompositeRole; SingleRoleRule; CompositeRoleRule; and the following rules when they are linked to a role: PendingApprovalRule; ResourceNavigationRule; ResourceScalarRule; ResourceTypeRule; ResourceBinaryRule. Warning: this argument cannot be used without the --mark-for-export option.
--marked-paths optionalType String List Description Identifiers of the elements configured through the UI that need to be exported and thus marked for export. Note: used to export specific elements, while the --mark-*-for-export options are meant to export whole packages of elements.
------
--api-client-id optionalType String Description Login of the account authorized by NETWRIX for configuration export/deployment in a SaaS environment. Note: soon deprecated, rather contact the support team.
--api-secret optionalType String Description Password of the account authorized by NETWRIX for configuration export/deployment in a SaaS environment. Note: soon deprecated, rather contact the support team.
--api-url optionalType String Description URL of the server to export/deploy the configuration to, for remote changes. Note: required when --database-connection-string is not specified.
------
--database-connection-string optionalType String Description Connection string of the database. Note: required when --api-url is not specified.
--product-translation optionalType No Value Description Path of the JSON file that contains the application's translations. See more details on how to import the product's translations.
--scope optionalType String Description Path of a folder or file to export/deploy, instead of exporting/deploying the whole configuration.
------
--log-level optionalType LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Usercube-Generate-Configuration

Generates from a CSV file the configuration of a connector with these entities.

Overview​

Two subcommands are possible for generation.

  • simpleconnector
  • complexconnector

The simple connector allows you to generate the configuration for a CSV file and create the connector. The complex connector allows you to generate the configuration for a list of CSV files and create the connector.

1. Simple connector​

From a CSV file, generates the configuration of the entity representing the CSV file.

The subcommand simpleconnector must precede the arguments.

2. Complex connector​

From a list of CSV files, generates the configuration of the entities representing each file. The complex connector requires as an argument an xml file containing all the CSV files to be processed as well as the primary keys of these files.

Example of xml file


<Connector xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" Name="HR" DefaultEncoding="UTF-8" DefaultSeparator=";">    <File Path="C:/identitymanager/Sources/rh_persons.csv" />    <File Path="C:/identitymanager/Sources/rh_services.csv" />    <File Path="C:/identitymanager/Sources/rh_sites.csv" />    <File Path="C:/identitymanager/Sources/rh_Categories.csv" />    <PrimaryKey Path="C:/identitymanager/Sources/rh_persons.csv" Header="EmplyoeId" EntityTypeName="HR_Person" />    <PrimaryKey Path="C:/identitymanager/Sources/rh_services.csv" Header="Code" EntityTypeName="HR_Service" />    <PrimaryKey Path="C:/identitymanager/Sources/rh_sites.csv" Header="Code" EntityTypeName="HR_Site" />    <PrimaryKey Path="C:/identitymanager/Sources/rh_Categories.csv" Header="Code" EntityTypeName="HR_Category" /></Connector>

  • Path: CSV file path.
  • File: Name of the files to be processed.
  • PrimaryKey: Fills in the primary key of the CSV file.
  • Header: Column name in the CSV file.
  • EntityTypeName: Indicates the name of the entity to be created.
  • Name: name of the connector to be created.

The subcommand complexconnector must precede the arguments.

Examples​

Simple connector​


./identitymanager-Generate-Configuration.exe simpleconnector -g "C:/GeneratedFile/file" -f "C:/SourceFile/confFile.csv"

Complex connector​


./identitymanager-Generate-Configuration.exe complexconnector -g "C:/GeneratedFile/file" "C:/SourceFile/confFile.xml"

Arguments​

Argument NameDetails
--generated-file (-g) requiredType String Description Path to the generated file.
--csv-path (-h) optionalType String Description Path to the CSV file. Note: used only for a simple connector.
--encoding (-e) optionalType String Description Encoding of the CSV file. See the list of available encodings. Note: used only for a simple connector.
--csv-separator (-t) optionalType String Description Column separator of the CSV file. Note: used only for a simple connector.
--generated-connector (-r) optionalType String Description Name of the generated connector. Note: used only for a simple connector.
--keep-all-columns (-k) optionalType No Value Description Keeps all the columns.
--connector-description optionalType String Description XML file that describes the CSV files and their primary key columns.
------
--file-cert-thumbprint optionalType String Description Thumbprint of the certificate when the certificate is in the store.
--file-cert-dn optionalType String Description Subject Distinguished Name of the certificate when the certificate is in the store.
--file-cert-store-location optionalType String Description Store location of the certificate when the certificate is in the store.
--file-cert-store-name optionalType String Description Store name of the certificate when the certificate is in the store.
--file-cert-file optionalType String Description File path of the certificate when the certificate is in a PFX file.
--file-cert-password optionalType String Description Password of the certificate when the certificate is in a PFX file.
------
--log-level optionalType LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Usercube-Manage-ConfigurationDependantIndexes

This tool creates the necessary SQL indexes based on the latest deployed configuration to optimize certain queries performances.

Available optimizations:​

  • Creates SQL indexes and statistics to optimize searches on specific entity types
  • Creates SQL indexes to optimize joins between records and main entity types
  • Creates SQL indexed views used to compute dashboard counters

Examples​


./identitymanager-Manage-ConfigurationDependantIndexes.exe -e "Directory_User" -r "Directory_UserRecord" "Directory_Guest" -dc -s  "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" -a

./identitymanager-Manage-ConfigurationDependantIndexes.exe -auto -dc -s "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" -a


## Arguments

| Argument Name | Details |
| --- | --- |
| --entityTypes (-e)   optional | __Type__    String List   __Description__ Sets the list of entity types for which optimization indexes will be created/updated. |
| --recordEntityTypes (-r)   optional | __Type__    String List   __Description__ Sets the list of record entity types for which optimization indexes will be created/updated. |
| --userProperties (-p)   optional | __Type__    String List   __Description__ Sets the list of �User' properties that link the records and the users. (the order of the given �userProperties' must match the order of the given �recordEntityTypes'). |
| --dashboardCounter (-dc)   optional | __Type__    No Value   __Description__ Adjusts the indexed views for the dashboard counters appropriately. |
| --auto   optional | __Type__    No Value   __Description__ The entity types, record entity types and user properties are deduced automatically from the provisioning rules configured in the database. |
| --apply-to-database (-a)   optional | __Type__    No Value   __Description__ Directly applies the resulting SQL script to the database. |
|  |  |
| --- | --- |
| --database-connection-string   required | __Type__    String   __Description__ Connection string of the database. |

Usercube-Upgrade-ConfigurationVersion

This tool is used to upgrade your configuration from your current version entered in settings to the latest version.

Examples​


./identitymanager-Upgrade-ConfigurationVersion.exe --version "5.1.0" --xml-path "C:/identitymanagerDemo/Conf" --output "C:/identitymanagerDemo/Conf2"

In this example, the configuration files are in the folder "C:/identitymanagerDemo/Conf" and at version "5.1.0". This tools will upgrade all the xml files to the latest version and save them in the folder "C:/identitymanagerDemo/Conf2".

Arguments​

Argument NameDetails
--version requiredType String Description Current version.
--xml-path requiredType String Description Current xml configuration folder to migrate.
------
--output requiredType String Description Path of the folder where the result will be saved.
------
--log-level optionalType LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Deploy the Configuration

This guide shows how to deploy the XML configuration, in order to build and use the Usercube application.

Overview​

The process for configuration deployment varies according to the situation:

  • when working on-premise, the configuration must be deployed locally;
  • when working SaaS, the configuration must be deployed remotely.

Deploy the Configuration Locally​

Deploy a local XML configuration by using the Deploy-Configuration executable and declaring at least:

  • the configuration directory;
  • the connection string of the database.

./identitymanager-Deploy-Configuration.exe -d "C:\Usercube\Conf" --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

Deploy the Configuration Remotely​

Deploy a SaaS XML configuration by proceeding as follows:

  1. Log in for configuration deployment/export with the Login executable.

    Usercube provides an Open Id Connect (OIDC) authentication process in order to ensure strong security, visibility and ease of use.

    NETWRIX recommends using Usercube's dedicated in-house OIDC Identity Provider (IDP), but you can also use your own IDP if you want to manage authentication yourself.

    When using your own IDP, make sure that the IDP implements a valid OIDC protocol and serves id tokens.

    For example, when using Usercube's IDP:


    ./identitymanager-Login.exe

    For example, when using another IDP:


    Usercube-Login.exe --authority https://my_oidc_authentication_server.com --client-id 34b3c-fb45da-3ed32

    Either method will open your default browser to http://localhost:5005 where you will be redirected to the specified IDP and will be prompted to log in.

    Specify --port <port> if you want the login page to use another local port.

    If you have already successfully deployed or exported your SaaS configuration at least once, then there is no need to communicate the authentication information again. Go directly to step 4.

    However, if, since then, there has been a change in the identity deploying/exporting the configuration or in the Identity Provider used to log in at step 1, then go through the whole process again.

  2. Log in to the IDP to be redirected back to this screen:

    Usercube-Login.exe Success Screen

    Once authenticated, an identification token is stored on your local machine for the authentication to Usercube's deployment and export processes.

  3. Copy the entire text within the blue square and send it to your Usercube administrator.

    The administrator will add the identity information to the configuration of your Usercube instance, to allow the configuration deployment/export.

  4. Deploy the configuration by using the Deploy-Configuration executable and declaring at least:

    • the configuration directory;
    • the deployment environment;
    • the API URL of your Usercube instance.

      ./identitymanager-Deploy-Configuration.exe -d "C:\Usercube\Conf" --api-url https://my_usercube_instance.com --deployment-slot Development

    You can deploy the configuration by launching only the Deploy-Configuration executable until the authentication token expires. Then, the token must be refreshed via the Login executable before deploying again.

    The token served by Usercube's IDP expires after one hour.

Export the Configuration

This guide shows how to export the configuration as XML files to a given folder.

Overview​

The process for configuration export varies according to the situation:

  • when working on-premise, the configuration must be exported locally;
  • when working SaaS, the configuration must be exported remotely.

See more details on configuration export.

Export the Configuration Locally​

Export your configuration by using the Export-Configuration executable and declaring at least:

  • the directory where the configuration is to be exported to;
  • the connection string of the database.

./identitymanager-Export-Configuration.exe --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" --configuration-directory "C:/identitymanager/ExportedConf"

Export the Configuration Remotely​

Export a SaaS configuration by proceeding as follows:

  1. Log in for configuration deployment/export with the Login executable.

    Usercube provides an Open Id Connect (OIDC) authentication process in order to ensure strong security, visibility and ease of use.

    NETWRIX recommends using Usercube's dedicated in-house OIDC Identity Provider (IDP), but you can also use your own IDP if you want to manage authentication yourself.

    When using your own IDP, make sure that the IDP implements a valid OIDC protocol and serves id tokens.

    For example, when using Usercube's IDP:


    ./identitymanager-Login.exe

    For example, when using another IDP:


    Usercube-Login.exe --authority https://my_oidc_authentication_server.com --client-id 34b3c-fb45da-3ed32

    Either method will open your default browser to http://localhost:5005 where you will be redirected to the specified IDP and will be prompted to log in.

    Specify --port <port> if you want the login page to use another local port.

    If you have already successfully deployed or exported your SaaS configuration at least once, then there is no need to communicate the authentication information again. Go directly to step 4.

    However, if, since then, there has been a change in the identity deploying/exporting the configuration or in the Identity Provider used to log in at step 1, then go through the whole process again.

  2. Log in to the IDP to be redirected back to this screen:

    Usercube-Login.exe Success Screen

    Once authenticated, an identification token is stored on your local machine for the authentication to Usercube's deployment and export processes.

  3. Copy the entire text within the blue square and send it to your Usercube administrator.

    The administrator will add the identity information to the configuration of your Usercube instance, to allow the configuration deployment/export.

  4. Export the configuration by using the Export-Configuration executable and declaring at least:

    • the configuration directory;
    • the API URL of your Usercube instance.

      ./identitymanager-Export-Configuration.exe -d "C:\Usercube\ExportedConf" --api-url https://my_usercube_instance.com

    You can export the configuration by launching only the Export-Configuration executable until the authentication token expires. Then, the token must be refreshed via the Login executable before exporting again.

    The token served by Usercube's IDP expires after one hour.
