Hierarchy in Configuration Files

Every configuration's element falls under the urn:schemas-usercube-com:configuration namespace. Element <ConfigurationFile> is the root element of each configuration file.

<ConfigurationFile xmlns="urn:schemas-usercube-com:configuration"> ...
<ConfigurationFile>

Each configuration element matches to an entry in the database. Detailed description of the element can be found in the Data model. See the XML Configuration Schema topic for additional information.

For example, the structure of the <Connector> element can be found in the Connectors topic.

In some case, the element name will not match directly the data model type name.

For example, the element <Entry> in the following XML fragment is a Access Control Rule item in the database.

<AccessControlRule Profile="Administrator" EntityType="Resource" Identifier="Administrator_Resource" DisplayName_L1="Administrator_Resource"> <Entry Permission="/Connectors/SynchronizeSession" CanExecute="true" /> <Entry Permission="/Connectors/ProvisioningSession" CanExecute="true" /></AccessControlRule>

Adjust Scaffolded Configuration

This guide shows how to adjust the XML configuration elements created by scaffoldings.

Overview

A scaffolding is an XML element that will generate a complex XML fragment. It is like a configuration shortcut that helps configure easily a set of XML elements that are usually configured together.

See the list of all existing Scaffoldings.

In most situations, scaffoldings are enough to generate the configuration required to meet the functional needs.

However, in some cases, scaffoldings do not meet the exact needs and must be adjusted to generate the right XML configuration.

NETWRIX recommends writing XML configuration by first using scaffoldings, adjusting it if needed, and as a last resort, when no scaffolding meets the needs, writing the configuration manually.

Adjust Scaffolded Configuration

Adjust XML configuration generated by a scaffolding by proceeding as follows:

When working via the UI, start by exporting UI Usercube-Export-Configuration elements.
Write an XML element whose identifier is the same as the one generated by the scaffolding.

Any identifier can be found in the Scaffoldings topic, in the section displaying the generated XML fragment.
Add ConsolidationMode to the element's properties.
- By default, the XML item written manually completely replaces the one generated by the scaffolding.

  The default behavior should be used when needing to rewrite one or a few of the items generated by a scaffolding, not all of them.

  When needing to rewrite the scaffolding's whole output, just remove the scaffolding and write the item(s) manually.
  For example, the ViewTemplateAdaptable scaffolding generates, for the LDAP_Entry entity type, a default display name for all LDAP resources, a display table to view the resources, and the corresponding permissions to access the table. Supposing that the resulting display table does not fit the needs, we could need to write a customized display table from scratch:
  <DisplayTable Identifier="LDAP_Entry" EntityType="LDAP_Entry" DisplayTableDesignElement="resourcetable" IsEntityTypeDefault="true"> <Column DefaultSortPriority="1" DisplayBinding="dn" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="4" /> <Column DisplayBinding="rdn" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" /> <Column DisplayBinding="displayName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" /> <Column DisplayBinding="objectClass" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" /></DisplayTable>
  The display table's identifier must be the same as the one generated by the scaffolding. Then the scaffolding is ignored so the display table LDAP_Entry is defined by the <DisplayTable .../> properties written manually here, as well as its <Column .../> child elements written manually here.
  Still from the ViewTemplateAdaptable scaffolding, suppose now that the default display name does not fit the needs, then we could write a customized display name from scratch:
  <EntityPropertyExpression Identifier="LDAP_Entry_InternalDisplayName" Expression="C#:resource:return Usercube.Expressions.Functions.UtilExpressions.ToFormatedDN(resource.dn);" EntityType="LDAP_Entry" Property="InternalDisplayName" />
  The entity property expression's identifier must be the same as the one generated by the scaffolding. Then the scaffolding is ignored so the display name LDAP_Entry_InternalDisplayName is defined by the <EntityPropertyExpression .../> properties written manually here.
- Set to Merge, the XML item generated by the scaffolding is completed with additional parent properties and/or child elements written manually, while keeping the parent properties and the child elements defined in the scaffolding.
  For example, the WorkforceModule scaffolding generates the Directory_User entity type (among other things) with a specific set of properties. We could choose to add some properties in the entity type:
  <EntityType Identifier="Directory_User" ConsolidationMode="Merge"> <Property Identifier="OwnedApplications" DisplayName_L1="Managed Applications" Type="ForeignKey" /> <Property Identifier="OwnedBots" DisplayName_L1="Managed RPA Bots" Type="ForeignKey" /> <Property Identifier="Guests" DisplayName_L1="Sponsored Guests" Type="ForeignKey" /></EntityType>
  The entity type's identifier must be the same as the one generated by the scaffolding. Then the entity type Directory_User is defined by the <EntityType .../> properties of the scaffolding, as well as its <Property ... /> child elements written in the scaffolding, and we add the properties written manually here.
  The WorkforceModule scaffolding also generates the Directory_UserRecord_UniqueValue_Email aspect (among other things) that uses unicity check rules to generate a unique email address for each new user. We could choose to add a unicity check rule in the aspect to compare the new email address to the existing ones from Microsoft Entra ID (formerly Microsoft Azure AD):
  <BuildUniqueValueAspect Identifier="Directory_UserRecord_UniqueValue_Email" ConsolidationMode="Merge"> <UnicityCheck SourceBinding="Workflow_Directory_User:Directory_User.Records" SourceExpression="C#:record:var firstName = record.FirstName.Simplify()?.ToLowerInvariant(); var lastName = record.LastName.Simplify()?.ToLowerInvariant(); if (string.IsNullOrEmpty(firstName) || string.IsNullOrEmpty(lastName)) { /_ Data missing _/ return null; } var result = firstName + "." + lastName; if (iteration > 0) { result += iteration.ToString(); } return result;" TargetEntityType="AzureAD_DirectoryObject" TargetExpression="C#:azure_ad: if(string.IsNullOrEmpty(azure_ad.mail)) { return null; } var result = azure_ad.mail; var index = result.IndexOf('@'); if(index >=0) { result = result.Substring(0, index); } return result;" /></BuildUniqueValueAspect>
  The aspect's identifier must be the same as the one generated by the scaffolding. Then the aspect Directory_UserRecord_UniqueValue_Email is defined by the <BuildUniqueValueAspect .../> properties of the scaffolding, as well as its <UnicityCheck ... /> child elements written in the scaffolding, and we add the unicity check rule written manually here.
- Set to Update, the XML item written manually replaces all parent properties, while keeping the child elements defined in the scaffolding.
  For example, the OptimizeDisplayTable scaffolding generates the Directory_User display entity type (among other things) with a specific set of properties. We could choose to change just the parent properties of the display entity type without changing its child properties:
  <DisplayEntityType Identifier="Directory_User" ConsolidationMode="Update" Color="#95c18b" D0IsActive="true" D1IsActive="true" D2IsActive="true" D3IsActive="true" IconCode="People" PluralDisplayName_L1="Users" Priority="0" />
  The display entity type's identifier must be the same as the one generated by the scaffolding. Then the display entity type Directory_User is defined by the <DisplayEntityType .../> properties written manually here, as well as the <Property ... /> child elements written in the scaffolding.
- Set to Delete, the XML item generated by the scaffolding is deleted, including its child elements.
  For example, the AssignProfileAccessControlRules scaffolding generates the Administrator_Category_AccessControl_AssignedProfile access control rule (among other things) with possibly child elements. We could choose to remove the whole access control rule:
  <AccessControlRule Identifier="Administrator_Category_AccessControl_AssignedProfile" ConsolidationMode="Delete" />
  The access control rule's identifier must be the same as the one generated by the scaffolding. Then the access control rule Administrator_Category_AccessControl_AssignedProfile is completely removed.
Usercube-Deploy Configuration again.

Toolkit for XML Configuration

The Netwrix Identity Manager (formerly Usercube) configuration is a set of XML files edited according the Usercube schema. The Recommendations part of this section explains how to set up an editing environment for the configuration.

Regardless of the editing space, the configuration persists in the Netwrix Identity Manager (formerly Usercube) database. It's this stored configuration that is used at runtime.

The Deploy Configuration Task tool is used to import a new version of the configuration (from the XML files set). The Usercube-Export-Configuration can be used to export the current configuration (to a XML files set).

The Identity Manager project's integration cycle consists in developing a configuration by successive imports in a test instance.

Integration cycle

Languages

Some configuration string must be specified in multiple languages. For this, the name of the corresponding XML attribute is suffixed by _L1, _L2,... _L8. For example, the property DisplayName of an Entity Type can be specified in English and French:

<EntityType Identifier="Directory_User" DisplayName_L1="User" DisplayName_L2="Collaborateur"> ...
</EntityType>

Languages list must be specified by Language elements.

  <Language Code="en-US" IndicatorNumber="1" /> <Language Code="fr-FR" IndicatorNumber="2" />

The code is a combination of an ISO 639 two-letter lowercase culture code associated with a language and an ISO 3166 two-letter uppercase subculture code associated with a country or region.

Base32 Parameter Names

Some attributes names in the applicative configuration, such a those related to dimensions identification, are written using a Base32 representation of numbers.

Identity Manager uses flavor of base32 known as base32hex described in the RFC4648.

It uses 10 digits from 0 to 9 and 22 letters from A to V to represent numbers.

The following table shows the decimal - base32hex equivalent for the first 127 numbers.

base32hex	decimal
0	0
1	1
2	2
3	3
4	4
5	5
6	6
7	7
8	8
9	9
a	10
b	11
c	12
d	13
e	14
f	15
g	16
h	17
i	18
j	19
k	20
l	21
m	22
n	23
o	24
p	25
q	26
r	27
s	28
t	29
u	30
v	31
10	32
11	33
...	...
1A	42
...	...
20	64
...	...
2A	74
...	...
3V	127

For example, dimensions are identified by a number going from 0 to 127 in decimal representation and 0 to 3V in base32hex representation.

The Context Rule support 128 dimension parameters going from B0 to B3V using the base32hex0 to 3V numbers to identify a dimension.

Recommendations

Editor

Visual Studio Code is the recommended editor for configuration. Its extensions can highly benefit the configuration experience. NETWRIX recommends the following extensions:

Project Manager for file organization;
Xml Tools for XML formatting;
XML by RedHat to provide auto-completion of XML configuration based on an XSD file;
Powershell for Powershell formatting;
Rainbow CSV for CSV formatting;
GitLens for file history features.

Configure auto-completion

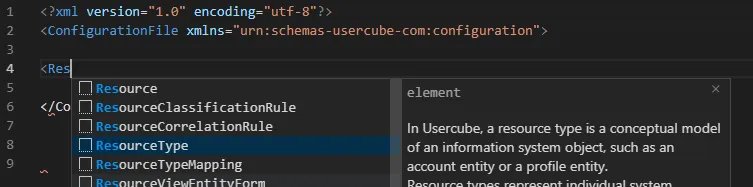

RedHat's XML extension provides auto-completion based on an XSD file. It opens an auto-completion popup when you start to edit an element or attribute name. You can open the popup by typing Ctrl-Space.

Auto-complete

Configure auto-completion by proceeding as follows:

Retrieve from the SDK artifact the usercube-configuration.xsd and Usercube.Demo.code-workspace files.
Make sure that these files are in the working directory (for example C:/identitymanagerDemo).

In Usercube.Demo.code-workspace, declare the following setting, replacing the path C:/identitymanagerDemo/identitymanager-configuration.xsd by the path of your XSD file:

    "settings": {
        "xml.fileAssociations": [
            {
                "systemId": "file:///C:/identitymanagerDemo/identitymanager-configuration.xsd",
                "pattern": "**/*.xml"
            }
        ]
    }

Version Control System

A version control system (like Git) is also recommended so files and configuration history could be tracked.

File Hierarchy

Some folders in the XML configuration contain files that are generated by Identity Manager and that must not be modified manually:

Runtime/Workforce
Runtime/Bootstrap

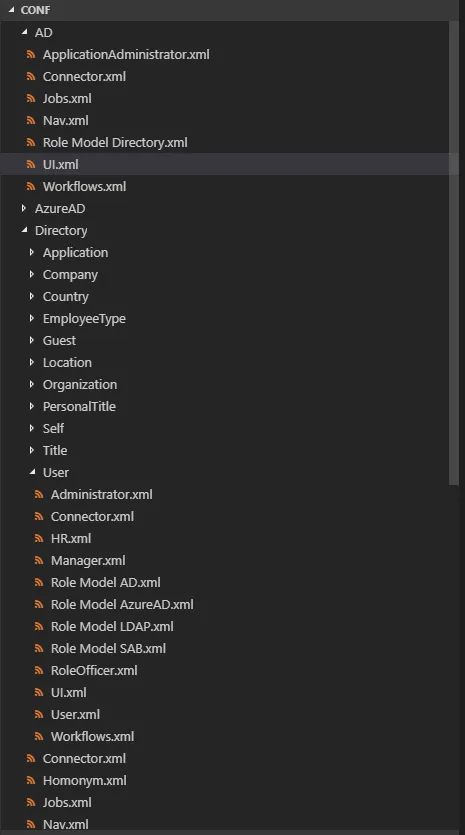

For the configuration to be more readable it is recommended to classify configuration by Connector or Application Entity. For each Connector or Application Entity create a folder in which will put:

Connector.xml file containing the definition of the Connector, the EntityTypes,the EntityAssociations and their mappings.
Administrator.xml file containing all the ACE for the administrator profile.
Role Model.xml file containing the role model configuration.
UI.xml file containing the User Interface configuration.
Jobs.xml file containing the jobs configuration.
Workflows.xml file containing the Workflows configuration for the given connector.

Recommendation

Reserved identifiers

Identifiers of Entity Type and Entity Type cannot be one of the following words:

These words can't be written in any case, example: id, Id, iD and ID are forbidden.

Id
if
for
while
return
break
else
continue
ref
out
class
interface
struct
foreach
do
char
byte
string
int
long
null
public
private
protected
static
const
abstract
try
catch
sealed
void
true
false
finally
throw
Exception
override
readonly
return
enum
delegate
