Usercube-Anonymize

This tool anonymizes data based on a certain knowledge of the database and the data structure.

Overview

Anonymizing data helps unlock situations where it is necessary to send data to varied teams while guaranteeing the privacy of the data owners.

For example, it can be necessary to transmit data to an integration team that needs to set up tests or a development environment to work on the applicative configuration. For example, users sometimes need to send data to Identity Manager's support team to reproduce a bug and get it corrected.

Technical Principles

Anonymizing can be performed on data:

• from a CSV file, with the output written to a new CSV file;

• directly inside a SQL database, overwriting existing data with the anonymized data.

  In this case, the plain data is lost. So make sure to work on a copy of the original database.

Several types of data can be anonymized, according to distinct substitution methods that are deterministic and non-reversible:

• strings have each alphabetical character substituted for another alphabetical character;

  For example, John Doe becomes Xert Okl.

  Diacritical characters are replaced by a non-diacritical equivalent.

• numbers have each digit substituted for another digit;

  For example, 54689 becomes 32016.

• emails have the username anonymized, while leaving the domain name as is;

  For example, johndoe@contoso.com becomes xertoekl@contoso.com.

• Active Directory's RDN properties (Relative Distinguished Names), in the attribute=value format, are anonymized via the string method on the value, leaving the attribute as is.

  For example, CN=John Doe becomes CN=Xert Okl.

Examples

Anonymizing a CSV file

The following example anonymizes the first_name, last_name, email and phone column of the following CSV file:

id,first_name,last_name,email,gender,phone
1,Darrin,Crumpe,dcrumpe0@nifty.com,Male,2666420820
2,Lyon,Boddam,lboddam1@eepurl.com,Male,5927617041
3,Roxana,Prose,rprose2@statcounter.com,Female,5134883113
4,Vladimir,Grisedale,vgrisedale3@blogtalkradio.com,Male,1338476916
5,Jaquith,Pendrich,jpendrich4@merriam-webster.com,Female,1894520819
6,Art,Sweatland,asweatland5@boston.com,Male,5066492715
7,Lynelle,Klammt,lklammt6@stumbleupon.com,Female,5653774981
8,Chicky,Blatherwick,cblatherwick7@walmart.com,Male,4095068397
9,Delilah,Kauscher,dkauscher8@de.vu,Female,9324858513
10,Estelle,Melmeth,emelmeth9@dot.gov,Female,2176715812

The following command outputs the anonymized data in STDOUT.

./identitymanager-Anonymize.exe -n C:/Projects/identitymanager/Documentation/exampleSources/Anonymizer/users.csv -s "," --columns first_name,last_name,mail:email,number:phone

The output is:

id,first_name,last_name,email,gender,phone
1,Afccrp,Icqesl,aicqesl0@nifty.com,Male,6111065265
2,Mdhp,Qhaafe,mqhaafe1@eepurl.com,Male,4665125502
3,Chlfpf,Schnl,cschnl2@statcounter.com,Female,4230223223
4,Imfarerc,Ocrnlafml,iocrnlafml3@blogtalkradio.com,Male,2332051621
5,Jfkqrfg,Slpacrig,jslpacrig4@merriam-webster.com,Female,2260465226
6,Fcf,Nalffmfpa,fnalffmfpa5@boston.com,Male,4511066524
7,Mdplmml,Bmfeef,mbmfeef6@stumbleupon.com,Female,4143550622
8,Igribd,Qmffglcarib,iqmffglcarib7@walmart.com,Male,0564512365
9,Almrmfg,Bfqniglc,abfqniglc8@de.vu,Female,6360242423
10,Lnflmml,Elmelfg,lelmelfg9@dot.gov,Female,6251524226

Anonymizing a SQL Server table

The following example overwrites the UR_Resources table of Identity Manager's database with anonymized data for the C3, C8, CA, CB, CC and CD columns for all resources whose Type is 17.

.\Usercube-Anonymize.exe --connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false" --table UR_Resources --columns "number:C3,C8,number:CA,mail:CB,number:CC,number:CD" --select-query "select * FROM UR_Resources WHERE Type = 17"

Arguments

Argument Name	Details
--columns required	Type Strings Description Columns from the CSV or SQL database that need anonymizing. Usage The value is a string sequence in the form type:columname, separated by a coma ,, where type is used to choose the anonymize algorithm from among the following formats: string (default value); mail; number; rdn, and where columnname is the actual name, not case-sensitive, of the column to anonymize.
--connection-string optional	Type String Description Connection string to the SQL Server database to be anonymized. Note: required when anonymizing a database.
--csv-separator (-s) default value: ;	Type String Description Separator of the input CSV file, provided between simple quotes. Note: used only when anonymizing a CSV file.
--entry-file (-n) optional	Type String Description Path to the input CSV file to anonymize. Note: required when anonymizing a CSV file.
--no-transaction optional	Type No Value Description Disables the SQL transaction for the request made by the anonymizing tool to the target SQL Server database. Warning: NETWRIX recommends using this option only when using transactions leads to a failure (exceeded RAM usage, exceeded CPU usage), because it could corrupt the data from the database. Make sure to prepare a backup of the database before using this option. Note: used only when anonymizing a database.
--output (-o) default value: STDOUT	Type String Description Path of the output CSV file to write the anonymized data. Note: used only when anonymizing a CSV file.
--select-query (-q) optional	Type String Description SQL query to filter the rows to be anonymized. Note: used only when anonymizing a database, and useful only when the query includes a "WHERE" condition, otherwise the --table and --columns arguments are enough. Usage The table targeted by the query must be on the table specified in --table. Examples SELECT Id, name, firstName FROM Resources WHERE resourceType = 'Person' is a query with a simple condition. SELECT * FROM Persons WHERE resourceType = 'Person' AND specialFlag = 'TopSecret' selects all columns, and adds a specific condition.
--table (-t) optional	Type String Description Name of the table from the SQL Server database to be anonymized. Note: required when anonymizing a database.

Usercube-Check-ExpressionsConsistency

This tool is used to check the C# expressions consistency.

Examples

The following example checks the C# expressions compatibility with Identity Manager.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

.\Usercube-Check-ExpressionsConsistency.exe --database-connection-string "data source=.;Database=UsercubeV5demo;Integrated Security=SSPI;Min Pool Size=10;Encrypt=false" --output-path "C:\UsercubeDemo\Dump"

In case errors are found they will be displayed as:

In Custom/User/Directory User Connector.xml(12), Method "System.Linq.Enumerable.MaxBy" cannot be called on entities.

Arguments

Argument Name	Type	Description
--database-connection-string required	String	SQL database connection string.
--output-path	String	Full path of the folder in which the file containing expression compilation errors will be saved.

Usercube-Compute-CorrelationKeys

This tool is used to compute the values of all correlation keys.

Examples

The following example computes the correlation keys of the database defined by the connection string, for all entity types.

./identitymanager-Compute-CorrelationKeys.exe --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false" -a

Arguments

Argument Name	Details
--batch-size (-q) default value: 5000	Type Int32 Description Batch size for queries. See more details.
---	---
--database-connection-string required	Type String Description Connection string of the database.
---	---
--all-entityType (-a) optional	Type No Value Description Applies the tool to all entity types.
--batch-size (-q) default value: 5000	Type Int32 Description Batch size for queries. See more details.
--dirty optional	Type No Value Description Applies the tool incrementally by applying it only to resources marked as dirty, i.e. recently modified.
--entitytype-list optional	Type String List Description List of entity types that the tool is to be applied to. Note: required when --all-entityType is not specified.
--resource-identity-property optional	Type String Description Property used to override the resource identity property set in SelectUserByIdentityQueryHandler.
---	---
--log-level optional	Type LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Usercube-Configuration-Transform

This tool applies a series of transformations specified in a JSON file, on the content of a given directory.

Example

The following example searches all occurrences of Directory_User in the files inside C:/UsercubeDemo/Conf whose names:

• contain guest to replace all occurrences with Directory_Guest;
• contain bot to replace all occurrences with Directory_Bot.

The resulting files are saved in C:/UsercubeDemo/ConfTransformed.

./identitymanager-Configuration-Transform.exe --input "C:/UsercubeDemo/Conf" --output "C:/UsercubeDemo/ConfTransformed" --transformation-file "C:/UsercubeDemo/transformations.json"

transformations.json

{
    "*guest*": {
        "Directory_User": "Directory_Guest"
    },
    "*bot*": {
        "Directory_User": "Directory_Bot"
    }
}

Arguments

Argument Name	Details
--input required	Type String Description Path of the directory on which the transformations are to be applied.
--transformation-file required	Type String Description Path of the JSON file that contains the transformations to be applied. The first half of the following JSON transformation file intends to search all files in the input directory whose names are filename (case-insensitively). In those files, any occurrence of ToBeReplaced (case-sensitively) is replaced with Replacement. \{ "filename": \{ "ToBeReplaced": "Replacement" \}, "partialfilename*": \{ "ToBeReplaced2": "Replacement2" \} \} Note: instead of a specific file name, Identity Manager can search for files whose names contain a specific string, using the character *.
---	---
--output required	Type String Description Path of the folder where the result will be saved.

Usercube-Create-DatabaseViews

Generates entity model SQL views in the Identity Manager database. All views are prefixed by zz_. This tool deletes all views starting by zz_ and creates views from the entity model described in the running configuration.

For every EntityType, a matching SQL view is created from the UR_Resource table.

Example

The following example allows the user to connect to Identity Manager server at http://usercube.contoso.com, using the ClientId Job and Secret secret, to generate views for Identity Manager's database.

./identitymanager-Create-DatabaseViews.exe --api-secret secret --api-client-id Job --api-url "http://usercube.contoso.com" --log-level Debug

Arguments

Argument Name	Details
--progress-use-database optional	Type String Description Update progress in the SQL database.
--progress-use-database-child-instance optional	Type String Description Initiate child task instance.
--progress-use-api optional	Type String Description Update progress with the API.
---	---
--api-client-id required	Type String Description Login used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-secret required	Type String Description Password used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-url required	Type String Description URL of Identity Manager server.
---	---
--log-level optional	Type LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

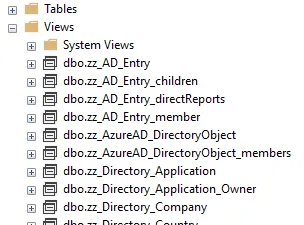

You can explore created views in the Identity Manager database's Views folder in SQL Server Management Studio

Usercube-CSV-Transform

Examples

Define a primary key

Consider the file C:/UsercubeContoso/Sources/hr_example.csv with the following headers line:

Login,Company,Email,FirstName,LastName

To avoid having too much duplicated information on each line in a CSV file, we need to define a primary key for the file which will allow the pooling of common information. We choose to concatenate the values of the columns Login and Company with a - as separator in an Id column, which will be defined as key for our file.

--input-file C:/UsercubeContoso/Sources/hr_example.csv --columns-concat "Login Company - ID"--columns-key ID```

Handle multi-valued columns in a generated file

Consider the file C:/UsercubeContoso/Sources/hr_example123.csv with the following headers line separated by a ;:

GroupAzure;Members;GroupSharePoint;Members

This file is automatically generated by a script and the suffix (123here) is incremented on each generation. Thus, we need to use a regex to avoid changing the command line for each new generated file.

--input-file C:/UsercubeContoso/Sources/hr_example(.*?).csv --regex --separator ;

The file contains two headers with the same name, each related to one kind of group. Thus, we need to rename one of these headers.

--input-file C:/UsercubeContoso/Sources/hr_example(.*?).csv --regex --separator ; --headers-edit-name "Members MembersAzure"

In this example, we will consider that the two Members columns contain all members for each group separated by a , for the first Members column, and by a * for the second one. We need to transform these columns in Identity Manager's format for multi-valued attributes.

--input-file C:/UsercubeContoso/Sources/hr_example(.*?).csv --regex --separator ; --headers-edit-name "Members MembersAzure" --columns-multivalued "MembersAzure ," "Members *"

Arguments

Argument Name	Details
--input-path required	Type String Description Specifies the CSV file to modify. Example Define C:/UsercubeContoso/Sources/hr_example.csv as input file: --input-file C:/UsercubeContoso/Sources/hr_example.csv.
--output-path optional	Type String Description Specifies the output path, which is the exports' output path by default. Example Define C:/UsercubeContoso/Test as output folder: --output-path "C:/UsercubeContoso/Test".
--new-name optional, required if --regex is true	Type String Description Specifies the new name for the output file. Example Define new name hr_transformed.csv: --new-name hr_transformed.csv.
--input-file-encoding default value: UTF-8	Type String Description Encoding of the input file. See the list of available encodings. Example --input-file-encoding UTF-16.
--headers-edit-index optional	Type String List Description Specifies the headers to edit by index, which is particularly useful to rename empty headers. Each member of the list is written like index newHeader. Example Add or replace header at index 1 with ExampleHeader : --headers-edit-index "1 ExampleHeader".
--headers-edit-name optional	Type String List Description Specifies the headers to rename (first found) with the new name. Each member of the list is written like currentHeader newHeader. Example Rename headers CompanyId into Company and int32_1 into int32: --headers-edit-name "CompanyId Company" "int32_1 int32".
--headers-remove-index optional	Type Integer Description Specifies the headers to remove by index. This command can be used to remove the second occurrence of a duplicate header by specifying its index. Example Remove header located at index 5: --headers-remove-index 5.
--headers-remove-name optional	Type String List Description Specifies the headers to remove by name (first found). Example Remove first occurrences of headers date1 and bool1: --headers-remove-name date1 bool1.
--new-headers optional	Type String List Description ONLY for files without headers, specifies the new headers except the ones created by the concatenation of columns. Example Defines header1 and header2 as headers of the file: --new-headers header1 header2.
--columns-concat optional	Type String List Description Specifies the columns to concatenate and how. Each member of the list is written like column1Header column2Header. If you want to specify characters between the column values, you can write column1Header column2Header charactersBetween. This operation creates a new column where it puts the result of the concatenation. This column header is the concatenation of the headers, but you can change it by writing the member like column1Header column2Header charactersBetween newColumnHeader. Example Concatenate columns: - Company and Employee with a - between them. ID will be the new column header. - guid1 and bytes1 with _ between them. - int32_2 and int64_2 with nothing in between. --columns-concat "Company Employee - ID" "guid1 bytes1 _" "int32_2 int64_2" .
--columns-multivalued optional	Type String List Description Specifies the columns with multi-valued values not splittable with breaks. Each member of the list is written like columnHeader separator. Example Handle columns multivalued1, using separator ,, and multivalued2, using separator *: --columns-multivalued "multivalued1 ," "multivalued2 *".
--columns-date optional	Type String List Description Specifies the columns with date values, and their date format, to format them into Identity Manager's format. Each member of the list is written like columnHeader dateFormat. Example Format date columns date1 and date2, using the format yyyyddMMHHmmss: --columns-date "date1 yyyyddMMHHmmss" "date2 yyyyddMMHHmmss".
--columns-bool optional	Type String List Description Specifies the columns with Boolean values to convert them into Identity Manager's format. Example Format Boolean columns bool1 and bool2: --columns-bool bool1 bool2.
--columns-int32 optional	Type String List Description Specifies the columns with Int32 values to convert them into Identity Manager's format. Example Format Int32 columns int32_1 and int32_2 : --columns-int32 int32_1 int32_2.
--columns-int64 optional	Type String List Description Specifies the columns with Int64 values to convert them into Identity Manager's format. Example Format Int64 columns int64_1and int64_2: --columns-int64 int64_1 int64_2.
--columns-guid optional	Type String List Description Specifies the columns with Guid values to convert them into Identity Manager's format. Example Format Guid columns guid1and guid2: --columns-guid guid1 guid2.
--columns-bytes optional	Type String List Description Specifies the columns with Bytes values to convert them into Identity Manager's format. Example Format Bytes columns bytes1 and bytes2: --columns-bytes bytes1 bytes2.
--columns-key optional	Type String List Description Specifies the columns key to delete duplicates (the first line found is the one we keep). A column created by this tool can be specified as a key column through this argument, like the columns created by the --columns-concat for example. Example Define columns RawId and ID as keys: --columns-key RawId ID.
---	---
--regex optional	Type No Value Description The file name is a regex so we find the last generated corresponding file.
--separator optional	Type String Description Defines the separator if different than ,.

Usercube-Decrypt-File

In Identity Manager, files are encrypted by default. This tool decrypts an input file to save it into an output file or an OutPutConsole that can be used in Powershell scripts or programs.

Examples

Result loaded in OutPutConsole (PowerShell Script)

The following example, used in a Powershell script, saves in the variable decryptFile the string obtained by decrypting the files specified by the ordersFile variable. The decryption is made using the agent side certificate defined in the agent's appsettings.json.

$decryptFile = & ./identitymanager-Decrypt-File.exe --files $ordersFile

Arguments

Argument Name	Details
--files (-f) required	Type String Description List of all the files to decrypt.
--encoding (-e) default value: UTF-8	Type String Description Encoding used for any encryption/decryption. See the list of available encodings.
--output-path (-o) optional	Type String Description Output path to save all decrypted files. Note: used only when the result is saved in a file.
---	---
--log-level optional	Type LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Usercube-EasyVistaTicket-UpdateFulfillmentState

The use of this executable supposes a previous use of the Usercube-Fulfill-ToEasyVistaTicket executable.

Usercube-Fulfill-ToEasyVistaTicket creates tickets in an EasyVista instance: Usercube-EasyVistaTicket-UpdateFulfillmentState sets the fulfillment state of the corresponding assigned resource types in Identity Manager for tickets that are closed (Executed) or canceled (Error).

Examples

Connector specified

When specifying --connector, there is no need to specify --resource-types:

--connector "3" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

But the identifier can be also given instead of the id:

--connector "EasyVista" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

In this example, for all resource types that have a target entity type of the connector EasyVista, we set the fulfillment state of the corresponding assigned resource types.

Resource types specified

When specifying --resource-types, there is no need to specify --connector:

--resource-types "40" "41" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

But the identifiers can be also given instead of the id:

--resource-types "EasyVista_NominativeUser" "EasyVista_Administrator" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret"--url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

In this example, for the resource types EasyVista_NominativeUser and EasyVista_Administrator, we set the fulfillment state of the corresponding assigned resource types.

Arguments

Argument Name	Details
--api-client-id required	Type String Description Login used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-secret required	Type String Description Password used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-url required	Type String Description URL of Identity Manager server.
---	---
--url required	Type String Description EasyVista API Endpoint URL.
--account required	Type String Description EasyVista account.
--login required	Type String Description Path of the file used for complete synchronization.
--password required	Type String Description EasyVista server password.
---	---
--connector required if --resource-typesis not given	Type String Description Id or Identifier of the resource types' connector we want to update the fulfillment state.
--resource-types required if --connectoris not given	Type String List Description Id or Identifier of the resource types we want to update the fulfillment state.
--certificate-identifier optional	Type String Description Unique key used to retrieve the certificate in Azure Key Vault.
--vault optional	Type String Description Vault uri.
--vault-connection-string optional	Type String Description Connection string to connect to Azure Key Vault.
--batch-size default value: 1000	Type Int32 Description Number of provisioning orders to wait between each progress report.
--task-instance-id optional	Type String Description Id of the task instance which have launch the exe in a job context (for log purposes).

Usercube-Encrypt-File

In Identity Manager, files are encrypted by default. This tool encrypts an input file or the InputConsole of a Powershell program or file to save it as an encrypted output file. This task cannot be configured in the configuration.

Examples

Launch the tools with input console (powershell script)

The following example, used in a Powershell script, decrypts the file(s) specified by the csvResult variable and saves the result in the location specified in resultsFile. The encryption is made using the certificate's thumbprint, store location and store name.

$csvResult | & ./identitymanager-Encrypt-File.exe --file-cert-thumbprint $certificateThumbprint --file-cert-store-location $certificateStoreLocation --file-cert-store-name $certificateStoreName --output-path $resultsFile

Arguments

Argument Name	Details
--files (-f) optional	Type String Description List of all the files to encrypt. Note: required when the entry is made of files.
--output-path (-o) optional	Type String Description Output path to save the encrypted files or input console.
---	---
--file-cert-thumbprint optional	Type String Description Thumbprint of the certificate when the certificate is in the store.
--file-cert-dn optional	Type String Description Subject Distinguished Name of the certificate when the certificate is in the store.
--file-cert-store-location optional	Type String Description Store location of the certificate when the certificate is in the store.
--file-cert-store-name optional	Type String Description Store name of the certificate when the certificate is in the store.
--file-cert-file optional	Type String Description File path of the certificate when the certificate is in a PFX file.
--file-cert-password optional	Type String Description Password of the certificate when the certificate is in a PFX file.
---	---
--log-level optional	Type LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Usercube-Export-Bacpac

This tool exports the database to a bacpac file, as a backup.

Examples

The following example generates to <C:/UsercubeDemo> a bacpac file from the Identity Manager database with the given connection string and based on the bacpac template from the SQL folder.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

./identitymanager-Export-Bacpac.exe --database "<Usercube>" -s "<data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;>" --bacpac-path 0 --template-bacpac-path "<C:/UsercubeDemo/SQL>"

Arguments

The list of arguments:

Argument Name	Type	Description
--database-connection-string (-s) required	String	Connection string of the database.
--database required	String	Name of the database.
--template-bacpac-path required	String	Path of the empty bacpac file or dacpac file containing the database schema. The database export tool includes a .dacpac file, <Usercube.SqlServer.dacpac>, in the Runtime folder and should be used as the value for this parameter. It can be generated manually by exporting an empty Identity Manager database.
--temp-bacpac-path optional	String	Path of the temporary folder storing the database's data.
--bacpac-path required	String	Path of the generated bacpac file.
--without-history default value: false	Boolean	True to exclude history data.
--without-job-instances default value: false	Boolean	True to exclude job and task instances.
--without-workflow-instances default value: false	Boolean	True to exclude workflow instances.
--without-campaign-instances default value: false	Boolean	True to exclude access certification campaign items.
--without-temp default value: false	Boolean	True to exclude the data of temporary tables.
--without-all default value: false	Boolean	True to exclude history data, job and task instances, workflow instances and access certification campaign items. Remember, this option represents the usual use-case.
--log-level optional	LogLevel	Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Usercube-Export-Csv

Examples

Exporting a file respecting the default parameters

Consider the file C:/UsercubeContoso/Sources/hr_example.csv with , as separator and UTF8 encoding, it can be exported with the command:

--raw-files-path C:/UsercubeContoso/Sources/hr_example.csv --ignore-cookies --connection-identifier HREXAMPLE --output-path C:/UsercubeContoso/Temp/ExportOutput

The output file will be located in C:/UsercubeContoso/Temp/ExportOutput/HREXAMPLE.csv and the content will be a copy of hr_example.csv's one and an UTF8 encoding.

Define a separator

Consider the file C:/UsercubeContoso/Sources/hr_example.csv with ; as separator.

As , is considered to be the default separator, we must set it:

--raw-files-path C:/UsercubeContoso/Sources/hr_example.csv --ignore-cookies --connection-identifier HREXAMPLE --output-path C:/UsercubeContoso/Temp/ExportOutput --separator ;

The result's content will be the same but with , as separator.

Use a regex file name

Consider that you deal with a generated file that follows the regex: C:/UsercubeContoso/Sources/hr_example(.*?).csv, for example C:/UsercubeContoso/Sources/hr_example5fH8g1.csv. If several files match with the regex, the executable uses the last one that was generated.

You can put your regex and precise that it is one with the --regex argument:

--raw-files-path C:/UsercubeContoso/Sources/hr_example(.*?).csv --ignore-cookies --connection-identifier HREXAMPLE --output-path C:/UsercubeContoso/Temp/ExportOutput --regex

Use the Path Duality and the Not-Launch-Export System

In a larger context, the export might be used for complete or incremental synchronization. That is why it has two paths: --raw-files-path for complete synchronizations, --path-incremental for incremental ones.

In the export's scope, it only means one thing, what path must be used depends on --ignore-cookies: its presence meaning that we are in a complete synchronization context and we use --raw-files-path; its absence that we are in an incremental one and we use --path-incremental.

It means that if the user gives --ignore-cookies and not --raw-files-path, or if they give neither --ignore-cookies nor --path-incremental, the export will not be launched to prevent any problem (complete data for an incremental synchronization for example). The --force-complete argument bypasses this security: in the product, it is used for the initialization job, where we want to perform a complete synchronization, even for CSV connections with only an incremental path.

Arguments

Argument Name	Details
--connection-identifier optional	Type String Description Connector's connection identifier. The output file will have this identifier as name.
--output-path required	Type String Description Output path for the files generated by the export.
---	---
--ignore-cookies optional	Type No Value Description Specifies the synchronization mode, its presence meaning complete, its absence incremental.
---	---
--regex optional	Type No Value Description The file name is a regex so we find the last generated corresponding file.
--separator optional	Type String Description Defines the separator if different than ,.

Usercube-Export-EasyVista

This tool is made to export entities from an EasyVista instance to CSV files.

The hardcoded entities named Employees can be fetched directly using the URL of the EasyVista instance. To export other entities, you have to create a view of your data on EasyVista to be able to fetch an internalquery.

Examples

Exporting entities by specifying attributes

It is possible to export data by specifying the attribute names to fetch, for each exported table:

--url "https://test-fr-vp-01.easyvista-training.com" --login "usercube" --password "usercube2021" --connection-identifier "ConnectionEasyVista" --attributes "table1=[NAME_FR, LOGIN]|table2=[NAME_EN, PROFIL]|Employee=[EMPLOYEE_ID]"  --output-path "C:/EasyVistaExport" --account "{account}" --cookie-path "C:/EasyVistaExport" --log-level Verbose --fetching-urls "HTTPS://test-fr-vp-01.easyvista-training.com/api/v1/50011/internalqueries?queryguid={3226F4FE-F3FC-4301-965A-32E546707BD0}&filterguid={9F3146C5-4EE0-4D1A-A4B9-8DC87A63C4E4}&viewguid={99E2223F-C1E0-4A14-87E8-C39C14325C03}" "HTTPS://test-fr-vp-01.easyvista-training.com/api/v1/50011/internalqueries?queryguid={57667FCD-134B-48A7-A188-CE700EF02C15}&filterguid={B4B3A15D-1DE2-41B5-91A7-A8E8343784E1}&viewguid={DB9C013B-28E0-45C8-A4C2-79E7D43C5421}" --entity-names "table1" "table2"

Exporting entities using entities defined in configuration

It is also possible to export data by specifying the Identity Manager's server URL, so the export tool automatically fetches the entity type mapping property names linked to the specified connection:

--url "https://test-fr-vp-01.easyvista-training.com" --login "usercube" --password "usercube2021" --connection-identifier "ConnectionEasyVista" --output-path "C:/EasyVistaExport" --account "{account}" --cookie-path "C:/EasyVistaExport" --log-level Verbose --fetching-urls "HTTPS://test-fr-vp-01.easyvista-training.com/api/v1/50011/internalqueries?queryguid={3226F4FE-F3FC-4301-965A-32E546707BD0}&filterguid={9F3146C5-4EE0-4D1A-A4B9-8DC87A63C4E4}&viewguid={99E2223F-C1E0-4A14-87E8-C39C14325C03}" "HTTPS://test-fr-vp-01.easyvista-training.com/api/v1/50011/internalqueries?queryguid={57667FCD-134B-48A7-A188-CE700EF02C15}&filterguid={B4B3A15D-1DE2-41B5-91A7-A8E8343784E1}&viewguid={DB9C013B-28E0-45C8-A4C2-79E7D43C5421}" --entity-names "table1" "table2" --api-url "http://localhost:5000" --api-client-id Job  --api-secret secret

For each exported table, there is a resulting CSV file containing exported data.

The server has to be running.

Arguments

| Argument Name | Details | | ----------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | ------------------------------- | | --attributes optional | Type String list Description List of attributes to enrich the research. Format is: -at "Table1=[last_name, begin_of_contract, department_id, location_id] | Table2=[profile_id, e_mail]" | | --fetching-urls required if --entity-names is set | Type String list Description The specific URLs to fetch data, corresponding to entity names. It must be the same length and have the same order as --entity-names. | | --entity-names required if --fetching-urls is set | Type String list Description The corresponding table names to fetch data, corresponding to fetching URLs. It must be the same length and have the same order as --fetching-urls. |

--url required	Type String Description EasyVista API Endpoint URL.
--account required	Type String Description EasyVista account.
--login required	Type String Description Path of the file used for complete synchronization.
--password required	Type String Description EasyVista server password.

Usercube-Export-Excel

Examples

Exporting a file respecting the default parameters

Consider the file C:/UsercubeContoso/Sources/hr_example.xlsx with UTF8 encoding, it can be exported using these command's arguments:

--raw-files-path C:/UsercubeContoso/Sources/hr_example.xlsx --not-incremental --connection-identifier HREXAMPLE --output-path C:/UsercubeContoso/Temp/ExportOutput

The output file(s) will be located in C:/UsercubeContoso/Temp/ExportOutput/. Their number corresponds to the number of sheets in the XLSX file and they would be labeled: HREXAMPLE_0.csv, HREXAMPLE_1.csv, ... HREXAMPLE_n-1.csv where n corresponds to the amount of spread sheets of the XLSX file. The encoding is UTF8 and the separator is ,.

Skipping some file's lines

The possibility to skip lines is made available using the --lines-to-skip argument:

--raw-files-path C:/UsercubeContoso/Sources/hr_example.xlsx --not-incremental --connection-identifier HREXAMPLE --output-path C:/UsercubeContoso/Temp/ExportOutput --lines-to-skip 10

As a consequence, the exported file would include the content of the XLSX file without the ten first lines.

Regex in file name

Considering a generated file following the regex: C:/UsercubeContoso/Sources/hr_example(.*?).xlsx, for instance C:/UsercubeContoso/Sources/hr_example5fH8g1.xlsx, if several files match with the regex, the executable would use the most recent one.

The regex can be included in the filename and would need to be precised using the --is-regex argument:

--raw-files-path C:/UsercubeContoso/Sources/hr_example(.*?).xlsx --not-incremental --connection-identifier HREXAMPLE --output-path C:/UsercubeContoso/Temp/ExportOutput --is-regex

Choosing value to trim

It's possible to precise characters to trim using the --values-to-trim argument:

--raw-files-path C:/UsercubeContoso/Sources/hr_example.xlsx --not-incremental --connection-identifier HREXAMPLE --output-path C:/UsercubeContoso/Temp/ExportOutput --values-to-trim e

The CSV output file will see every words beginning and ending by "e" (lower-case, this process is case sensitive) removed of this letter.

Ignoring particular sheets

The --sheets-ignored argument allows the user to specify for each sheet if it should be ignored during the export. More precisely, a list of true or false arguments should be specified respectively to the sheets. Let's say the C:/UsercubeContoso/Sources/hr_example.xlsx file possesses three sheets, in order to export the first and the last ones the arguments would be:

--raw-files-path C:/UsercubeContoso/Sources/hr_example.xlsx --not-incremental --connection-identifier HREXAMPLE --output-path C:/UsercubeContoso/Temp/ExportOutput --sheets-ignored false true true false

Thus, two CSV files would be created corresponding to the the chosen ones: HREXAMPLE_0.csv and HREXAMPLE_3.csv.

Path Duality and the Not-Launch-Export System

The export executable might be used for a complete or an incremental synchronization. Thus, it possesses two paths that could be precised - depending on the case - with the --raw-files-path for complete synchronizations argument or the --path-incremental for incremental ones.

At the end of the day, the --not-incremental argument defines the export behavior: if present it means a complete synchronization should be performed and the --raw-files-path argument must be precised; if missing an incremental synchronization would be performed using --path-incremental.

It means that if the user provide the --not-incremental argument and no --raw-files-path, or if the user doesn't provide --not-incremental nor --path-incremental, the export will not be launched to prevent any issue (complete data for an incremental synchronization for instance). The --force-complete argument bypasses this safeguard: during the initialization job for example, where we want to perform a complete synchronization, even for Excel connections with only an incremental path.

Arguments

Argument Name	Details
--not-incremental optional	Type No Value Description Specifies the synchronization mode, its presence meaning complete, its absence incremental.
--is-regex optional	Type No Value Description The file's name is a regex so we find the last generated corresponding file.
---	---
--connection-identifier optional	Type String Description Connector's connection identifier. The output file will have this identifier as name.
--output-path required	Type String Description Output path for the files generated by the export.

Usercube-Export-Scim

This tool is made to export entries from a SCIM API to CSV files.

Examples

Exporting entities by specifying attributes

It is possible to export data by specifying the attribute names to fetch, for each exported table:

--server "https://scim-server.com" --connection-identifier "ConnectionSCIM" --output-path "C:/SCIMExport" --cookie-path "C:/SCIMExport" --log-level Verbose --login "usercube" --password "usercube2021" --filter-entities "Users|username eq \"john\";username name:givenName|familyName"

Exporting entities using entities defined in configuration

It is also possible to export data by specifying the Identity Manager's server URL, so the export tool automatically fetches the entity type mapping property names linked to the specified connection:

--server "https://scim-server.com" --login "usercube" --password "usercube2021" --connection-identifier "ConnectionSCIM" --output-path "C:/SCIMExport" --cookie-path "C:/SCIMExport" --log-level Verbose --api-url "http://localhost:5000" --api-client-id Job  --api-secret secret

The server has to be running.

Exporting entities with a token authentication

It is possible to export data by specifying the attribute names to fetch, for each exported table:

--server "https://scim-server.com" --connection-identifier "ConnectionSCIM" --output-path "C:/SCIMExport" --cookie-path "C:/SCIMExport" --log-level Verbose --oauth-token "MyToken" --filter-entities "Users|username eq \"john\";username name:givenName|familyName"

Arguments

Argument Name	Details
--cookie-path required	Type String Description Path of the cookie file for incremental export.
--filter-entities optional	Type String Description List of the non group entities and corresponding attributes to export. Syntax: EntityNameInSCIM1
--filter-entities-group optional	Type String Description Works as �filter-entities but for entities with members. Syntax: EntityNameInSCIM1
--attributes-in-filter optional	Type No Value Description Specifies true if the server is not available and the entities and their attributes to export are given in the filter-entities and filter-entities-group arguments.
---	---
--connection-identifier optional	Type String Description Connector's connection identifier. The output file will have this identifier as name.
--output-path required	Type String Description Output path for the files generated by the export.
---	---
--ignore-cookies optional	Type No Value Description Specifies the synchronization mode, its presence meaning complete, its absence incremental.
---	---
--server required	Type String Description URL of the SCIM endpoints of your application, not including the v2.
--login optional	Type String Description Specifies the login of the account you may need.
--password optional	Type String Description Specifies the password of the account you may need.
--application-id optional	Type String Description Specifies the application connection login or the login of your application's id provider.
--application-key optional	Type String Description Specifies the application connection password or the password of your application's id provider.
--oauth-url optional	Type String Description The server's url when using OAuth2 authentication.
--oauth-token optional	Type String Description Specifies the OAuth token to connect to the application.
--scim-syntax optional	Type Enum Description Specifies the syntax used for requests body. Has to be one of those values: Salesforce (default value) or CyberArk

Usercube-FillBankingDatabase

Example

Import the banking sources to the BankingSystem database.

The Banking demo application uses a database named BankingSystem. Once the database is created, the tables should be created and the sources should be imported, otherwise the Banking demo application will be empty.

Consider that the database's connection string is "data source=.;Database=BankingSystem;", the sources are located in the C:/SDK/DemoApps/Sources folder, and the BankingSystemTables script is located in C:/SDK/DemoApps/Banking. We initialize the database to create its tables, and import the sources.

--connection-string "data source=.;Database=BankingSystem;" --sources-path C:/SDK/DemoApps/Sources --banking-sql-path C:/SDK/DemoApps/Banking

Arguments

Argument Name	Details
--banking-sql-path required	Type String Description Specifies the path to the folder containing the BankingSystemTables.sql file. Example Set path to C:/SDK/DemoApps/Banking: --connection-string "data source=.;Database=BankingSystem;".
--connection-string required	Type String Description Specifies the connection string of the BankingSystem database. Example Set the connection string's data source to the local machine: --connection-string "data source=.;Database=BankingSystem;".
--sources-path required	Type String Description Specifies the path to the banking sources folder. Example Set path to C:/SDK/DemoApps/Sources: --sources-path C:/SDK/DemoApps/Sources.

Usercube-Fulfill-EasyVista

This executable creates, updates and archives employees in an EasyVista instance.

Examples

Connector specified

When specifying --connector, there is no need to specify --resource-types:

--connector "3" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

But the identifier can be also given instead of the id:

--connector "EasyVista" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

Resource types specified

When specifying --resource-types, there is no need to specify --connector:

--resource-types "40" "41" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

But the identifiers can be also given instead of the id:

--resource-types "EasyVista_NominativeUser" "EasyVista_Administrator" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret"--url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

Arguments

Argument Name	Details
--api-client-id required	Type String Description Login used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-secret required	Type String Description Password used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-url required	Type String Description URL of Identity Manager server.
---	---
--url required	Type String Description EasyVista API Endpoint URL.
--account required	Type String Description EasyVista account.
--login required	Type String Description Path of the file used for complete synchronization.
--password required	Type String Description EasyVista server password.
---	---
--connector required if --resource-typesis not given	Type String Description Id or Identifier of the resource types' connector we want to update the fulfillment state.
--resource-types required if --connectoris not given	Type String List Description Id or Identifier of the resource types we want to update the fulfillment state.
--certificate-identifier optional	Type String Description Unique key used to retrieve the certificate in Azure Key Vault.
--vault optional	Type String Description Vault uri.
--vault-connection-string optional	Type String Description Connection string to connect to Azure Key Vault.
--batch-size default value: 1000	Type Int32 Description Number of provisioning orders to wait between each progress report.
--task-instance-id optional	Type String Description Id of the task instance which have launch the exe in a job context (for log purposes).

Usercube-Fulfill-Scim

This executable creates, updates and deleles entries in an application using the SCIM API.

Examples

Connector specified

When specifying --connector, there is no need to specify --resource-types:

--connector "3" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://scim.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

But the identifier can be also given instead of the id:

--connector "SCIM" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://scim.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

Resource types specified

When specifying --resource-types, there is no need to specify --connector:

--resource-types "40" "41" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://scim.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

But the identifiers can be also given instead of the id:

--resource-types "SCIM_NominativeUser" "SCIM_Administrator" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret"--url "https://scim.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

Arguments

Argument Name	Details
--api-client-id required	Type String Description Login used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-secret required	Type String Description Password used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-url required	Type String Description URL of Identity Manager server.
---	---
--server required	Type String Description URL of the SCIM endpoints of your application, not including the v2.
--login optional	Type String Description Specifies the login of the account you may need.
--password optional	Type String Description Specifies the password of the account you may need.
--application-id optional	Type String Description Specifies the application connection login or the login of your application's id provider.
--application-key optional	Type String Description Specifies the application connection password or the password of your application's id provider.
--oauth-url optional	Type String Description The server's url when using OAuth2 authentication.
--oauth-token optional	Type String Description Specifies the OAuth token to connect to the application.
--scim-syntax optional	Type Enum Description Specifies the syntax used for requests body. Has to be one of those values: Salesforce (default value) or CyberArk

Usercube-Fulfill-ToEasyVistaTicket

This executable creates tickets in an EasyVista instance.

Examples

Connector specified

When specifying --connector, there is no need to specify --resource-types:

--connector "3" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

But the identifier can be also given instead of the id:

--connector "EasyVista" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

Resource types specified

When specifying --resource-types, there is no need to specify --connector:

--resource-types "40" "41" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret" --url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

But the identifiers can be also given instead of the id:

--resource-types "EasyVista_NominativeUser" "EasyVista_Administrator" --api-url "http://localhost:5000/" --api-client-id "Job" --api-secret "secret"--url "https://easyvista.contoso.com" --account "12345" --login "Contoso" --password "cOntoSo6789"

Arguments

Argument Name	Details
--api-client-id required	Type String Description Login used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-secret required	Type String Description Password used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect ClientId/Secret pair, linked to a profile with the relevant permissions.
--api-url required	Type String Description URL of Identity Manager server.
---	---
--url required	Type String Description EasyVista API Endpoint URL.
--account required	Type String Description EasyVista account.
--login required	Type String Description Path of the file used for complete synchronization.
--password required	Type String Description EasyVista server password.
---	---
--connector required if --resource-typesis not given	Type String Description Id or Identifier of the resource types' connector we want to update the fulfillment state.
--resource-types required if --connectoris not given	Type String List Description Id or Identifier of the resource types we want to update the fulfillment state.
--certificate-identifier optional	Type String Description Unique key used to retrieve the certificate in Azure Key Vault.
--vault optional	Type String Description Vault uri.
--vault-connection-string optional	Type String Description Connection string to connect to Azure Key Vault.
--batch-size default value: 1000	Type Int32 Description Number of provisioning orders to wait between each progress report.
--task-instance-id optional	Type String Description Id of the task instance which have launch the exe in a job context (for log purposes).

Usercube-Generate-Configuration

Generates from a CSV file the configuration of a connector with these entities.

Overview

Two subcommands are possible for generation.

• simpleconnector
• complexconnector

The simple connector allows you to generate the configuration for a CSV file and create the connector. The complex connector allows you to generate the configuration for a list of CSV files and create the connector.

1. Simple connector

From a CSV file, generates the configuration of the entity representing the CSV file.

The subcommand___simpleconnector**_**must precede the arguments.__

2. Complex connector

From a list of CSV files, generates the configuration of the entities representing each file. The complex connector requires as an argument an xml file containing all the CSV files to be processed as well as the primary keys of these files.

Example of xml file

<Connector xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" Name="HR" DefaultEncoding="UTF-8" DefaultSeparator=";">    <File Path="C:/identitymanager/Sources/rh_persons.csv" />    <File Path="C:/identitymanager/Sources/rh_services.csv" />    <File Path="C:/identitymanager/Sources/rh_sites.csv" />    <File Path="C:/identitymanager/Sources/rh_Categories.csv" />    <PrimaryKey Path="C:/identitymanager/Sources/rh_persons.csv" Header="EmplyoeId" EntityTypeName="HR_Person" />    <PrimaryKey Path="C:/identitymanager/Sources/rh_services.csv" Header="Code" EntityTypeName="HR_Service" />    <PrimaryKey Path="C:/identitymanager/Sources/rh_sites.csv" Header="Code" EntityTypeName="HR_Site" />    <PrimaryKey Path="C:/identitymanager/Sources/rh_Categories.csv" Header="Code" EntityTypeName="HR_Category" /></Connector>

• Path: CSV file path.
• File: Name of the files to be processed.
• PrimaryKey: Fills in the primary key of the CSV file.
• Header: Column name in the CSV file.
• EntityTypeName: Indicates the name of the entity to be created.
• Name: name of the connector to be created.

The subcommand___complexconnector**_**must precede the arguments.__

Examples

Simple connector

./identitymanager-Generate-Configuration.exe simpleconnector -g "C:/GeneratedFile/file" -f "C:/SourceFile/confFile.csv"

Complex connector

./identitymanager-Generate-Configuration.exe complexconnector -g "C:/GeneratedFile/file" "C:/SourceFile/confFile.xml"

Arguments

Argument Name	Details
--generated-file (-g) required	Type String Description Path to the generated file.
--csv-path (-h) optional	Type String Description Path to the CSV file. Note: used only for a simple connector.
--encoding (-e) optional	Type String Description Encoding of the CSV file. See the list of available encodings. Note: used only for a simple connector.
--csv-separator (-t) optional	Type String Description Column separator of the CSV file. Note: used only for a simple connector.
--generated-connector (-r) optional	Type String Description Name of the generated connector. Note: used only for a simple connector.
--keep-all-columns (-k) optional	Type No Value Description Keeps all the columns.
--connector-description optional	Type String Description XML file that describes the CSV files and their primary key columns.
---	---
--file-cert-thumbprint optional	Type String Description Thumbprint of the certificate when the certificate is in the store.
--file-cert-dn optional	Type String Description Subject Distinguished Name of the certificate when the certificate is in the store.
--file-cert-store-location optional	Type String Description Store location of the certificate when the certificate is in the store.
--file-cert-store-name optional	Type String Description Store name of the certificate when the certificate is in the store.
--file-cert-file optional	Type String Description File path of the certificate when the certificate is in a PFX file.
--file-cert-password optional	Type String Description Password of the certificate when the certificate is in a PFX file.
---	---
--log-level optional	Type LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

Usercube-Get-JobSteps

This agent-side tool returns the list of all tasks present in a given job.

Examples

.\Usercube-Get-JobSteps.exe --api-url "http://localhost:5000" --api-client-id "Job" --api-secret "secret" --job-identifier "InitializationJob"

Task : InitializationJob_0_CreateDatabaseViews, Order : 0
Task : InitializationJob_1_AD_ExportActiveDirectory_Initial_ADExport, Order : 1
Task : InitializationJob_2_LDAP_ExportLDAP_Initial_LDAPExport0, Order : 2
Task : InitializationJob_3_LDAP_ExportLDAP_Initial_LDAPExport1, Order : 3
Task : InitializationJob_4_AD_PrepareSynchronizationActiveDirectory_Initial, Order : 4
Task : InitializationJob_5_HR_PrepareSynchronization_Initial, Order : 5
Task : InitializationJob_6_LDAP_PrepareSynchronization_Initial, Order : 6
Task : InitializationJob_7_SAB_PrepareSynchronization_Initial, Order : 7
Task : InitializationJob_8_AD_SynchronizeActiveDirectory_ForceSynchronization, Order : 8
Task : InitializationJob_9_HR_Synchronize_ForceSynchronization, Order : 9
Task : InitializationJob_10_LDAP_Synchronize_ForceSynchronization, Order : 10
Task : InitializationJob_11_SAB_Synchronize_ForceSynchronization, Order : 11
Task : Init_SetAdminProfile, Order : 12
Task : Init_DatabaseIndex, Order : 13
Task : InitializationJob_14_AllEntities_UpdateEntityPropertyExpressions, Order : 14
Task : InitializationJob_15_AllEntities_ComputeCorrelationKeys, Order : 15
Task : InitializationJob_16_ComputeRoleModel, Order : 16
Task : InitializationJob_17_Directory_GenerateProvisioningOrders_ForceProvisioning, Order : 17
Task : InitializationJob_18_Directory_FulfillInternalResources_IgnoreHistorization, Order : 18
Task : InitializationJob_19_AllEntities_ComputeCorrelationKeys, Order : 19
Task : InitializationJob_20_ComputeRoleModel, Order : 20
Task : Init_SetManualAssignments, Order : 21
Task : Init_ApproveFutureuserAccountContol, Order : 22
Task : InitializationJob_23_AllEntities_ComputeCorrelationKeys, Order : 23
Task : InitializationJob_24_ComputeRoleModel, Order : 24
Task : InitializationJob_25_Directory_GenerateProvisioningOrders_ForceProvisioning, Order : 25
Task : InitializationJob_26_Directory_FulfillInternalResources_IgnoreHistorization, Order : 26
Task : InitializationJob_27_AllEntities_ComputeCorrelationKeys, Order : 27
Task : InitializationJob_28_ComputeRoleModel, Order : 28
Task : InitializationJob_29_Directory_GenerateProvisioningOrders_ForceProvisioning, Order : 29
Task : InitializationJob_30_Directory_FulfillInternalResources_IgnoreHistorization, Order : 30
Task : Directory_Collect_Initial, Order : 31
Task : Directory_Synchronization_Init, Order : 32
Task : InitializationJob_33_AllEntities_UpdateEntityPropertyExpressions, Order : 33
Task : InitializationJob_34_DeployConfiguration, Order : 34
Task : InitializationJob_36_AllEntities_ComputeCorrelationKeys, Order : 35
Task : InitializationJob_37_ComputeRoleModel, Order : 36
Task : InitializationJob_38_ComputeRiskScores, Order : 37
Task : Init_LoadApplications, Order : 38
Task : Init_LoadPhotos, Order : 39
Task : InitializationJob_41_UpdateClassification, Order : 40
Task : InitializationJob_42_SetInternalUserProfiles, Order : 41
Task : InitializationJob_43_ResetValidFrom, Order : 42
Task : InitializationJob_44_UpdateParametersContextDisplayNames, Order : 43
Task : Init_Translate, Order : 44
Task : Init_SetLastLogon, Order : 45
Task : Init_SuggestedRoles, Order : 46
Task : InitializationJob_49_AllEntities_ComputeCorrelationKeys, Order : 47
Task : InitializationJob_50_ComputeRoleModel, Order : 48
Task : InitializationJob_51_SavePreExistingAccessRights, Order : 49

Arguments

Argument Name	Details
--api-client-id optional	Type String Description Login to Identity Manager server.
--api-secret optional	Type String Description Password to Identity Manager server.
--api-url optional	Type String Description URL of Identity Manager server.
--job-identifier required	Type String Description Identifier of the job whose tasks/steps are to be listed.
---	---
--log-level optional	Type LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

References: Executables

• Identity Manager-Agent

  Runs the Agent.

• Usercube-Anonymize

  Transforms strings to anonymize given data.

• Usercube-Compute-CorrelationKeys

  Computes the values of all correlation keys.

• Usercube-Configuration-Transform

  Applies a series of transformation.

• Usercube-Create-DatabaseViews

  Generates entity model SQL views in the Identity Manager database.

• Usercube-CSV-Transform

  Modifies a CSV file by performing operations on its headers and/or columns.

• Usercube-Decrypt-File

  Decrypts an input file to save it into an output file or an OutPutConsole that can be used in Powershell scripts or programs.

• Usercube-Deploy Configuration

  Retrieves all XML configuration files from a given folder, in order to calculate the configuration items to insert, update or delete in the application.

• Usercube-EasyVistaTicket-UpdateFulfillmentState

  Updates the assigned resource types according to EasyVista tickets state.

• Usercube-Encrypt-File

  Encrypts an input file or the InputConsole of a Powershell program or file to save it as an encrypted output file.

• Usercube-Export-Bacpac

  Exports the database to a bacpac file.

• Usercube-Export-Configuration

  Generates in a folder the files of the configuration found in the database.

• Usercube-Export-Csv

  Exports CSV files.

• Usercube-Export-EasyVista

  Exports CSV files.

• Usercube-Export-Excel

  Exports Excel files.

• Usercube-Export-Scim

  Exports SCIM entries to a CSV file.

• Usercube-FillBankingDatabase

  Fills the BankingSystem database for the Banking demo application.

• Usercube-Fulfill-EasyVista

  Creates, updates and archives employees in an EasyVista instance.

• Usercube-Fulfill-Scim

  Creates, updates and deleles entries in an application using the SCIM API.

• Usercube-Fulfill-ToEasyVistaTicket

  Creates ticket in an EasyVista instance.

• Usercube-Generate-Configuration

  Generates from a CSV file the configuration of a connector with these entities.

• Usercube-Get-JobSteps

  Returns the list of all tasks present in a given job.

• Usercube-Invoke-Job

  Launches a job on the agent side.

• Usercube-Invoke-ServerJob

  Launches jobs on the server side.

• Usercube-Login

  Provides an authentication token needed for SaaS configuration deployment/export.

• Identity Manager-Manage-Configuration Dependent Indexes

  Creates the necessary indexes based on the latest deployed configuration to optimize performances.

• Usercube-Manage-History

  Manages the data history stored in the database. It can purge old data or consolidate the history.

• Usercube-New-OpenIDSecret

  Allows to generate the hashed password of the secret to connect to the given client for agent side job Identity Manager.

• Usercube-PasswordGenerator

  Generates a password.

• Usercube-Prepare-Synchronization

  Cleanses exported CSV files.

• Usercube-Protect-CertificatePassword

  Encrypts a .pfx archive password using a Identity Manager provided RSA key.

• Usercube-Protect-X509JsonFile

  Encrypts sensitive data from a given JSON file.

• Usercube-Protect-X509JsonValue

  Encrypts the values of sensitive data.

• Usercube-RefreshSchema

  Refreshes the schema of a given connection. Takes as input a connection, and refreshes its schema. The result of the update is stored into the database.

• Usercube-Send-PasswordNotification

  Sends a mail notification for a password initialization or change.

• Usercube-Server

  Runs the Server.

• Usercube-Update-EntityPropertyExpressions

  Recomputes the values of all properties defined via expressions.

• Usercube-Upgrade-ConfigurationVersion

  Upgrades your configuration from your current version entered in settings to the latest version.

• Usercube-Upgrade-DatabaseVersion

  Runs all the migration scripts to upgrade the database.

• Identity Manager-Agent

  Runs the Agent.

• Usercube-Check-ExpressionsConsistency

Usercube-Invoke-Job

This tool launches a job on the agent side.

Behavior Details

The Usercube-Invoke-Job.exe tool is a state machine.

When a job is launched, the state machine starts by computing all the tasks that must be launched in the job.

Each task is assigned a launch order which can be configured in Job steps. All the job's tasks are grouped together according to their launch order, and they are launched by group. Such task grouping allows the job to be faster executed.

The launch orders of all the tasks of a job can be listed by using the Usercube-Get-JobSteps executable.

Before any task is launched, the state machine checks the task's parent tasks in order to verify whether the task must be launched or not.

If the task must be launched, then the state machine checks whether the task should be started server- or agent-side.

Then the task is launched, and then:

• if the task completes successfully, then the next task is loaded and started, or if this was the last task then the job ends successfully;

• if the task exits in error, then the whole job exits in error and stops;

• if the job is requested to stop from the UI, then the job's state switches to cancelled and is transmitted to the current task in order to not launch the next task;

  A canceled job is not stopped straight away, as the current task first needs to be finished.

• if the task exits in error while the warning mode is active, then the next job is loaded.

  Only export tasks can have this warning mode.

• if the task exits blocked, then the whole job stops and can be restarted manually at its breakpoint;

  Only synchronization and provisioning tasks can exit blocked.

In the case where the job is blocked and restarted:

• if the blocked task is a Synchronize Task , then the state machine runs a synchronization validation on the related connector, and uses the id of the blocked task instance to synchronize the related tables;

• if the blocked task is a GenerateProvisioningOrdersTask, then the state machine forces the same provisioning on the related connector.

  Both the synchronization validation and the forced provisioning are virtual jobs that do not exist in the database. However, they will be visible in the UI which keeps track of any launched task.

In both cases, the state machine resumes the job with the tasks that were not started due to the blockage.

Any task launched by the state machine is linked to a job instance in order to keep track of the launch group.

Example

./identitymanager-Invoke-Job.exe -j "AccessCertificationEnd" --api-secret secret --api-client-id Job --api-url "http://localhost:5000"

Arguments

Argument Name	Details
---	---
--job-identifier (-j) required	Type String Description Job's identifier to be launched.
--repair-job (-r) optional	Type No Value Description Bool to Decide launch Synchronization Validation or Provisioning with force.
--begin-job-step (-b) optional	Type String Description The step from which the job starts.
--end-job-step (-e) optional	Type String Description The step at which the job stops.
--task-identifier (-t) optional	Type String Description Specify the identification of the task to be started in the job (only this task will be started).
--force-synchronization-provisioning (-f) optional	Type Int64 Description Forces execution when the threshold is reached or exceeded.
--task-type (-c) optional	Type String Description The first task found with this type is launched.
--task-string-contains (-s) optional	Type String Description Launches all tasks with an identifier containing the given value.
---	---
--api-client-id required	Type String Description Login used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect /Secret pair, linked to a profile with the relevant permissions.
--api-secret required	Type String Description Password used to authenticate to the server. Every request from agent to server needs to be authenticated with an OpenIdClient Connect /Secret pair/Secret pair, linked to a profile with the relevant permissions.
--api-url required	Type String Description URL of Identity Manager server.

Usercube-Invoke-ServerJob

Invoke a Job (Server Side)

To launch the job in the Server side only you need to run the executable Usercube-Invoke-ServerJob.exe.

To know the task launch orders in job use the following exe: Usercube-Get-Job Steps .exe. See the Usercube-Get-JobSteps topic for additional information.

Examples

.\Usercube-Invoke-ServerJob.exe -g "CleanDatabase" -s secret

Arguments

Argument Name	Details
---	---
--job-identifier (-j) required	Type String Description Job's identifier to be launched.
--repair-job (-r) optional	Type No Value Description Bool to Decide launch Synchronization Validation or Provisioning with force.
--begin-job-step (-b) optional	Type String Description The step from which the job starts.
--end-job-step (-e) optional	Type String Description The step at which the job stops.
--task-identifier (-t) optional	Type String Description Specify the identification of the task to be started in the job (only this task will be started).
--force-synchronization-provisioning (-f) optional	Type Int64 Description Forces execution when the threshold is reached or exceeded.
--task-type (-c) optional	Type String Description The first task found with this type is launched.
--task-string-contains (-s) optional	Type String Description Launches all tasks with an identifier containing the given value.

Usercube-Login

Delegates the authentication process to a third-party Identity Provider which will provide an authentication token required to allow the remote deployment/export of Identity Manager configuration.

The provided authentication token is meant to be sent to the Identity Manager administrator.

Examples

The following example launches the authentication to Identity Manager's in-house Identity Provider (IDP). It will open your default browser to http://localhost:5005 where you will be redirected to Identity Manager's IDP that will provide you with the authentication token.

./identitymanager-Login.exe

The following example launches the authentication to a specific Identity Provider whose authentication URL and Client Id are respectively https://my_oidc_authentication_server.com and 34b3c-fb45da-3ed32. It will open your default browser to http://localhost:5005 where you will be redirected to the IDP that will provide you with the authentication token.

./identitymanager-Login.exe --authority https://my_oidc_authentication_server.com --client-id 34b3c-fb45da-3ed32

The following example launches the authentication to Identity Manager's Identity Provider, but using a specific port 5050. It will open your default browser to http://localhost:5050 where you will be redirected to Identity Manager's IDP. that will provide you with the authentication token.

./identitymanager-Login.exe --port 5050

Arguments

Argument Name	Details
--authority optional	Type String Description Base URL of the Identity Provider used for authentication. When not specified, Identity Manager provides an in-house Identity Provider.
--client-id optional	Type String Description Client Id of the application authorized to delegate the authentication to the specified Identity Provider. When not specified, Identity Manager provides the Client Id for the in-house Identity Provider. Note: ask for this id to your internal administrator.
--port default value: 5005	Type Int64 Description Port used to run the local web page.

Identity Manager-Manage-Configuration Dependent Indexes

This tool creates the necessary SQL indexes based on the latest deployed configuration to optimize certain queries performances.

Available optimizations:

• Creates SQL indexes and statistics to optimize searches on specific entity types
• Creates SQL indexes to optimize joins between records and main entity types
• Creates SQL indexed views used to compute dashboard counters

Examples

./identitymanager-Manage-ConfigurationDependantIndexes.exe -e "Directory_User" -r "Directory_UserRecord" "Directory_Guest" -dc -s  "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" -a

./identitymanager-Manage-ConfigurationDependantIndexes.exe -auto -dc -s "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;" -a

## Arguments

| Argument Name | Details |
| --- | --- |
| --entityTypes (-e)   optional | __Type__    String List   __Description__ Sets the list of entity types for which optimization indexes will be created/updated. |
| --recordEntityTypes (-r)   optional | __Type__    String List   __Description__ Sets the list of record entity types for which optimization indexes will be created/updated. |
| --userProperties (-p)   optional | __Type__    String List   __Description__ Sets the list of User' properties that link the records and the users. (the order of the given userProperties' must match the order of the given recordEntityTypes'). |
| --dashboardCounter (-dc)   optional | __Type__    No Value   __Description__ Adjusts the indexed views for the dashboard counters appropriately. |
| --auto   optional | __Type__    No Value   __Description__ The entity types, record entity types and user properties are deduced automatically from the provisioning rules configured in the database. |
| --apply-to-database (-a)   optional | __Type__    No Value   __Description__ Directly applies the resulting SQL script to the database. |
|  |  |
| --- | --- |
| --database-connection-string   required | __Type__    String   __Description__ Connection string of the database. |

Usercube-Manage-History

This tool optimizes the data history stored in the database, reducing its size and enhancing database performance.

The inner workings of this executable are based on the ValidFrom and ValidTo attributes that specify the validity period of a given assignment. These attributes are inside the following tables which are the tables actually purged: ur_resources; ur_resourcelinks; up_assignedcompositeroles; up_assignedsingleroles; up_assignedresourcenavigations; up_assignedresourcetypes.

Examples

Purge before a period

To clean the database periodically, it can be purged of all the history older than a given period of time.

The following example deletes all the history from the database that is more than 12-month old:

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

./identitymanager-Manage-History.exe --purge-before-months 12 --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

Purge before a date

The database can be purged of all history older than a given date.

The following example deletes all the history from the database older than May 26th 1993:

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

./identitymanager-Manage-History.exe --purge-before-date 19930526 --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

Optimize

The database's history can be optimized by removing intermediate versions based on their age, for example keeping only one version the last week, one per month the last 6 months and then one per year for 3 years.

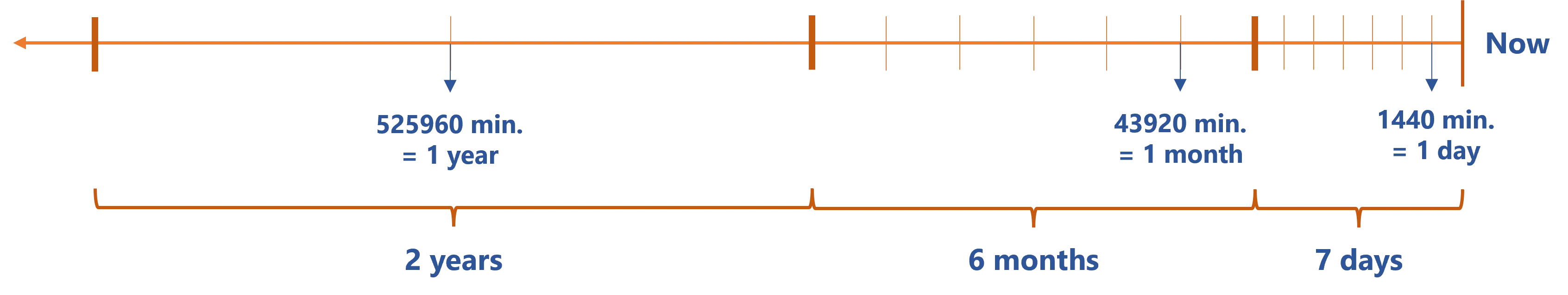

The following example reduces the history from the database, keeping at most one history version per interval. Here we keep one version per day (1440 minutes) in the last 7 days, then one version per month (43920 minutes) in the last 6 months before the previously defined period, then one version per year (525960 minutes) in the last 2 years before the previously defined periods.

For each period, if there is more than one version (i.e. ValidFrom is inside the interval), the versions are merged in the following way:

• The latest version is kept
• The oldest date is kept (that is, in the database, the ValidFor is equal to the one of the oldest version in the considered period).

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

./identitymanager-Manage-History.exe --optimize "1440:7 43920:6 525960:2" --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

If you want to configure a time period when there is no purge and all history is kept as is, then you can specify a short duration that allows a single change, for example only one minute. The following example copies the previous one, in addition we want to keep all changes of the last 6 hours (360 minutes): --optimize 1:360 1440:7 43920:6 525960:2.

Clean duplicates

As given data can have several versions in the database, redundant rows can be deleted and replaced with one row that covers the consolidated time range.

The following example remove all duplicates in the database.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

./identitymanager-Manage-History.exe --clean-duplicates --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

The following example remove all duplicates induced by the pwdLastSet property.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

./identitymanager-Manage-History.exe --clean-duplicates --excluded-resource-columns "pwdLastSet" --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

Solicit memory rather than the database

To reduce the database load, the tool's optimizations can be made via the local device's memory.

The following example deletes all the history from the database that is more than 12-month old, the optimizations being computed in memory instead of in the database:

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

./identitymanager-Manage-History.exe --purge-before-months 12 --in-memory --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"

Arguments

Argument Name	Type	Description
--clean-duplicates optional	No Value	Removes duplicate historical data.
--entity-type required if --excluded-resource-columns is set	String	When using --clean-duplicates option, defines the entity type (Id or Identifier) that should have its duplicates removed from the UR_Resources table.
--excluded-resource-columns required if --entity-type is set	String list	When using --clean-duplicates option, defines the list of column names (the name of the columns in the UR_Resources table, or the Identifier of the corresponding um_entityproperty) to exclude when comparing rows of UR_Resources table.
--in-memory default value: False	No value	Performs optimizations in memory instead of the database. It implies heavy memory consumption but light SQL load.
--optimize optional	String list	Reduces the history and optimizes the versions that are kept based on the precision given through ranges in the argument. A range is specified by a duration in minutes followed by the number of occurrences. For example 60:10 defines a range of 60 minutes repeated 10 times, or 10 snapshots repeated at 60 minute intervals. For each interval, at most one version is kept in the history. The intervals are evaluated in the given order from now, backwards. In the previous example, it means the more recent versions are kept with a high precision (one per day initially), then with lesser and lesser precision (one per month and then one per year). If the data has not changed over an interval, no optimization can be done.
--purge-before-date optional	String	Deletes all the history older than the given date in the yyyyMMdd format.
--purge-before-months optional	String	Deletes all the history older than the given number of months.
--database-connection-string required	String	Connection string of the database.

The available actions (clean duplicates; purge; optimize) are all optional, but at least one must be used in the executable command.

Usercube-New-OpenIDSecret

This tools generates an hash. In practice, we hash a client secret but the tool can generate randomly a hash without an input string. The name of the executable is: Usercube-New-OpenIDSecret.exe'.

Examples

./identitymanager-New-OpenIDSecret.exe --client-secret
Shared secret for 'secret' is 'K7gNU3sdo+OL0wNhqoVWhr3g6s1xYv72ol/pe/Unols='

The output shows the client secret and its hashed version. It must be entered in the OpenIdClient configuration.

Arguments

Argument Name	Details
--client-secret optional	Type String Description OpenID client secret that will be hashed by the program.
---	---
--log-level optional	Type LogLevel Description Level of log information among: Verbose; Debug; Information; Warning; Error; Fatal.

# Usercube-PasswordGenerator

## Example

### Manually generate a password

Consider an external system that is fulfilled manually and requires a new password.

To avoid writing the password in any file while still choosing a cryptographically secure password,
we generate it just before using it.

`--auto-generate true --digit-chars 2 --lower-case-chars 6 --symbol-chars 2 --upper-case-chars 2`

## Arguments

| Argument Name                                         | Details                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                         |
| ----------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| --default-password required if auto-generate is false | **Type** String **Description** Specifies the default password used when `--auto-generate` is false. **Example** Set default password to password: `--default-password password`.                                                                                                                                                                                                                                                                                                                                                                                               |
| --auto-generate default value: false                  | **Type** No Value **Description** Specifies if the password should be the default password or generated automatically. **Example** Use default password: `--auto-generate false`.                                                                                                                                                                                                                                                                                                                                                                                               |
| --digit-chars default value: 0                        | **Type** Integer **Description** Specifies the number of digits in the generated password. If the value is strictly positive, additional digits may be generated if `--generated-length` is higher than the sum of `--digit-chars`, `--lower-chase-chars`, `--symbol-chars`, and `--upper-case-chars`. **Example** Generate a password with 2 digits: `--digit-chars 2`.                                                                                                                                                                                                        |
| --generated-length default value: 0                   | **Type** Integer **Description** Specifies the length of the generated password. If it is lower than the sum of `--digit-chars`, `--lower-chase-chars`, `--symbol-chars`, and `--upper-case-chars`, the length of the generated password is equal to the sum. If it is higher than the sum of `--digit-chars`, `--lower-chase-chars`, `--symbol-chars`, and `--upper-case-chars`, extra characters of any type will be generated. **Example** Set a password length of 12: `--generated-length 12`.                                                                             |
| --lower-case-chars default value: 0                   | **Type** Integer **Description** Specifies the number of lower case characters in the generated password. If the value is strictly positive, additional lower case characters may be generated if `--generated-length` is higher than the sum of `--digit-chars`, `--lower-chase-chars`, `--symbol-chars`, and `--upper-case-chars`. If the sum of `--digit-chars`, `--lower-chase-chars`, `--symbol-chars`, and `--upper-case-chars` is 0, only lower case characters will be generated. **Example** Generate a password with 6 lower case characters: `--lower-case-chars 6`. |
| --strength-check default value: "^.\*"                | **Type** String **Description** The regular expression to check the password strength. By default, any password passes the strength check. **Example** Accept any password: `--strength-check ^.*`.                                                                                                                                                                                                                                                                                                                                                                             |
| --symbol-chars default value: 0                       | **Type** Integer **Description** Specifies the number of symbols in the generated password. If the value is strictly positive, additional symbols may be generated if `--generated-length` is higher than the sum of `--digit-chars`, `--lower-chase-chars`, `--symbol-chars`, and `--upper-case-chars`. **Example** Generate a password with 2 symbols: `--symbol-chars 2`.                                                                                                                                                                                                    |
| --upper-case-chars default value: 0                   | **Type** Integer **Description** Specifies the number of upper case characters in the generated password. If the value is strictly positive, additional upper case characters may be generated if `--generated-length` is higher than the sum of `--digit-chars`, `--lower-chase-chars`, `--symbol-chars`, and `--upper-case-chars`. **Example** Generate a password with 2 upper case characters: `--upper-case-chars 2`.                                                                                                                                                      |

# Usercube-Protect-CertificatePassword

This tool helps protecting `.pfx` archives passwords. Given a plain text password, it generates an
encrypted version, that can be stored in a configuration file in place of the plain text one. The
tool uses a hard-coded secret RSA key to generate the encrypted password. Identity Manager uses the
same key to retrieve the plain text password and read the `.pfx` archive.

## Examples

Given a `.pfx` archive protected by the `secret` password, an encrypted version can be generated
with the following command:

```
./identitymanager-Protect-CertificatePassword.exe --pfx-password "secret"
```

The output is the following :

```

ep4BsLtg5RVFVI1kEIMZbV1q7Bg2eAFzeD73YX5fV7eklSIqcJcxHsCQbyY2zKLppXSX+Zpwm7xU5QY6DTAJleFbWsP/p0fjXUn1agy1tQ6l6t6wvURBZcePEgu+ivNjpUENbDIBotPdzbpISLJIjQbISzHDWnHuWPk/l8h0wXU=@WrAj9YdcNK8cQvfopZa5g1QFc1hk6nPolkwQAkU2ORfXupgV7kaWgKF4W/UmC0XXg4zuaqpVui6ivB0jbLTiXgQ62o+bG9ZSEJLaur4d20TMRNadqnWTWPWhVJF6XiS4jX7sDvVrZO3sKQJMNzZSeTKmsl0w0boCBEkuHsWDA24=@0oLLKxcTJGxSx1uGvhexEA==

```

This encrypted password can now be copied to the relevant location in a configuration file. For
example :

```
appsettings.json

{
...
 "EncryptionCertificate": {
    "File": "C:/UsercubeAgentContoso/contoso.pfx",
    "Password": "ep4BsLtg5RVFVI1kEIMZbV1q7Bg2eAFzeD73YX5fV7eklSIqcJcxHsCQbyY2zKLppXSX+Zpwm7xU5QY6DTAJleFbWsP/p0fjXUn1agy1tQ6l6t6wvURBZcePEgu+ivNjpUENbDIBotPdzbpISLJIjQbISzHDWnHuWPk/l8h0wXU=@WrAj9YdcNK8cQvfopZa5g1QFc1hk6nPolkwQAkU2ORfXupgV7kaWgKF4W/UmC0XXg4zuaqpVui6ivB0jbLTiXgQ62o+bG9ZSEJLaur4d20TMRNadqnWTWPWhVJF6XiS4jX7sDvVrZO3sKQJMNzZSeTKmsl0w0boCBEkuHsWDA24=@0oLLKxcTJGxSx1uGvhexEA=="
  }
...
}

```

## Arguments

| Name                    | Details                                                                      |
| ----------------------- | ---------------------------------------------------------------------------- |
| --pfx-password required | **Type** String **Description** Password of the `.pfx` archive's to encrypt. |

# Usercube-Protect-X509JsonFile

This tool is used to encrypt a JSON file containing sensitive connection data, for example the
`appsettings-agent.json` file, with
[ RSA Encryption ](/docs/identitymanager/6.2/reference/index.md). The
encryption is based on the information given in your `appsettings.json` file about either a PFX file
or the location of the encryption certificate in the Microsoft store. See the
[Application Settings](/docs/identitymanager/6.2/administration/server-configuration/general-settings.md)
topic for additional information.

This tool `Usercube-Protect-X509JsonFile` is used to encrypt a whole file, in comparison to the
[ Usercube-Protect-X509JsonValue ](/docs/identitymanager/6.2/reference/command-line-tools/utility-tools.md) tool that encrypts only a
given value. This tool is more appropriate than `Usercube-Protect-X509JsonValue` when you have many
lines to encrypt.

## Examples

The command below encrypts the `appsettings.agent.json` file from the `C:/UsercubeTraining` folder
and creates the `appsettings.encrypted.agent.json` file in the same folder.

```

./identitymanager-Protect-X509JsonFile.exe --input-json-file-path "C:/UsercubeTraining/appsettings.agent.json" --output-json-file-path "C:/UsercubeTraining/appsettings.encrypted.agent.json"

```

For example it takes this :

```
appsettings.agent.json

{
  "TaskAgentConfiguration": {
    "HttpClientTimeoutSupplement": 0
  },
  "OpenId": {
    "OpenIdClients": {
      "Job": "secret"
    },
    "DefaultOpenIdClient": "Job"
  },

  "PasswordResetSettings": {
    "TwoFactorSettings": {
      "ApplicationUri": "http://localhost:3000"
    },
    "NotificationSettings": {
      "Cultures": [
        "en"
      ]
    }
  },
  ...
}

```

And it returns this :

```
appsettings.encrypted.agent.json

{
  "TaskAgentConfiguration": {
    "HttpClientTimeoutSupplement": "kxABAEh6CpUOAOMBNPNLKazx9I0vqummv24acN292gonFiK4ov81bjqE2ic+n+HqastXU2aTQcl3IefhEXn9KA2dhnIbDTXB4GhOn9lL9AzUfwKXBr5EBmVy7ggruG2ewpWGK1c3LBJ35km9XvCnzSHLfolZwHNPwM/8b/C6XqSzieoFcO5H92IGJ1lFRboacvp0rO+SkkUv63Ewsk+1MrVLa63oBgWfY6PhMeJvNpWGqCD+I614hB6jE2Li/recwQIPd10XEgFM1OEkZ5ZiO+URxX7MCBe1o20rTaczKR7e7lLQGa/e3Y3i1sFnCm+yRm/lzw0qtDvOtCXlPT13EsHsUunxnR3uH4R6lRBXT30OKobaX7MTQjGkLRChss/GVGCK5w=="
  },
  "OpenId": {
    "OpenIdClients": {
      "Job": "kxABAOkh0BF2GdMedpzmKZZWVWc8IYaiZO2dofmt7lLBP3vMYgLLZYNDyR3x7Ah7tA1r6oSL5gBT3mSFyXB63NJk+QmZqNW1LWdzh+3U+DvNdQw4OfDfFlC5F+nH3/L5iqWc+h1jMlaQBpkqf42Vr8HwFKtqMXLJVXEIyeHSPgHRp1iOjGkNSRNrRQGJ4pVyo0xKmcWsz3qGYf0SnJIzRJ++PcYh/dJgxHAZFsDnV55X3zg72J8teoIEG82GdNjmCV/W4S4edNCYa1gL3KpgDGQq1GEed71Ht1tVYlHlJ4hckE++otQqTgRA2p4nFvo3LmlMag6k4EQRzEk6TOHUlGjUtYgpzMuPqei8/3CRXy5o8YW5R0wVFJJ/jSfYrvR3M9SwJw=="
    },
    "DefaultOpenIdClient": "kxABANLI/Qx7X8L1VtIl+FM4RtYlTLLpUUBCp2pucY+jzjlwhbF9fjJhhTP/KmeCj8M2yB4AA1V3AQgcEBvg92I1vCAWXIBgCjz6LUD2yf4FCpACaxNgiBZVAaCELNCgbKDgy9UB1j4sCozpEzReLVtYdOX+KFbGU6zJ808jnrLFMz+YHT4LXMyF94A5Zl86DFT9br6PwR75qImvjDlIUt+7/I8WrT1Nnqn2hXxqzAd1J2W5Xv8Bt9sXFmskSZN9PyOo9EY9t5lVGq++IqjGPWh4vQAXCzIsfRgUfU7PfHKVuSKSHbME1EZwG/FjzOe8B4bO2q/a/qLtGgygyX5ExEkZ/IcrtSZnTdqC83AfyexlEv9Z3wWFAoKGDtI3zhmCZYnuZQ=="
  },
  "PasswordResetSettings": {
    "TwoFactorSettings": {
      "ApplicationUri": "kxABAFAEx4fWwG/ANPVTf/WGyccDxoR2xCy+x+U3Ny1KkqnOFw+SizePTgINTzBaYHLTHABQD0GWW6U+4qiG6DpcIcdAD0VVnddqB5a+YIE0reufXYhZTrDU/9yeG6aUWIHkLl9UudC/nnW6zMrjChiJhJvT7csFKdgbqUazZT56hR0i6XS36a5h2/tTWhbZTkk1Dil5JP7xUcu5CMWyXMUvGvK8gfQozYxo/DJTOiLrWjg5ION1yx+ZqPhcIUxgYaBjxSpfT6U9YMy5mE9JGqf7W76baS9fOVr3H1DAL02icX29uJAcsw1r9k1rJQIKEhAuqTNeuqF6C6iPHJAsail+iteOJEYgBSACRz7Te4t6Hp7PBs0FfP0WY1oL+1T+p7X+HaO1jAJhE50J2AKhGNXTZfE="
    },
    "NotificationSettings": {
      "Cultures": [
        "kxABAPwTbpFUbP9xT9HyqtTuMLKT9sVD0Qq1kCsI44d12vJEcW2MMy9K5vKakwTPeJpvY6SafELoHc7AjKnh8ZJi0/Yu4dieE5W+5uXY1uaghYJ/2VjimzIsDhvRhm90xUlaMjdFBjx4HAnxBAtEbEjifdGHxZ0L9F305hXSTORj53u76ctCE5D9HPTN3AgLmyIGv5NExwhD4sgppbf6PWjTEZ7yNcoUpkkS4pJ6BMz+PaQo26A2rMP710zQgG72an4XvxSoR3SwSm0fhLCASgYi8YOZw0j/cfxl/LrW1EQ7gyW0/Mw9v1YRNH3DkbWSeHZ3odhDWdaWkzR6yOEt5hO60eM0w8Tjoed30Jwf+enf1rJFStDe/dhg6vjUIaTn6tt1Gw=="
      ]
    }
  },
  ...
}

```

The previous command can be useful to encrypt, for example, an Active Directory's login used by the
agent during the synchronization process.

The login to encrypt is stored in the following format, compliant with the
[appsettings.agent](/docs/identitymanager/6.2/administration/agent-configuration/agent-settings.md).json
structure:

appsettings.beforeEncryption.json

```

{
  ...
  "Connections": {
    ...
    "ADExport": {
      "Login": "Administrator"
    }
  }
}
```

This command writes encrypted values from `appsettings.agent.json` to
`C:/UsercubeTraining/appsettings.encrypted.agent.json` following the
[appsettings.agent](/docs/identitymanager/6.2/administration/agent-configuration/agent-settings.md).json
structure:

```
appsettings.encrypted.agent.json
{
  ...
  "Connections": {
    ...
    "ADExport": {
      "Login": "kxABAM9LW6vyx3TpDXoU5mKKQAwxxNcH9Q2z+dk+E7BNzrI346fUUiPmnJlOJZNX8bA1sokpDHTJBJngdF8LqVuWhk0t+IBpHE+iRJZ4q6i/CzX/OnpoGEHLSL5gZUixIqn9kul5AbxI38d/aGkCGIeAGY73rf0eQRizB2uR/ObR/H9jm3dHGt3TUNyOH4WqdwrXL0WTeMyfme6O+2PMoGvmjVF04keicuisjj/jROxTcDKe69qjPuCJZabR69CA2qP1TPMDMy/zlg8bzRZKepw8VxI4OpIKrbwhaUTauJMR6URPsOZ54fdocKi3oEyvpm2AhX4YF8GpOw7fBQrPWte/JJFOxgIzH1Kh0d0YhC2ZpMCXexfOlB2Y9afWG/t7rdi4VDsEf8gwj+IJ3HbE0dtIPLw="
    }
  }
}
```

## Arguments

| Name                             | Details                                                                      |
| -------------------------------- | ---------------------------------------------------------------------------- |
| --input-json-file-path required  | **Type** String **Description** Path of the input to-be-encrypted json file. |
| --output-json-file-path required | **Type** String **Description** Path of the output encrypted json file.      |

# Usercube-Protect-X509JsonValue

This tool is used to encrypt sensitive connection data, for example data from the
`appsettings.agent.json` file, with
[ RSA Encryption ](/docs/identitymanager/6.2/reference/index.md). The
encryption is based on the information given in your `appsettings.json` file about either a PFX file
or the location of the encryption certificate in the Microsoft store. See the
[Application Settings](/docs/identitymanager/6.2/administration/server-configuration/general-settings.md)
topic for additional information.

This tool `Usercube-Protect-X509JsonValue` is used to encrypt only given values, in comparison to
the[ Usercube-Protect-X509JsonValue ](/docs/identitymanager/6.2/reference/command-line-tools/utility-tools.md) tool that encrypts a whole file. This tool is more
appropriate than `Usercube-Protect-X509JsonFile` when you have only a few lines to encrypt.

## Examples

The command below encrypts the task agent configuration `0` and the OpenId Client `secret` used in
the `appsettings.agent.json` file.

```

./identitymanager-Protect-X509JsonValue.exe --values "0" "secret"

```

As a response, the powershell returns one string per given value.

```

PS C:/UsercubeTraining/Runtime> ./identitymanager-Protect-X509JsonValue.exe --values "0" "secret"
kxABACJhXxJwnGJSug/nE6ODGGYwnzhX1WeYUHmS7gkMLpF15K7POOZAVWsl93zuYaVStPK0sV+U6mOE4h5IzbT083Uac+/NKic+qNZLYi4PRum+G17pIeSMBu3z7GQJxGGkAeX7dwf0kc/oDW5yAQ1BtFN+k27UHZkUrz0fe/eOZwTHbgV5sSUM+6pXW6IQd2VnVRRKLyWij0MAKsCNlHtv6QE73b8P8u7liRdzWOueqE2blAZk0rm0JzFxZlUQKgIMBTk2cuFWph7rp8dp8h8mDKJl9xbYzAtmM/rgXuhcMYryIrlqFeBWt1J65cfL7HNQb6OX7Imb2LQZmZMI2xc1gFyiXjeINeMriYm3zecnSBMiYEGW6RddE6doJOtrTyznrg==
kxABAJT+2u1C1r0JI8criUz15QkI71x6/BPeNMlPWEL5ZHkTvZWVnMLG/zNJz9PvnjfecROC4fkxPRI5U+sF8W1caH8DtxnzM0ctYD0QtRcpS9z48y2mUzOzl3pU68BQyosyZGZW0ifXVI9UJVGMzMTfWloCw+R+xfZHviYLVGT8y2PKkCBdNp7IcZN4qT6mq8AmTIMSgwagR854n1EHn8lT5nUUFmhZ7iIJ/sonEVG4uyTAjND9YXSsfL9dm2ipTzXrybruIkVU051aczdohreMRsfeSB6TDAYa3GEMNeAb3CzI5I/6NpKYEzZEoYu4JXAzE6bqHeK2oVJyrmTL11kwq4m9fTMwlwmB0GaPeJtbQoih6TIX2qlOPfQdsrZt0dl5qw==

```

Then you just need to copy and paste them.

The following example shows how to update the OpenId ClientSecret matching the "ContosoCharlotte"
OpenId ClientId in the `appsettings.encrypted.agent.json` file.

The initial `appsettings.encrypted.agent.json` file resembles the following:

```
appsettings.encrypted.agent.json before update
{
  ...
  "OpenId": {
    "OpenIdClients": {
      "ContosoCharlotte": "dKIHkloXG6i1LkxkhjkKoVKS9gFO7Hx8VUm"
    }
  }
}
```

The new ClientSecret to encrypt is _charlotte2028_.

Using the `Usercube-Protect-X509JsonValue.exe`:

```
./identitymanager-Protect-X509JsonValue.exe --values charlotte2028
```

The `--values` parameter also accepts multiple white-space-separated values for encryption.

The output, in the console, shows the encrypted value for the _charlotte2028_ string.

```

kxABABJR7wYaQIqNjHT/rhYVMp5Vmsao7/eBLb7JCIiHMOKbi2sC0dY0SAJgj50NQ0kEH5LS3Y3TYso98+IdnxAzpURrtNu/LUWCJo1kTLM/taygebc0MK4XbkFmWzEgzLcVhAIy8GyFgEWqgNhOx7vwSPXFRrhQTVqIjwO0QNqxlZ5s6uyQm5fk9es2o6aLL0xwbvqspReFxZwuHrguAoIvkBnaKSsDfTLSuheP6VN7yOglLHvZ8Sn9R42M2BpG/dKIHXG6i1LkxkKoVKS9gFO7Hx8VUmYgxG+qIKTRVHdpMctqWKNUJTsQkmRKs+S3qiA2mgK/iC/dp923TfigAnBLWtyXw8eKDJjZ+s6n878BIf55iEjpgOrbm5FLzj8dfqPhQw==

```

The last step is to update the `appsettings.encrypted.agent.json` file by copy/pasting this new
encrypted value to replace the old one. It results in:

```
appsettings.encrypted.agent.json after update
{
  "OpenId": {
    "OpenIdClients": {
      "ContosoCharlotte": "kxABABJR7wYaQIqNjHT/rhYVMp5Vmsao7/eBLb7JCIiHMOKbi2sC0dY0SAJgj50NQ0kEH5LS3Y3TYso98+IdnxAzpURrtNu/LUWCJo1kTLM/taygebc0MK4XbkFmWzEgzLcVhAIy8GyFgEWqgNhOx7vwSPXFRrhQTVqIjwO0QNqxlZ5s6uyQm5fk9es2o6aLL0xwbvqspReFxZwuHrguAoIvkBnaKSsDfTLSuheP6VN7yOglLHvZ8Sn9R42M2BpG/dKIHXG6i1LkxkKoVKS9gFO7Hx8VUmYgxG+qIKTRVHdpMctqWKNUJTsQkmRKs+S3qiA2mgK/iC/dp923TfigAnBLWtyXw8eKDJjZ+s6n878BIf55iEjpgOrbm5FLzj8dfqPhQw=="
    }
  }
}
```

## Arguments

| Name              | Details                                                    |
| ----------------- | ---------------------------------------------------------- |
| --values required | **Type** String **Description** List of values to encrypt. |

# Usercube-RefreshSchema

## Examples

`Usercube-RefreshSchema` can be used as an executable file as follows:

```
dotnet Usercube-RefreshSchema.dll --api-url myserver.usercube.com --api-client-id myclientid --api-secret myclient secret --connection-id -2

```

The credentials used to connect to the connection come from the
[appsettings.agent](/docs/identitymanager/6.2/administration/agent-configuration/agent-settings.md).

## Arguments

| Name                       | Details                                                                                                                                                                                                                                                                                                                               |
| -------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| --connection-id \*required | **Type** Integer **Description** Id of a connection whose schemas are updated. See the [ Connection ](/docs/identitymanager/6.2/development/configuration-toolkit/xml-configuration.md) topic for additional information.                                                                                                             |
|                            |                                                                                                                                                                                                                                                                                                                                       |
| ---                        | ---                                                                                                                                                                                                                                                                                                                                   |
| --api-client-id required   | **Type** String **Description** Login used to authenticate to the server. Every request from agent to server needs to be authenticated with an [ OpenIdClient ](/docs/identitymanager/6.2/development/configuration-toolkit/xml-configuration.md) Connect ClientId/Secret pair, linked to a profile with the relevant permissions.    |
| --api-secret required      | **Type** String **Description** Password used to authenticate to the server. Every request from agent to server needs to be authenticated with an [ OpenIdClient ](/docs/identitymanager/6.2/development/configuration-toolkit/xml-configuration.md) Connect ClientId/Secret pair, linked to a profile with the relevant permissions. |
| --api-url required         | **Type** String **Description** URL of Identity Manager server.                                                                                                                                                                                                                                                                       |
|                            |                                                                                                                                                                                                                                                                                                                                       |
| ---                        | ---                                                                                                                                                                                                                                                                                                                                   |
| --log-level optional       | **Type** LogLevel **Description** Level of log information among: `Verbose`; `Debug`; `Information`; `Warning`; `Error`; `Fatal`.                                                                                                                                                                                                     |

# Usercube-Send-PasswordNotification

## Examples

### Manually send a password initialization mail notification

Consider a user who needs an account in an external system. Consider that this account requires a
password.

As an example, we will consider that the id of the
[Resource Type Mappings](/docs/identitymanager/6.2/development/configuration-toolkit/xml-configuration.md)
associated with the external system is 10, and the id of the assigned resource type associated with
the user is 1000.

Once the password is set, we need to communicate this password to the user. We send a mail
notification to inform the user.

`--password true --assigned-resource-type 1000 --resource-type-mapping 10`

For the notification to be sent, the server set at **appsettings** > **ApplicationUri** should be
running.
The [Resource Type Mappings](/docs/identitymanager/6.2/development/configuration-toolkit/xml-configuration.md)
should have an associated
[ Password Reset Settings ](/docs/identitymanager/6.2/development/configuration-toolkit/xml-configuration.md).
For
the notification to be sent, the password reset settings should at least contain a notified email
binding.
For the notification to make sense, the password reset settings should at least contain a
beneficiary full name binding.

## Arguments

| Argument Name                     | Details                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 |
| --------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| --assigned-resource-type required | **Type** String **Description** Specifies the id of the assigned resource type corresponding to the user and the external system that is being fulfilled with a new password. This can be found in the provisioning order at **ProvisioningOrdersList** > **AssignedResourceTypeId**. **Example** Send a notification for the assigned resource type with id 1000: `--assigned-resource-type 1000`.                                                                                                                                                     |
| --password required               | **Type** String **Description** Specifies the new password that will be sent by mail. **Example** Send a notification for the password NewPassword: `--password NewPassword`.                                                                                                                                                                                                                                                                                                                                                                           |
| --resource-type-mapping required  | **Type** String **Description** Specifies the id of the [Resource Type Mappings](/docs/identitymanager/6.2/development/configuration-toolkit/xml-configuration.md) corresponding to the external system that is being fulfilled with a new password. This can be found in the provisioning order at **ProvisioningOrdersList** > **ResourceType** > **Id**, as the resource type and its corresponding resource type mapping share the same id. **Example** Send a notification for the resource type mapping with id 10: `--resource-type-mapping 10`. |
| --notification-cc optional        | **Type** Integer **Description** Specifies an address that should also receive the notification. **Example** Add [admin@acme.admin](mailto:admin@acme.admin) to the mail CC: `--notification-cc admin@acme.admin`.                                                                                                                                                                                                                                                                                                                                      |

# Usercube-Update-EntityPropertyExpressions

This tool is used to recompute the values of all properties defined via expressions (C#, etc.),
usually to prepare for a connector's synchronization.

## Examples

The following example updates the property expressions of the database defined by the connection
string, for all entity types.

```

./identitymanager-Update-EntityPropertyExpressions.exe --database-connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false" -a

```

## Arguments

| Argument Name                                 | Details                                                                                                                                                                                                                                  |
| --------------------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| --batch-select-size (-q) default value: 10000 | **Type** Int32 **Description** Batch size for SELECT queries. [See more details](https://docs.microsoft.com/en-us/azure/azure-sql/performance-improve-use-batching).                                                                     |
| --batch-update-size (-c) default value: 20000 | **Type** Int32 **Description** Batch size for UPDATE queries. [See more details](https://docs.microsoft.com/en-us/azure/azure-sql/performance-improve-use-batching).                                                                     |
|                                               |                                                                                                                                                                                                                                          |
| ---                                           | ---                                                                                                                                                                                                                                      |
| --database-connection-string required         | **Type** String **Description** Connection string of the database.                                                                                                                                                                       |
|                                               |                                                                                                                                                                                                                                          |
| ---                                           | ---                                                                                                                                                                                                                                      |
| --all-entityType (-a) optional                | **Type** No Value **Description** Applies the tool to all entity types.                                                                                                                                                                  |
| --batch-size (-q) default value: 5000         | **Type** Int32 **Description** Batch size for queries. [See more details](https://docs.microsoft.com/en-us/azure/azure-sql/performance-improve-use-batching).                                                                            |
| --dirty optional                              | **Type** No Value **Description** Applies the tool incrementally by applying it only to resources marked as dirty, i.e. recently modified.                                                                                               |
| --entitytype-list optional                    | **Type** String List **Description** List of entity types that the tool is to be applied to. **Note:** required when `--all-entityType` is not specified.                                                                                |
| --resource-identity-property optional         | **Type** String **Description** Property used to override the resource identity property set in the [ Select User by Identity Query Handler Setting ](/docs/identitymanager/6.2/development/configuration-toolkit/xml-configuration.md). |
|                                               |                                                                                                                                                                                                                                          |
| ---                                           | ---                                                                                                                                                                                                                                      |
| --log-level optional                          | **Type** LogLevel **Description** Level of log information among: `Verbose`; `Debug`; `Information`; `Warning`; `Error`; `Fatal`.                                                                                                        |

# Usercube-Upgrade-ConfigurationVersion

This tool is used to upgrade your configuration from your current version entered in settings to the
latest version.

## Examples

```

./identitymanager-Upgrade-ConfigurationVersion.exe --version "5.1.0" --xml-path "C:/UsercubeDemo/Conf" --output "C:/UsercubeDemo/Conf2"

```

In this example, the configuration files are in the folder "C:/UsercubeDemo/Conf" and at version
"5.1.0". This tools will upgrade all the xml files to the latest version and save them in the folder
"C:/UsercubeDemo/Conf2".

## Arguments

| Argument Name        | Details                                                                                                                           |
| -------------------- | --------------------------------------------------------------------------------------------------------------------------------- |
| --version required   | **Type** String **Description** Current version.                                                                                  |
| --xml-path required  | **Type** String **Description** Current xml configuration folder to migrate.                                                      |
|                      |                                                                                                                                   |
| ---                  | ---                                                                                                                               |
| --output required    | **Type** String **Description** Path of the folder where the result will be saved.                                                |
|                      |                                                                                                                                   |
| ---                  | ---                                                                                                                               |
| --log-level optional | **Type** LogLevel **Description** Level of log information among: `Verbose`; `Debug`; `Information`; `Warning`; `Error`; `Fatal`. |

# Usercube-Upgrade-DatabaseVersion

This tool is used to run the necessary migration scripts in order to upgrade the database structure
from its current version to the most recent version.

## Examples

To upgrade a database with the connection string `databaseConnectionString`, go to the Runtime
folder of the newest version and launch the tool with the following argument:

```

./identitymanager-Upgrade-DatabaseVersion.exe --connection-string "databaseConnectionString"

```

If the database has been correctly upgraded, the following message should appear:
`Database has been upgraded to version X.X.X`, with "X.X.X" being the newest version to which the
migration was made.

### With a Mode

The following example runs the database upgrade tool only for backward compatible changes.

```

./identitymanager-Upgrade-DatabaseVersion.exe --connection-string "databaseConnectionString" --mode BackwardCompatibleChanges

```

### With the Execute Predefined

The following example runs the database upgrade tool only for backward compatible changes and the
predefined script. As the predefined script is always executed in the other modes, this option is
useful only when specifying `--mode BackwardCompatibleChanges`.

```

./identitymanager-Upgrade-DatabaseVersion.exe --connection-string "databaseConnectionString" --mode BackwardCompatibleChanges --execute-predefined

```

## Arguments

| Argument Name                     | Details                                                                                                                                                                                                                                                                                                                                                                                                                                        |
| --------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| --connection-string (-s) required | **Type** String **Description** Connection string to the database. **Example** `--connection-string "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"`                                                                                                                                                                                                                                                |
| --execute-predefined optional     | **Type** No Value **Description** Indicates that the predefined SQL file must be executed, when using the `BackwardCompatibleChanges` mode.                                                                                                                                                                                                                                                                                                    |
| --mode default value: All         | **Type** Enum **Description** `All` - run all the script types. `BackwardCompatibleChanges` - only execute backward compatible scripts. **Note:** the previous runtime can still work. `BreakingChanges` - only execute breaking scripts. **Note:** the server must be stopped. `CleanupChanges` - only execute cleanup scripts, to cleanup the database after the server restarted with the new runtime. **Example** `--mode BreakingChanges` |
| --force-version optional          | **Type** String **Description** Forces the database version instead of using the current one to replay the migration scripts.                                                                                                                                                                                                                                                                                                                  |
