DisplayTable

A table displays a collections of entity type data grouped into rows.

Read more about how to customize display tables.

Examples

DisplayTableDesignElement

table

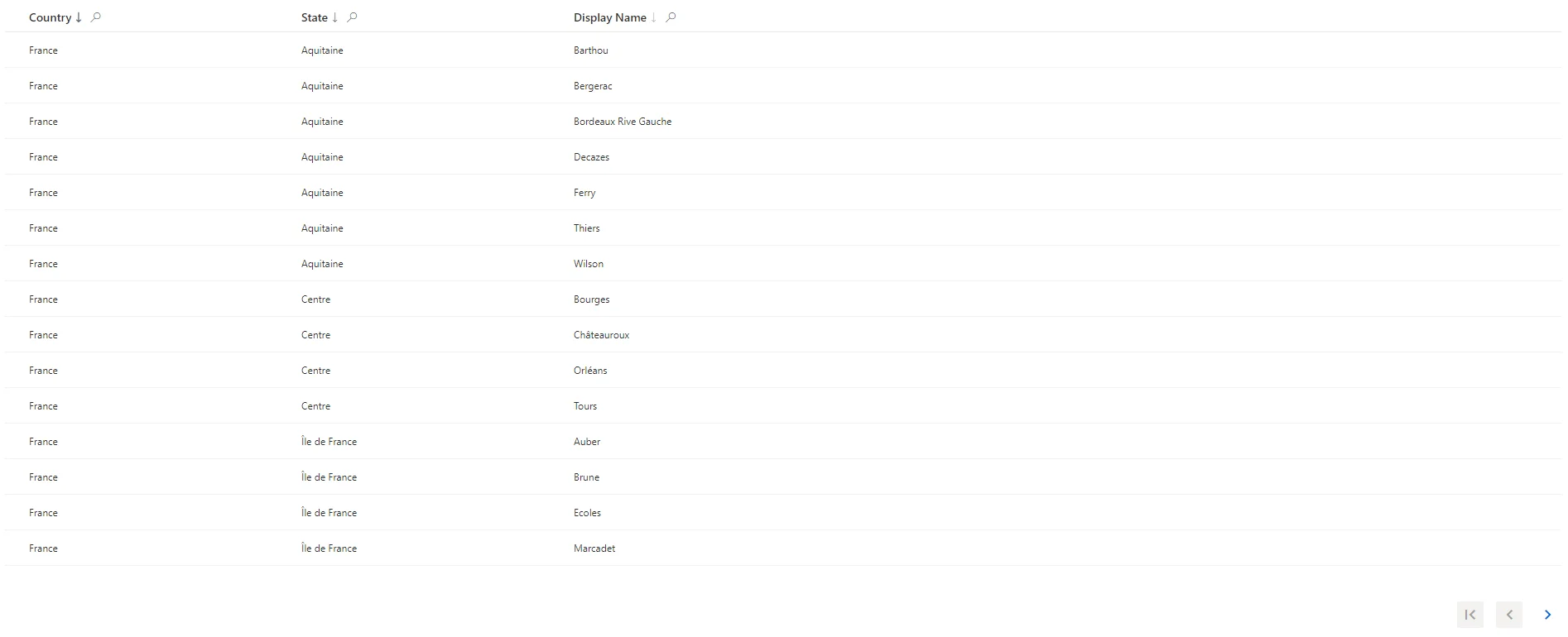

The following example displays sites as a table.

<DisplayTable Identifier="Directory_Site" EntityType="Directory_Site" DisplayTableDesignElement="table" IsEntityTypeDefault="true">
    <Column DefaultSortPriority="1" DisplayBinding="Region.Country.DisplayName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" DisplayName_L1="Country" />
    <Column DefaultSortPriority="2" DisplayBinding="Region.DisplayName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" DisplayName_L1="State" />
    <Column DefaultSortPriority="3" DisplayBinding="DisplayName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="8" />
</DisplayTable>

list

The following example displays users as a list.

note

For resources to be displayed as a list, the display table must also be configured with tiles.

resourcetable

The following example displays AD entries as a table, with an "Owner/Type" column.

<DisplayTable Identifier="AD_Entry" EntityType="AD_Entry" DisplayTableDesignElement="resourcetable" IsEntityTypeDefault="true">
    <Column DefaultSortPriority="1" DisplayBinding="dn" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="5" />
    <Column DisplayBinding="displayName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />
    <Column DisplayBinding="userPrincipalName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="4" />
    <Column DisplayBinding="objectCategory" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="1" />
</DisplayTable>

Properties

Property	Details
DisplayTableDesignElement required	Type: Enumeration Description: Design of the display table. -1 - table: resources are displayed in a table. -2 - list: resources are displayed in a list. -3 - resourcetable: resources are displayed in a table containing an "Owner/Type" column. -4 - adaptable: resources are displayed in a table with an "Owner/Type" column only if the entity type is the target of a resource type, otherwise the table is without said column.
EntityType required	Type: Int64 Description: Represents the linked entity type.
HomonymEntityLink optional	Type: Int64 Description: Defines the homonym display table.
Identifier required	Type: String Description: Unique identifier of the table.
IsEntityTypeDefault default value: false	Type: Boolean Description: Default display table used in the application.
LinesPerPage default value: 15	Type: Int32 Description: Defines the maximum lines per page.
ParentProperty optional	Type: Int64 Description: Property to navigate to the parent level when the table displays a tree of values (for example Organization.ParentOrganization).

Child Element: Column

Contains all the display table columns.

Examples

    <Column DefaultSortPriority="1" DisplayBinding="dn" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="4" />
    <Column DisplayBinding="userPrincipalName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />
    <Column DisplayBinding="userAccountControl" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="1" />
    <Column DisplayBinding="rdn" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />
    <Column DisplayBinding="displayName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />
    <Column DisplayBinding="objectCategory" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />

Properties

Property	Details
AddedMinutes optional	Type: Int32 Description: Add minutes to the date field with this property. If the value is not defined, the default value is the one defined for the associated display entity property.
CanBeFiltered default value: false	Type: Boolean Description: Can filter the column data.
ColumnSize default value: 1	Type: Int32 Description: Defines the column size.
DefaultSortPriority optional	Type: Int32 Description: Defines the default sort priority.
DisplayBinding optional	Type: Int64 Description: Represents the linked binding path to a scalar property.
DisplayName_L1 optional	Type: String Description: Display name of the column in language 1 (up to 16).
IsDisplayInDropDownList default value: false	Type: Boolean Description: Is a drop down list column.
IsDisplayInSummaryView default value: false	Type: Boolean Description: Is a summary view column.
IsResizable default value: false	Type: Boolean Description: Is resizable column.
IsSortable default value: false	Type: Boolean Description: Is sortable column.
OptimizedDisplayBinding optional	Type: Int64 Description: Optimized Binding allows DisplayTables to be faster displayed. If it is filled in, it takes priority over the DisplayBinding located in the DisplayTableColumn.
OptimizedSortBinding optional	Type: Int64 Description: An optimized sort binding allows display tables to be faster displayed. If it is filled in, it takes priority over the sort binding located in the display table column.
SearchOperator default value: 0	Type: QueryComparisonOperator Description: Defines the search operator (Equal, NotEqual, Contain, StartWith...).
SortBinding optional	Type: Int64 Description: Represents the sort binding path to a scalar property.
Tile optional	Type: Int64 Description: Identifier of the tile.
