Run the Banking Demo Application

This guide shows how to set up and run the Banking demo application.

Banking Application Description​

The Banking application is a demo application that represents a web based external system. The Banking application contains:

  • A main page

  • A list of users, accessible by clicking on Users at the top of the page. It is possible to add a user by clicking on Create New User

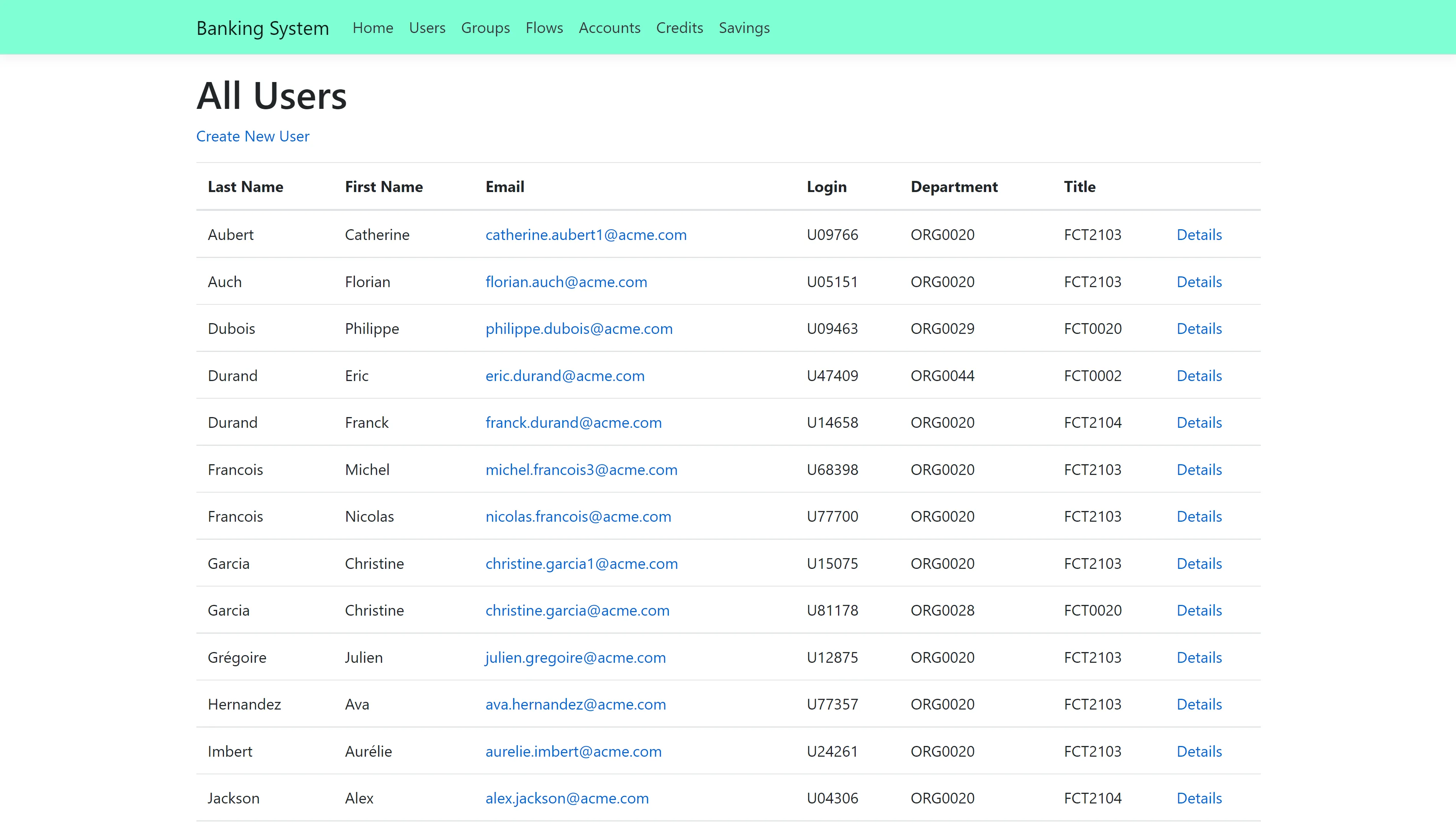

    Users list

  • A list of groups, accessible by clicking on Groups at the top of the page. Clicking on Details on a group shows the users belonging to that group

  • A user's details page for each user, accessible by clicking on Details on a user in the users list

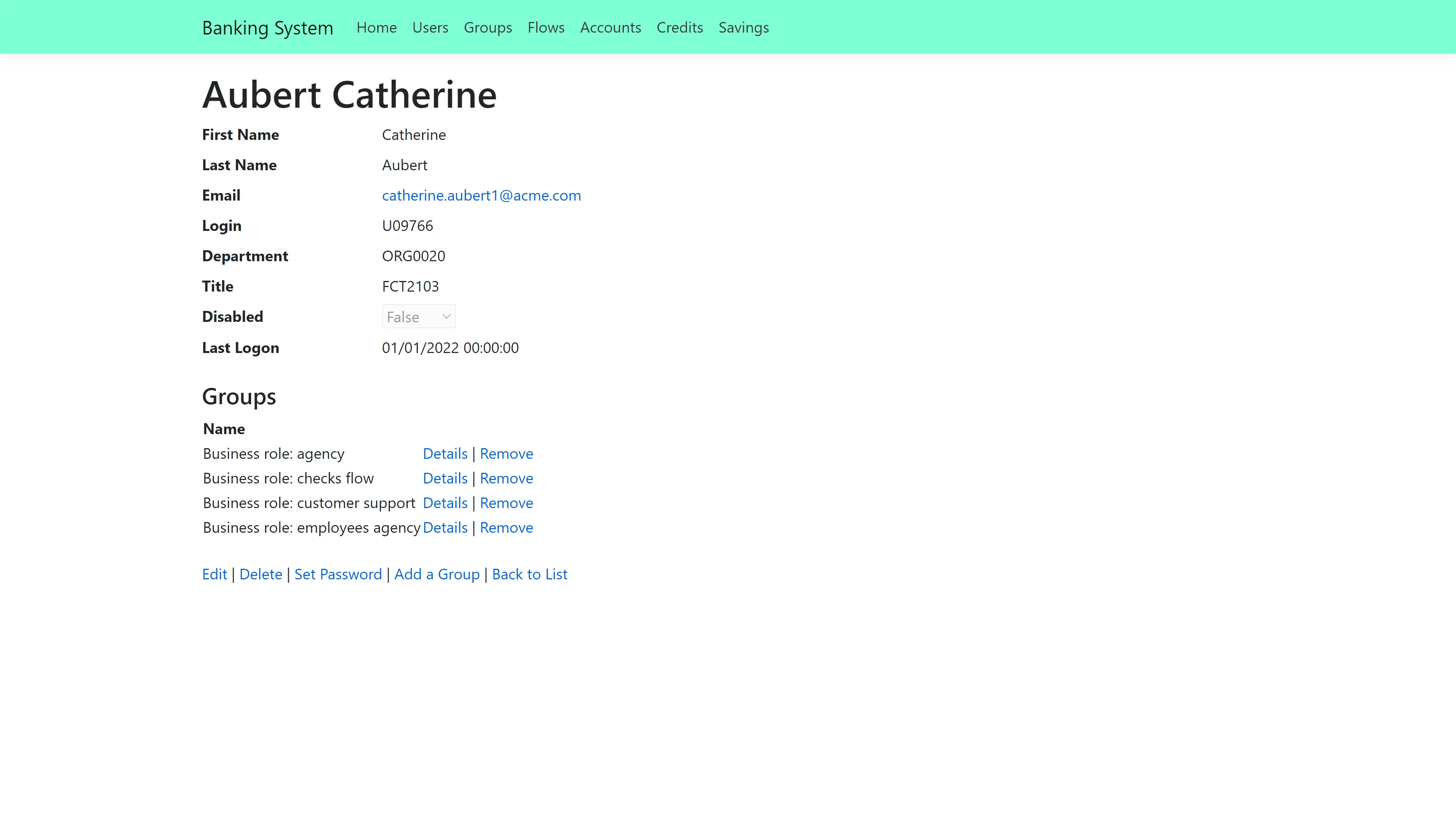

    User details

The most interesting part of the Banking application is a user's page. On a user's page, it is possible to:

  • Edit the user's information
  • Delete the user
  • Add the user to a group
  • Remove the user from a group
  • Set the user's password

The Banking application uses a database named BankingSystem as a data source. The changes made to a user are applied to the database, and will be saved.

The Banking application exposes an API that complies with SCIM 2.0 (RFC 7643 & RFC 7644) standards. This API provides:

  • Token retrieval in two different ways — Login/Password and Client Credentials. This is not real authentication so you can input any values, as the system only verifies if the fields are empty.
  • A schema endpoint (/Schemas) that returns metadata describing SCIM resource types. This includes attributes, types, mutability, and required fields for Users and Groups, following SCIM 2.0 specifications.
  • Operations on users, including: Get list, Get by ID, Create, Update, and Delete (CRUD)
  • Operations on groups, limited to Get list only

NOTE: In the Banking Demo Application appsettings two parameters are available:

  • RequireAuthorization (default: true) — When enabled, the system checks whether a token is present in the request headers
  • RequireSecureHeader (default: false) — When enabled, the system verifies that the SecureHeaderparameter is included in the request headers

Remember, a Postman collection is provided in the same folder as the executable (.exe) to facilitate API testing.

Running the Banking Application​

The Banking Application is part of the Netwrix Identity Manager (formerly Usercube) SDK, and comes with prefilled sources. To run the Banking application:

Step 1 – Download the SDK.

Step 2 – Download the Runtime.

Step 3 – Create a database named BankingSystem.

Step 4 – Go to the Runtime folder.

Step 5 – Run ./identitymanager-FillBankingDatabase.exe --connection-string {connection string} --sources-path {sources path} --banking-sql-path {banking sql path}, replacing {connection string} with the BankingSystem database connection string, {sources path} with the path to SDK/DemoApps/Sources, and {banking sql path} with the path to SDK/DemoApps/Banking.

Step 6 – Go to the SDK/DemoApps/Banking folder.

Step 7 – Run ./Banking.exe in a command prompt

Step 8 – In a web browser, enter the URL localhost:5000.

The Banking application is running, and the web browser is on the Banking home page.

To set the Banking application to another port, run /Banking.exe --urls http://localhost:{port number}. To access the application, enter the URL localhost:{port number} in a web browser.

Some ports are not recognized by web browsers, or may already be used. Choose a port wisely.
