Filter Editor

Use the Filter Editor to create complex filters, filters for hidden columns, or to save and open regularly used filters. Press CTRL + F to open the Filter Editor, or click the Filter Editor button in the lower right corner of the Data Console.

A filter may contain several conditions. Conditions start with a column name, followed by an operator, and sometimes a value. Column names are shown in green, operators in maroon, and values in blue.

A filter also contains a root node and optionally one or more groups. These are used to include Boolean operators in the filter. Boolean operators are shown in red. Grouped conditions are indented.

The filter in the image above contains the root node, one group, and four conditions. It will show all reset requests in the last fourteen days originating from IP addresses starting with 192.168.115 or 192.168.119.

Click the Click here to add a new condition button to add a new condition to the filter. Click the ellipsis button on the left of each line to add or remove conditions and groups. Click column names, operators, and values to edit them. Most can be selected from a list. Values can also contain the ? and * wildcard characters.

Click Save As... to save a filter to a file, or Open... to use a saved filter. Click OK to close the Filter Editor and apply the filter.

Some columns are hidden in the Data Console. You can use the Filter Editor to create filters for these columns. For example, the filter in the image below shows all users with an NPR v1 enrollment record.

Filtering Data

The Data Console can show thousands of records, but only some of them will be of interest to you at any time. Filters let you focus on the important information.

You can create simple filters by typing values directly into the filter row, or by selecting values from Filtering by Column Values. More complex filters are created with the Custom Filters and Filter Editor windows.

The Filter Row

The top row in the Audit Log and Users tabs is called the Filter Row. You can type filter values directly into this row.

The Filter Row is empty when you first open the Data Console. To create a filter, click the Filter Row in the column you wish to filter. A cursor will appear. Type a value, and then press ENTER or TAB.

Click the button to shown an editor or selector that helps you enter a value. Values can include wildcard characters. Use a ? to match any single character, or a * to match more than one character.

The image above shows a filter on the Date, Source, and Source IP columns. Only password reset events on 2/5/2015 originating from IP addresses starting with 192.168.115 are shown. The small blue icons in the column headers show which columns have active filters.

NOTE: Rows are shown only if they match all filter values (logical AND). Use the custom filter or the filter editor windows for a logical OR filter.

Filtering by Column Values

You can also create a filter by selecting values from a list in the column headers.

Hover the mouse pointer over a column header until a small button appears on the right side of the header.

Click the button to show a list of values in the column.

Select one or more values from the list. Rows that do not match one of the selected values are hidden.

The list of values for date and date/time columns also includes date ranges such as Last 7 days, Today, Yesterday, etc.

Click (All) to clear the filter and display all values. Click (Custom...) to create a custom filter.

Custom Filters

Use custom filters to search for partial matches, find a range of values, or to create more complex filters. Click (Custom...) in a column header's value list to create a custom filter.

Custom filters can contain one or two conditions for each column. Select an operator for the first condition from the drop-down list below the column name. Only relevant operators are shown for each column.

Type a value for the condition in the text box beside the operator. The text box may have a button on the right. Click the button to shown an editor or selector that will help you enter a value. Values can include wildcard characters. Use a ? to match any single character, or a * to match more than one character.

Select the AND or OR operator if the filter will have two conditions. Select AND if the filter should only show rows that meet both conditions. Select OR if the filter should show rows that meet either condition.

Select an operator and value for the second condition, or leave them blank if your filter only has one condition. Click OK to close the Custom Filter window and apply the filter.

NOTE: The Filter Editor is shown instead of the Custom Filter window if the current filter is too complex for the Custom Filter window.

The Filter and Status Bars

The Status Bar appears at the very bottom of the Data Console. It shows the number of visible records and the total record count. The Filter Bar appears above the Status Bar, and it shows the active filter. The button on the right side of the Filter Bar opens the Filter Editor.

A button and a check box appear on the left side of the Filter Bar when a filter is active. Click the button to clear the filter. Toggle the check box to disable or enable the filter.

A drop-down button appears to the right of the filter. Click it to select a recently used filter.

Exporting Data

You can export the visible rows to Microsoft Excel, HTML, text, and XML formats.

Follow the steps below to export the visible rows in the current tab.

Step 1 – Click the Audit Log or Users tab.

Step 2 – Click the File menu, and then click one of the export menu items.

Step 3 – Type a filename, and then click Save.

NOTE: When exporting to Excel, you can choose the file type from the Export to Excel window. The default file type is .xlsx.

Deleting Users

Users are automatically deleted from Password Reset's database approximately one week after they are deleted from Active Directory. You can also manually delete users from the Data Console.

Follow the steps below to delete a user.

Step 1 – Click the Users tab.

Step 2 – Select the user(s) you wish to delete.

Step 3 – Press the DELETE key, and then click OK.

NOTE: You can still view a user's event history in the Audit Log tab after they are deleted from the Users tab.

Moving to SQL Server

Some planning is needed before moving the database to SQL Server. A trial run on a lab network is recommended. You can run the Data Copy wizard more than once if you cannot complete the move on the first attempt. A move back to SQL Server Compact is also possible.

Create the Database

Your database administrator needs to set up the SQL Server database. The instructions below are an overview of the procedure, they are not step-by-step instructions. NPR V3.30 has been tested with SQL Server 2012 to 2019.

Follow the instructions below for an overview of the procedure.

Step 1 – Create an SQL Server database.

Step 2 – Create an SQL Server login for the Password Reset service account, and configure it for Windows authentication. To identify the service account, open services.msc, double-click the Password Reset service, and then click the Log On tab. Password Reset logs on to SQL Server with this account.

Step 3 – Create an SQL Server user, and map it to the service account login.

Step 4 – Add the SQL Server user to the db_datareader, db_datawriter, and db_ddladmin server roles for the database.

Your database administrator also needs to grant access to the users that will use the Data Console. These users only need to be added to the db_datareader server role, and they can be denied access to the VerificationCode and EnrollRecord columns in the User table. The user running the Data Copy wizard also needs to be added to the db_datawriter and db_ddladmin server roles.

Additional permissions can be set for users of the Data Console after the tables are created. Grant the DELETE privilege on the User table to users who are allowed to delete user records. Deny all privileges on the VerificationCode and EnrollRecord columns in the User table as they are not used by the Data Console.

Create the Tables and Copy the Data

The Data Copy wizard creates the database tables and copies the data to SQL Server. You must run the wizard even if the SQL Server Compact database is empty. Data in the destination database is deleted before it is copied from the source database.

Follow the steps below to create the tables and copy the data.

Step 1 – Open the Configuration Console.

Step 2 – Click the General tab.

Step 3 – Click Copy Data... to open the Data Copy wizard.

Step 4 – Click Copy from SQL Compact to SQL Server.

Step 5 – Check the path to the SQL Server Compact database files. If the default path is incorrect, then click Browse..., choose a path, and then click OK.

Step 6 – Click Next.

Step 7 – Set the SQL Server connection settings for the Data Copy wizard. You can set different connection settings for the service account later. The Username and Password are only needed if SQL Server Authentication is selected. The user must be in the db_datareader, db_datawriter, and db_ddladmin SQL Server roles. Encrypt connection should be selected to protect user information, and Trust server certificate must be selected if SQL Server is using a self-signed certificate. SQL Server uses a self-signed certificate if a trusted certificate is not installed. The SQL Server Native Client must be installed if Trust server certificate is selected.

Step 8 – Click Next.

Step 9 – Check the summary information, and then click Start.

Step 10 – Wait for the wizard to finish, and then click Close.

Configure Netwrix Password Reset to Connect to SQL Server

Configure Password Reset to connect to SQL Server immediately after copying the data. If the cutover is delayed, then run the Data Copy wizard again to update the SQL Server database with the latest data. To configure Password Reset to connect to SQL Server:

Step 1 – Open the Configuration Console.

Step 2 – Click the General tab.

Step 3 – Click Change...

Step 4 – Select the SQL Server option.

Step 5 – Type the server name in the Server text box. Use [server]\[instance] to connect to a named instance.

Step 6 – Type the database name in the Database text box.

Step 7 – Select the Encrypt connection option to encrypt the connection to SQL Server. This option should be selected to protect user information.

Step 8 – Select the Trust server certificate option if SQL Server is using a self-signed certificate. SQL Server uses a self-signed certificate if a trusted certificate is not installed. Password Reset cannot connect to SQL Server with a self-signed certificate if this option is not selected. The SQL Server Native Client must be installed if Trust server certificate is selected.

Step 9 – Click OK, and then click Apply.

Step 10 – Restart the Password Reset service. If the service does not start, then check the database connection options and the SQL Server login, user, and server roles configured earlier. You can change the database back to SQL Server Compact while you troubleshoot the issue.

Other Tasks

Open the Data Console and set your SQL Server connection options. You will need to enter a password every time you open the Data Console if SQL Server Authentication is selected. The Data Console executable and help file (APRDC.exe and CHM_NPR.chm) can be copied to the computers of other users who will use the Data Console.

Delete the two SQL Server Compact database files (apr.sdf and aprlog.sdf) after cutting over to SQL Server. These files will soon contain outdated information, and leaving them on the server is an unnecessary security risk. Also ensure that the SQL Server database is backed up regularly.

Using the Data Console

The Data Console allows you to view and export data collected by Password Reset. Click Start > Netwrix Password Reset > NPR Data Console to open the console.

The Data Console has three tabs. The Recent Activity tab shows a chart of recent requests. The chart is empty when Password Reset is first installed, but it will populate itself as the system is used.

The bars in the chart show how many successful enrollments, resets, unlocks, and changes occurred every day. You can click the bars to see a filtered view of the events for that day. For example, you could click the blue bar on 2/19/2015 to see all the password resets for that day.

The resulting view shows only the 15 successful password resets on 2/19/2015. These are shown in the Audit Log tab. You can create your own filter to find events in this tab. See the Custom Filters topic for additional information. You can drag a column's header to rearrange the columns, or click a column header to sort the records.

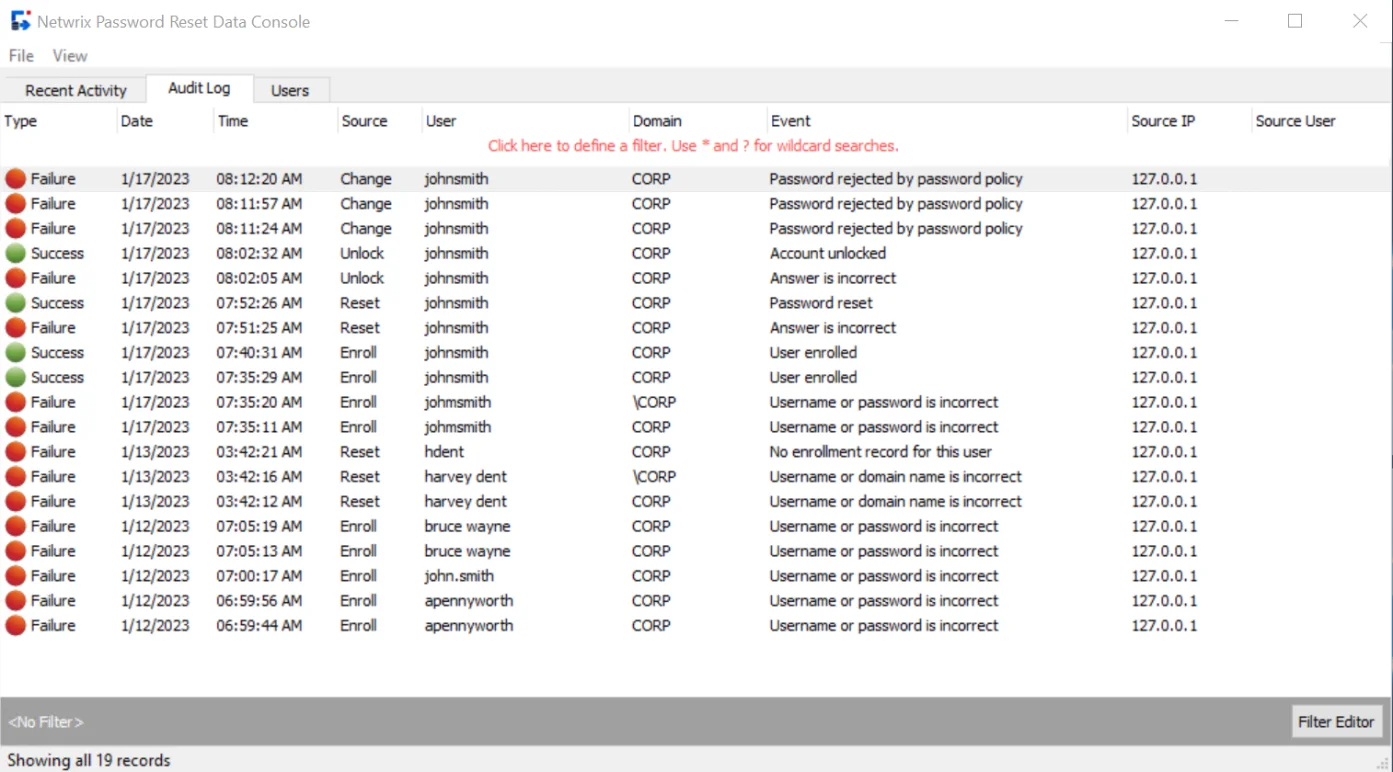

The Audit Log tab has nine columns:

• Type — Event type (Success or Failure)
• Date — Event date
• Time — Event time
• Source — Event source (Reset, Unlock, etc.)
• User — User's Active Directory user logon name
• Domain — User's Active Directory domain
• Event — A description of the event
• Source IP — The request's source IP address
• Source User — The request's source username (blank if anonymous access is enabled)

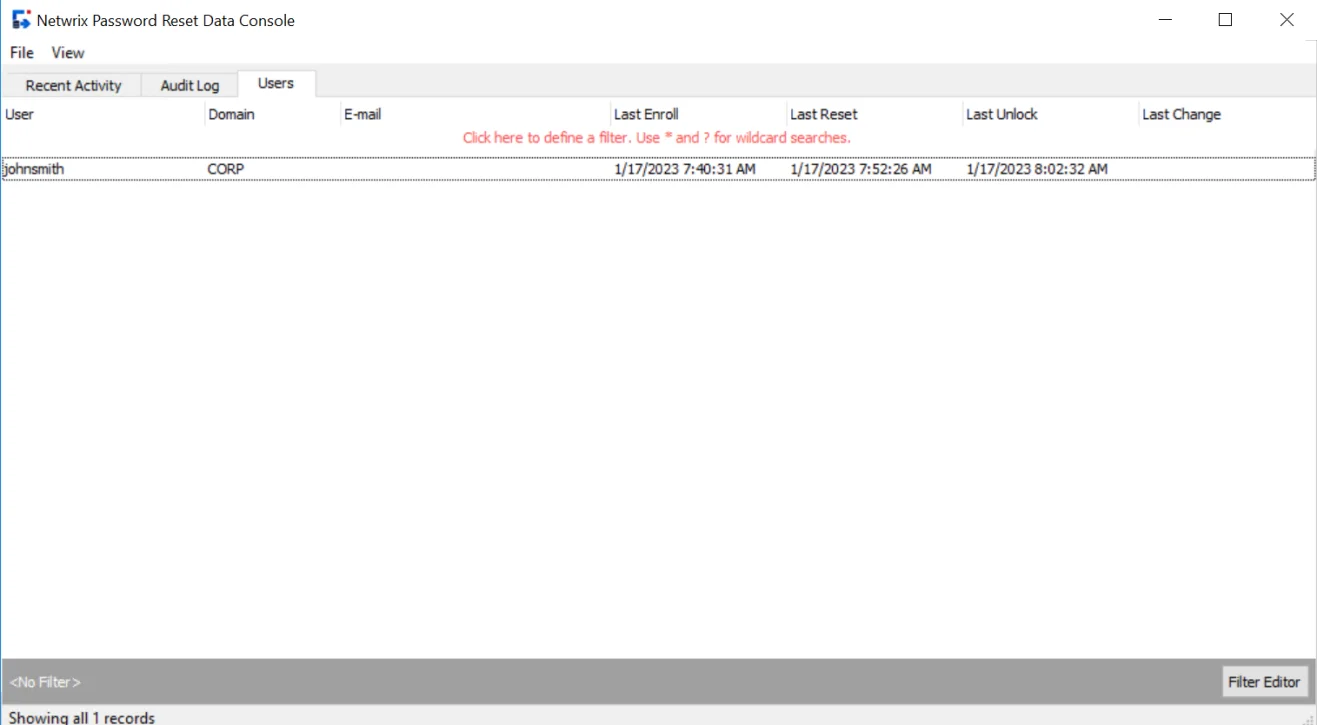

The Users tab contains Information about each user. All users are shown by default, but you can create filters to find specific users.

The Users tab has seven columns:

• User — User's Active Directory user logon name
• Domain — User's Active Directory domain
• E-mail — E-mail address entered during enrollment
• Last Enroll — Date and time of last successful enroll
• Last Reset — Date and time of last successful password reset
• Last Unlock — Date and time of last successful account unlock
• Last Change — Date and time of last successful password change

NOTE: The Data Console does not automatically display new information as it is added to the database. Press F5 to refresh the view.

Working with the Database

The NPR Server stores user and event information in a database. The default database is Microsoft SQL Server Compact, an embedded version of SQL Server. The benefits of using SQL Server Compact include:

• No manual installation or configuration required.
• No maintenance apart from database. See the Backing up the Database topic for additional information.
• Fast and lightweight.
• Free to use.

Despite these benefits, there are some disadvantages to using an embedded database. The benefits of using SQL Server include:

• Remote access to the database from the Data Console and other applications.
• Improved availability if SQL Server is configured for high availability.
• Increased security.

See solutions to these disadvantages in the Moving to SQL Server topic.

Backing up the Database

The database should be backed up regularly. The instructions below are for a SQL Server Compact database. If using SQL Server, then use your backup software to backup the database.

Follow the steps below for the recommended backup procedure.

Step 1 – Close the Data Console if it is open.

Step 2 – Stop

Step 3 – Copy the database files to a local or network disk.

Step 4 – Start the Netwrix Password Reset service.

Step 5 – Copy the database files to another device.

The database files (apr.sdf and aprlog.sdf) are in the Password Reset Server's installation folder by default, but the location is configurable. The following commands create copies of the files with a .bak extension. Copy the .bak files to another device, and run the backup script daily.

net stop "Netwrix Password Reset"

copy /Y "c:\program files\netwrix password reset\apr.sdf" "c:\program files\netwrix password reset\apr.bak"

copy /Y "c:\program files\netwrix password reset\aprlog.sdf" "c:\program files\netwrix password reset\aprlog.bak"

net start "Netwrix Password Reset"

NOTE: Change the paths above if the database files are in a different folder. See the Database topic for more information.

Restoring database from backup

Follow the steps below to restore the database files from a backup.

Step 1 – Restore apr.bak and aprlog.bak from the backup device.

Step 2 – Close the Data Console if it is open.

Step 3 – Stop .

Step 4 – Copy apr.bak over apr.sdf, and aprlog.bak over aprlog.sdf.

Step 5 – Start .

CAUTION: apr.sdf contains hashes of the user answers. The hashes are salted and encrypted to protect them from attack, but you should still ensure that this file and all backup copies are stored securely.
