Configuration

The following pages will provide you with in-depth information how to configure the different Netwrix Password Secure components and features.

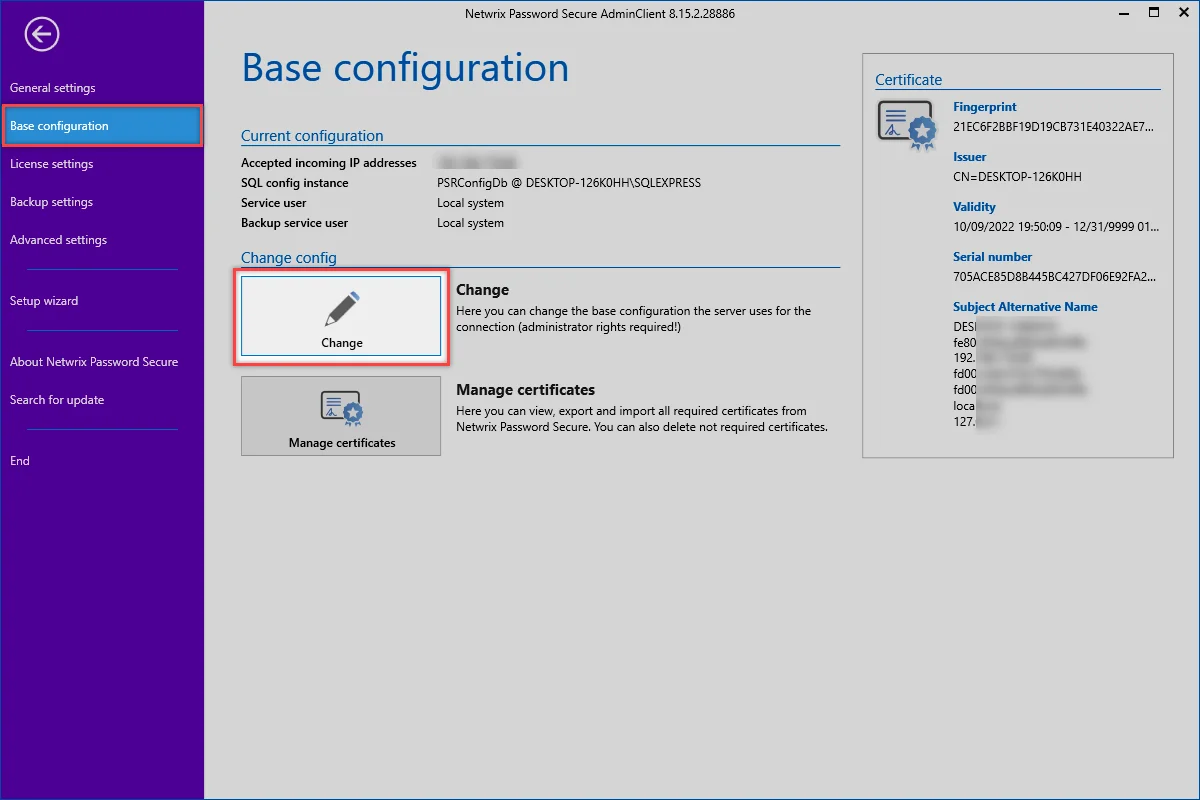

Basic configuration

What is basic configuration?

Within the basic configuration, the connection to the SQL server or to the databases is defined. The basic configuration appears the first time the Server Manager is started and can be called up at any time in the basic configuration.

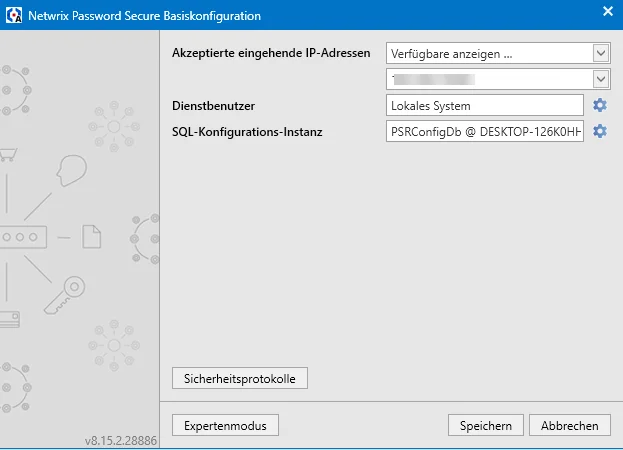

The basic configuration

A special wizard is available to carry out the configuration:

Service address

The service address of the SQL server can be selected via the drop-down menu. It is mandatory to select the adapter via which the Server Manager can also access the SQL server.

The loopback address 127.0.0.1 should not be used here.

Service user

Service user This setting is used to define the service user, which is needed to start the server service as well as the backup service. The “Use local system” setting starts the services with the local system account.

CAUTION: The defined service user needs local administrator rights to properly configure the server and create databases.

SQL configuration instance

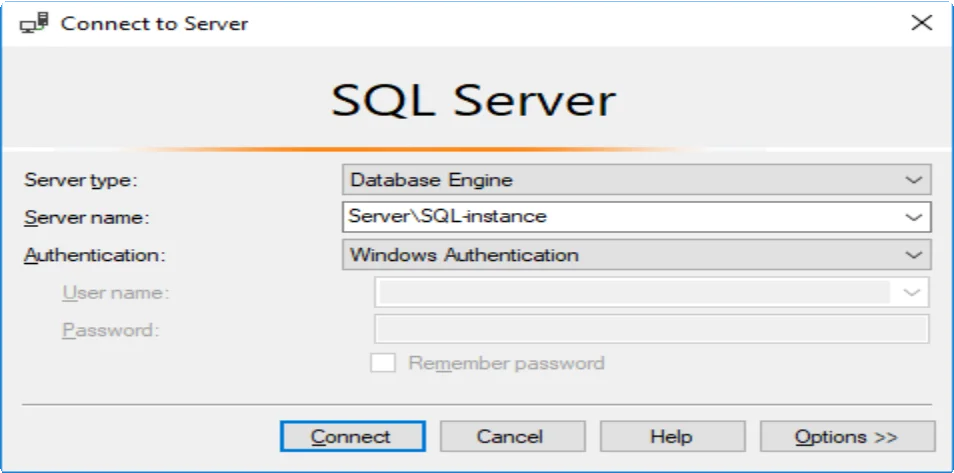

Under “SQL Server instance” the database server must be specified, including the SQL instance. For simplicity, you can copy the server name from the login window of the SQL server.

If the option “Service user” is selected, enter the user that logs on to the SQL Server. Please note that “dbCreator” rights are necessary to create a configuration database. “dbOwner” rights are sufficient if the database is created manually on the SQL server and is only accessed here. Enter the name of the configuration database under “Database”.

NOTE: Refer to the system requirements for server section for more information about the users.

Expert mode

Expert mode displays additional menu options for advanced configurations:

Backup service user

You can use a dedicated user to run the backup here. The service user is selected by default.

SQL configuration instance

This menu item can be configured in expert mode via a so-called connection string.

Certificate

The SSL connection certificate can also be configured under this item to protect the client server connection. By default, a certificate is generated by the Server Manager. However, you can also choose your own. Further information can be found directly in the section provided for this purpose.

CAUTION: Exchanging or overwriting an existing certificate may cause warnings to the clients if the certificate is not trusted by each client.

Allow host mode

Host mode is no longer supported since version 8.13.

Activating caching

Caching is activated by default to improve performance. The so-called SqlBroker is registered for the database on the SQL server here. The following is cached:

• The roles of the individual users
• The structure of the organisational units
• All settings

NOTE: If this option is changed, the server needs to be restarted so that the change can take effect.

Main menu

What is the main menu?

The operation and structure of the Main menu/Backstage menu is the same for the Main menu on the client. This area can be used independently of the currently selected module.

• General settings
• Backup settings
• License settings
• Advanced settings

Operation and setup

Structure of the Server Manager

The structure of the Server Manager is based to a high degree on the structure of the actual client. The control elements such as the ribbon and the info and detail areas can be derived from the section dealing with the client(Operation and Setup).

NOTE: An initial password is required for the first login on Server Manager. The password is “admin”. This password should be changed directly after login and carefully documented.

Status module

1. Ribbon

As usual the ribbon can be found above. Because the module is purely informative, there is no functionality in the ribbon, except for updating the view

2. Notification area

• The info area shows the status of the specific services. Click the icon to configure services. By default, the base configuration is used. If necessary, individual parameters can be replaced or adapted to personal requirements.
• You can start and stop a specific service via
• On the right side of the info area, the utilization of the processor and main memory is displayed over two curves.
• In the “Backup service” area, the last backups are displayed using a diagram. There is a green bar for a successful backup, a red symbolizes a failed backup. Additional information is displayed via a mouseover.

3. Server log

The server logbook shown on the right of the screen monitors and controls the server. It shows all relevant actions on the server in a comprehensible way, always displaying the last 100 entries. The

Action	Color
Expected actions	black
Events that require attention	orange
Problems and crashes	red

• Expected actions – such as starting and stopping services – are displayed in black
• All events (e.g. failed login attempts) that require attention are displayed in orange
• All problems (e.g. crashes) are marked in red

The server logbook can be sorted in ascending and descending order by date and description via the column headings. The period shown can be limited using .

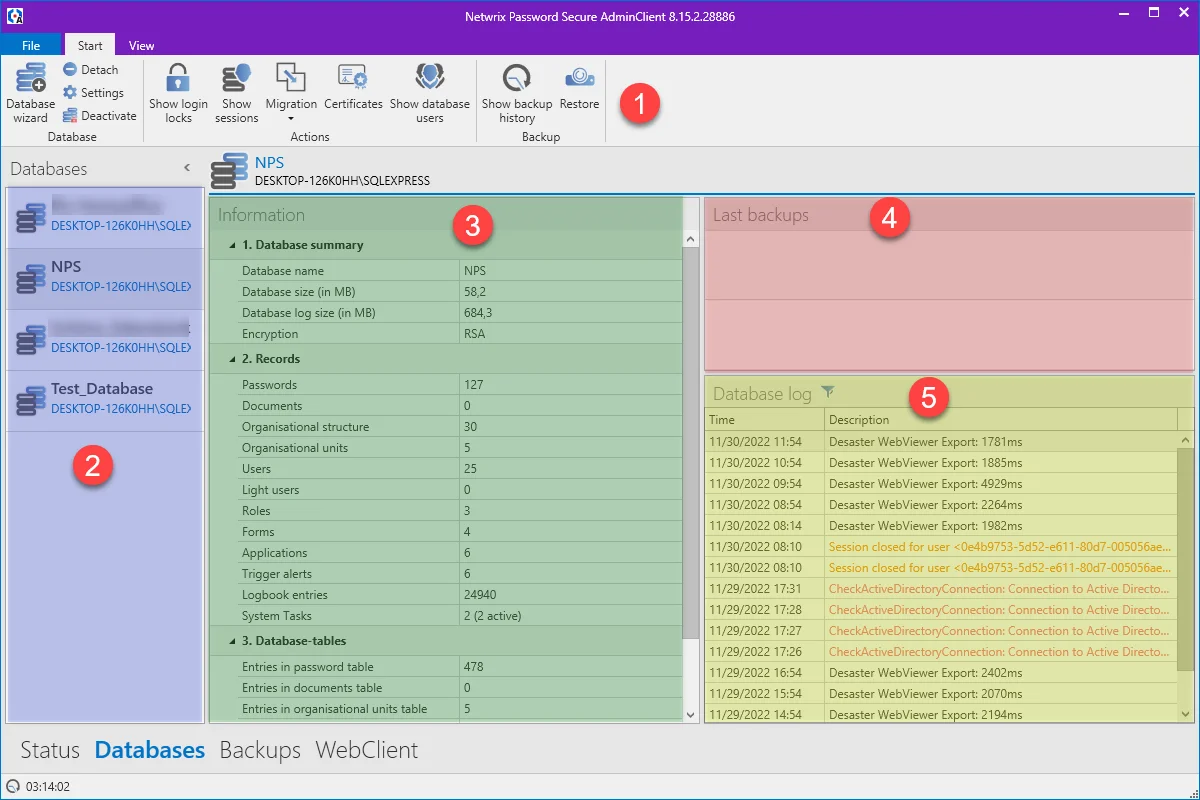

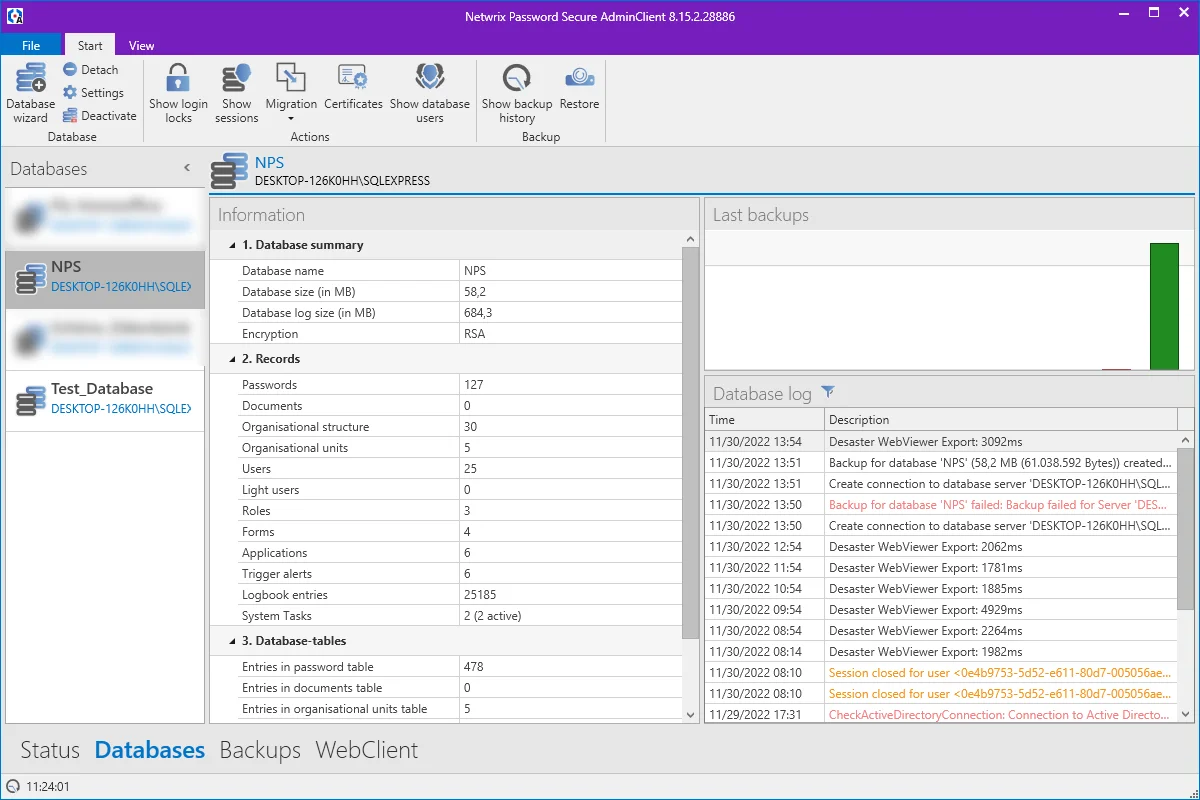

Databases module

Databases are managed in a dedicated module. All relevant information on the existing databases can also be called up – completely without accessing the SQL server.

1. Ribbon

2. Database overview

In the database overview, all databases listed alphabetically. This section can be minimised using the arrow symbol on the top, left edge. Right-click on one of the databases to display a context menu with all available functions.

3. Notification area

The Info area displays all the information about the database currently selected in the database overview. This information is ivided into the three subsections “Database summary, Data sets and Database tables”.

4. Recent backups

List of recent backups. Can be sorted by date

5. Database log

The database log is used to monitor and control the specific databases. All relevant actions for the selected database are displayed in a comprehensible manner in one list. The categorisation is carried out in the same way as the server log according to the colours applied.

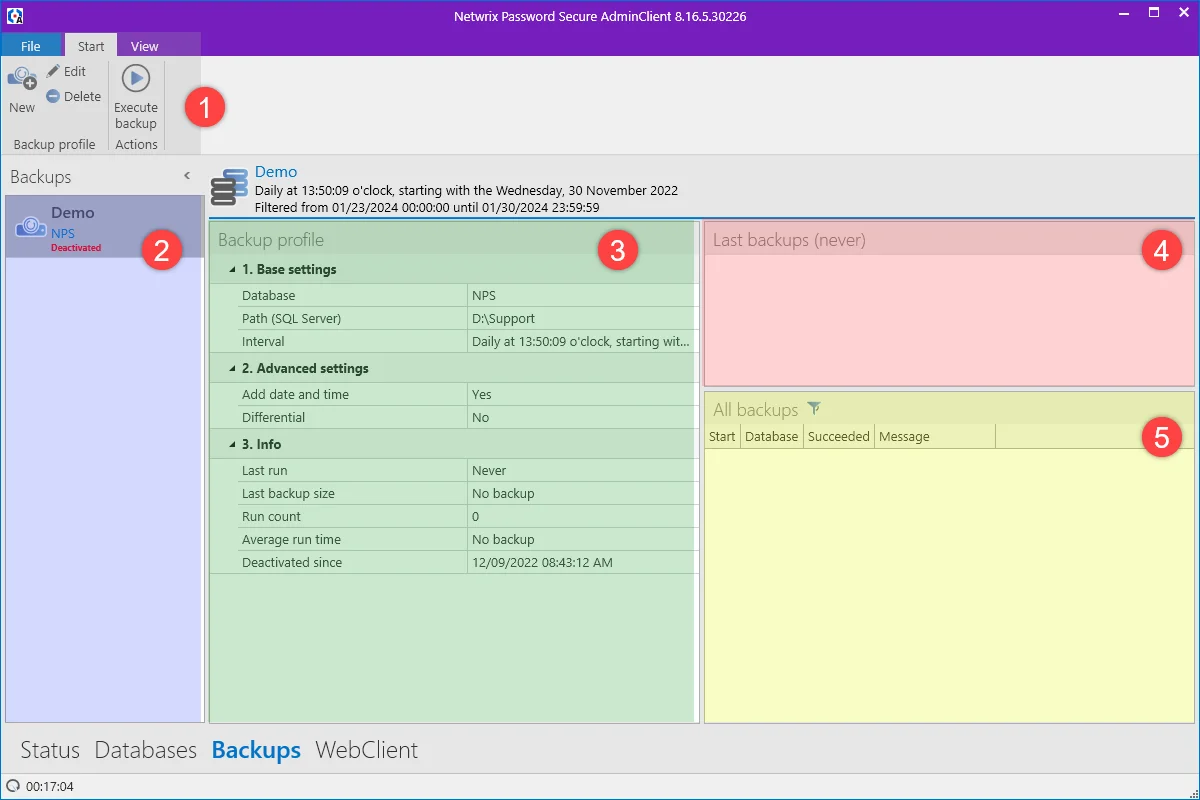

Backups module

There is also a separate module for configuring the backups. This means that all backups can be configured and managed directly from the Server Manager.

1. Ribbon

2. Backup overview

All configured backups are listed here. The overview can be minimized to the left. Other functions are available via right-click

3. Notification area

The notification area is divided into three sections. The “Basic settings, Advanced settings and Info” sections for the selected database can be used

4. Recent backups

The last backups are displayed in a list on the right.

5. All backups

A tabular overview shows all previous backups. The view can be sorted as usual. Here you can see at a glance, when which database was saved and whether the backup was successful.

Server Manager

What is the Server Manager?

The Server Manager takes care of the central administration of the databases as well as the configuration of the backup profiles. In addition, it provides the very important interface to the Netwrix Password Secure license server. Furthermore, it is used for the administration of globally defined settings, as well as the configuration of profiles for sending emails. Installation Server Manager

In this sense, the server service represents the interface between the client and the SQL server. The Server Manager is responsible for configuring the server service. It allows the central administration of the databases without having access to the SQL server. This is a huge advantage with regards to organization and authorizations.
