Certificates

Various different certificates are used to guarantee the security of Netwrix Password Secure. The certificates are essential for the smooth operation of Netwrix Password Secure. It is thus important that they are carefully backed up.

What certificates are used?​

The individual certificates are described in the following sections:

Calling up the certificate manager​

There are two ways to open the certificate manager. The certificates for each specific database can be managed via the ribbon:

installation_with_parameters_196_647x73

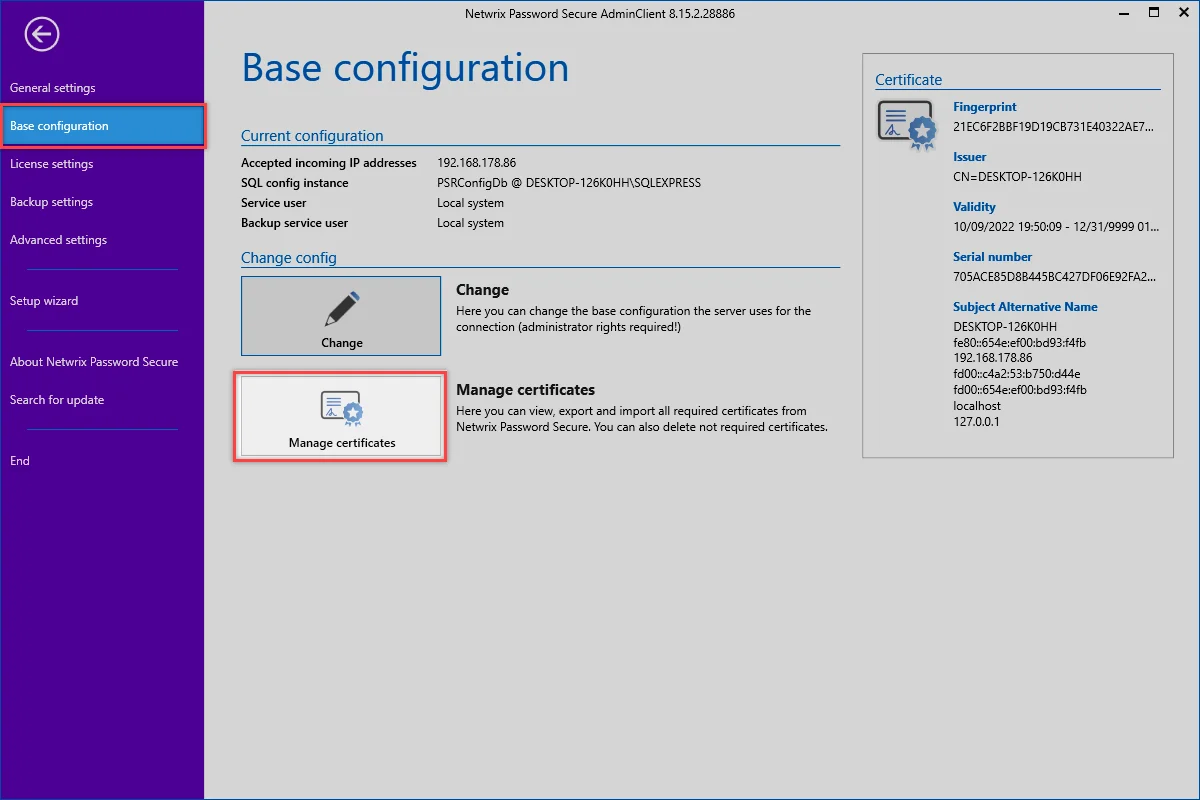

In the Main menu, it is also possible to start the certificate manager for all databases via the basic configuration:

base configuration

NOTE: Operation of the certificate manager is always the same. The only difference is whether the certificates are displayed for each database or for all databases.

Checking existing certificates​

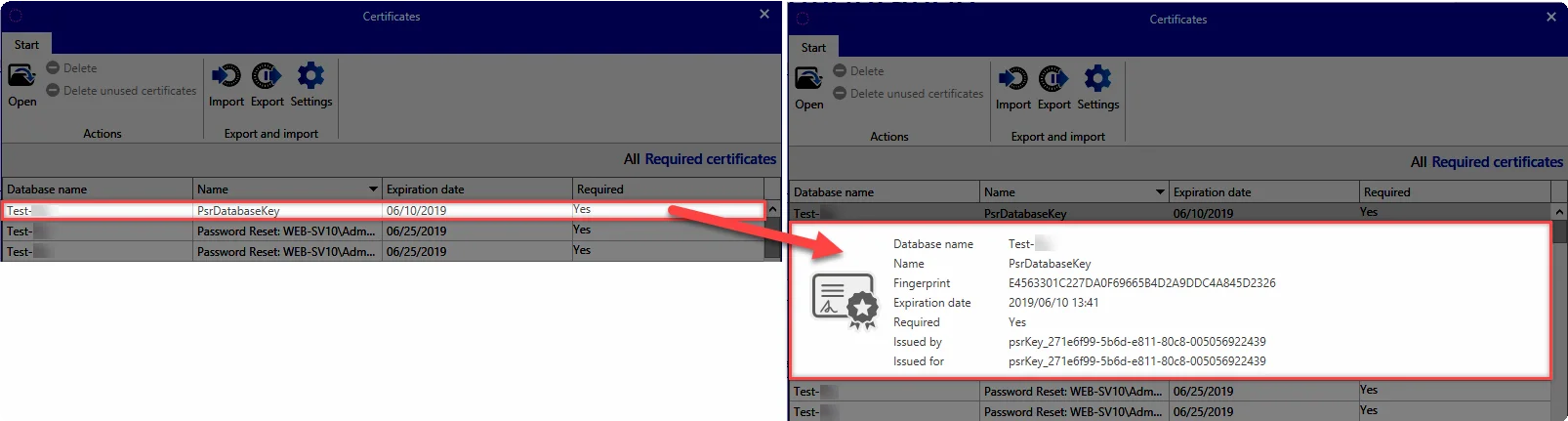

After opening the certificate manager, all certificates specific to Netwrix Password Secure will be displayed. Clicking on the certificate will display further information.

installation_with_parameters_198

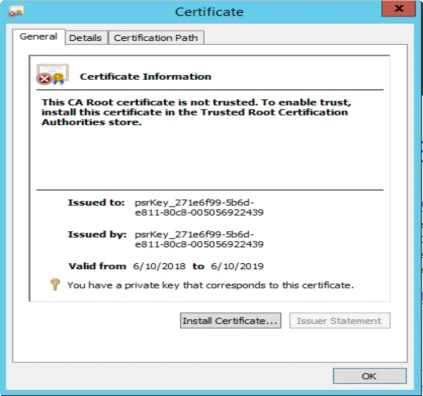

Double clicking on a certificate will open the Windows Certificate Manger to provide more detailed information.

installation_with_parameters_199_423x396

Required certificates / deleting no longer required certificates​

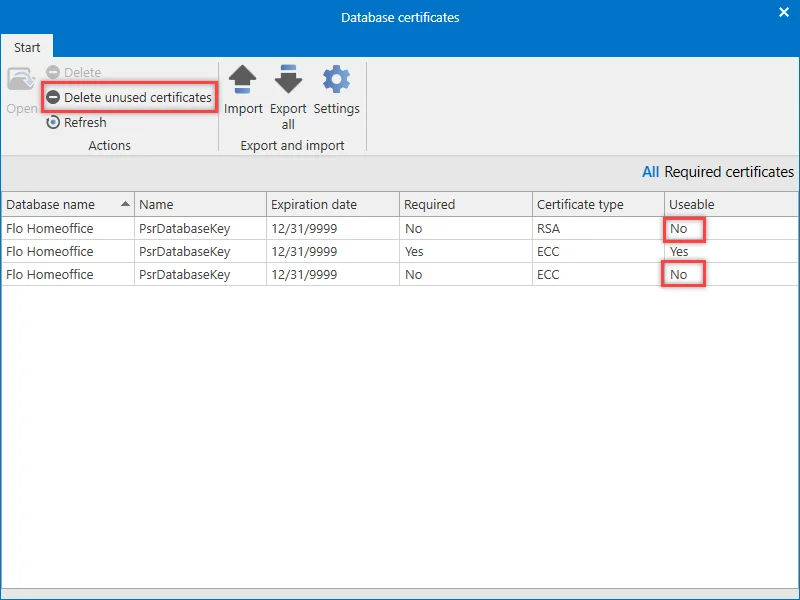

The overview will initially only display those certificates that are being used and are thus required. Clicking on All will also display the no longer required certificates. For example, it is possible that outdated certificates exist on the machine due to a test installation. These certificates can be easily deleted via the corresponding button in the ribbon.

certificates-ac-4-en

Importing certificates​

Previously backed up certificates can be integrated into the installation via the Import button. This merely requires you to enter the desired .pfx file and its password.

Exporting certificates​

The relevant certificates will be backed up by clicking on export. A password firstly needs to be issued here. If a storage location has not yet been entered via the settings, you are firstly asked to enter it.

NOTE: SSL connection certificates are not included in this process and are also not backed up. These certificates can be recreated if necessary.

Settings​

You can define whether every certificate should be saved to its own file in the settings. If this option has not been activated, all relevant certificates will be backed up in one file. In addition, the storage location is defined in the settings.

installation_with_parameters_201_826x310

Backing up certificates​

If you want to automatically back up the certificates on a cyclical basis, this can be done via the backup system. Further information can be found in the section Backup management.

Database certificates

What is a database certificate?​

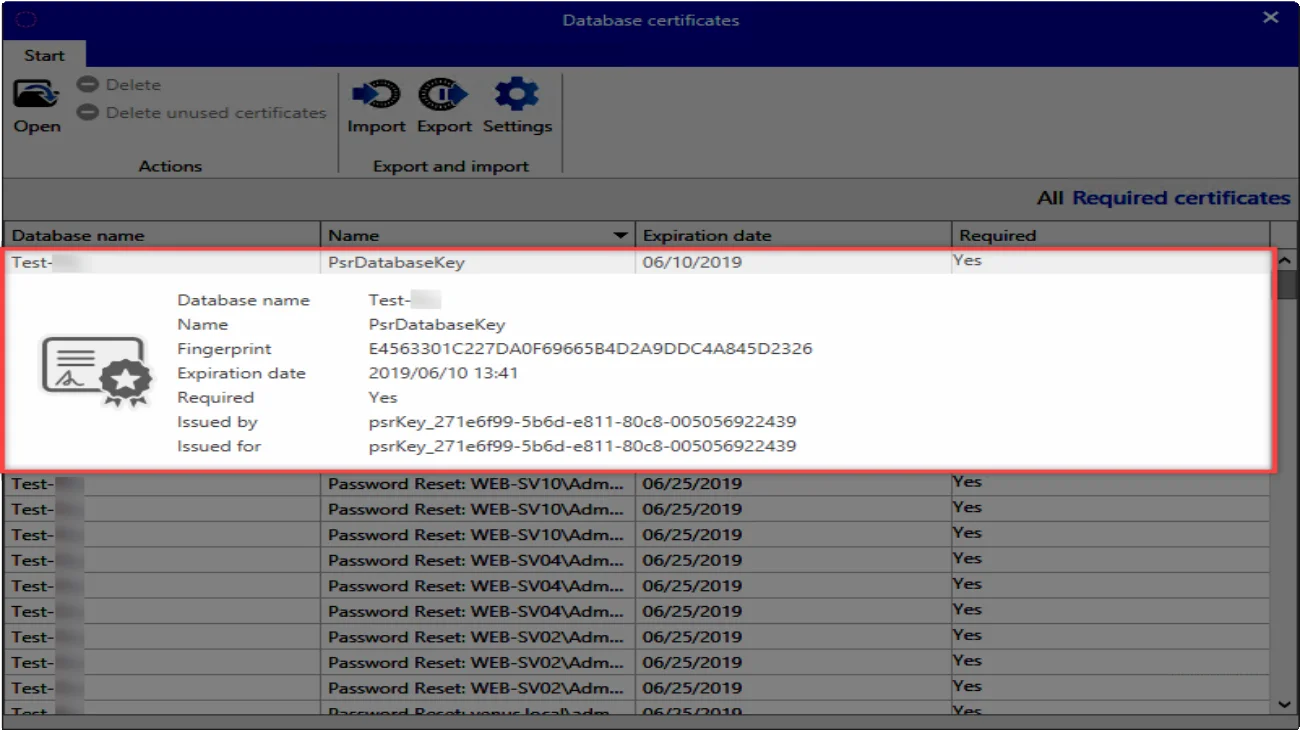

A unique certificate is created for each database. This has the name psrDatabaseKey:

installation_with_parameters_207

The database certificate does not encrypt the database. Rather, it is used for the encrypted transfer of passwords from the client to the server in the following cases:

  • Creation of a WebViewer via a task
  • Creation of an AD profile protected by a master key
  • Login of users imported from AD in Master Key mode

NOTE: The database certificate cannot be replaced by your own certificate.

NOTE: The expiry date for the database certificate is not checked. The certificate thus does not need to be renewed.

CAUTION: If the database is being moved to another server, it is essential that the certificate is also transferred!

Exporting and importing the certificate​

The section Certificates explains how to back up the certificate and link it again.

Discovery service certificates

What is a discovery service certificate?​

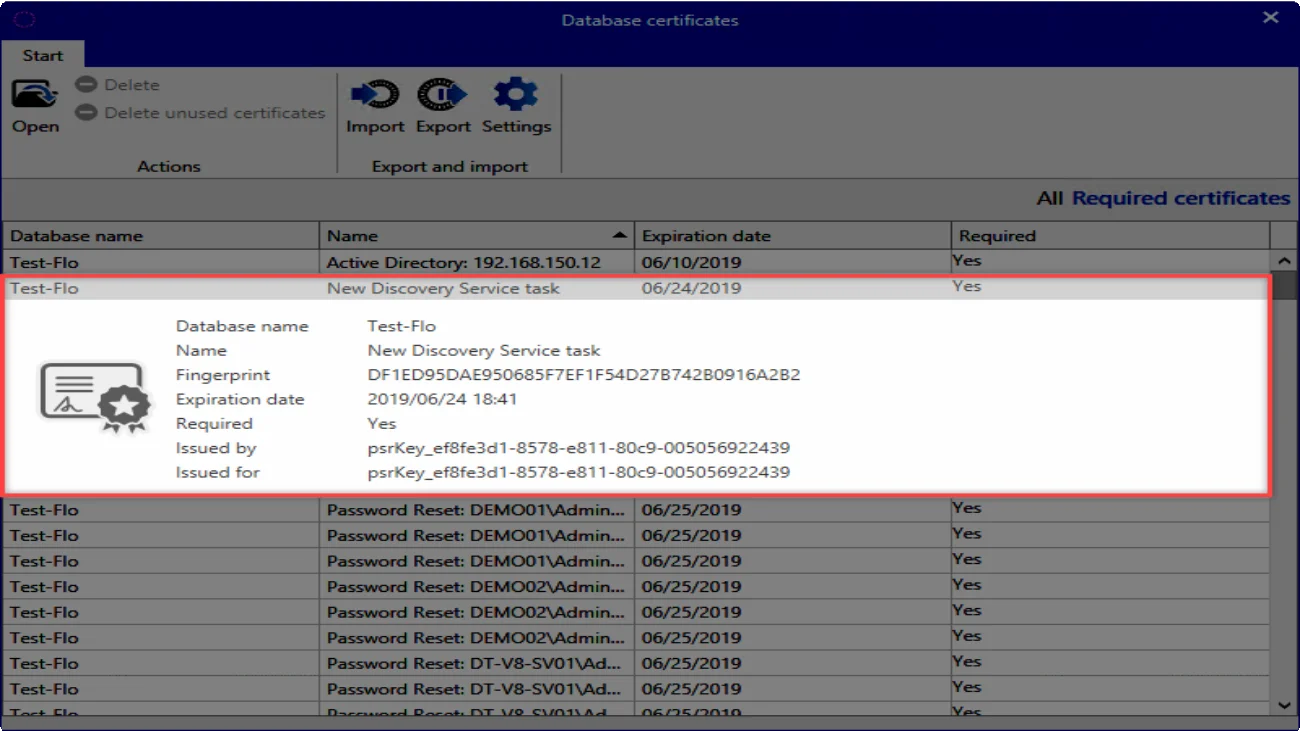

If a discovery service is created, a corresponding certificate is also created:

installation_with_parameters_202

NOTE: The discovery service certificate cannot be replaced by your own certificate.

NOTE: The certificates for the discovery service have an expiry date. However, this is not checked. The certificate thus does not need to be renewed.

CAUTION: If the database is being moved to another server, it is essential that the discovery service certificate is also transferred!

Exporting and importing the certificate​

The section Certificatesexplains how to back up the certificate and link it again.

Master Key certificates

What is a Master Key certificate?​

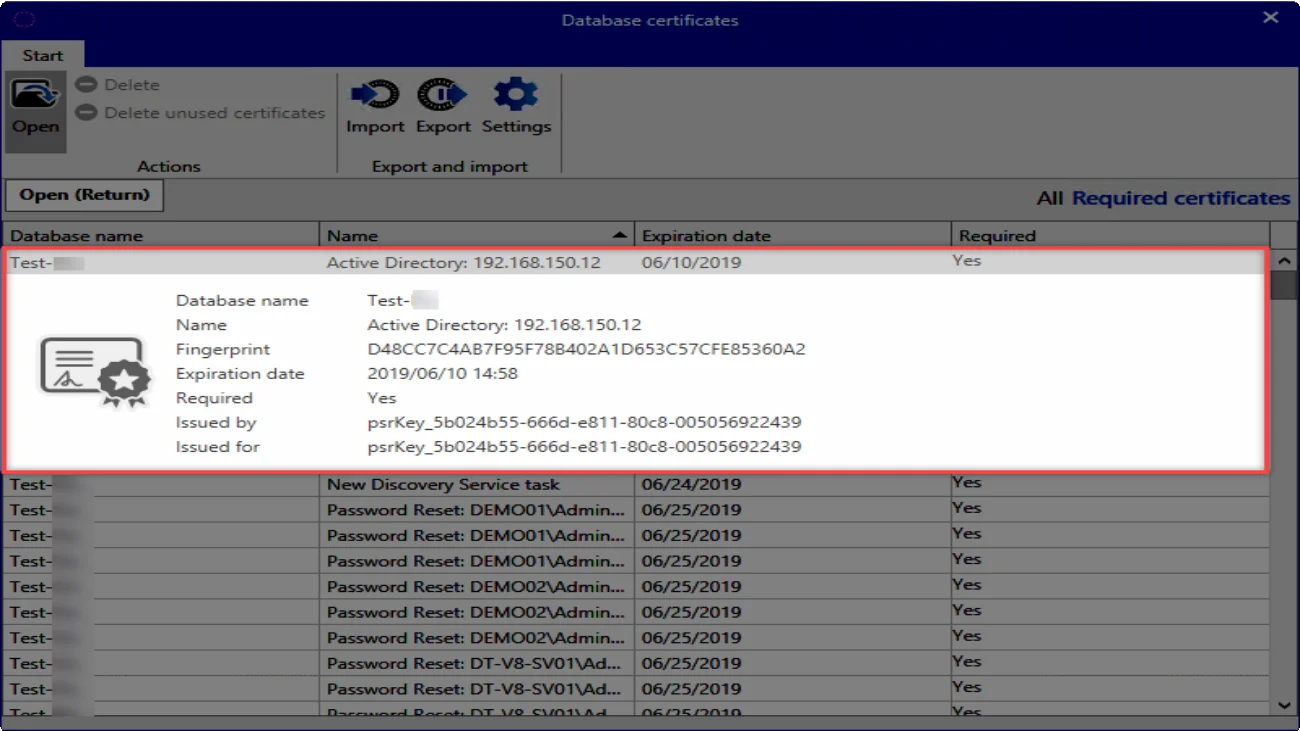

If Active Directory is accessed via Masterkey mode, a certificate will be created. This has the name

Active Directory: Domain:

installation_with_parameters_208

NOTE: The Master Key certificate cannot be replaced by your own certificate.

NOTE: The certificates for Master Key mode have an expiry date. However, this is not checked. The certificate thus does not need to be renewed.

CAUTION: If the database is being moved to another server, it is essential that the Master Key certificate is also transferred!

Exporting and importing the certificate​

The section certificates explains how to back up the certificate and link it again.

Netwrix Password Secure Server Encryption Certificate

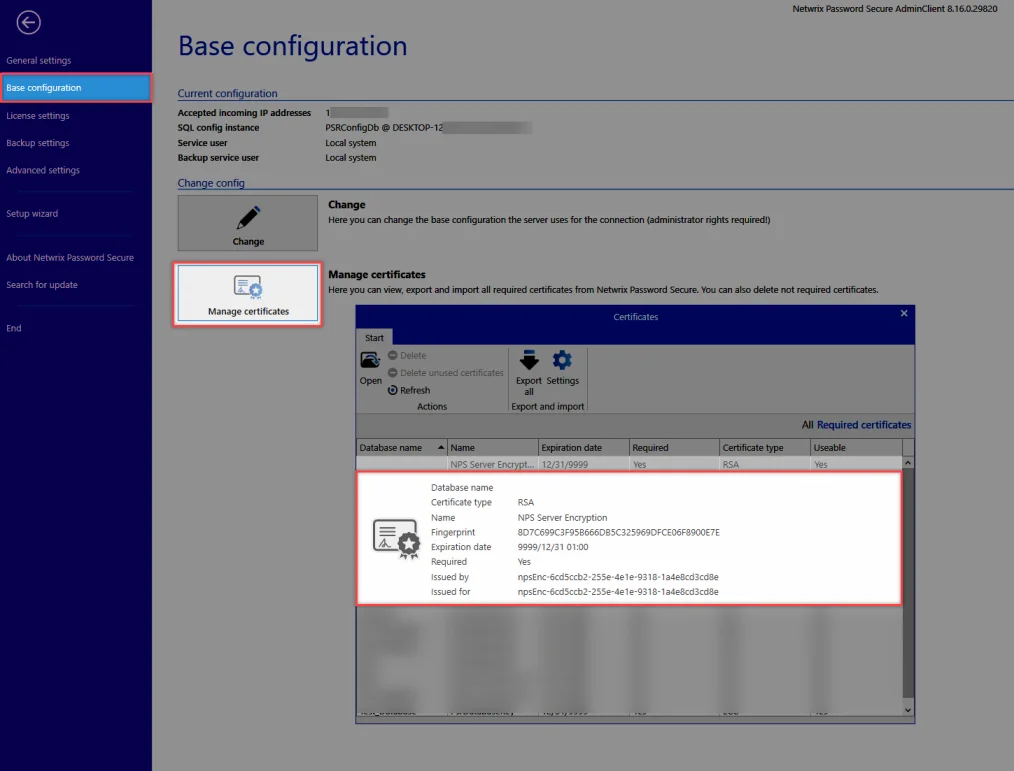

With the update to the version 8.16.0 the Netwrix Password Secure Server Encryption Certificate will be added automatically.

NPS Server Encryption

This certificate is important if you will activate an offline license. In future there will be more features for which this certificate is relevant.

RECOMMENDED: Please export this certificate separately!!!

Password Reset certificates

What is a Netwrix Password Secure certificate?​

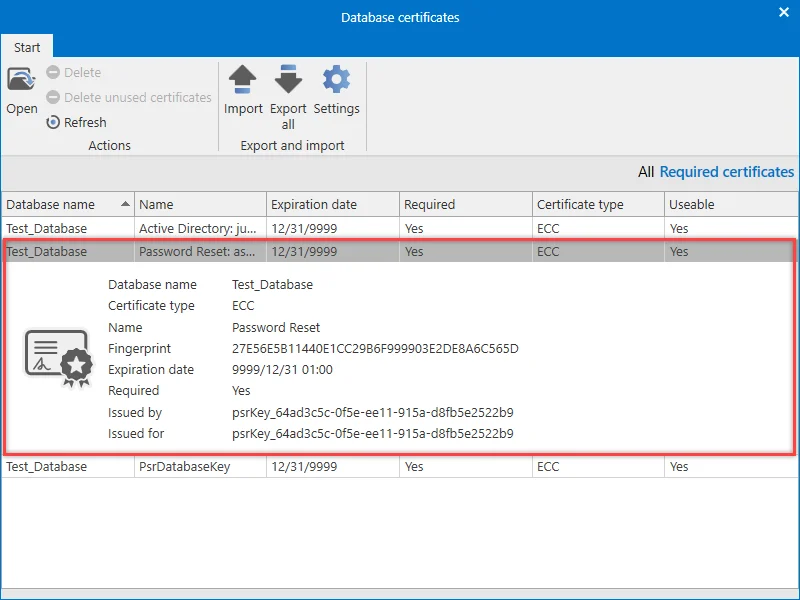

If a Password Reset is created, a corresponding certificate is created. This ensures that the passwords are transferred in encrypted form.

password-reset

NOTE: The Password Reset certificate cannot be replaced by your own certificate.

NOTE: The certificates for the Password Reset have an expiry date. However, this is not checked. The certificate thus does not need to be renewed.

CAUTION: If the database is being moved to another server, it is essential that all Password Reset certificate is also transferred!

Exporting and importing the certificate​

The section Certificatesexplains how to back up the certificate and link it again.

SSL connection certificates

What is an SSL connection certificate?​

The connection between clients and the server is secured via an SSL certificate. The latest encryption standard TLS 1.2 is used here. It is also possible to create a certificate via the server, as well as to use an existing certificate with a CA. All computers on which a client is installed must trust the certificate.

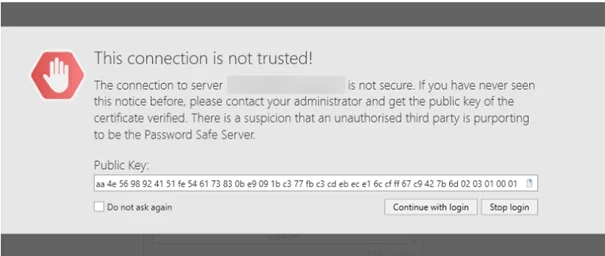

Otherwise, the following message will appear when the client is started:

This connection is not trusted!

The connection to the server is not considered secure.

not_trusted_certificates

NOTE: Windows Server 2012 R2 requires the latest patch level, since it has been delivered with SSL3, and has been extended to include TLS 1.2

CAUTION: The service user creates the databases. A separate certificate is also generated for each database. Therefore, the service user must be a local administrator or a domain administrator, as otherwise they would have no rights to save data in the certificate store.

Structure of certificates​

The following information applies to both the Netwrix Password Secure certificate and also to your own certificates:

Alternative applicant

Communication between the client and server can only take place using the path that is stored in the certificate with the alternative applicant. Therefore, the Netwrix Password Secure certificate stores all IP addresses for the server, as well as the hostname. When creating your own certificate, this information should also be saved under the alternative applicant.

NOTE: All information (including the IP address) are stored as DNS name.

Using the Netwrix Password Secure certificate​

The name of the PSR certificate is PSR8Server. This can be done via the Basic configuration in the AdminConsole. The certificate is saved locally under:

Local computer -> own certificates -> certificates

NOTE: The certificate is valid from its creation up to the year 9999 – and is thus valid almost indefinitely. For this reason, it is not necessary to note any expiry date.

Distributing the Netwrix Password Secure certificate

In order for the certificate to be trusted, it can be exported to the server and then imported to the clients. The following storage location needs to be selected here:

local computer -> trusted root certificate location -> certificates

The certificate can be both rolled out and distributed using group guidelines.

Manually importing the Netwrix Password Secure certificate

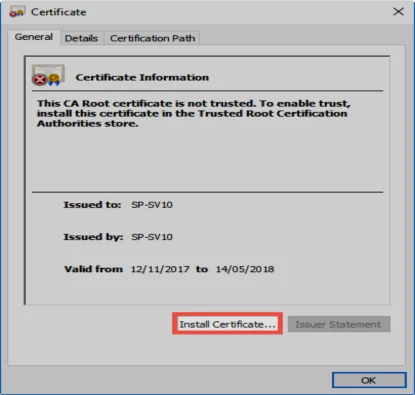

If the Netwrix Password Secure certificate is not rolled out, it is also possible to manually import the certificate. To do this, firstly open the certificate information. In the warning notification, the Show server certificate button is available for this purpose. In the following dialogue, select the option Install certificate…

installation_with_parameters_204_415x395

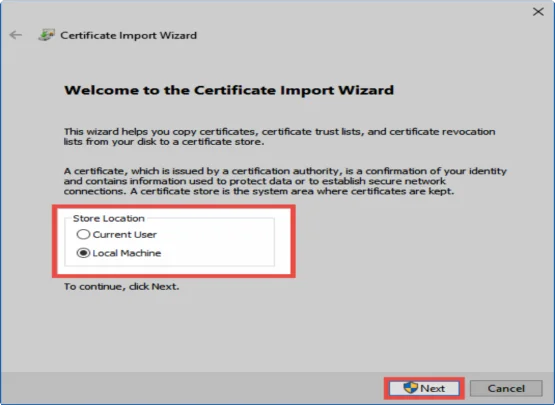

A Certificate import wizard will open in which Local computer should be selected.

installation_with_parameters_205_555x405

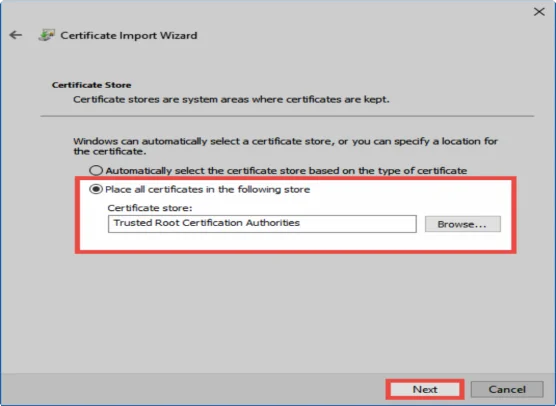

In the next step, the storage location “trusted root certificate location” needs to be manually selected.

installation_with_parameters_206_556x406

Finally, the installation needs to be confirmed once again.

NOTE: The user logged in to the operating system requires rights to create certificates

Using your own certificate​

If a CA already exists, you can also use your own certificate. You can specify this within the Basic configuration. Please note that a server certificate for SSL encryption is used here. The CA must be configured so that all clients trust the certificate. It is necessary to adhere to the certification path.

CAUTION: When configuring, you must ensure that the clients can access the CA lock lists

Wildcard certificates

Wildcard certificates are not supported. In theory, it should be possible to use them but we cannot help with the configuration. You can use wildcard certificates at your own responsibility.
