Duo Hosted SSO

Duo Hosted SSO

Duo Hosted SSO

Overview​

This topic covers integrating Privilege Secure with Duo using a Duo hosted SSO. Please find an article detailing the Privilege Secure SSO terms here: SSO Configuration

Preqrequisites​

Duo service plan with the following:

  • Active Directory (AD) sync configured and synced
  • Single Sign-On enabled
  • Duo Active Directory Authentication Proxy Agent Installed and configured for AD sync and SSO
  • Single Sign-On Authentication Source configured and tested

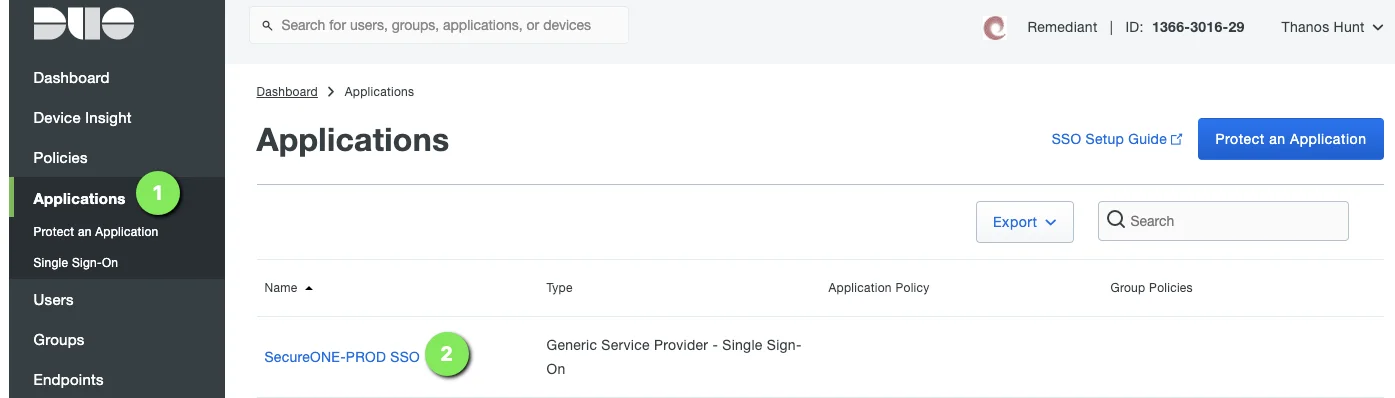

Duo: Create the DUO Application for Privilege Secure​

  • mceclip0.webp

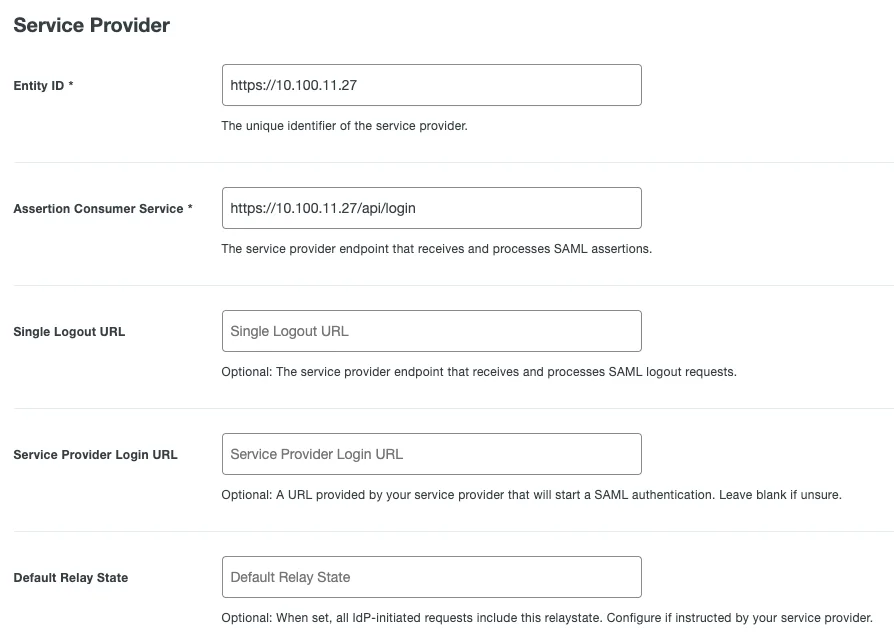

Scroll down to the Service Provider Section; notes:

  • The information below is for example purpose only.  Enter the appropriate information for your environment.

  • https://10.100.11.192 should be replace with your Privilege Secure URL.

  • Entity ID can by any unique string.  We recommend using your Privilege Secure URL.

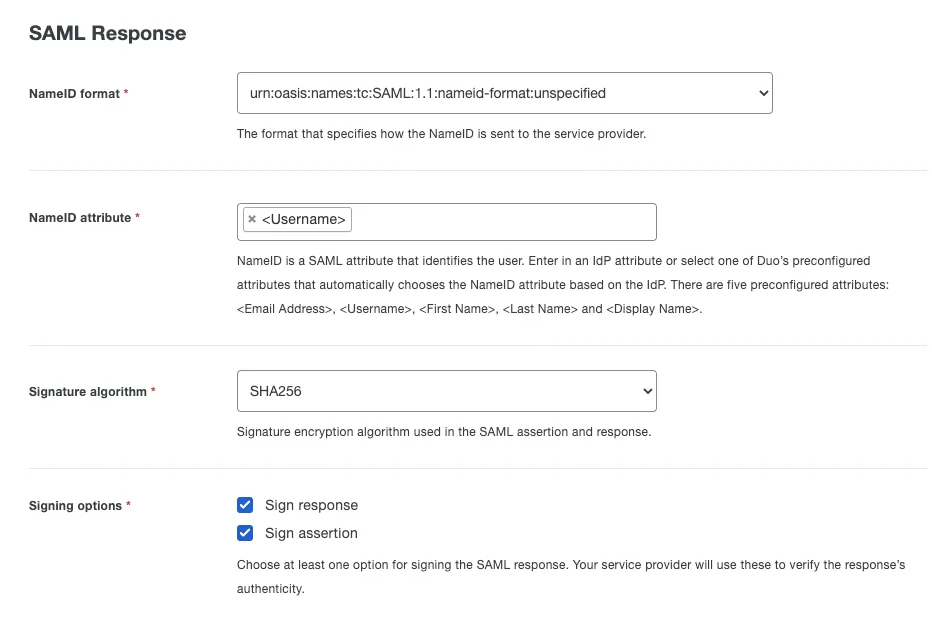

SAML Response Section Notes:

  • The NameID can also be:
    urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified

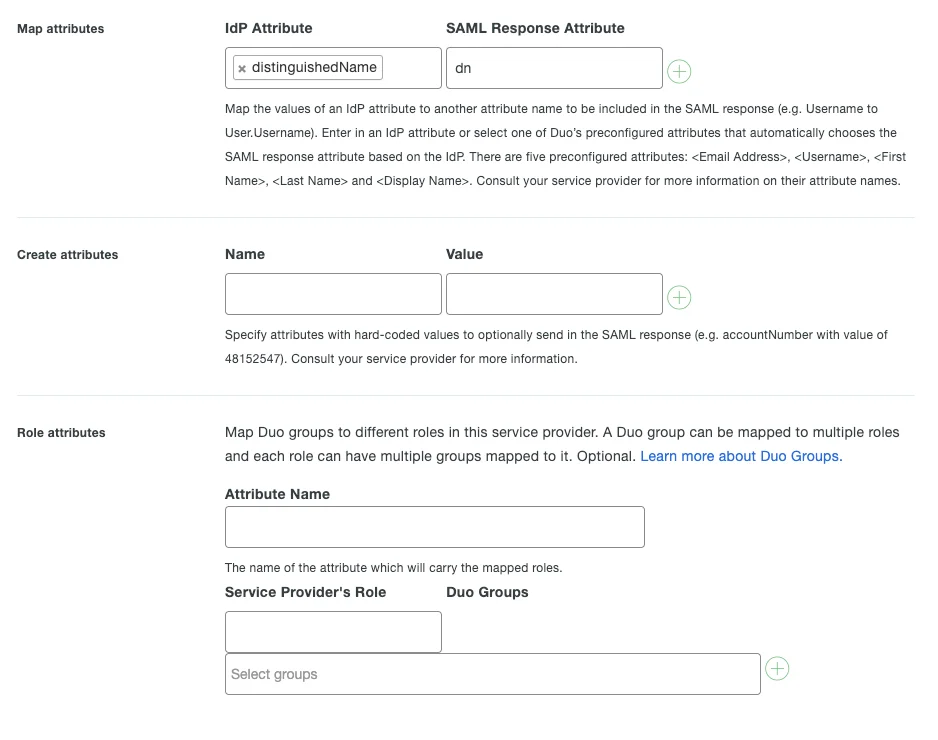

  • The 'idP Attribute' and 'SAML Response Attribute' will need to be manually entered.
  • idP Attribute: distinguishedName
  • SAML Response Attribute: dn



  • The remaining SAML Response section fields can be left blank.
  • The Policy section requires no settings from Privilege Secure, tailor to suit your environment.
  • In the Settings section, we recommend setting an appropriate name, tailor the rest to suit your environment.


  • The Host Whitelisting section requires no settings from Privilege Secure, tailor to suit your environment.
  • Click the [Save] button at the bottom of the page.

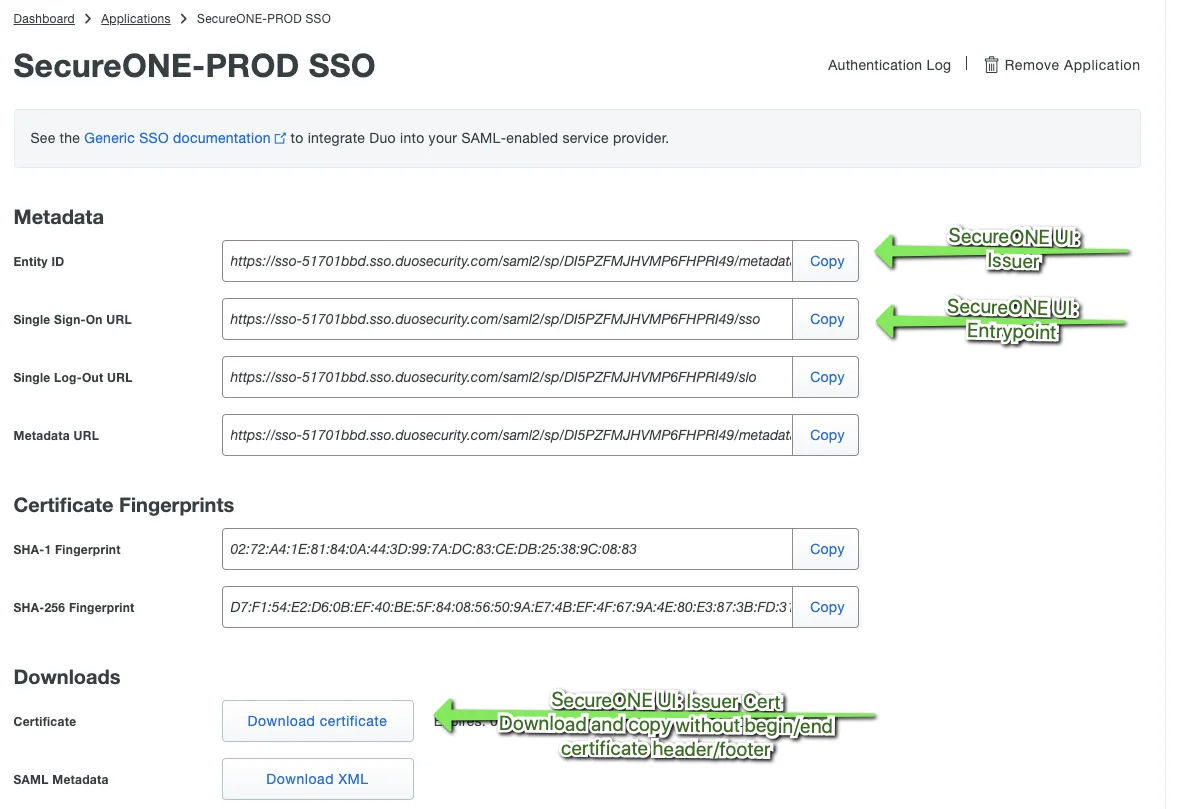

Duo: Retrieve SAML/SSO Information for Privilege Secure​

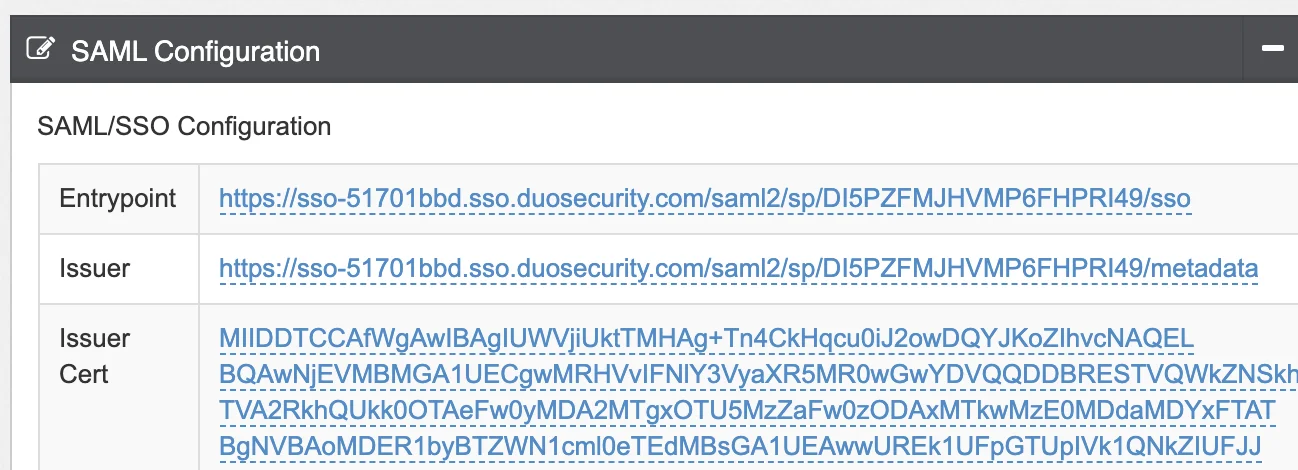

Enter SAML/SSO Information​


Enable SSO in Privilege Secure and Login Example​

At the bottom of the Configure > Server > SAML Configuration Panel, enable or disable SSO when appropriate:


Step 1 – Click SSO Login button to log in via Duo.

Step 2 – *Optional:  To login from Duo first (IdP-initiated), use the Single Sign-On URL provided by Duo.  This is found in the application's "Metadata" section.


Troubleshooting​

If you are using ADFS as an authentication source and receive a "SAML Assertion Not Yet Valid" while trying to log in, please see:  Configure ADFS (Active Directory Federation Services) SSO

Additional Information​

https://duo.com/docs/authproxy-reference

https://duo.com/docs/sso-generic

https://duo.com/docs/sso
