This articles covers integrating Privilege Secure with Okta SSO.

Prerequisites​

Okta: Add distinguishedName Attribute to Okta Users​

If distinguishedName attribute is already configured for Okta users, skip this section.

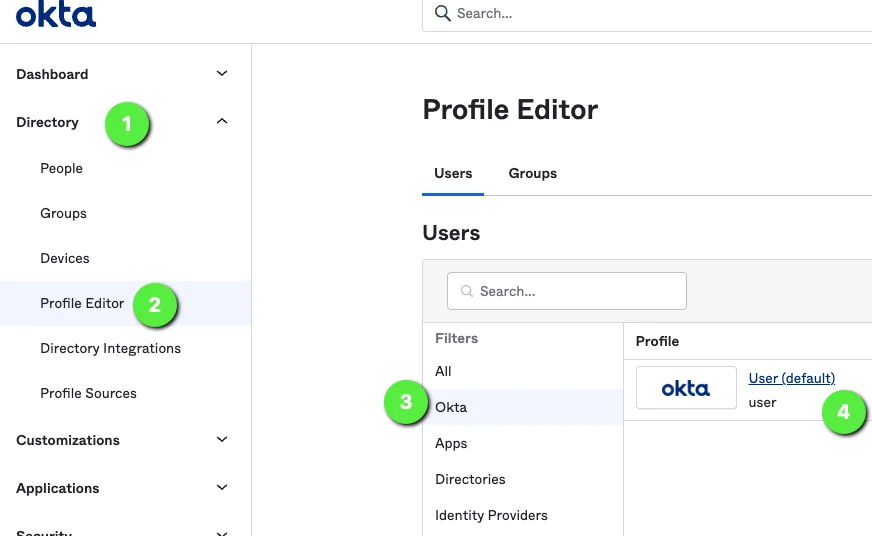

  • Login to the Okta Admin page

  • Go to Directory > Profile Editor

    • Click on Okta > User (default)

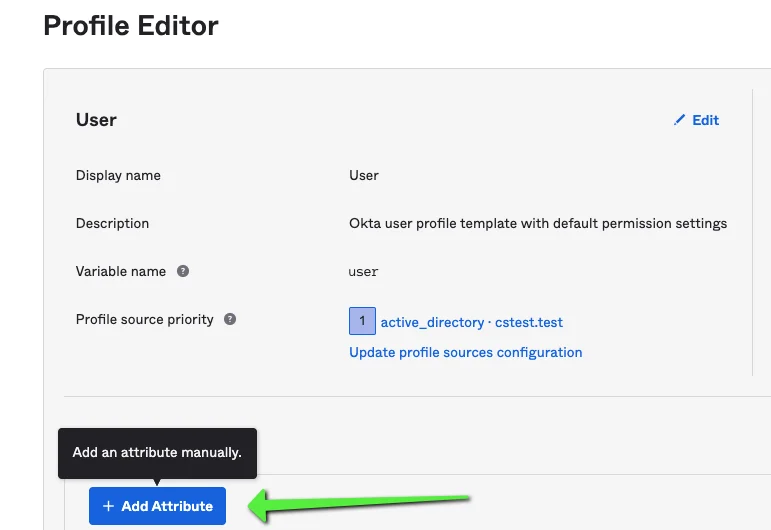

Click on +Add Attribute on the Profile Editor


Click on +Add Attribute on the Profile Editor.

Example settings, adjust as required for environment:

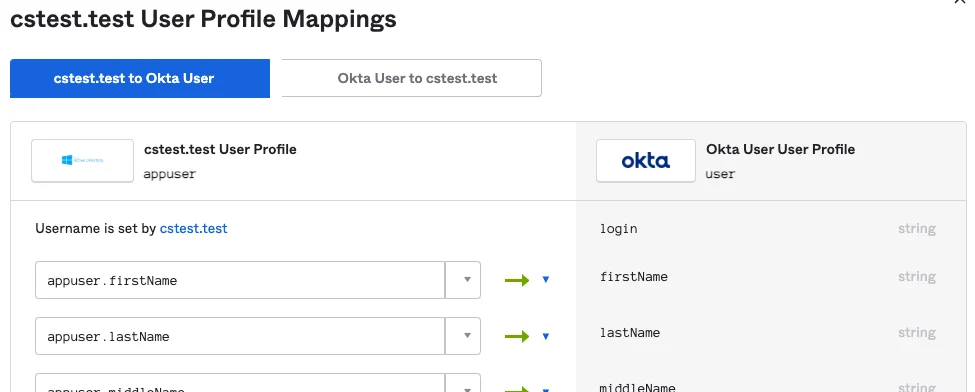

Okta: Active Directory (AD) Mappings​

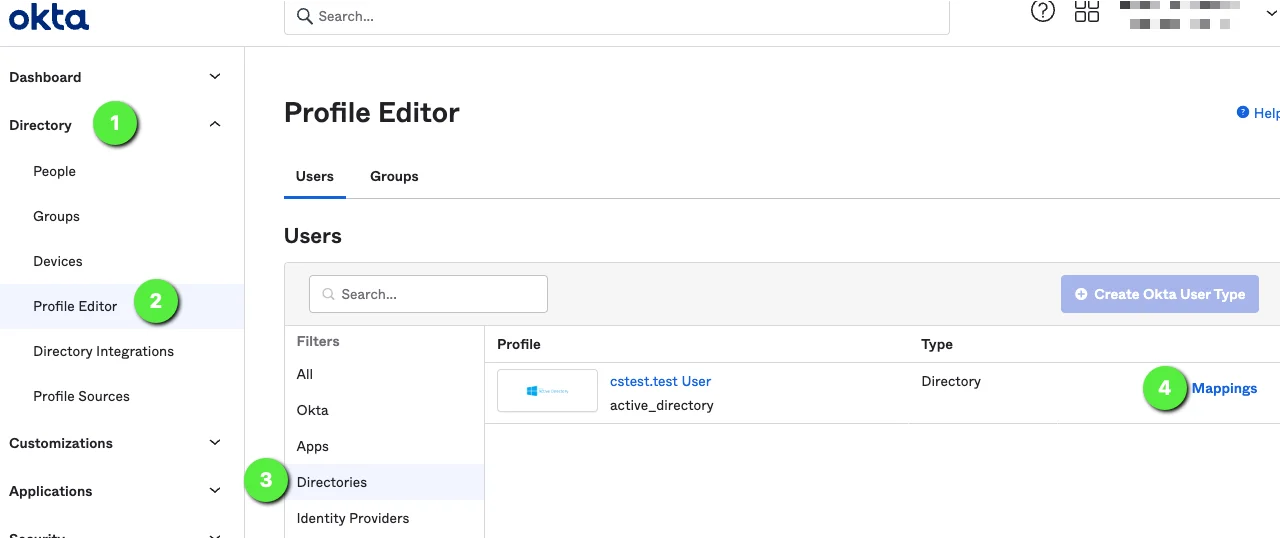

Directory > Profile Editor

On the desired domain, click Mappings


Under ‘<domain> to Okta User’ scroll down and set “appuser.dn” for “dn”


(removed section to compact this image for display)


Save and apply mappings.

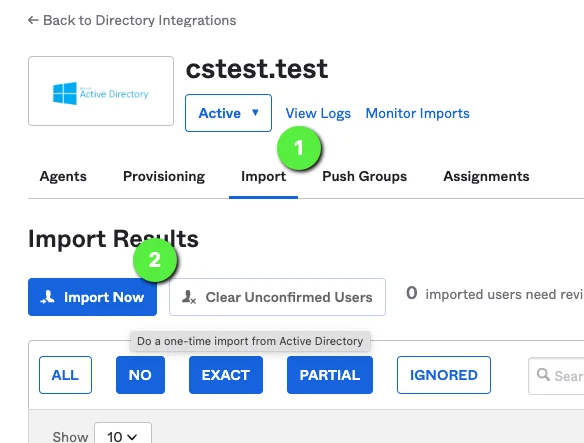

Okta: Import AD Users to Retrieve distinguishedName Attribute​

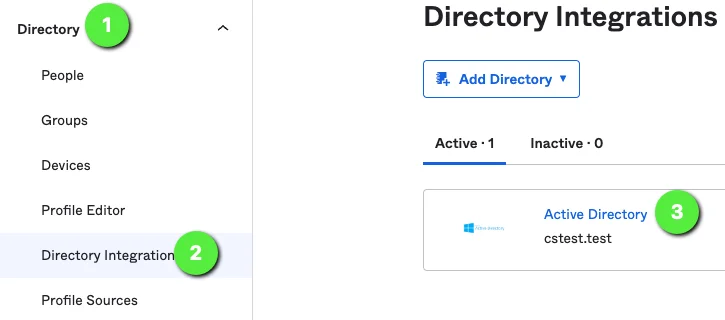

Navigate to directory to import .

  • mceclip7.webp

Click the Import Now button.

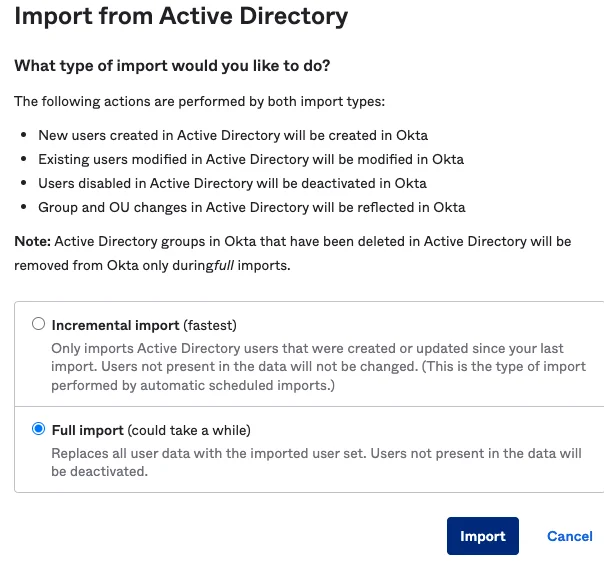

Full Import.

  • mceclip9.webp

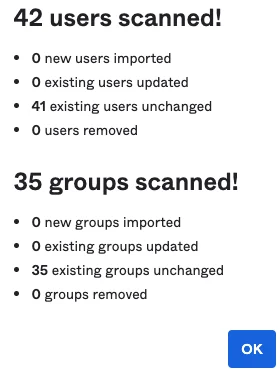

This can take a few minutes to complete, do not refresh page. Example status and results:


  • mceclip18.webp

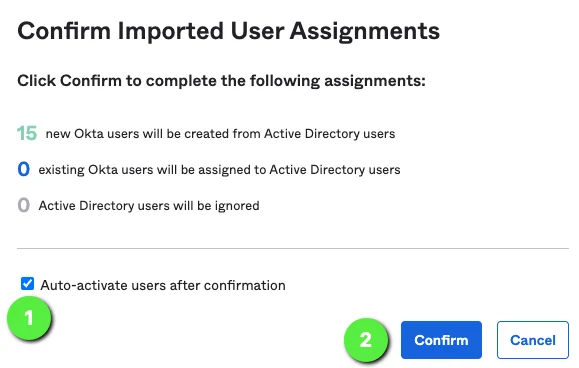

Assign any new users appropriately and confirm, example:

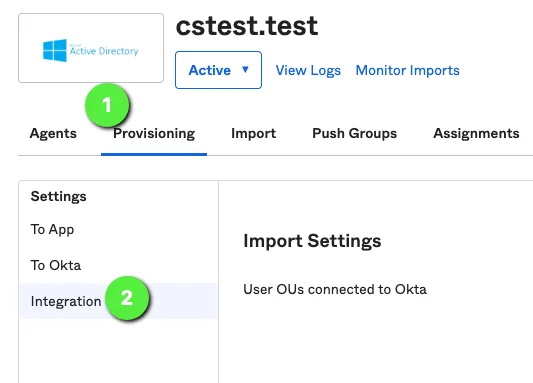

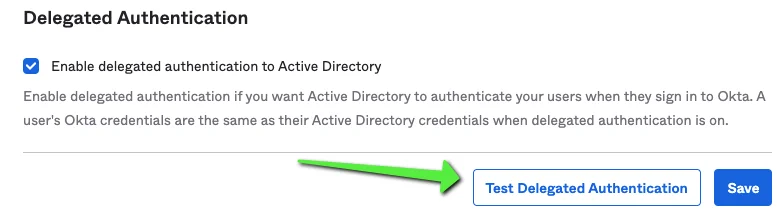

Okta (Optional): Test Authentication with AD Credentials​


Scroll down to bottom

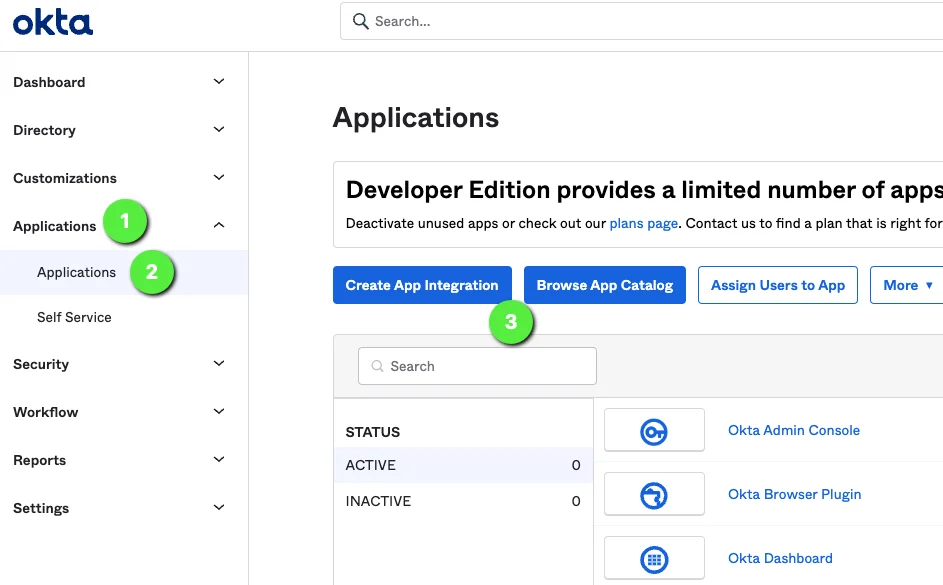

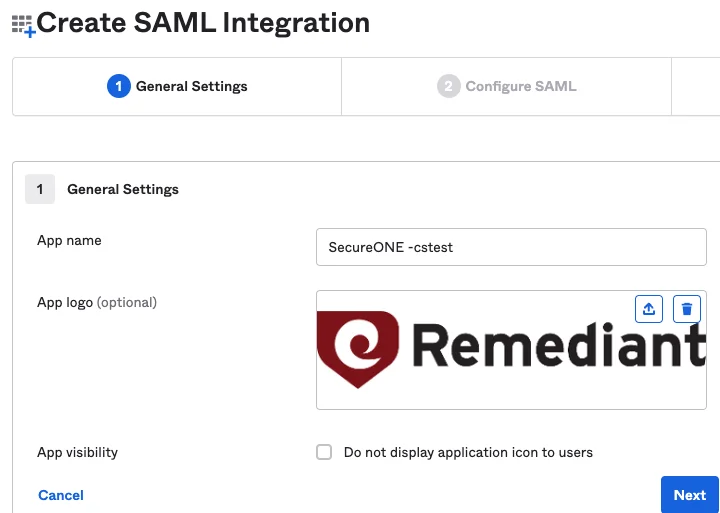

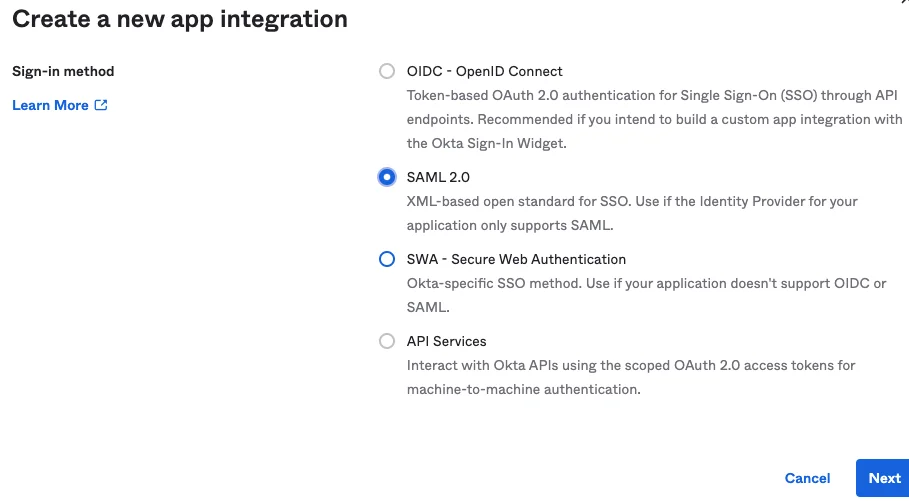

Okta: Add Privilege Secure Application​

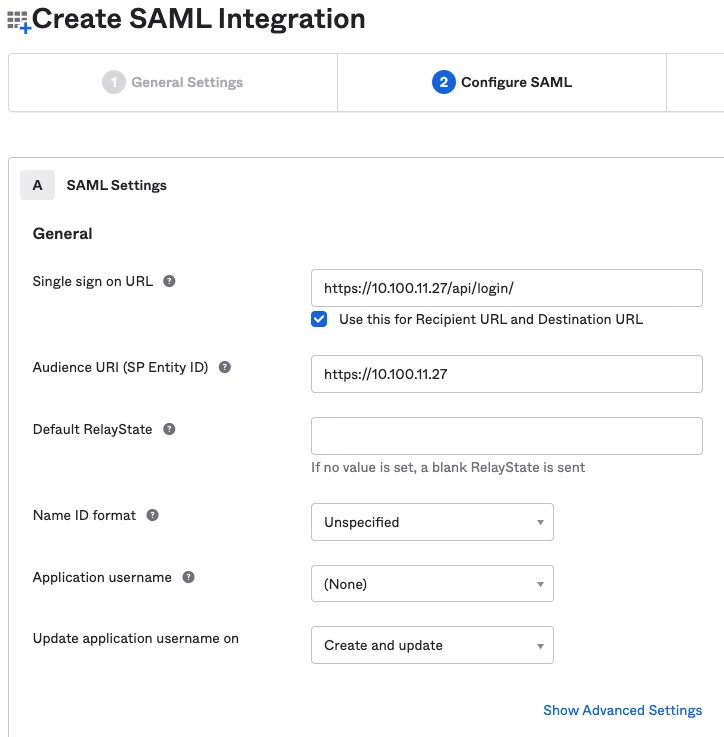

Note in the example below

  • The URL format is: https://<Privilege Secure URL>/api/login/
  • The "Audience URI" should be the base URL only, leave off "/api/login/"


NOTE: An ‘Application username’ may be required by the Okta environment.

  • mceclip26.webp

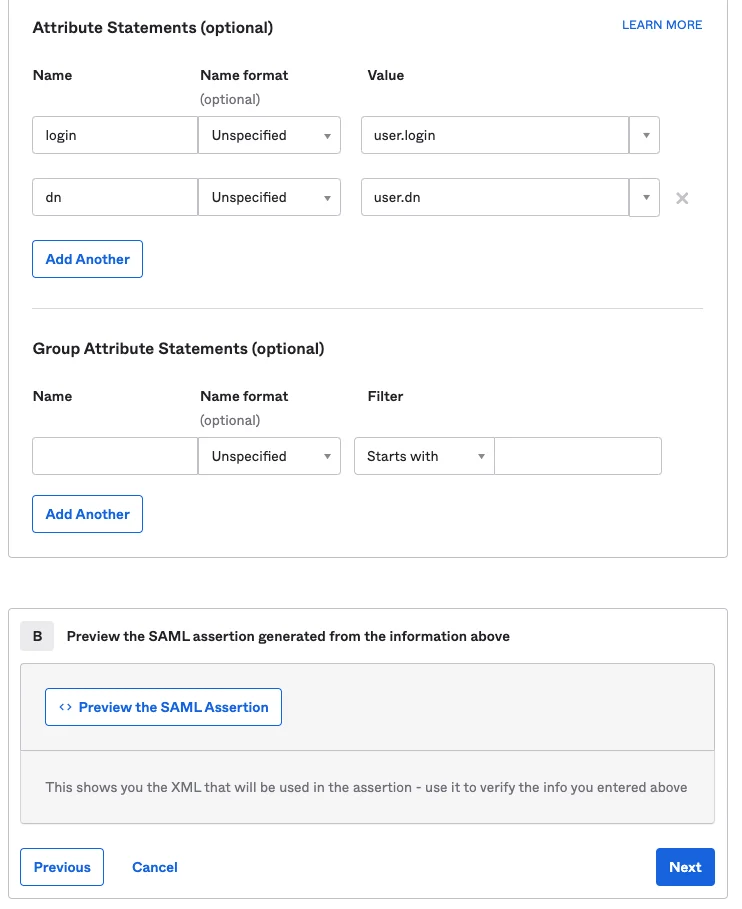

NOTE: user.dn may not appear in drop down list, it can be manually entered.

  • Click Next button to continue.
  • Provide answer to Feedback question and Finish.

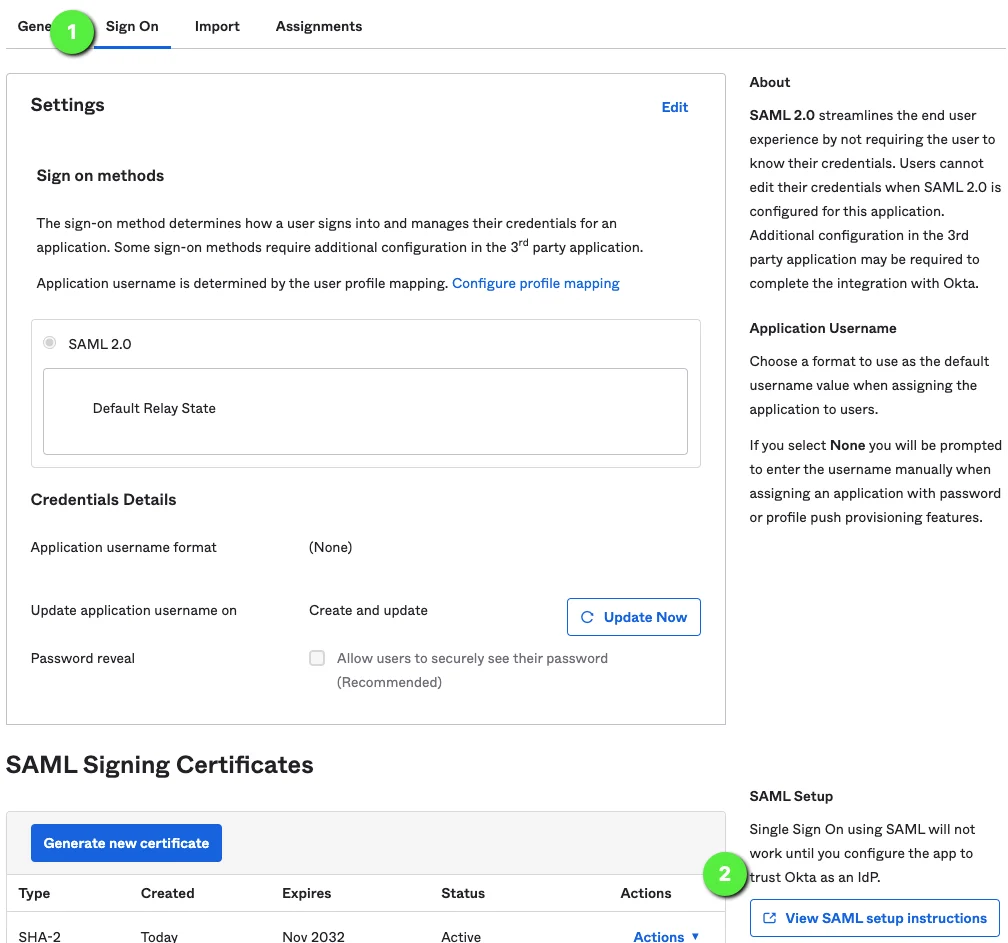

  • Configure Sign On

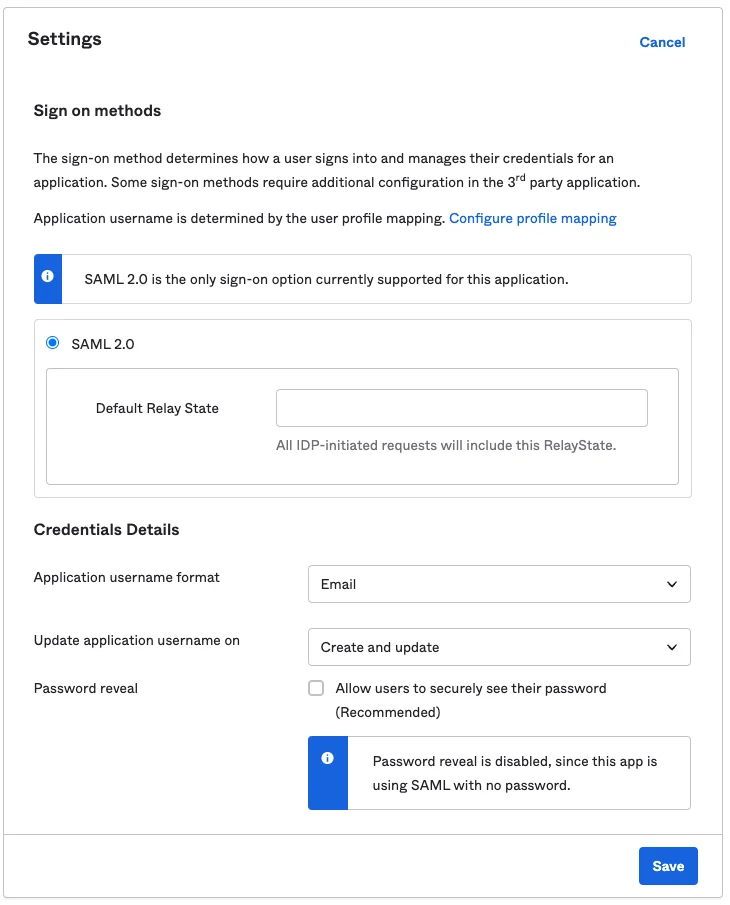

Settings


User authentication policy  Examples uses "Any two factors" ploicy.

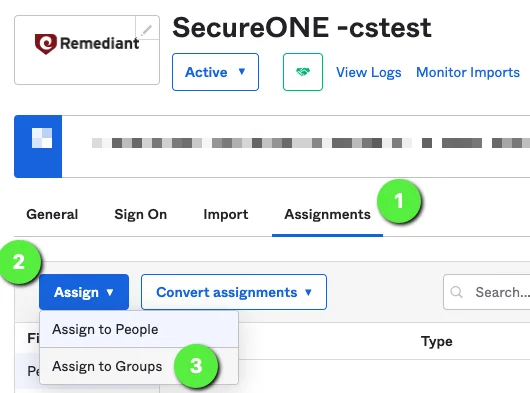

Okta: Assign Okta People/Groups to Privilege Secure Application​

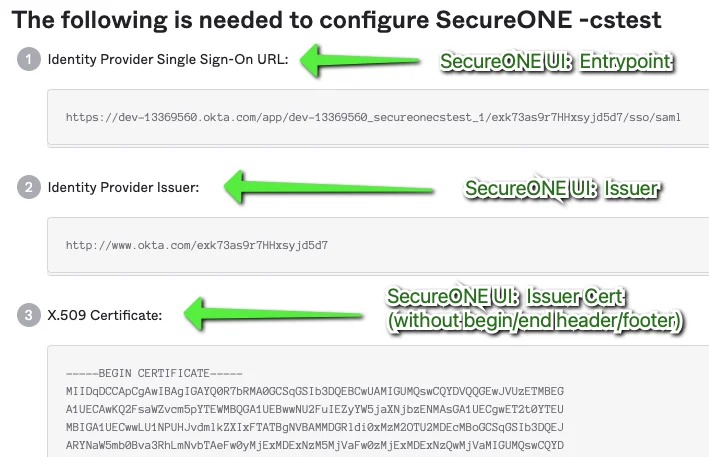

Okta: Retrieve SAML/SSO Information for Privilege Secure​

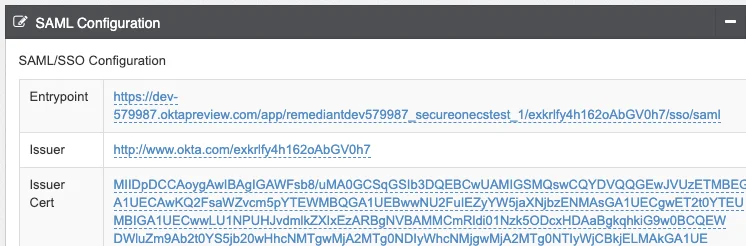

Privilege Secure: Enter SAML/SSO Information​



Enable SSO in Privilege Secure and Login Example​

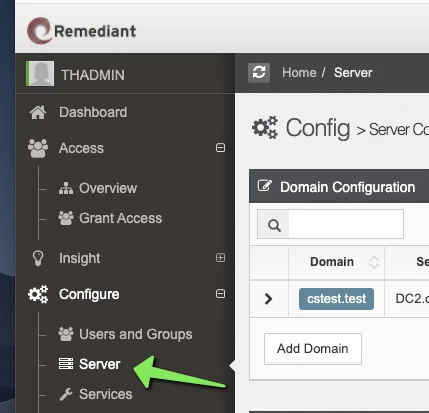

At the bottom of the Configure → Server -> SAML Configuration Panel, enable or disable SSO when appropriate:

  • When logging into Privilege Secure, you will either be automatically directed to Okta for authentication, or presented with a Privilege Secure SSO Login Screen Example:


  • Click [SSO Login] button to log in via Okta.
