Overview

All Microsoft Windows systems have a built-in administrator account named “Administrator”. It cannot be removed. It provides mechanism to log into a system with the local administrator privileges in the event the system is either offline or other administrator accounts are unavailable for any reason. Because it is a local account, password management of this account is not done by the domain.
This exposes several risk factors:

• It is a very powerful account with a known name.
• This account often uses a static password.
• This static password is often common across other systems.
• Storing that account's password without losing, misplacing, or allowing it to be compromised.

Microsoft recommends as a best practice to create an alternate local administrator account and disable the built-in administrator account.

Main Document

Privilege Secures OAM feature provides a simple solution to manage offline access to local computer administrator/root accounts on Windows.
It automates the coordination of:

• Creation of an alternate administrator account.
• Disabling the built-in administrator account.
• Rotation and management of passwords of those accounts.

It provides a range of configuration settings which can be as simple as just enabling a single “Best Practices” configuration, or simply “Manage the Built-in Account”, or configure fine grained settings as desired with a “Custom” strategy.

These settings may be set:

• On the Privilege SecureUI Grant Access page.
• Automatically upon system discover by applying the domain’s default OAM policy settings.
• Via the QuickStart utility.
• Via the Privilege Secure API endpoint.

Strategies

To simplify getting setup, several preset bundles of configuration settings have been grouped into what we are calling a “Strategy”. There are 3 strategies available:  Best Practices, Managed Built-In, and Custom.  These strategies are detailed below.

Best Practices

• This strategy will collectively implement:

• The creation of an alternate administrator account (default name “S1_ALT_ADMIN” unless previously set).

• The rotation and management of the alternate administrator account’s password.

• The rotation and management of the built-in Administrator account’s password.

• The disabling of the built-in Administrator account.

• Revealing OAM account passwords to S1 admins, but not to JITA or persistent non-admin users.

• Note that the name of the alternate administrator account is not strictly part of the “Best Practices”. The default setting is more for convenience. If the name has previously been set by another means, the previous setting will be honored and reused. For example, if the policy is set as a custom strategy with a specified name, and then switched to “Best Practice” the existing name will be left as-is.

Managed Built-in

• This strategy will collectively implement:

• The rotation and management of the built-in Administrator account’s password.

• The enabling of the built-in Administrator account if needed.

• Not utilizing an alternate admin account.

• This strategy has a setting toggle to allow OAM passwords to Privilege Secure users with either JITA or persistent access to the server.

Custom

• This strategy will collectively implement:

• Configuring the alternate Administrator account’s name as fixed or randomized.

• The rotation and management of the alternate administrator account’s password.

• The rotation and management of the built-in Administrator account’s password.

• Whether to leave the built-in Administrator account enabled even if there is an alternate administrator.

• Whether to reveal OAM passwords to JITA or persistent non-admin users.

• The built-in account cannot be disabled unless an alternate administrator account exists.

• It will allow for custom setting of any OAM policy, some combinations are not allowed.

UI - Grant Access Page

As a starting point to understand what options can be set and how the affect the system, we’ll look at the Grant Access page before and after setting the OAM policy. Only Privilege Secure administrators have access to configure these settings.

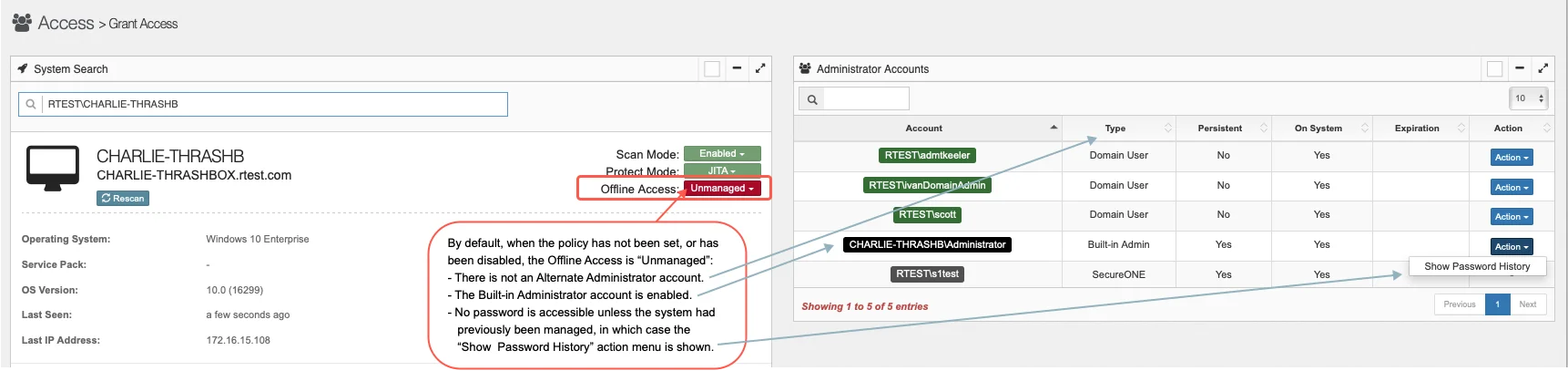

Below is a screenshot when the policy has not yet been applied, or has been set to disabled AKA “Unmanaged”.

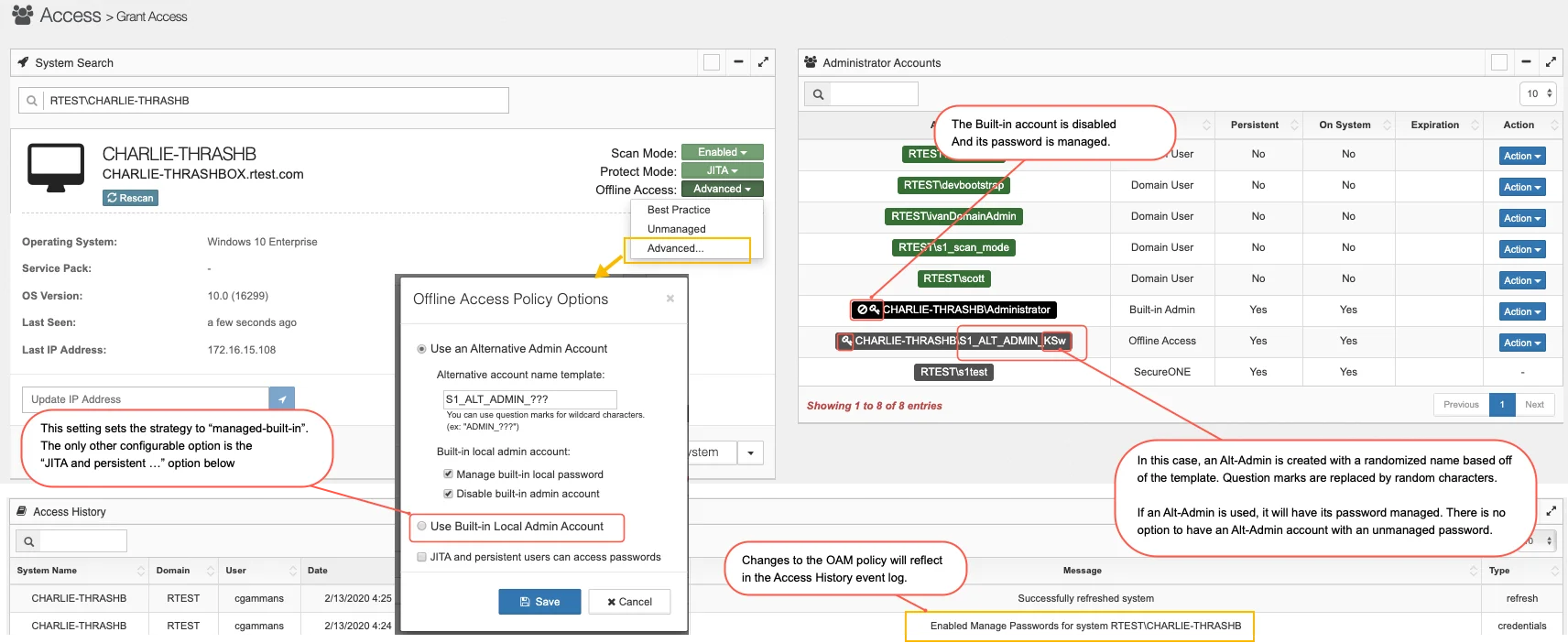

As an example of seeing most of the options in action, the screenshot below show a custom strategy setting by selecting “Advanced...”. In the case shown, this is just “Best Practice” plus the added feature of randomizing the Alt-Admin name.

Note that if the “Best Practice” option is selected, no “Offline Access Policy Options” dialog will be displayed. All options will be set automatically with the exception that any previously set “Alternative account name template” will be reused.
Note also that after setting options a rescan is needed for those changes to reflect on the host system.

Option to allow JIT or Persistent access users to retrieve Local Admin Passwords

By default, only S1 administrators can retrieve the built-in Administrator or alternate admin passwords, but it may be desirable to allow others such as help-desk to have access to log in locally to a system. To allow this, the option “JITA or persistent users can access passwords” option may be selected.

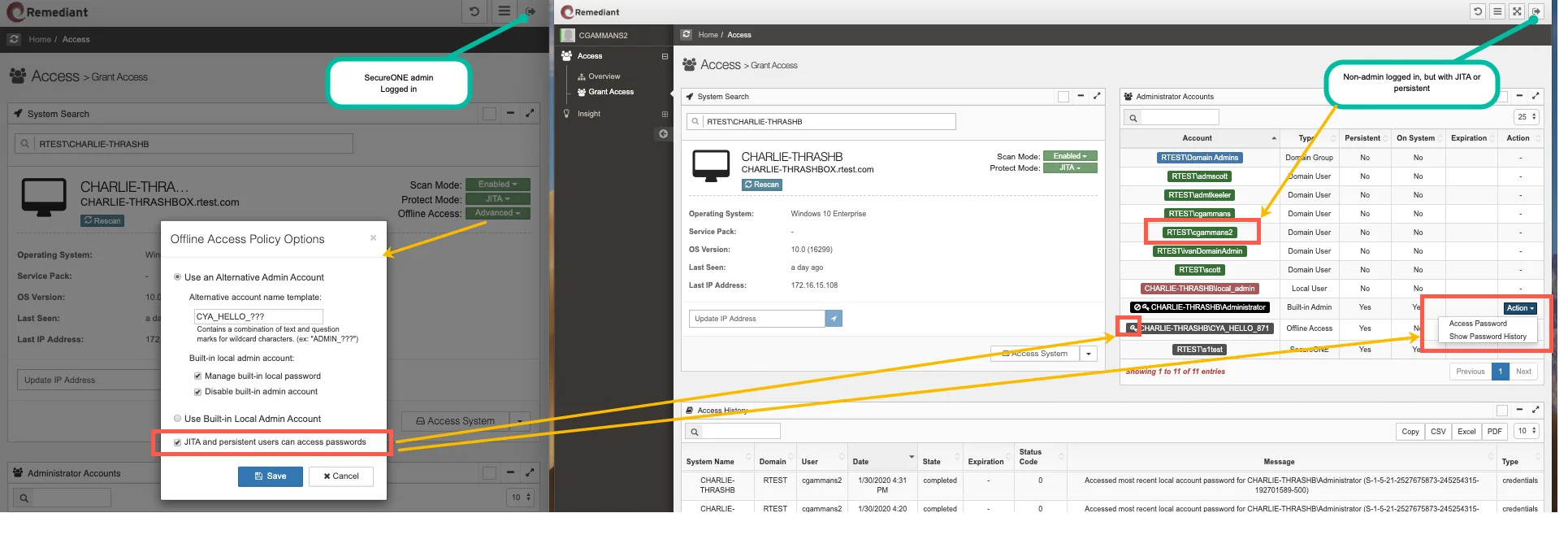

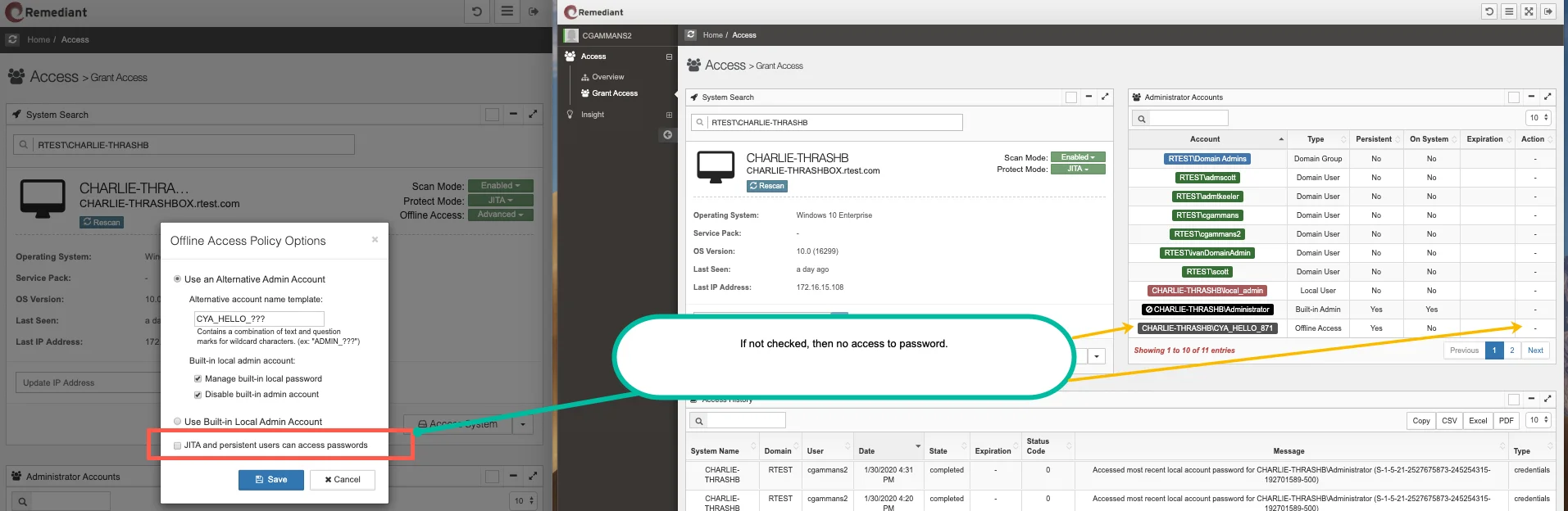

The screenshot below shows two browsers. On the left, a Privilege Secure admin setting that option. On the right, a JITA or persistent non-admin user’s view. When the option is checked, the non-admin user will see “key” icon indicating that a current password is available, and the action menu items to reveal it as well as to access the password history.

When the option is not selected by the administrator, access to the password will no longer exist.

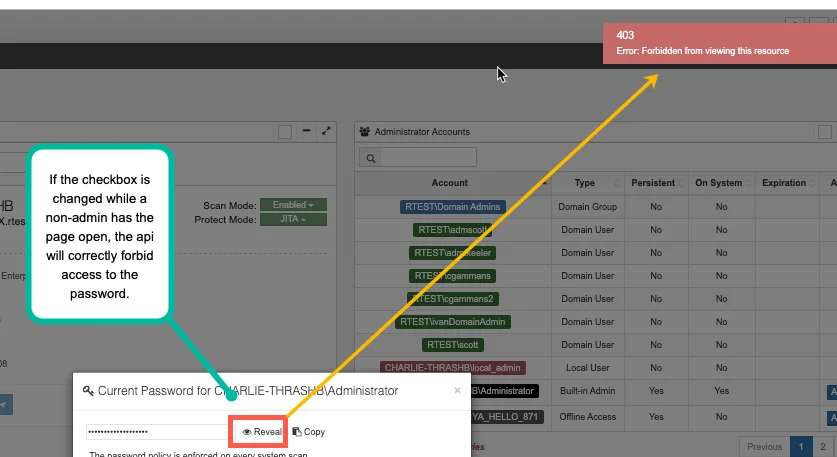

In the event that an S1 administrator deselect that option while a non-admin’s browser is open, the API protects password visibility and returns a “forbidden” error.

UI - Domain Configuration Page

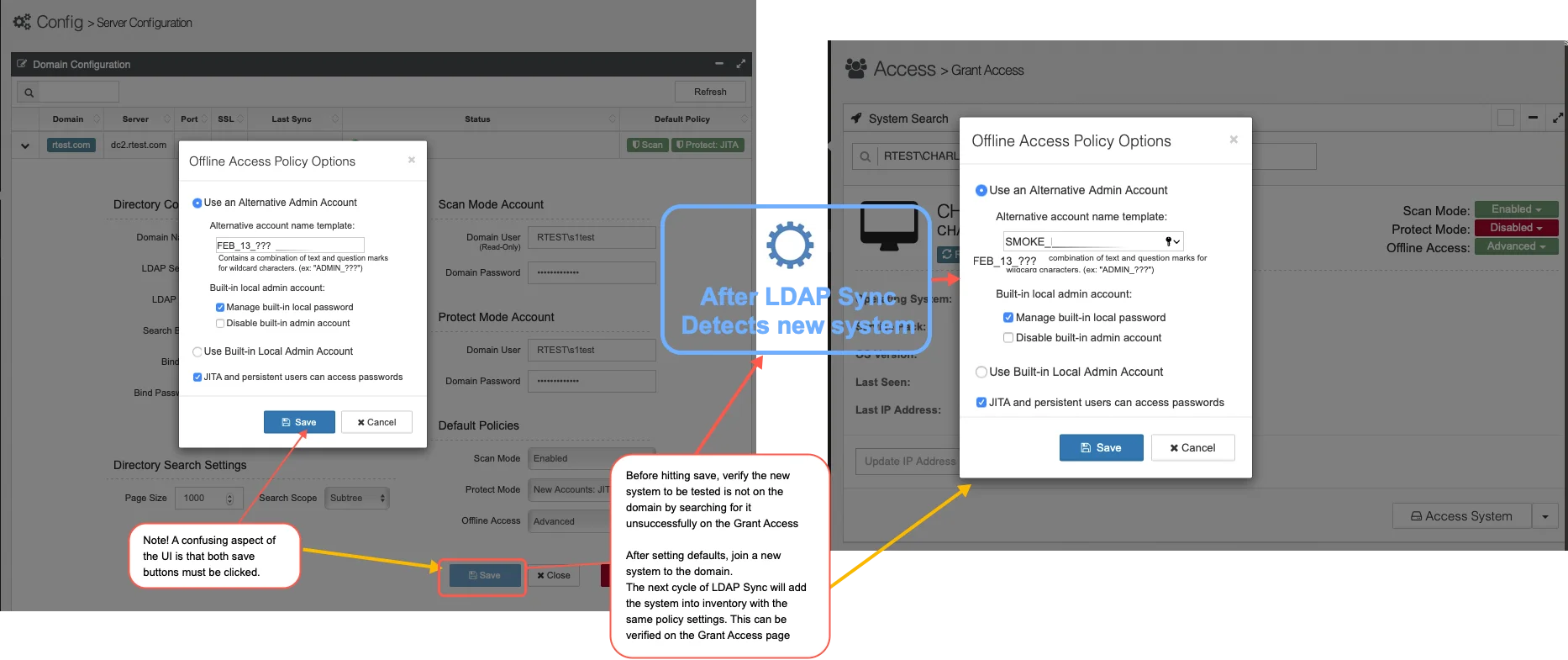

In a very similar process as on the Grant Access page, default settings may be saved so that any newly discovered system will have those policy settings automatically applied

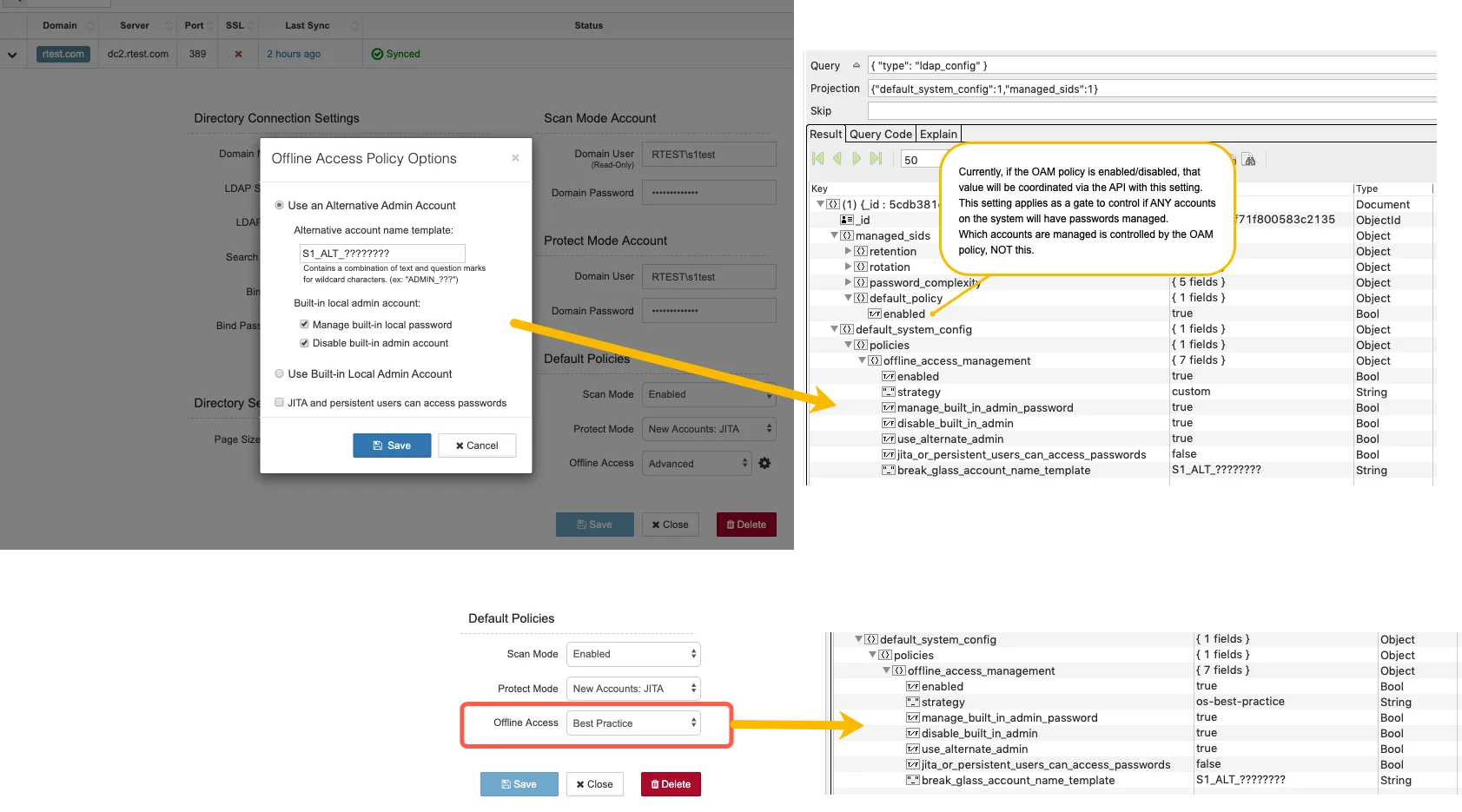

The domain level OAM default policy settings are persisted to the default_system_config.policies.offline_access_management object in the ldap_config collection in the database as shown below. If “Best Practice” is selected, even though the dialog is not displayed, all options will be saves as displayed in the bottom of the image.

QuickStart Utility

The excel sheet Computer Data contains a group of columns which report the system's "Offline Access Management" policy.
Offline Access Management Enabled will report TRUE/FALSE if Privilege Secure is managing the built-in administrator account and/or an alternate administrator account.

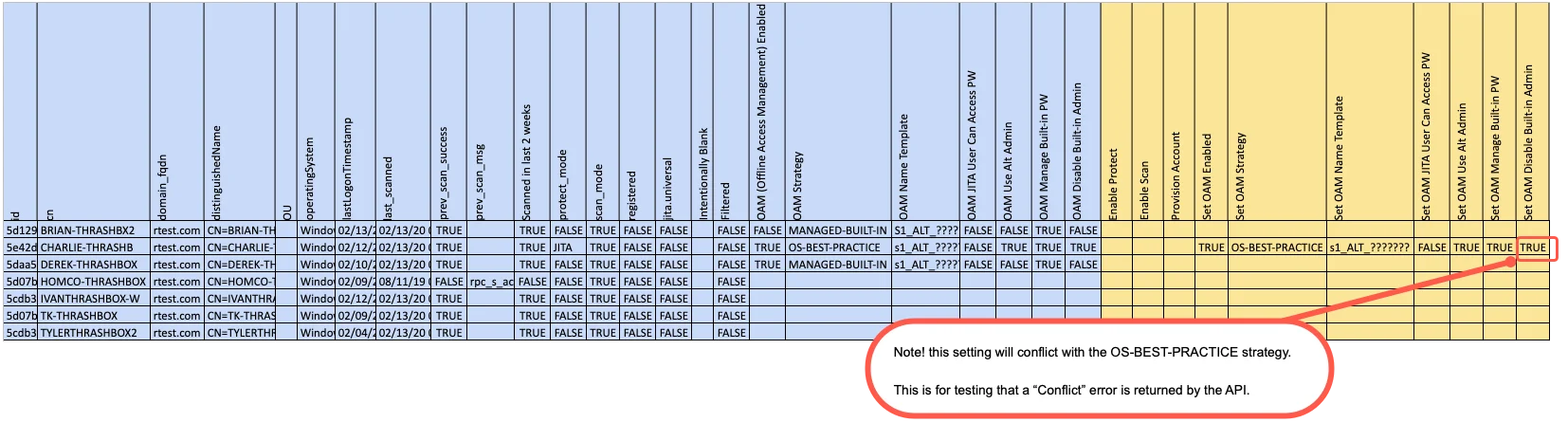

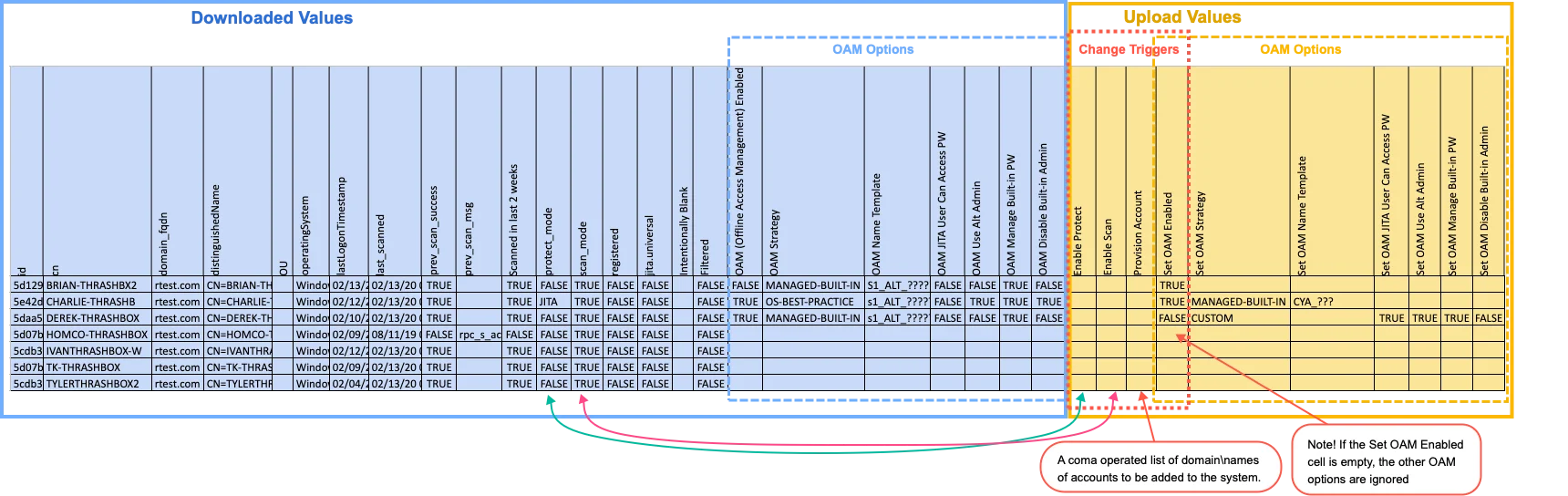

The image below shows the column structure of the excel spreadsheet that has been exported. The data in blue is the system data that had been exported, while the data in yellow has been entered by a user to be imported to Privilege Secure.

The following policy options will be displayed for the computer's OAM Policy if it exists.

Column Name	Value
OAM (Offline Access Management) Enabled	TRUE,FALSE
OAM Strategy	OS-BEST-PRACTICE, MANAGED-BUILT-IN, CUSTOM
OAM Name Template	Template an alpha-numeric with ? wildcards (ex: S1ALT???)
OAM JITA User Can Access PW	TRUE,FALSE
OAM Use Alt Admin	TRUE,FALSE
OAM Manage Built-in PW	TRUE,FALSE
OAM Disable Built-in Admin	TRUE,FALSE

If you wish to change any of this policy's options, set the Set OAM Enabled to TRUE/FALSE as appropriate. The Strategy may be entered with any of following values: OS-BEST-PRACTICE, MANAGED-BUILT-IN, CUSTOM. If left blank it will default to the current value, or to OS-BEST-PRACTICE if no previous policy was set.
The OAM Name Template accepts a string with wildcards expressed by question marks (?). If left blank it will default to the current value, or to S1_ALT_ADMIN.

The remaining options may be included, but must not conflict with the defined strategy.
Default Settings by Strategy

Option \ Strategy	OS-BEST-PRACTICE	MANAGED-BUILT-IN	CUSTOM
JITA User Can Access PW	FALSE	FALSE	FALSE
Use Alt Admin	TRUE	FALSE	required
OAM Manage Built-in PW	TRUE	TRUE	required
Disable Built-in Admin	TRUE	FALSE	required

If an invalid combination of settings is entered, the API end-point will protect against sending invalid options.

For example, if the following settings are entered:

• Set OAM Enabled = TRUE
• Set OAM Strategy = OS-BEST-PRACTICE
• Set OAM Disable Built-in Admin = FALSE <--- This will conflict with Best Practices

Attempting to import the file will cause the following error to be returned by the API.

Response Body:

"name":"UnprocessableEntityError","message":"One or more conflict with named strategy: [disable_built_in_admin]"

API

Policies can be set using the Privilege Secure API.
The screenshot below shows access using Postman to test access to the API end-point.

Querying the database by OAM policy settings

When the OAM policy is set, even though it may be possible to simply set a Strategy option of say 'os-best-practice' or 'managed-built-in', the default fine-grained policy options will be persisted to the database so that querying the data is simple.

All of the fine-grained functionality across both the ‘Built-in Admin’ and the ‘Alternate Admin’ (which may not even exist at the time of setting the policy) are consolidated into options under single policy config.policies.offline_access_management.

Regardless of the options that are set, setting the enabled property false will disable the entire policy.

For example, to find all systems that will disable the Windows built-in Administrator account we would look at the systems where the OAM policy is enabled and has the disable_built_in_admin option true.

• db.getCollection("ldap_store").find( { "config.policies.offline_access_management.enabled": true, "config.policies.offline_access_management.disable_built_in_admin": true })

It is important to note that while an OAM policy can simply be set to just strategy:"os-best-practice", it is also possible to set strategy:"custom" with ALL of the same best practice options. So, querying by options is preferable to querying by strategy alone. The following correctly retrieves the systems which follow best practices.

• db.getCollection("ldap_store").find( { "config.policies.offline_access_management.enabled": true, "config.policies.offline_access_management.use_alternate_admin": true, "config.policies.offline_access_management.disable_built_in_admin": true, "config.policies.offline_access_management.manage_built_in_admin_password": true, })

The query below may miss custom settings which effectively still follow best practices.

• db.getCollection("ldap_store").find( { "config.policies.offline_access_management.enabled": true, "config.policies.offline_access_management.strategy": "os-best-practice" })

Password Retention, Rotation and Complexity

Offline Access uses the pre-existing “RID 500” configuration values for password retention, rotation and complexity:

• Retention:  90 days
• Rotation: 30 days
• Complexity:
  • • Minimum Length: 12
    • Minimum Digits: 3
    • Minimum Uppercase: 3
    • Minimum Special Characters: 3
    • Exclude chars: <none>
• Password Rotation After Reveal: First scan after 1 hour of being revealed (version 2.2 on)

These settings can be overridden in the database if required.

Rotation of Passwords

From version 2.2 onward additional control over password rotation has been included to Privilege Secure. Once a password that is being managed by Privilege Secure (RID500 or alternate administrator) is revealed it will be rotated on the first scan after one hour. There is no user intervention required for this functionality. The password can also be requested to be rotated on the next scan.

Scanner Service

The scanner service will enforce the OAM policy during its regular scan cycle, or when a rescan is requested by the UI. For the policy to be fully enforced, the the OAM policy must be enabled, Scan Mode must be enabled, and Protect Mode must not be disabled.
If the Protect Mode policy is disabled, only password rotation will be performed, but the creation of the alternate administrator account and disabling of the built-in Administrator account will not be allowed.
The first task of enforcing the policy is to create an alternate administrator account if needed. If one already exists, the scanner will ensure that it has not been renamed on the host system If it has been renamed, that account will be deleted and a new one with the correct name will be recreated. When the account is created, it will immediately have its password created and managed.
The second step is to ensure that the built-in administrator account is enabled or disabled as configured.
If the Alternate administrator account name setting has been changed, the scanner will remove any previous alternate administrator account that is not longer in us. This will fully remove that user from the system, not just remove them from the administrators group.
Passwords of the alternate and built-in Administrator accounts will then be rotated as needed.

Password Rotation Configuration

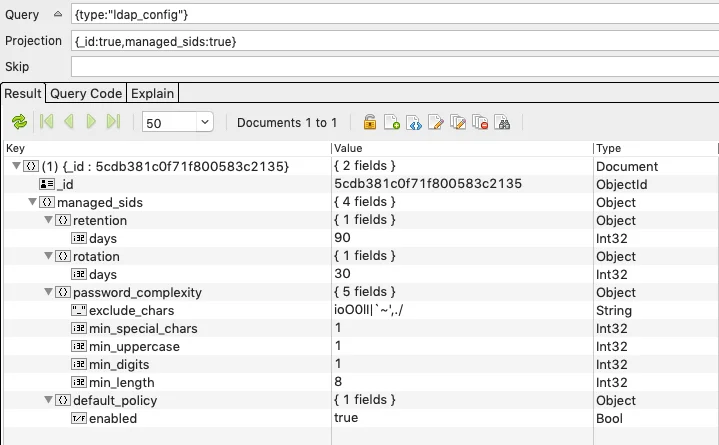

Optional configuration settings for controlling password rotation are retrieved from the mechanisms listed below in the specified order of precedence. There is no direct user interface provided. These values are read at the beginning of the scan or worker cycle for a system. If the settings are configured in the database, a server restart is not needed. If settings are via environment variables, a restart of the service would be required to take effect.

• The discovery_config collection’s managed_sids document in the database
• Environment variables
• Default values

If the database contains a managed_sids entry in the ldap_config record in the discovery_config collection, then any specified value will take precedence.

If a database entry is not specified for any value, then the following environment variables will be checked. If neither a database value nor an environment variable is specified, the default value will be used.

Environment Variable Nam	Default Value	Notes
EXPIRY_MINUTES_AFTER_ACCESS	60
RID_500_ROTATION_DAYS	30
RID_500_RETENTION_DAYS	90
RID_500_PW_MIN_LENGTH	12
RID_500_PW_MIN_DIGITS	3
RID_500_PW_MIN_UPPERCASE	3
RID_500_PW_MIN_SPECIAL_CHARS	3	Punctuation chars (note single quote is excluded): !"#$%&()*+-:;<=>?@[\]^_{}, | . /"~'  Need to comment out these characters: ( ) [ ] { } " ' Example, to comment out a [ you would use:  \]
RID_500_PW_EXCLUDE_CHARS	""

Note that some of these settings are minimum values, not maximum values. It can have any number greater than or equal to setting. Keep in mind it that other criteria must be maintained too.
For example:

• If I set RID_500_PW_MIN_LENGTH=10,
• and set RID_500_PW_MIN_UPPERCASE=10,
• and all the other MINs to 0, then I'll end up with a purely uppercase password 10 characters long.
• But If I also set RID_500_PW_MIN_DIGITS=1, then I'll end up with a password of length 11. That being 10 to satisfy the min uppercase and 1 to satisfy the min digits.

If in the case above we had set RID_500_PW_MIN_LENGTH=20, then 11 chars would be restricted to the uppercase and digits requirement shown, and the remaining 9 could be any alphanumeric plus punctuation minus the excluded characters.
The resulting password length will be the greater of:

• RID_500_PW_MIN_LENGTH,
• or (RID_500_PW_MIN_DIGITS + RID_500_PW_MIN_UPPERCASE + RID_500_PW_MIN_SPECIAL_CHARS)

An error would occur if the configuration settings are not able to meet the specified requirements. For example, if RID_500_PW_EXCLUDE_CHARS=“0123456789” and RID_500_PW_MIN_DIGITS=2, then the exception “Cannot meet minimum requirements of 2 digit characters” would be raised.

Password Rotation Schedule

There are several mechanisms that can trigger a password rotation:

• when password management for an administrator is enabled for the first time
• n number of days after its previous rotation as configured above (RID_500_ROTATION_DAYS)
• n number of minutes after the password has been reveal to a user (EXPIRY_MINUTES_AFTER_ACCESS)
• or, on demand via the Grant Access page as shown below. This requires a Rescan to perform the process right away.

Logging

When the OAM policy is enabled via the API it will log a message of the following format:

{    "name": "api",  "message": "Enabled Manage Passwords for system {DOMAIN_NETBIOS}\\{CN}",    "category": "endpoint-enablement",  "type": "credentials",  "targetSystem": {...},  "user": {...},  ...}

Upon the next scan, the background services of either the scanner or worker will enforce the policy and log the following:

INFO: successfully created empty managed_sids entry user: {CN}, sid: {ALT-ADMIN-NAME}\{ALT-ADMIN-SID}INFO: Enforce create_if_missing policies: create account by name if not exists for user {ALT-ADMIN-NAME}INFO: Enforce enablement policy for local account {ALT-ADMIN-NAME}. Change required=False, value=TrueINFO: Enforce enablement policy for local account Administrator. Change required=True, value=FalseINFO: system {CN} local passwords are managedINFO: applying local password policy for domain: rtest.com, sid: {CN}\{BUILT-IN-ADMIN-SID}INFO: successfully applied password history retention policy: domain: rtest.com, sid: {CN}\{BUILT-IN-ADMIN-SID}INFO: applying local password policy for domain: rtest.com, sid: {CN}\{ALT-ADMIN-SID}INFO: forcing reset of password for domain: rtest.com, sid: {CN}\{ALT-ADMIN-SID}INFO: successfully forced reset of password for domain: rtest.com, sid: {CN}\{ALT-ADMIN-SID}INFO: successfully applied password history retention policy: domain: rtest.com, sid: {CN}\{ALT-ADMIN-SID}

After disabling OAM:

{    "name": "api",  "message": "Enabled Manage Passwords for system {DOMAIN_NETBIOS}\\{CN}",   ...}

The background service will re-enable the built-in admin and remove the alternate admin and log the following:

INFO: Enforce enablement policy for local account Administrator. Change required=True, value=TrueINFO: Enforce delete_if_not_break_glass policy for user {ALT-ADMIN-NAME}

If the password is accessed via the API, the following will be logged:

{  "name": "api",    "category": "password-history",    "target": {    "system_name": {CN},        "computer_id": ...,        "admin": {      "admin_sid": {SID},            "admin_account_name": "{CN}\\{ACCOUNT-NAME}",            "password_history_id": ...,            "is_most_recent_password": true,            "_id": ...        },        "_id": ...    },    "user": {...},    "message": "Accessed most recent local account password for {CN}\\{ACCOUNT-NAME} ({SID})",    "type": "credentials"  ...}

If a password rotation is request, the api will log:

{    "name": "api",  "message": "Password rotation requested for {CN}\\{ACCOUNT-NAME} ({SID})",    "category": "password-history",  "type": "credentials",  "targetSystem": {...},  "user": {...},  ...}
